LF60-10 and LF60-20 LED Outdoor Lamp with Motion Sensor
User Guide
Congratulations on your purchase of our Design LED Floodlight. The instruction here below will walk you through the basics of installing the LED Floodlight. This Design LED Floodlight is designed and developed to bring Comfort and Safety in and or around your home.

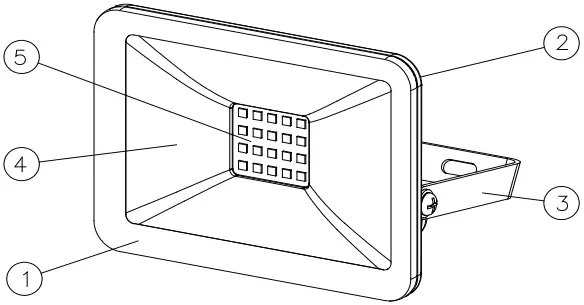

ELRO DESIGN LED FLOODLIGHT 10 – 20 Wa
- Hardened glass (frosted)
- Aluminum housing
- Mounting bracket
- Reflector (plastic)
- LED module
SAFETY INSTRUCTION
Important: Before installing, read these operating instructions and take the necessary safety precautions. Always turn off the power from the mains you start, And do not install it outside in rainy weather! In case of doubt, install the Floodlight LED by a qualified specialist. Caution, risk of electric shock. When Floodlight is opened, expires the warranty.

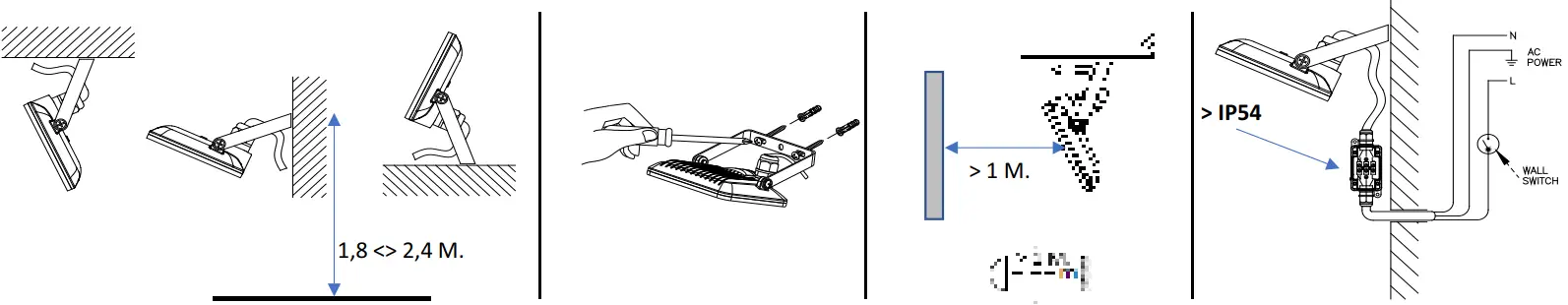

Installation
Warning: Turn off the power first! Insert a switch between the power supply and the Led Floodlight. Use outside of an IP54 mounting box.
DO NOT disassemble the pre-installed cable, but use it to connect the Floodlight LED. Connect the brown wire to the (recommended)
SPECIFICATIONS
| Power | AC 220V-240V, 50Hz | Color Temperature | 5600K ± 250K |
| Power Cord | H05RN-F, 3G, 0,75 mm² x 90 cm | Beam Angle | 100° |
| Light Loa | 10W LF60-10-W(white) LF60-10-B(black) | Color rendering | ＞ 18,000 (Hrs) |
| 20W LF60-20-W(white) LF60-20-B(black) | Life Span (hours) | Class I | |
| Working Temperature | -20°C ~ 40°C / 95%RH max | Protection Class | IP54 |
| Storage Temperature | -20°C ~ 60°C | Protection Degree | Outdoors & Indoor Use |
| Mounting Height | Recommended 1.8 ~ 2.4m | Application | EEI 0.2 |
| Size/Weight | Viral 90° | EEI Stage | CE ( EMC/LVD ) RoHS ERP |
| Swivel angle | 10 Wa: 12 x 9 cm / 300gr. | 20 Wa: 16 x 12 cm / 470gr. | Cerficate | > 70 |
| Lumen (lm) | ＞1600 lm LF60-20-W(white) LF60-20-B(black) | ||
| ＞ 800 lm LF60-10-W(white) LF60-10-B(black) |
