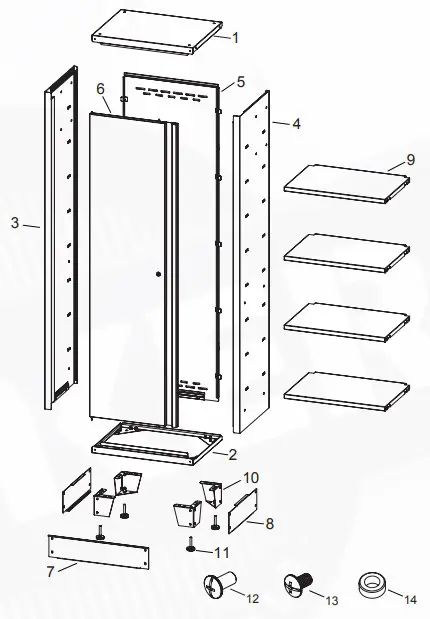

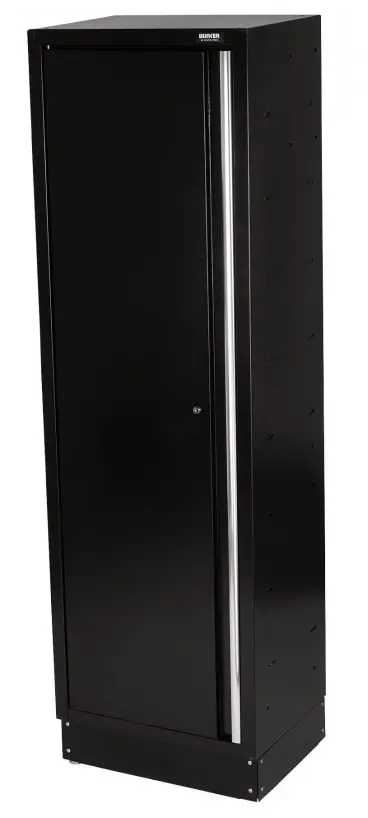

Assembly Instruction

To make assembly easier we recommend having two persons aid one another in assembly.

CABINET CONNECTION

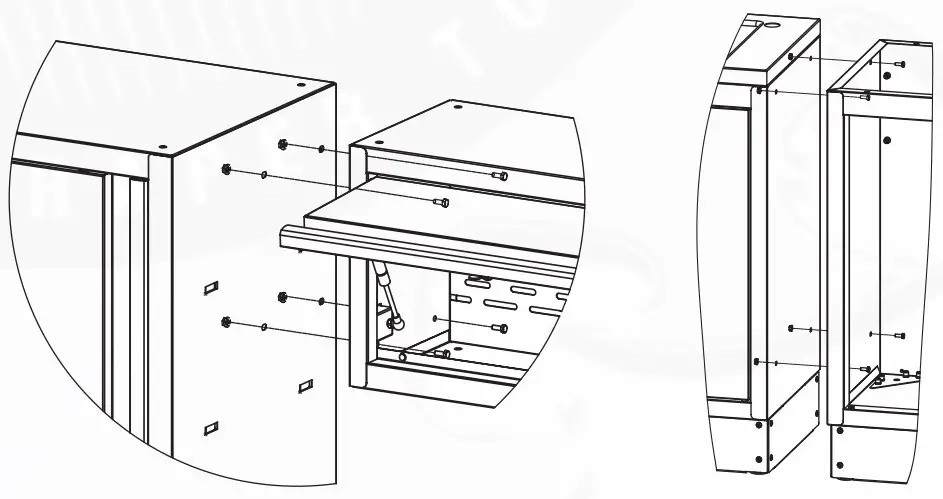

Connect the side panels of two cabinets with (4) bolt M6 x 16mm and nut M6, and tighten with phillips screwdriver (not included).

Note: remove the drawers and open the doors before cabinet connection.

STEP 1:

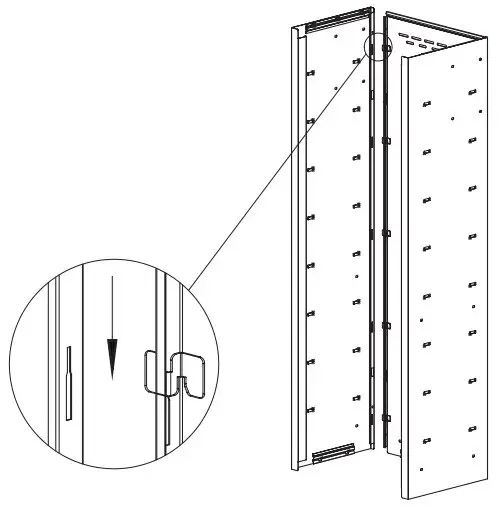

Attach back panel (item 5) to left and right side panels (item 3 and 4) by engaging the holes on the left and right side panels with the corresponding hooks on back panel.

STEP 2:

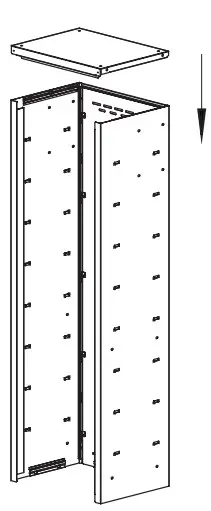

Insert the top panel (item 1) into the side and back panels. Lay the cabinet flat on the ground if necessary

STEP 3:

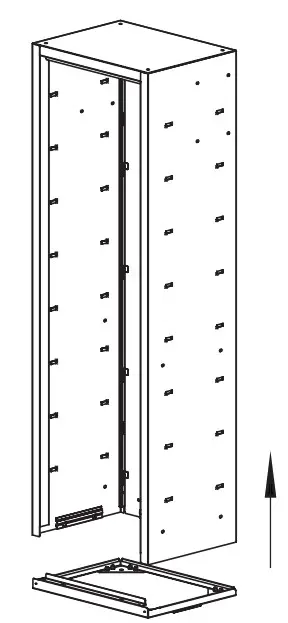

Insert the bottom panel (item 2) into the side and back panels. Lay the cabinet flat on the ground if necessary.

STEP 4:

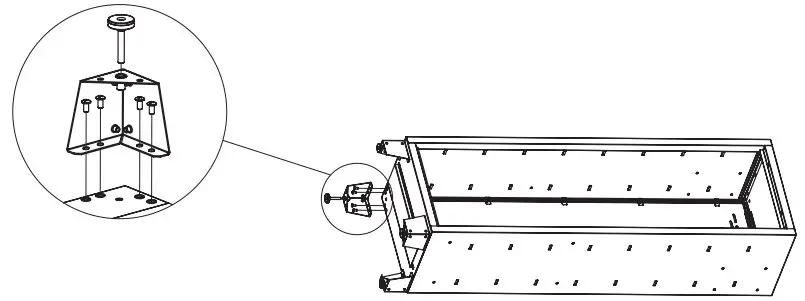

Use packaging material to protect the unit. Attach the leg leveller (item 11) to foot holder (item 10). Insert bolt M8 x 16mm (item 12) through the foot holder into the cabinet

STEP 5:

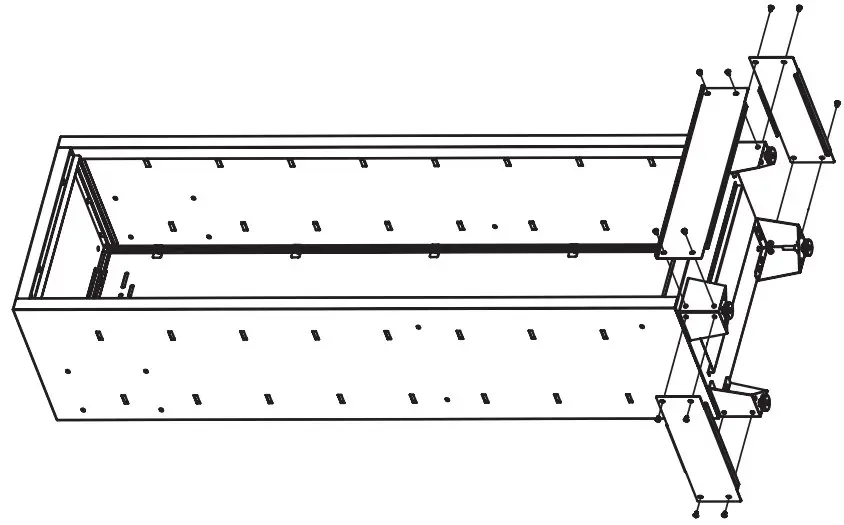

Attach the front and side kick panel (item 7 and 8) to foot holder with bolt M6 x 16mm (item 13).

STEP 6:
Obliquely place the four shelf panels (item 9) in the cabinet, secure the shlef panels at four desired heights by carefully inserting the shelf edges into the flanges on left and right side panels. Make sure each shelf is leve

STEP 7:
Place the flat washer (item 14) into the hinge pin, algin the hinge pin on the bottom of the door with the hole on bottom panel, slowly and carefully insert the hinge pin into the hole. Algin the hinge pin on the top of the door with the hole on top panel, slowly and carefully insert the hinge pin into the hole.
\
