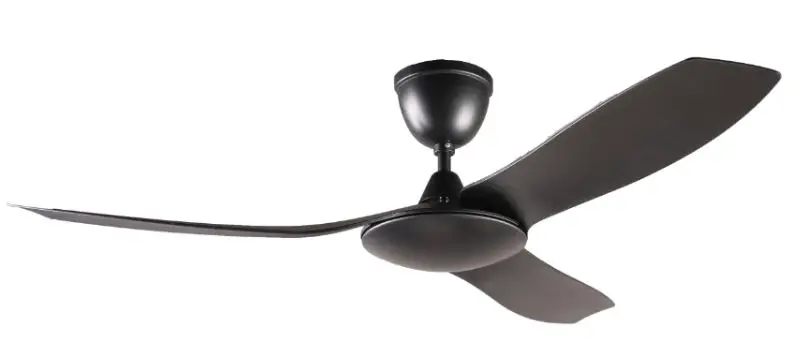

Rubine RCF-FABIO52-3B 52 Inch 3 Blade 12 Speed Turbo Ceiling Fan
Rubine RCF-FABIO52-3B 52 Inch 3 Blade 12 Speed Turbo Ceiling Fan

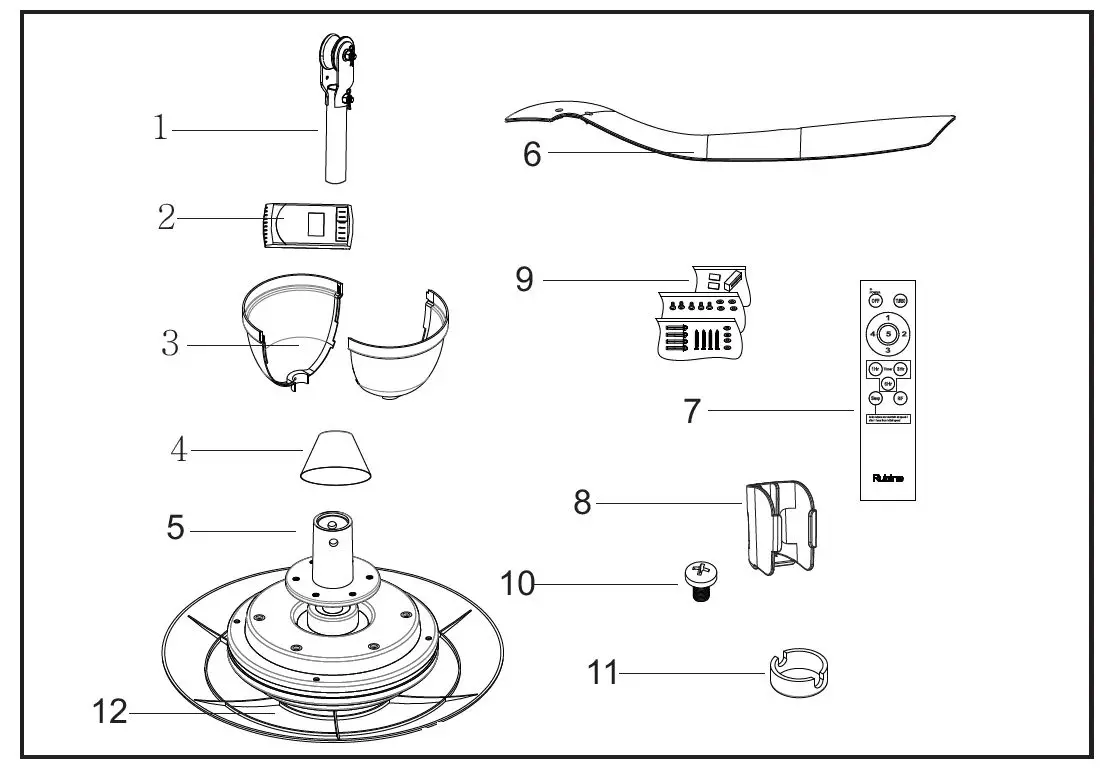

CEILING FAN
| NO | PART | QUANTITY | NO | PART | QUANTITY
|
| 1 | HANGING TUBE | x 1 | 8 | REMOTE CONTROL HOLDER | x 1 |
| 2 | RECEIVER | x 1 | 9 | SCREW PACK | x 1 set |
| 3 | TOP CANOPY(2 pcs) | x 1 | 10 | BLADE SCREWS | x 6 |
| 4 | COUPLING COVER | x 1 | 11 | CANOPY LOCKING RING | x 1 |
| 5 | FAN MOTOR / MOTOR | x 1 | 12 | FAN HOUSING | x 1 |
| 6 | FAN BLADES | x 3 | |||
| 7 | RADIOFREQUENCY TRANSMITTER | x 1 | |||
| FAN SIZE | VOLTAGE
| MAX FAN POWER | MAX SPEED | PRODUCT WEIGHT
| CARTON WEIGHT
|
| 52″ FABIO | 240V | 38W | 240RPM+-10% | 5.6KG | 6.5KG |
WARNING
TO ENSURE YOUR PERSONAL SAFETY, PLEASE READ THROUGH THE INSTRUCTION MANUAL BEFORE OPERATING THE PRODUCT.
- Do not bend the blade during installation, blade balancing of fan cleaning.
- To prevent accidents, the power switch must be OFF and electrical wiring must be disconnected before ceiling fan installation, dismantling, maintenance or cleaning.
- Ceiling fan installation and electrical wiring must be done by a qualified technician in accordance with all applicable codes and air conditioning engineers (ASHRAE) or the local qualified authorities.
- Be cautious when drilling the wall to avoid damaging electrical wiring and other hidden parts.
- The ceiling fan must be hooked to the concrete ceiling. Do not install the ceiling fan on the plaster ceiling or any types of drywall ceilings. During ceiling fan installation, all Screws must be tightened at all allocated parts.
SAFETY GUIDELINES
- Please do not install the ceiling fan in high humidity areas.
- Distance between fan blades and ground must be at least 2.5 meters and above.
- Do not touch the ceiling fan while it is operating.
- For safety purposes, all electrical connections must conform to the national electrical safety codes and earth wire must be installed correctly (suitable for a power supply of 240VAC/50Hz).
- Do not modify the ceiling fan and only use the parts supplied accordingly.
- Do not attempt to repair the fan. Always liaise with Our authorized service agent if the fan is not functioning well.
- This appliance is not intended for use by persons (including children) with a lack of sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- The ceiling fan electrical wiring must be installed with means for disconnection incorporated in the fixed wiring provided and a safety cable must be installed according to the steps in this manual.
INSTALLATION PROCEDURES

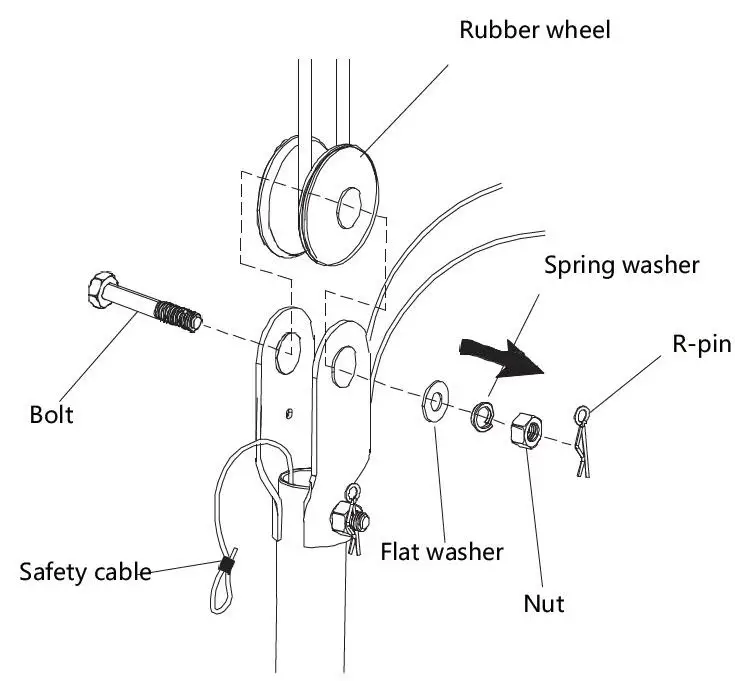

Refer to diagram 1
Remove the bolt, R-pin, nut, flat washer, spring washer, and rubber wheel from the hanging tube coupling plate. Place the rubber wheel onto the ceiling U-hook and reassemble the bolt, R-pin, nut, spring washer, and flat washer in place.
IMPORTANT: R-pin MUST be inserted to prevent the nut from loosening

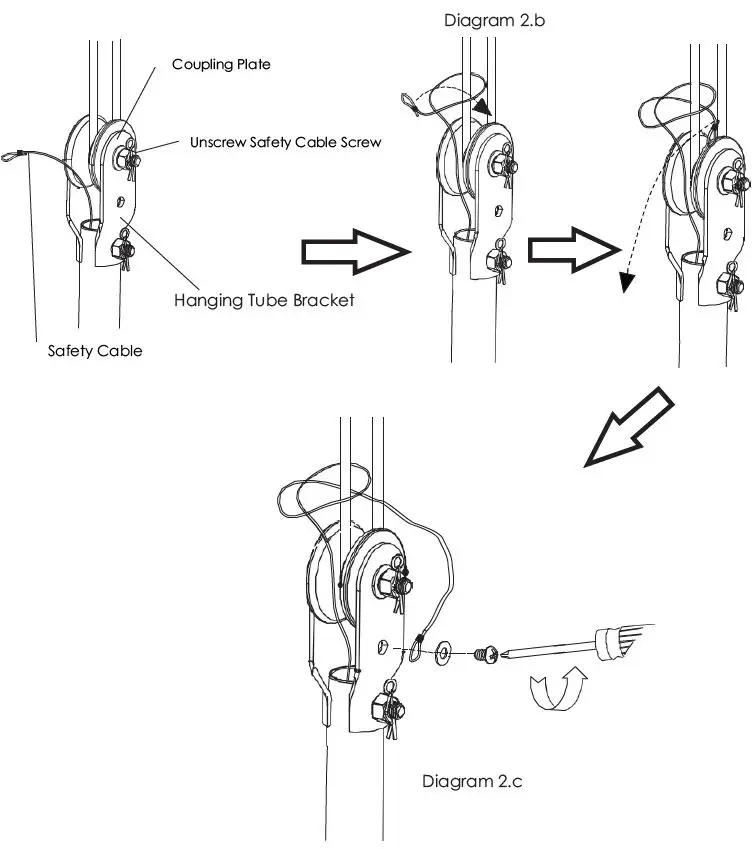

Refer to diagram 2
Unscrew the safety cable screw and washer from the hanging tube coupling plate. Tie the safety cable across the U-hook as shown. Firmly screw the safety cable with the washer onto the handing tube coupling plate

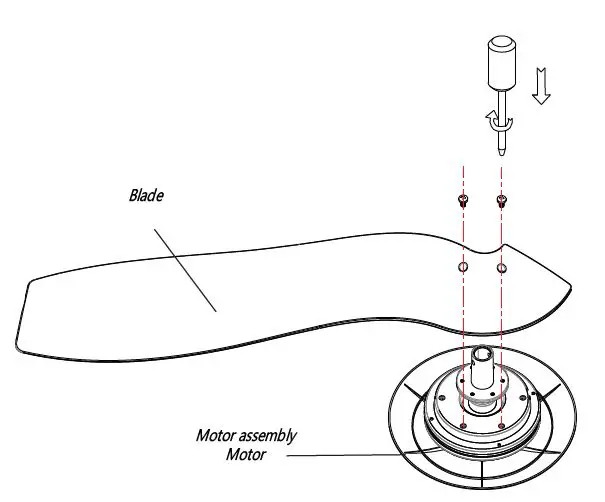

Refer diagram 3
Unscrew all “pre-assemble blade screws” from the fan motor, and fix the blade to the fan motor by tightening the screw firmly. Repeat this step for all blades.

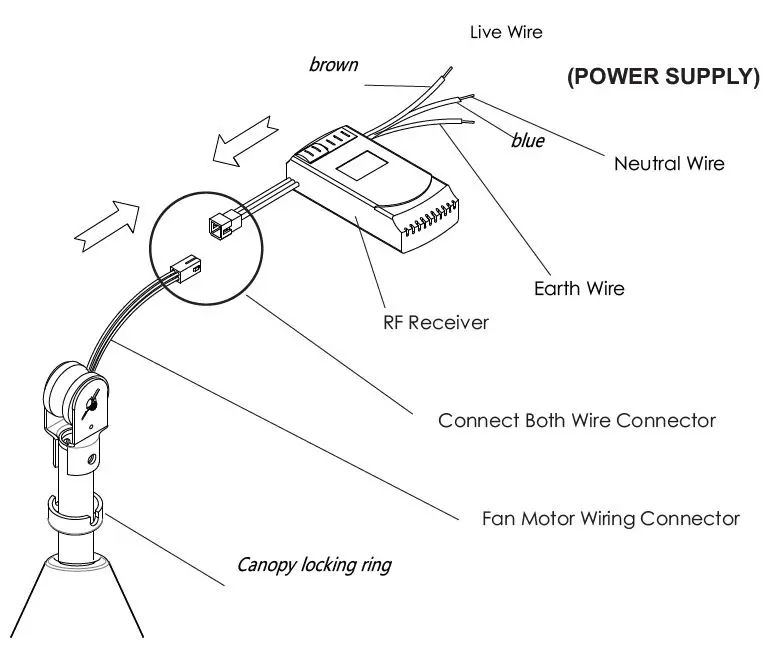

Refer diagram 4
Connect wiring by plug-in connector into position.

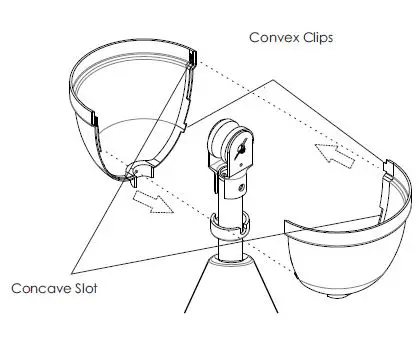

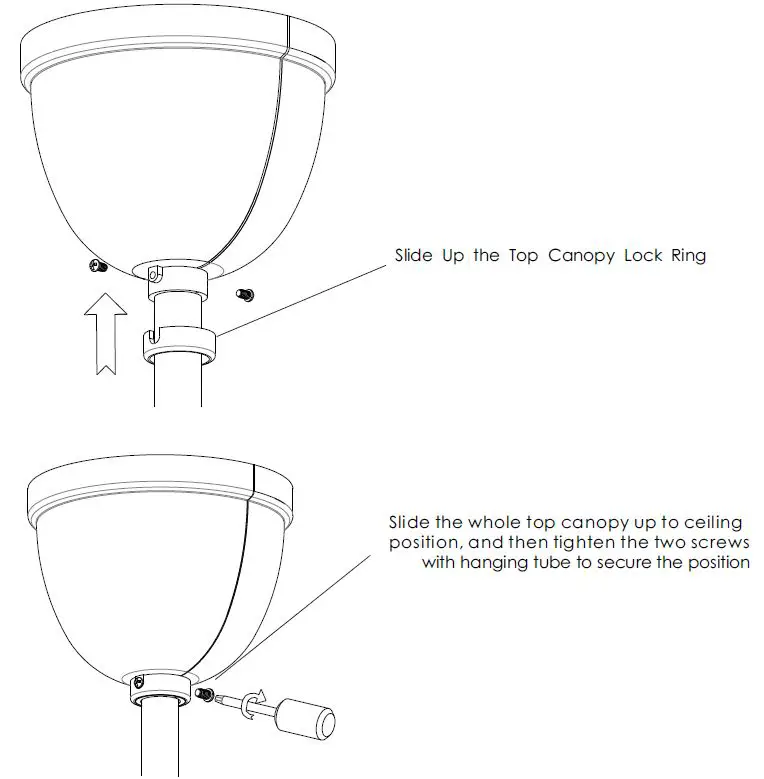

Refer diagram 5
Align and insert the convex clips of the top canopy (2 pieces) into the concave slot. Clip it until it is fully fixed.
RF TRANSMITTER

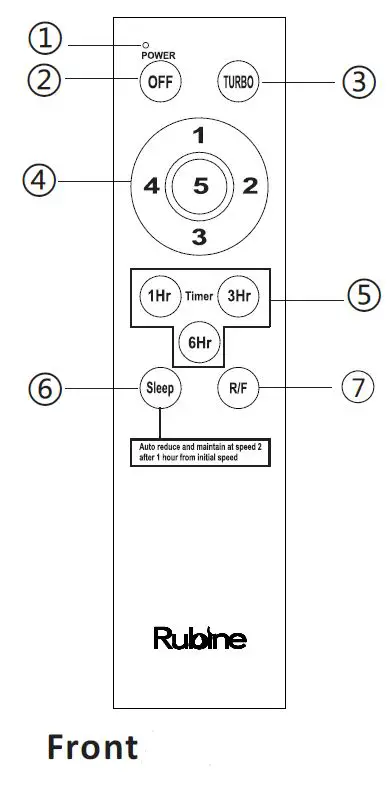

Function of Transmitter
| 1 | LED Indicator Light | |
| 2 | OFF | Switch off the ceiling fan.
|
| 3 | TURBO | The fastest speed of ceiling fan. |
| 4 | 1 – 5 | Speed of the ceiling fan (the selection of lower speed (1) to fastest speed (5)
|
| 5 | Timer | Upon timer set, fan will“Turn- Off ” after 1 /3 / 6 hour(s). |
|
6 |
Sleep | Sleep Mode (auto reduce and maintain at speed 2 after 1 hour from initial speed.)
|
| 7 | R/F | To switch fan direction from forward to reverse and vice versa. |

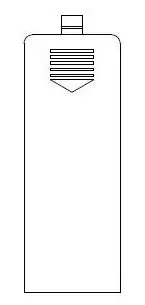

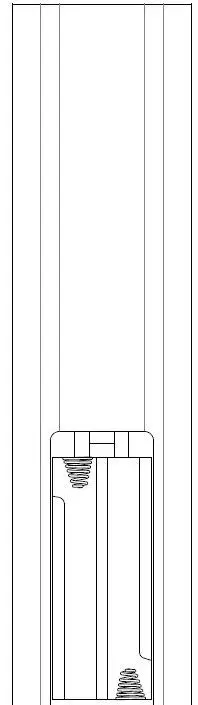

Battery cover
2 X 1.5V battery (AAA)
Back
This fan is operated using the remote control
Note
In the event of Transmitter (Remote Control)/Receiver cannot be controlled, please follow the “Remote Control Pairing Procedure” as below:
- Insert 2 units of AAA battery into the remote control.
- Switch on the ceiling fan (Power Supply).
- Press the OFF button on the remote control within 30 seconds after powering “Switch On” and hold for about 5 seconds until you hear a “Beep” sound. Pairing completed.
Precaution
- Last Memory Function- this function records the last function mode when power has been disconnected and the fan will maintain as the last function used upon power is restored.
- Battery – remove the battery from the transmitter (remote control) when left unused for more than 5 days to prevent the battery from leaking to damage the transmitter.
- R/F function-to changes the direction of rotation (R/F function), the fan needs to come to a complete stop before the reverse function takes effect.
- Only 1 remote can be paired with a given fan at any time.
IMPORTANT
DO NOT CONNECT THIS CEILING FAN REMOTE CONTROL TO A DIMMER SWITCH OR WALL REGULATOR
Ceiling fan must be mounted above 2.5m from the floor and 1m from the wall to the blade

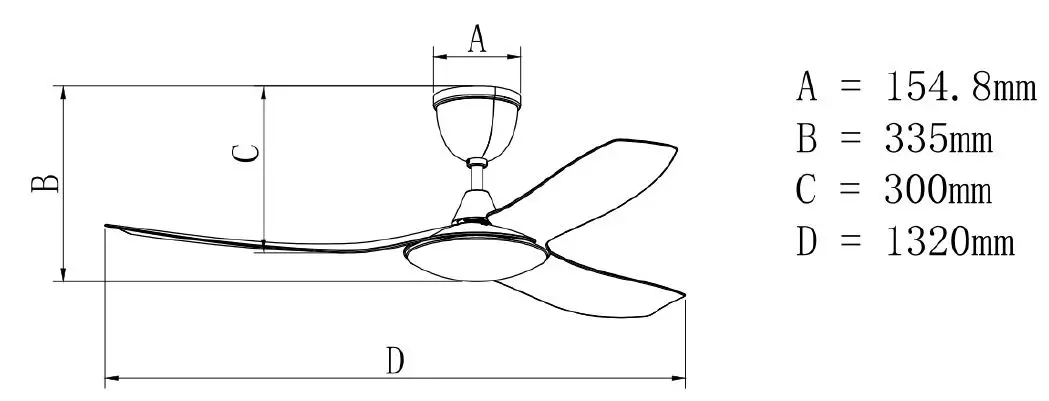

PRODUCT DIMENSION DIAGRAM
DO NOT CONNECT THIS CEILING FAN REMOTE CONTROL TO A DIMMER SWITCH OR WALL REGULATOR
The ceiling fan must be hooked to the concrete ceiling. Do not install the ceiling fan on the plaster ceiling or any types of drywall ceilings. During ceiling fan installation, all screws must be tightened at all allocated parts.
WRONG INSTALLATION

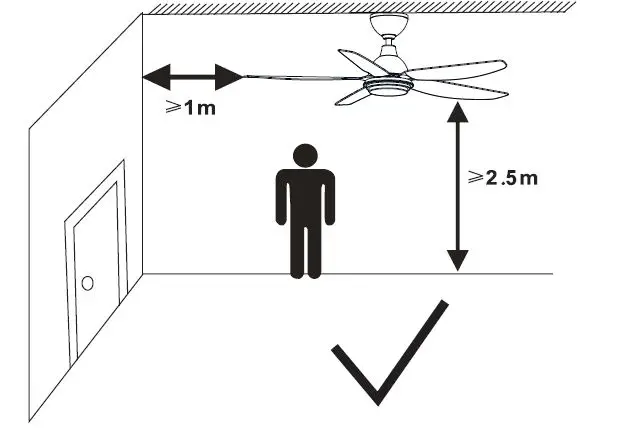

- The ceiling fan must be mounted above 2.5m from the floor and 1m from the wall to the blade.

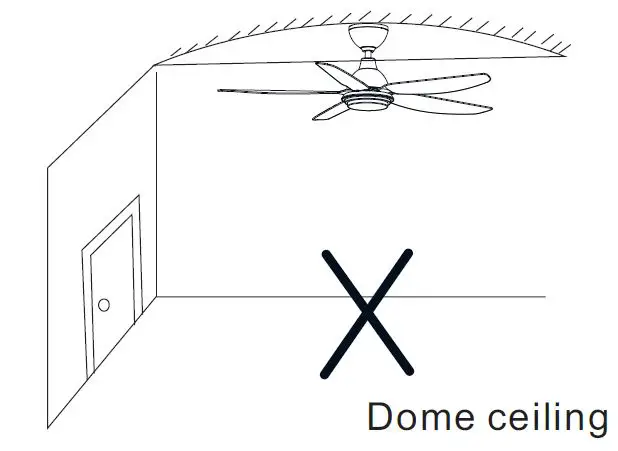

- Avoid fixing inside a dome ceiling.

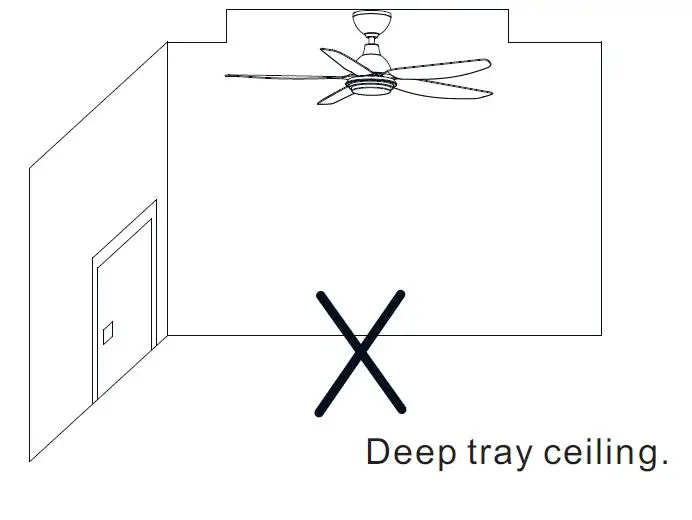

- Avoid Installing on a deep tray ceiling

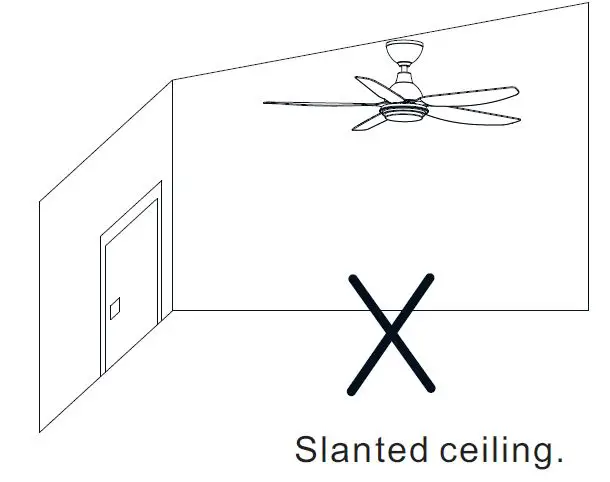

- Avoid Installing on a slanted ceiling.
Our Warranty
- 10 years FOR FAN MOTOR ONLY Warranty
- 2 years FOR RECEIVER ONLY Warranty
- 1year FOR ALL PRODUCTS (EXCLUDING ACCESSORIES) Warranty
6 months Warranty Extension
Online Registration
- Log on to www.rubine.com.my
- Click on ‘Support’, followed by Product Warranty Registration’ to proceed. You’re required to sign up as a member.
- You’ll receive a notification of warranty registration confirmation via email.
- Please keep your online warranty certificate for reference/future warranty claims.
Customer care
AFTER-SALES SERVICE:
operation HOURS: Tel:03-6279 8899
Email: [email protected]
09:00 am – 05:00 pm (Monday and Friday, except public holiday)
This specification is subject to change without prior notice. FIAMMA TRADING SDN, BHD, will not be held responsible for the use of superseded or voided specifications.
