User Manual
Splitter Arma DUO
SPAD-P-2D4D-AC, SPAD-P-2D4D-DC, SPAD-M-2D4D-AC
SPAD-M-2D4D-DC, SPBD-0-2D4D-AC, SPBD-0-2D4D-DC
Version 1.04 March 11, 2020
Specifications
| Supported protocols | DMX512, RDM, Modbus |
| DMX input ports | 1 or 2 isolated |
| DMX output ports | 4 or 5 isolated |
| DMX connectors | 15EDGVC terminal blocks |
| Mounting | Surface, Truss |
| Setup | DIP switchers |
| Power supply | ~90-250 VAC, 50/60 Hz or 9-36VDC |
| Operating Temperature: | -40°С… +70°С |
| IP Rating | IP 65 |
| Dimensions, mm | 115(D) x 55(H) x 90(W) |
Safe operation
In the installation, operation, preventive maintenance, and repairs of the device, the requirements of the safety rules must be followed.
To ensure the safe and reliable operation of the devices, please observe the following requirements:
Use the device only for its intended purpose
Do not use devices that show signs of a malfunctioning
Avoid strong physical impacts on the device
Protect devices and cables from contact with corrosive liquids
Whenever a fault is detected in the device, please contact the manufacturer.
Warning!
The device uses hazardous voltage AC 100-250V
General information
Splitter Arma DUO is a dual-channel device with 6 DMX input/output ports that operate as a regular splitter with 1 input and 5 outputs as well as two separated 1-to-2 splitters. All input and output channels are galvanically isolated from each other. The device is suitable for outdoor use and has the highest levels of dust and moisture protection. The device is powered by 100-250V industrial AC mains, power consumption is less than 5 watts. Input, output DMX cables, and power cables are connected to the device body via cable glands.
Advantages
Supports bidirectional communication (DMX512 and RDM). The device is suitable for use outdoors
All input and output ports have galvanic isolation
The device is suitable for use outdoors
Power consumption is less than 3W
Connection types
Before mounting and powering up, it is necessary to verify protective earthing and cable connectors.
- Ensure the device has no damage due to transportation.
- Remove the device lid. If the device fixation is needed on a surface, wall, or farm, attach the device housing to a surface, or install the appropriate fastening element. The connection scheme is located on the backside of the lid.

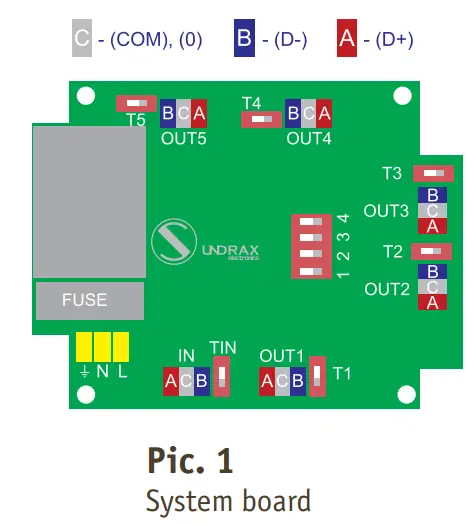

- Use the package connectors kit to connect DMX cables. In the scheme given the location of contacts Data +, Data and Common for input (IN) and output (OUT1-OUT5) terminal blocks.
- Set position of 4-section DIP-switcher in accordance with needed device configuration.
- All input and output channels have 120 Ohm terminators, managed by special DIP-switches TIN, T(1)T(5). To connect the terminator to the line is necessary to set proper switches in the ON position, and to disconnect- in the OFF position.
- Connect power supply terminal ~230 V. Some modifications of the device can be equipped with additional ground contact for terminal input power supply connected to the device. Apply power to the device.
- When the device is properly connected, the LED indicator on the device is lit. Its color indicates the presence of a valid DMX input signal: Green – present, Red – missing.
- Cover back the device lid.
- The device is ready for use.
| ON | OFF | |
| SW1 | RDM enabled | RDM disabled |
| SW2 | Dual splitter mode | Single splitter mode |
| SW3 | Fully transparent mode | Dedicated input(s) mode |
| SW4 | Bus indication mode | DMX512 indication mode |
LED indication
| DMX512 mode | Bus mode | |
| Green | Valid DMX signal | Bus is idle |
| Red | No DMX signal | Bus is busy |
| Off | The device/Section doesn’t work | The device/Section doesn’t work |

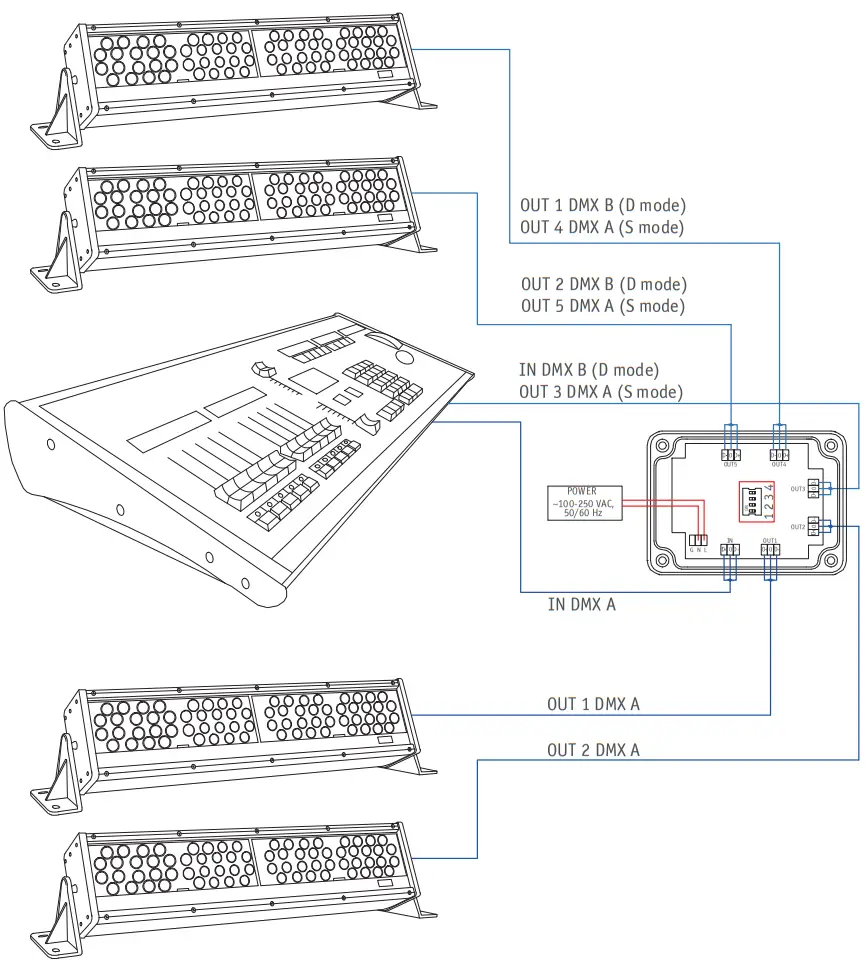

Connection scheme
Technical maintenance
Maintenance of the device, search and troubleshooting should be performed by service personnel. The device should be free from dirt, dents, and connecting cables and wires must be intact and securely fastened.
Notes
Please send all your warranty-related questions to [email protected]
All Sundrax products are covered by a 36-month warranty.
Sunday Electronics
6008, First Central 2002
Lakeside Drive, Park Royal, London
NW10 7FQ United Kingdom
+ 44 (0) 208 991 33 19
[email protected]
www.sundrax.com
Sundrax Electronics - Professional Lighting Management
