SUNRICHER SR-2100AMP-RDM-8CH-3 8 Way RDM Enabled DMX Splitter
8-Way RDM Enabled DMX Splitter
Important: Read All Instructions Prior to Installation

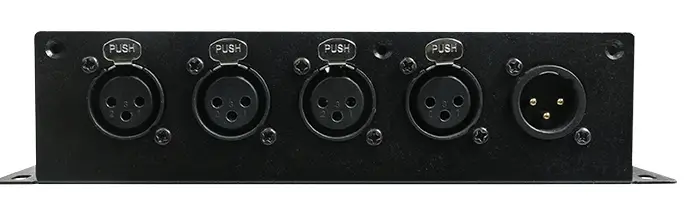

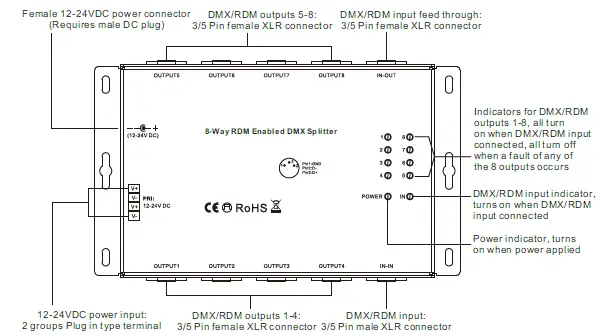

Function introduction
Product Data
| No. | Input Voltage | Input Current | Input Signal | DMX/RDM Connection Ports | Connector Pin Out | Size(LxWxH) | Operation Temperature |
| 1 | 12-24VDC | Max. 300mA | DMX/RDM | Input: (1x) Male 3-Pin XLR Output: (8x) Female 3-Pin XLR | Pin1: Ground Pin2: Data- Pin3: Data+ | 199x125x44mm | -20℃ ~ +50℃ |
| 2 | 12-24VDC | Max. 300mA | DMX/RDM | Input: (1x) Male 5-Pin XLR Output: (8x) Female 5-Pin XLR | Pin1: Ground Pin2: Data- Pin3: Data+ Pin4: NC Pin5: NC | 199x125x44mm | -20℃ ~ +50℃ |
- 8-Way RDM enabled DMX splitter
- DMX/RDM compatible
- RDM enabled – ANSI E1.20 compliant
- Extend both cable distance (up to 300m) and the number of devices (up to 32 devices per output, total 256 devices)
- Plug and play, 3/5-Pin XLR male DMX input, eight XLR female DMX outputs
- 8 outputs are full isolated from the input, the outputs are not isolated from each other
- Each output provides LED data indicators, providing full confirmation of proper operation
- Supports bi-directional communications for discovery, addressing and DMX control of RDM enabled devices
- A feed through XLR female connector is provided at the input, allowing this unit to be placed in the middle of an existing DMX chain
Safety & Warnings
- DO NOT install with power applied to device.
- DO NOT expose the device to moisture.

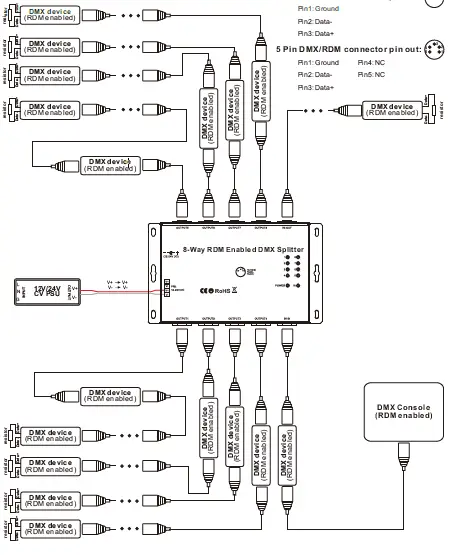

Wiring Diagram
Note:
- This splitter is placed in the middle of an existing DMX chain.
- Max. allowed data cable length in a DMX chain is 300m, each output is branch DMX chain.
- Max. allowed data cable length connected to each output (branch DMX chain) is 300m.
- Max. 32 devices can be connected to each output of the splitter in daisy-chain.
- Total 32*8=256 devices can be connected to 8 outputs of the splitter.
- Please attach a 120ohm, 0.5W resistor between Data+ and Data- wires on the last device of each DMX chain.

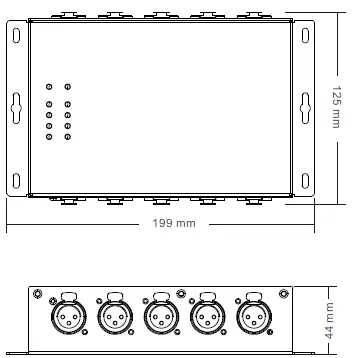

Product Dimension
