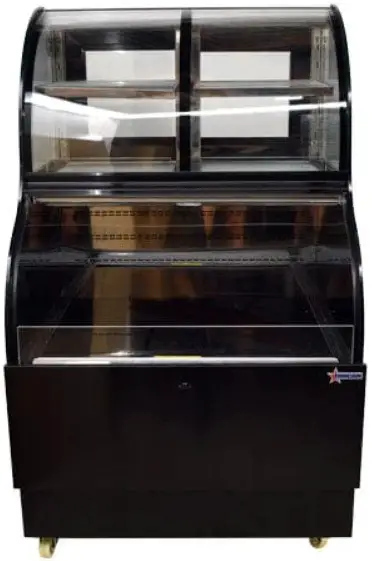

OMCAN RS-CN-0348 Floor Model Dual Service Open Cooler User Manual

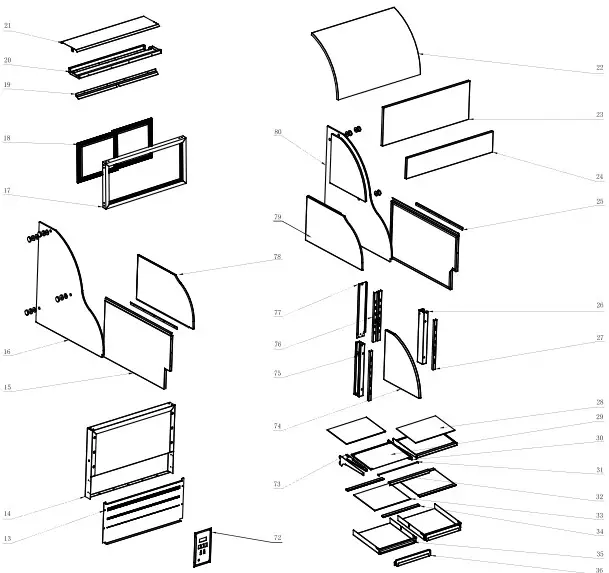

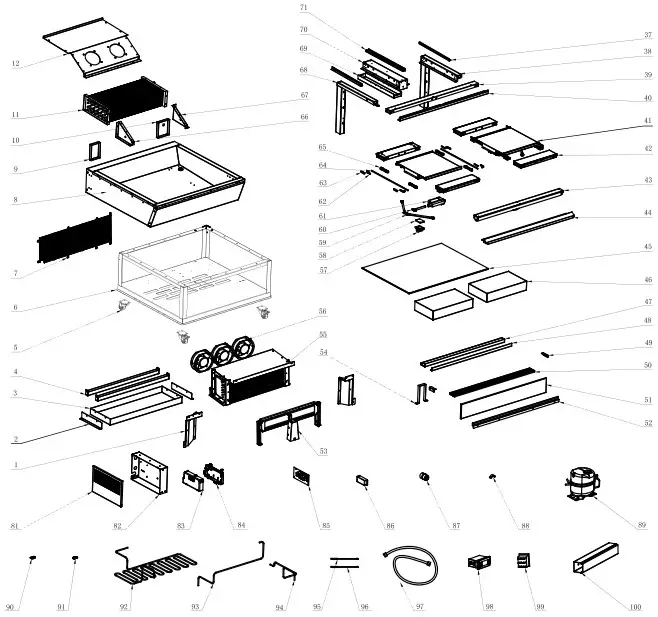

Parts Breakdown
| Item No. Description Position | ||||
| AI050 Condenser Air Guide Cover Left for 1 | ||||
| AI051 Fixing Support of High Pressure Tube 2 | ||||
| AI052 Welding Assembly of High Pressure Tube 3 | ||||
| AI053 Pressure Board of High Pressure Tube 4 | ||||
| AI054 Caster for 47106 5 | ||||
| AI055 Bottom Frame (Welded Assembly) for 6 | ||||
| AI056 Back Net for 47106 7 | ||||
| AI057 Base Foam of Evaporator for 47106 8 | ||||
| AI058 Left Board of Evaporator Motor Cover 9, 66 | ||||
| AI059 Right Board of Evaporator Motor Cover 10, 67 | ||||
| AI060 Evaporator for 47106 11 | ||||
| AI061 Evaporator Motor Cover for 47106 12 | ||||
| AI062 Ventilation Board for 47106 13 | ||||
| AI063 Back Foam for 47106 14 | ||||
| AI064 Left Frame Assembly for 47106 15 | ||||
| AI065 Left Side Glass for 47106 16 | ||||
| AI066 | Top Glass Strip for 47106 | 19 | ||
| AI067 | Door Frame Top for 47106 | 20 | ||
| AI068 | Top Ceiling Board for 47106 | 21 | ||
| AI069 | Curved Glass for 47106 | 22 | ||
| AI070 | Front Top Frame for 47106 | 23 | ||
| AI071 | Front Bottom Frame for 47106 | 24 | ||
| AI072 | Fixing Strip for Left and Right Frames for 47106 | 25 | ||
| AI073 | Door Frame Right Assembly for 47106 | 26 | ||
| AI074 | Right Pole for Shelf for 47106 | 27 | ||
| AI075 | Shelf Glass – Heating Film for 47106 | 28 | ||
| AI076 | Left Panel of Shelf for 47106 | 29 | ||
| AI077 | Connection Panel of Right Shelf for 47106 | 30 | ||
| AI078 | Fixing Board for Shelf LED for 47106 | 31 | ||
| AI079 Left and Right Front Board of Shelf for 32 | ||||
| AI080 Bottom Shelf Glass – Heating Film for 33 | ||||
| AI081 | Strip of Heating Film Glass for 47106 | 34 | ||
| AI082 | Isolation Board Left for 47106 | 35 | ||
| AI083 | Air Guide Cover Assembly for 47106 | 36 | ||
| AI084 | Strip of Top Side Glass for 47106 | 37 | ||
| AI085 | Right Fixing Support Assembly for 47106 | 38, 68 | ||
| AI086 | Front Fixing Support Assembly for 47106 | 39 | ||
| AI087 | Front Glass Strip for 47106 | 40 | ||
| AI088 | Tray Assembly Right for 47106 | 41 | ||
| AI089 | Isolation Block Assembly for 47106 | 42 | ||
| 66097 | Night Curtain for 47106 | 43 | ||
| AI090 | Front Shield Board of Top Shelf for 47106 | 44 | ||
| AI091 | Flat Glass for 47106 | 45 | ||
| AI092 | Block Big for 47106 | 46 | ||
| AI093 | Wind Screen for Air In for 47106 | 47 | ||
| AI094 | Cross Shield Board for Air In for 47106 | 48 | ||
| AI095 | Right Positioning Board for Air In for | 49 | ||
| 47106 | ||||
| AI096 | Bottom Ventilation Shield Board for 47106 | 50 | ||
| AI097 | Front Wind Screen for 47106 | 51 | ||
| AI098 | Fixing Panel of Front Glass Deflectorfor 47106 | 52 | ||
| AI099 | Reinforcement Board for Air In for 47106 | 54 | ||
| AI100 | Condenser for 47106 | 55 | ||
| 68396 | Motor for 47106 | 56 | ||
| AI101 | Fixing Seat for 47106 | 57 | ||
| AI102 | Seat Pad for 47106 | 58 | ||
| AI103 | Driving Lever for 47106 | 59 | ||
| AI104 | Linkage Lever for 47106 | 60 | ||
| AI105 | Electrical Pushing Lever for 47106 | 61 | ||
| AI106 | Positioning Block for Pulley Rail for 47106 | 62 | ||
| AI107 | Fixing Panel for Air In for 47106 | 63 | ||
| AI108 | Pulley Rail Pin for 47106 | 64 | ||
| AI109 | Middle Fixing Support Bottom for 47106 | 69 | ||
| AI110 | Middle Fixing Support for 47106 | 70 | ||
| AI111 | Middle Glass Strip for 47106 | 71 | ||
| AI112 | Switch Panel for 47106 | 72 | ||
| AI113 | Left Shelf Connection Panel for 47106 | 73 | ||
| AI114 | Middle Partition Left for 47106 | 74 | ||
| AI115 | Left Door Frame Assembly for 47106 | 75 | ||
| AI116 | Middle Pole of Shelf Front for 47106 | 76 | ||
| AI117 | Middle Pole of Shelf Back for 47106 | 77 | ||
| AI118 | Left Side Interior Panel for 47106 | 78 | ||
| AI119 | Right Side Interior Panel for 47106 | 79 | ||
| AI120 | Right Side Glass for 47106 | 80 | ||
| AI121 | Wiring Box Cover for 47106 | 81 | ||
| AI122 | Wiring Box for 47106 | 82 | ||
| 60594 | Cover of Circuit Board Box for 47106 | 83 | ||
| 61167 | Circuit Board Box for 47106 | 84 | ||
| AI123 | Main Board for 47106 | 85 | ||
| 67652 | LED Transformer for 47106 | 86 | ||
| 61224 | Dry Filter for 47106 | 87 | ||
| 60669 | Pipe Clamp for 47106 | 88 | ||
| AI124 | Compressor for 47106 | 89 | ||
| 61246 | Wire Clip Holder for 47106 | 90 | ||
| 66095 | Wire Clip Cover for 47106 | 91 | ||
| AI125 | High Pressure Evaporator Tube for 47106 | 92 | ||
| AI126 | Connection Pipe for 47106 | 93 | ||
| AI127 | Connection Pipe for 47106 | 94 | ||
| 68353 | Temperature Sensor for 47106 | 95 | ||
| 67674 | Compressor Protect Probe for 47106 | 96 | ||
| 60668 | Drain Pipe for 47106 | 97 | ||
| 67648 | Temperature Display for 47106 | 98 | ||
| 60119 | Switch for 47106 | 99 | ||
| 60590 | PVC Trucking for 47106 | 100 | ||
