REPLACEMENT PARTS LIST
U-MATCH SYSTEM
FLOOR/CEILING TYPE INDOOR UNIT
GFU36(10.6)USV4DH

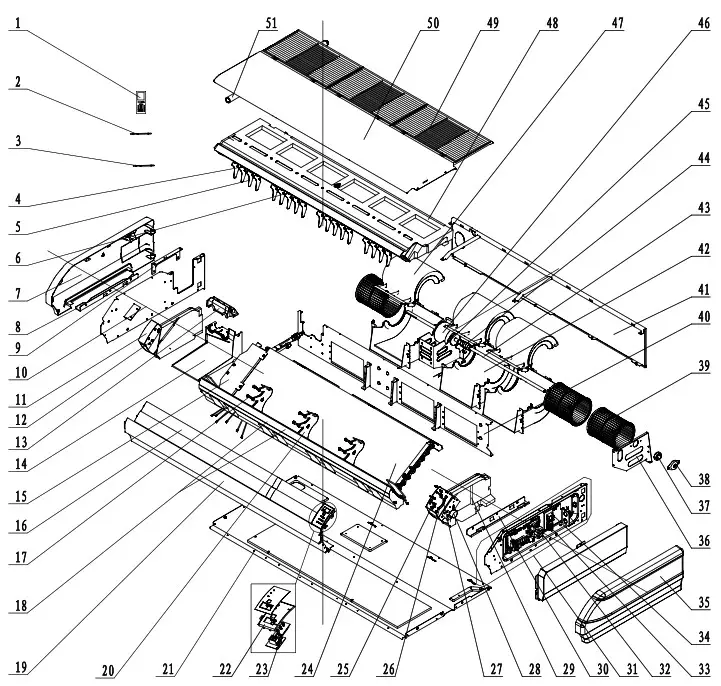

GFU36(10.6)USV4DH U-Match System Floor/Ceiling Type Indoor Unit
| ITEM # | COMPONENT |
| 1 | REMOTE CONTROLLER |
| 2 | TEMPERATURE SENSOR |
| 3 | INDOOR ROOM TEMP SENSOR |
| 4 | SWING LEVER |
| 5 | AIR LOUVER |
| 6 | SWING LEVER |
| 7 | RIGHT COVER PLATE |
| 8 | INSTALLATION SUPPORTING FRAME |
| 9 | CONNECTION BOARD |
| 10 | RIGHT SIDE PLATE SUB-ASSY |
| 11 | RIGHT FOAM ASSY |
| 12 | AXILE BUSH |
| 13 | PLATE BOARD OF WATER RELEASING FLUME |
| 14 | WATER RELEASING FLUME |
| 15 | CONNECTED PLATE (EVAPORATOR) |
| 16 | GUIDE LOUVER |
| 17 | ROTATING SHAFT |
| 18 | FRONT CONNECTION PLATE FOAM ASSY |
| 19 | FRONT CONNECTION PLATE |
| 20 | SUPPORTER |
| 21 | REAR SIDE PLATE ASSY |
| 22 | FIXED MOUNT |
| 23 | DISPLAY BOARD |
| 24 | EVAPORATOR ASSY |
| 25 | ROTATING SHAFT |
| 26 | CONNECTING ROD |
| 27 | ROTATING SHAFT |
| 28 | STEPPING MOTOR |
| 29 | LEFT FOAM ASSY |
| 30 | INSTALLATION SUPPORTING FRAME |
| 31 | ELECTRIC BOX ASSY |
| 32 | MAIN BOARD |
| 33 | TERMINAL BOARD |
| 34 | TERMINAL BOARD |
| 35 | LEFT COVER PLATE |
| 36 | BRACKET 1 |
| 37 | 0-GASKET OF BEARING |
| 38 | SUPPORT OF MOTOR BEARING |
| 39 | CENTRIFUGAL FAN |
| 40 | CLAPBOARD SUB-ASSY |
| 41 | REAR CONNECTION BOARD |
| 42 | FRONT VOLUTE CASING |
| 43 | ROTARY AXIS SUB-ASSY |
| 44 | JOINT SLACK |
| 45 | MOTOR SUPPORT SUB-ASSY |
| 46 | BLOWER MOTOR |
| 47 | REAR VOLUTE CASING |
| 48 | WATER TRAY ASSY |
| 49 | FRONT GRILL SUB-ASSY |
| 50 | TOP COVER BOARD SUB-ASSY |
| 51 | DRAINAGE PIPE SUB-ASSY |
GFU36(10.6)USV4DH
| PART DESCRIPTION | PART CODE | NORTEK PART NUMBER | |
| 1 | Remote Controller | 30510516 | 1007702 |
| 2 | Temperature Sensor | 390001923 | 1032767 |
| 3 | Indoor Room Temp Sensor | 39000191 | 1008271 |
| 4 | Swing Lever (4 Blade Connecting Rod) | 10582008 | 1044418 |
| 5 | Air Louver (Sweeping Blade) | 26909418 | 1044417 |
| 6 | Swing Lever (5 Blade Connecting Rod) | 10582009 | 1044416 |
| 7 | Right Cover Plate | 2690942201 | 1044415 |
| 8 | Installation Supporting Frame (Right Mounting Bracket) | 1809402 | 1044450 |
| 9 | Connection Board (Right Connecting Bracket) | 2229406 | 1044453 |
| 10 | Right Side Plate Sub-Assy | 1319408 | 1044414 |
| 11 | Right Foam Assy | 12509425 | 1044413 |
| 12 | Axile Bush | 10542704 | 1028750 |
| 13 | Plate Board of Water Releasing Flume | 26909442 | 1044451 |
| 14 | Water Releasing Flume | 26909441 | 1044412 |
| 15 | Connected Plate (Evaporator) | 1349413 | 1044411 |
| 16 | Guide Louver | 26909432 | 1044410 |
| 17 | Rotating Shaft (Spindle 3) | 26909430 | 1044444 |
| 18 | Front Connection Plate Foam Assy | 12509424 | 1044386 |
| 19 | Front Connection Plate | 01349408P | 1044408 |
| 20 | Supporter (Spindle Bracket) | 26909409 | 1044407 |
| 21 | Rear Side Plate Assy | 1319400005 | 1044406 |
| 22 | Fixed Mount | 26909426R | 1044440 |
| 23 | Display Board | 30294000009 | 1008024 |
| 24 | Evaporator Assy | 1029400050 | 1044405 |
| 25 | Rotating Shaft (Spindle 1) | 26909413 | 1044437 |
| 26 | Connecting Rod | 26909411 | 1044436 |
| 27 | Rotating Shaft (Spindle 2) | 26909412 | 1044435 |
| 28 | Stepping Motor (Louver Motor) | 1521240206 | 1008293 |
| 29 | Left Foam Assy | 12509408 | 1044404 |
| 30 | Installation Supporting Frame (Left Mounting Bracket) | 1809401 | 1044434 |
| 31 | Electric Box Assy | 1399400116 | 1044403 |
| 32 | Main Board | 30224000029 | 1025094 |
| 33 | Terminal Board (4 Position) | 4201025301 | 1025138 |
| 34 | Terminal Board (3 Position) | 4.20001E+11 | 1041734 |
| 35 | Left Cover Plate | 2690941601 | 1044402 |
| 36 | Bracket 1 (Left Bearing Bracket) | 1809404 | 1044401 |
| 37 | O-Gasket of Bearing | 76512404 | 1044429 |
| 38 | Support of Motor Bearing | 1792408 | 1041749 |
| 39 | Centrifugal Fan (Blower Wheel) | 1041410101 | 1044400 |
| 40 | Clapboard Sub-Assy | 1249400002 | 1044399 |
| 41 | Rear Connection Board (Panel) | 1349418 | 1044398 |
| 42 | Front Volute Casing (Front 1/2 of Blower Housing) | 26905208 | 1044397 |
| 43 | Rotary Axis Sub-Assy (Blower Shaft) | 73018052 | 1044396 |
| 44 | Joint Slack | 73018731 | 1041742 |
| 45 | Motor Support Sub-Assy | 1809400029 | 1044395 |
| 46 | Blower Motor | 1.57052E+12 | 1044394 |
| 47 | Rear Volute Casing (Rear 1/2 of Blower Housing) | 26909419 | 1044393 |
| 48 | Water Tray Assy (Drain Pan) | 1289405 | 1044392 |
| 49 | Front Grill | 1579402 | 1044391 |
| 50 | Top Cover Board Sub-Assy | 1269405 | 1044390 |
| 51 | Drainage Pipe Sub-Assy | 5235434 | 1044420 |
| Wired Controller (Not Shown) | 30294000007 | 1008355 |
Specifications & illustrations subject to change without notice or incurring obligations (11/22).
O’Fallon, MO, © Nortek Global HVAC LLC 2022. All Rights Reserved.
D3141100 (NEW
