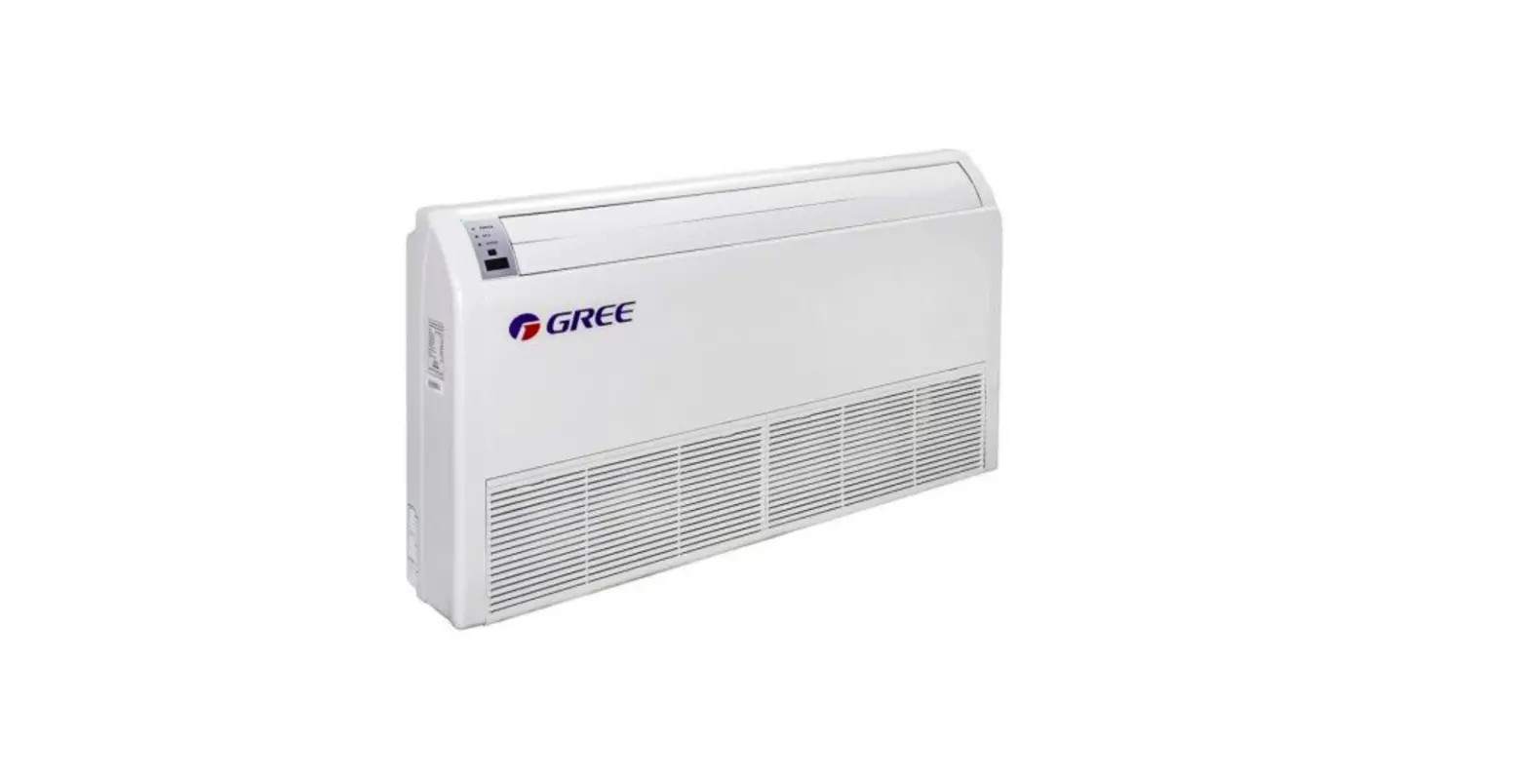

GREE GUD50ZD-B-S R32 U-Match Under Ceiling User Manual

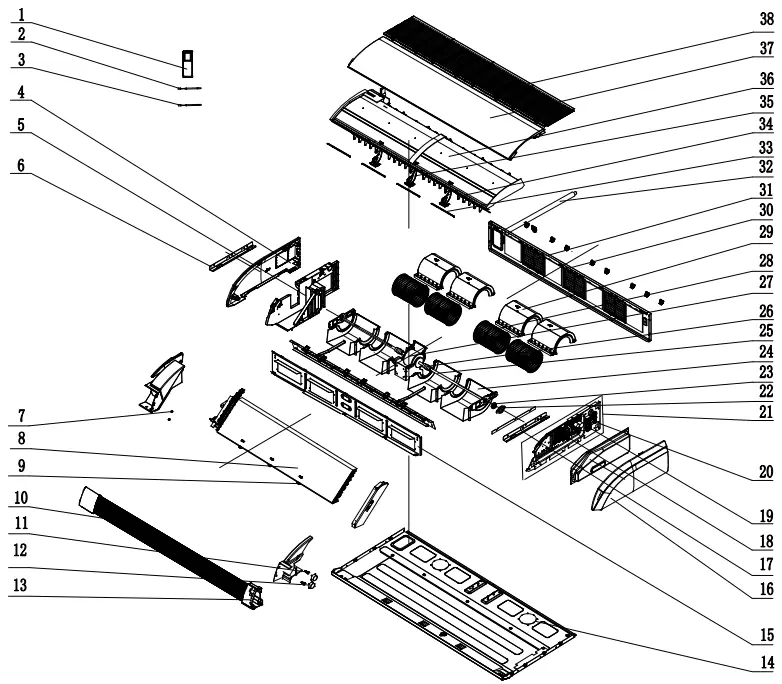

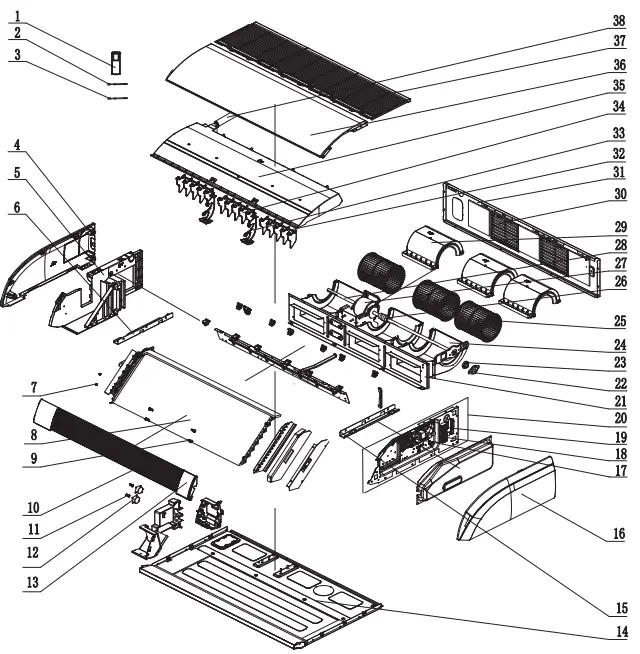

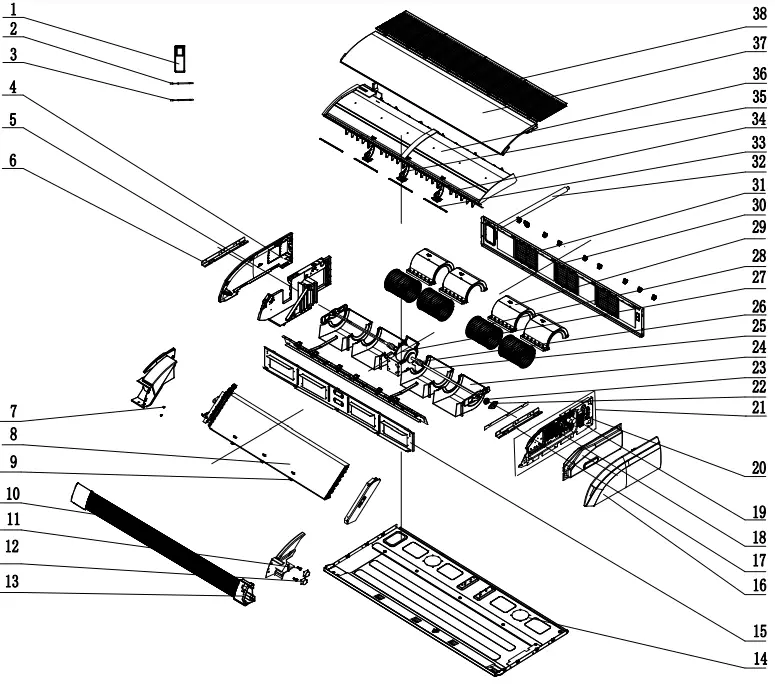

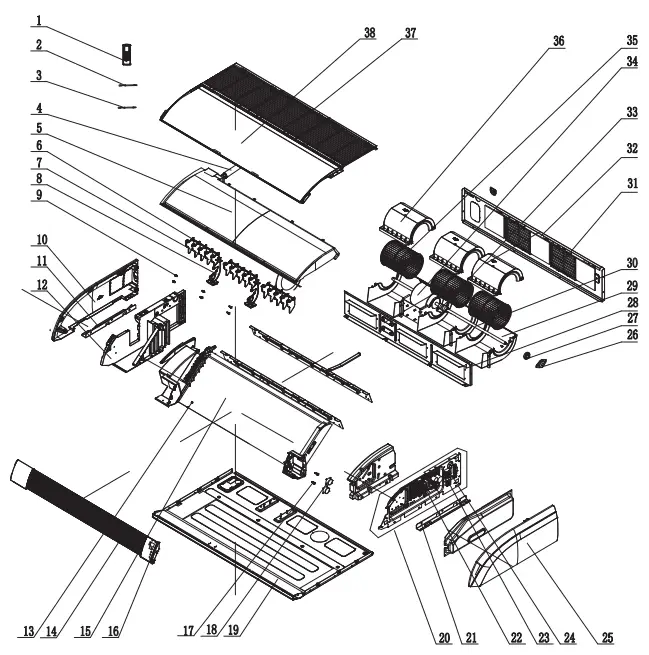

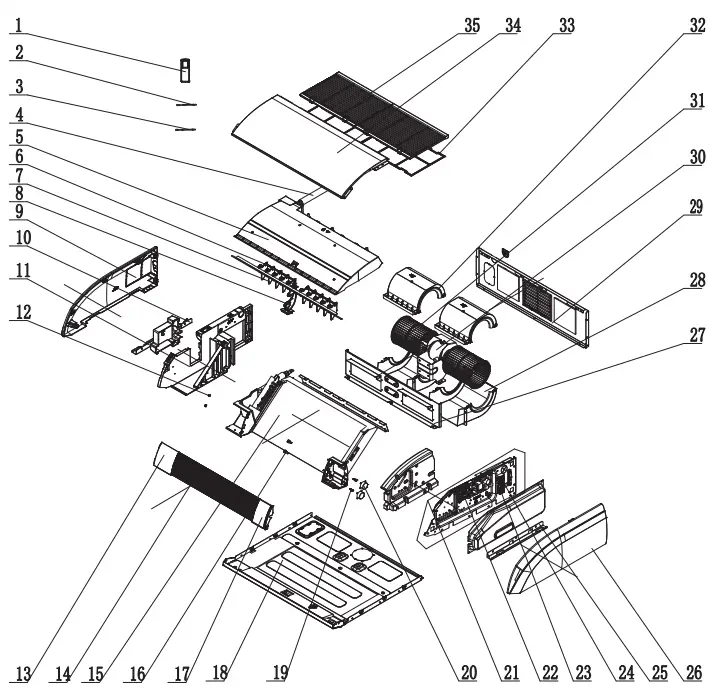

Exploded View
Spare Parts list
| No. | Part Description | Part Code |
| 1 | Remote Control | N/A |
| 2 | Temperature Sensor | 390001923 |
| 3 | Ambient Temperature Sensor | 3900012123 |
| 4 | Drainage Pipe Sub-assy | 05235434 |
| 5 | Water Tray | 200063000024 |
| 6 | Swing Lever | 10582009 |
| 7 | Air Louver | 20000700000101 |
| 8 | Support | 2690940007601 |
| 9 | Right Side Plate | 2690940007101 |
| 10 | Installation Supporting Frame | 01809402 |
| 11 | Right Side Plate | 26909400074 |
| 12 | Axile Bush | 10542704 |
| 13 | Front Panel | 20000300000101 |
| 14 | Guide Louver | 20000400004601 |
| 15 | Evaporator Assy | 011001061198 |
| 16 | Rotating Shaft | 26909430 |
| 17 | Display Board | 30294000009 |
| 18 | Base Plate Assy | 011007060037 |
| 19 | Crankshaft | 200023000001 |
| 20 | Stepping Motor | 1521240215 |
| 21 | Electric Box Assy | 100002003030 |
| 22 | Main Board | 300002060226 |
| 23 | Terminal Board | 42018000551 |
| 24 | Terminal Board | 42000100000204 |
| 25 | Installation Supporting Frame | 01809401 |
| 26 | Left Side Plate | 2690940007001 |
| 27 | Clapboard Sub-Assy | 017021000088 |
| 28 | Propeller Housing(Lower) | 200230000001 |
| 29 | Rear Side Plate Sub-Assy | 017051000046 |
| 30 | Brushless DC Motor | 15706000037 |
| 31 | Centifugal Fan | 103003000001 |
| 32 | Propeller Housing(Upper) | 200230000002 |
| 33 | Filter Sub-Assy | 111001000072 |
| 34 | Top Cover | 012148000046 |
| 35 | Front Grill Sub-assy | 20022600000401 |
| No. | Part Description | Part Code |
| 1 | Remote Control | N/A |
| 2 | Ambient Temperature Sensor | 3900012123 |
| 3 | Temperature Sensor | 3900019204 |
| 4 | Right Side Plate | 2690940007101 |
| 5 | Right Side Plate | 26909400074 |
| 6 | Installation Supporting Frame | 01809402 |
| 7 | Axile Bush | 10542704 |
| 8 | Evaporator Assy | 011001061112 |
| 9 | Rotating Shaft | 26909430 |
| 10 | Guide Louver | 20000450042201 |
| 11 | Crankshaft | 200023000001 |
| 12 | Stepping Motor | 1521240215 |
| 13 | Display Board | 30294000009 |
| 14 | Base Plate Assy | 011007000038 |
| 15 | Installation Supporting Frame | 01809401 |
| 16 | Left Side Plate | 2690940007001 |
| 17 | Main Board | 300002060226 |
| 18 | Terminal Board | 42018000551 |
| 19 | Terminal Board | 42000100000204 |
| 20 | Electric Box Assy | 100002003030 |
| 21 | Clapboard Sub-Assy | 01249400018 |
| 22 | Support Of Motor Bearing | 01792408 |
| 23 | O-Gasket of Bearing | 76512404 |
| 24 | Propeller Housing(Lower) | 200230000001 |
| 25 | Centifugal Fan | 103003000001 |
| 26 | Joint Slack | 73018731 |
| 27 | Brushless DC Motor | 1570520000501 |
| 28 | Roller Wheel | 700004500433 |
| 29 | Propeller Housing(Upper) | 200230000002 |
| 30 | Filter Sub-assy(Rear Side Plate) | 111001000001 |
| 31 | Rear Side Plate Sub Assy | 017051000005 |
| 32 | Swing Lever | 10582009 |
| 33 | Support | 2690940007601 |
| 34 | Air Louver | 20000700000101 |
| 35 | Water Tray Assy | 000069060049 |
| 36 | Top Cover | 01269400012P01 |
| 37 | Front Grill | 2690940007201 |
| 38 | Drainage Pipe Sub-assy | 05235434 |
| No. | Part Description | Part Code |
| 1 | Remote Control | N/A |
| 2 | Temperature Sensor | 3900019204 |
| 3 | Ambient Temperature Sensor | 3900012123 |
| 4 | Drainage Pipe Sub-assy | 05235434 |
| 5 | Water Tray Assy | 000069060049 |
| 6 | Swing Lever | 10582009 |
| 7 | Air Louver | 20000700000101 |
| 8 | Support | 2690940007601 |
| 9 | Rotating Shaft | 26909430 |
| 10 | Right Side Plate | 2690940007101 |
| 11 | Installation Supporting Frame | 01809402 |
| 12 | Right Side Plate | 26909400074 |
| 13 | Axile Bush | 10542704 |
| 14 | Guide Louver | 20000450042201 |
| 15 | Evaporator Assy | 011001061197 |
| 16 | Display Board | 30294000009 |
| 17 | Crankshaft | 200023000001 |
| 18 | Stepping Motor | 1521240215 |
| 19 | Base Plate Assy | 011007000038 |
| 20 | Electric Box Assy | 100002003030 |
| 21 | Installation Supporting Frame | 01809401 |
| 22 | Main Board | 300002060226 |
| 23 | Terminal Board | 42018000551 |
| 24 | Terminal Board | 42000100000204 |
| 25 | Left Side Plate | 2690940007001 |
| 26 | Support Of Motor Bearing | 01792408 |
| 27 | O-Gasket of Bearing | 76512404 |
| 28 | Clapboard Assy | 000075000040 |
| 29 | Propeller Housing(Lower) | 200230000001 |
| 30 | Roller Wheel | 700004500433 |
| 31 | Filter Sub-assy(Rear Side Plate) | 111001000001 |
| 32 | Rear Side Plate Sub Assy | 017051000005 |
| 33 | Joint Slack | 73018731 |
| 34 | Brushless DC Motor | 1570520000501 |
| 35 | Centifugal Fan | 103003000001 |
| 36 | Propeller Housing(Upper) | 200230000002 |
| 37 | Front Grill Sub-Assy | 2690940006601 |
| 38 | Top Cover | 01269400012P01 |
| No. | Part Description | Part Code |
| 1 | Remote Control | N/A |
| 2 | Tube sensor | 3900020720G |
| 3 | Ambient Temperature Sensor | 3900012123 |
| 4 | Right Side Plate | 2690940007101 |
| 5 | Right Side Plate | 26909400074 |
| 6 | Installation Supporting Frame | 01809402 |
| 7 | Axile Bush | 10542704 |
| 8 | Evaporator Assy | 011001061111 |
| 9 | Rotating Shaft | 26909430 |
| 10 | Guide Louver | 20000450042601 |
| 11 | Crankshaft | 200023000001 |
| 12 | Stepping Motor | 1521240215 |
| 13 | Display Board | 30294000009 |
| 14 | Base Plate Assy | 011007060032 |
| 15 | Clapboard Sub-Assy | 01249400019 |
| 16 | Left Side Plate | 2690940007001 |
| 17 | Installation Supporting Frame | 01809401 |
| 18 | Main Board | 300002060226 |
| 19 | Terminal Board | 42018000551 |
| 20 | Terminal Board | 42000100000204 |
| 21 | Electric Box Assy | 100002063110 |
| 22 | Support Of Motor Bearing | 01792408 |
| 23 | O-Gasket of Bearing | 76512404 |
| 24 | Propeller Housing(Lower) | 200230000001 |
| 25 | Roller Wheel | 700004000001 |
| 26 | Joint Slack | 73018731 |
| 27 | Brushless DC Motor | 15709400005 |
| 28 | Centifugal Fan | 103003000001 |
| 29 | Propeller Housing(Upper) | 200230000002 |
| 30 | Rear Side Plate Sub-Assy | 017051000006 |
| 31 | Filter Sub-assy(Rear Side Plate) | 111001000001 |
| 32 | Drainage Pipe Sub-assy | 05235434 |
| 33 | Swing Lever | 10582009 |
| 34 | Air Louver | 20000700000101 |
| 35 | Support | 2690940007601 |
| 36 | Water Tray | 200063000002 |
| 37 | Top Cover | 01269400013P01 |
| 38 | Front Grill Sub-Assy | 2690940006601 |
| No. | Part Description | Part Code |
| 1 | Remote Control | N/A |
| 2 | Tube sensor | 3900020720G |
| 3 | Ambient Temperature Sensor | 3900012123 |
| 4 | Right Side Plate | 2690940007101 |
| 5 | Right Side Plate | 26909400074 |
| 6 | Installation Supporting Frame | 01809402 |
| 7 | Axile Bush | 10542704 |
| 8 | Evaporator Assy | 011001061111 |
| 9 | Rotating Shaft | 26909430 |
| 10 | Guide Louver | 20000450042601 |
| 11 | Crankshaft | 200023000001 |
| 12 | Stepping Motor | 1521240215 |
| 13 | Display Board | 30294000009 |
| 14 | Base Plate Assy | 011007060032 |
| 15 | Clapboard Sub-Assy | 01249400019 |
| 16 | Left Side Plate | 2690940007001 |
| 17 | Installation Supporting Frame | 01809401 |
| 18 | Main Board | 300002060226 |
| 19 | Terminal Board | 42018000551 |
| 20 | Terminal Board | 42000100000204 |
| 21 | Electric Box Assy | 100002063110 |
| 22 | Support Of Motor Bearing | 01792408 |
| 23 | O-Gasket of Bearing | 76512404 |
| 24 | Propeller Housing(Lower) | 200230000001 |
| 25 | Roller Wheel | 700004000001 |
| 26 | Joint Slack | 73018731 |
| 27 | Brushless DC Motor | 15709400005 |
| 28 | Centifugal Fan | 103003000001 |
| 29 | Propeller Housing(Upper) | 200230000002 |
| 30 | Rear Side Plate Sub-Assy | 017051000006 |
| 31 | Filter Sub-assy(Rear Side Plate) | 111001000001 |
| 32 | Drainage Pipe Sub-assy | 05235434 |
| 33 | Swing Lever | 10582009 |
| 34 | Air Louver | 20000700000101 |
| 35 | Support | 2690940007601 |
| 36 | Water Tray | 200063000002 |
| 37 | Top Cover | 01269400013P01 |
| 38 | Front Grill Sub-Assy | 2690940006601 |
It is the policy of Gree Australia to introduce continuous product improvements.
Accordingly, specifications are subject to change without notice.
Please consult with your dealer to confirm the specifications of the model selected.
