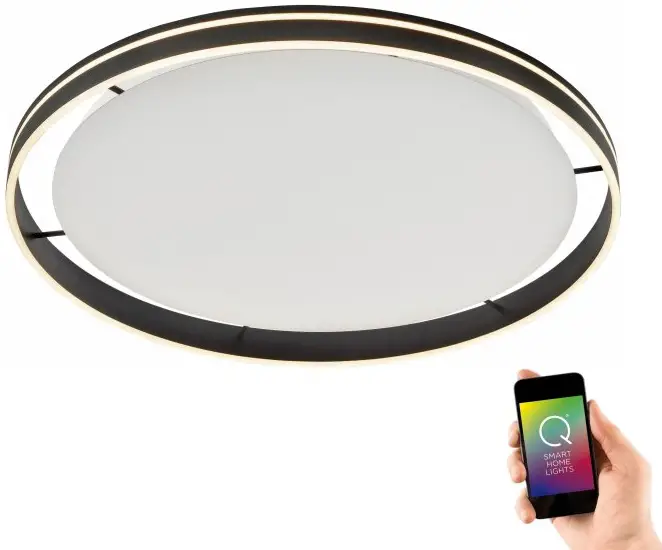

Paul Neuhaus 8418-13 Q-vito Ceiling Light Led Instruction Manual

Paul Neuhaus 8418-13 Q-VITO Ceiling Light LED Instruction Manual

Instructions

230V / 50Hz~
1x LED−Board 55V DC / 58W
not changeable

2,4 GHz
10 dBm

	58 W
	5.800 lm
	65 W
	2.600 lm
t	20.000 h
Tx	2.700 – 5.000 K
	15.00 x
	0,5 s
	dimmable with rrc

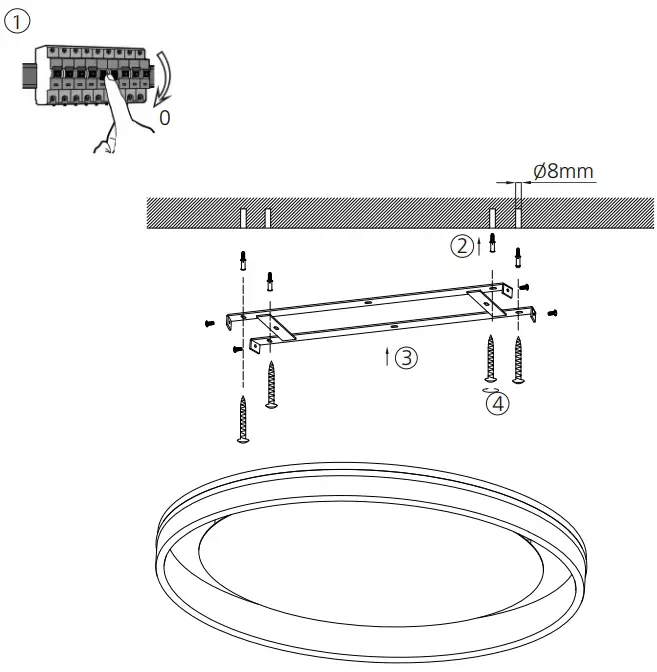

fitting

As ceiling light

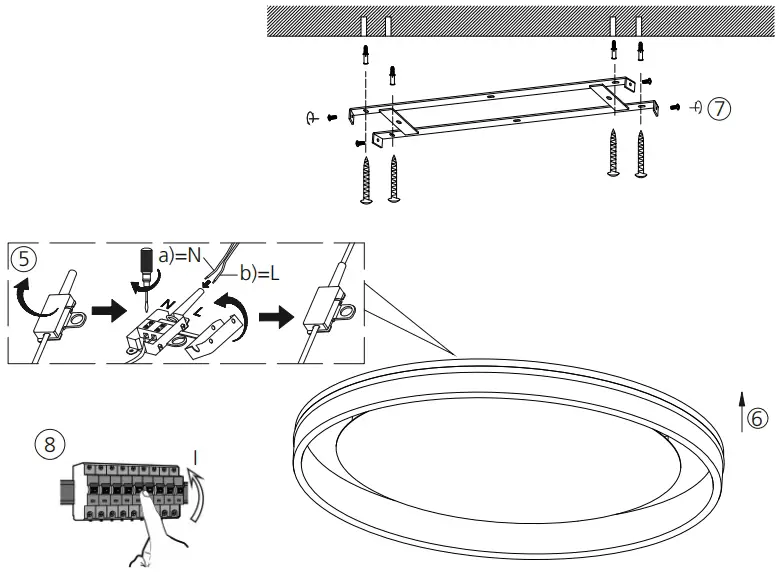

Electrical connection

230 voltage / 50Hz-connection

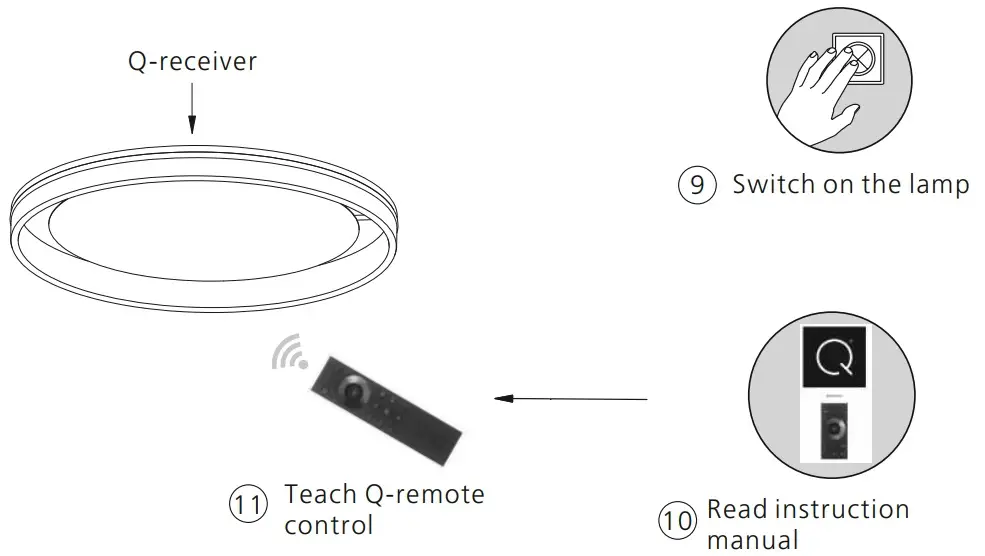

Teach remote control

See Q-remote control manual

QR Code:

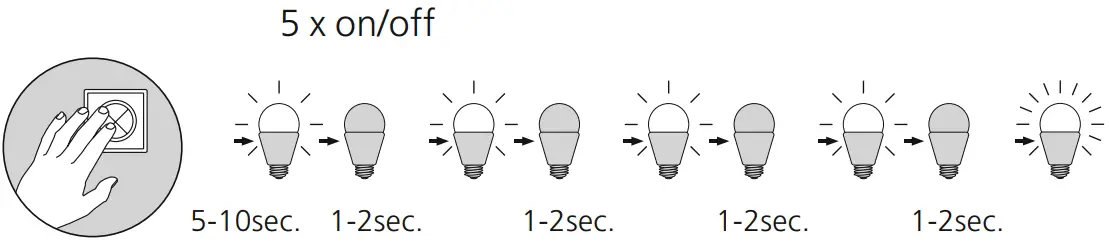

Reset

Reset the lamp,factory new.

This device fulfils the fundamental requirements of Directive 2014/53/EU (Radio Equipment Directive) of the European Parliament and of the Council of the European Uniondated 16.04.2014 on items of radio equipment.
The full declaration of conformity can be accessed at the lnternet-address given below.

Support

Paul Neuhaus GmbH
Olakenweg 36 . 59457 Werl
Germany
Telefon: +49(0)2922-9721-0
Telefax: +49(0)2922-9721-9120
E-Mail: [email protected]
https://scm.paul-neuhaus.de/public/conformity/
