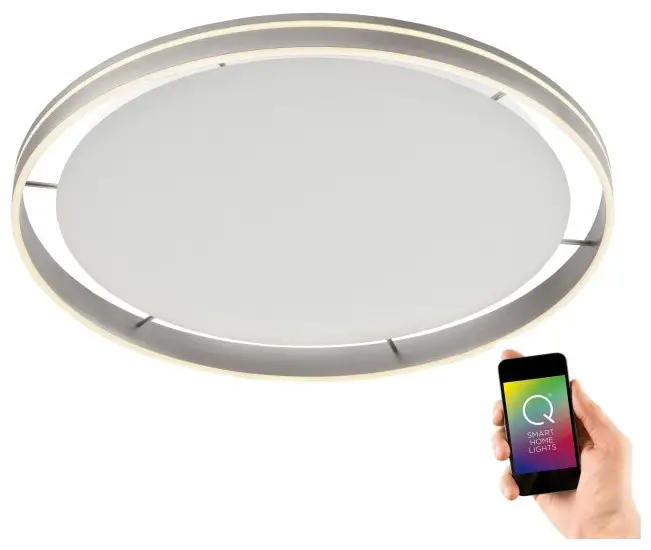

Paul Neuhaus 8418-55 Q-VITO Ceiling Light LED
Specifications
230V / 50Hz~
1x LED-Board 55V DC / 58W
not changeable
2,4 GHz 10 dBm
 | 58 W 5.800 lm |
 | 65 W 2.600 lm |
| t | 20.000 h |
| Tx | 2.700 – 5.000 K |
 | 15.000 x |
 | < 0,5 s |
 | dimmable with rrc |

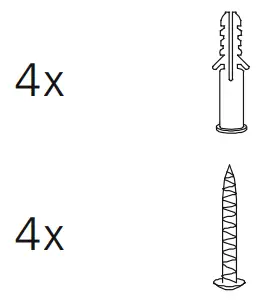

Tools Needed
lncl . radio remote control

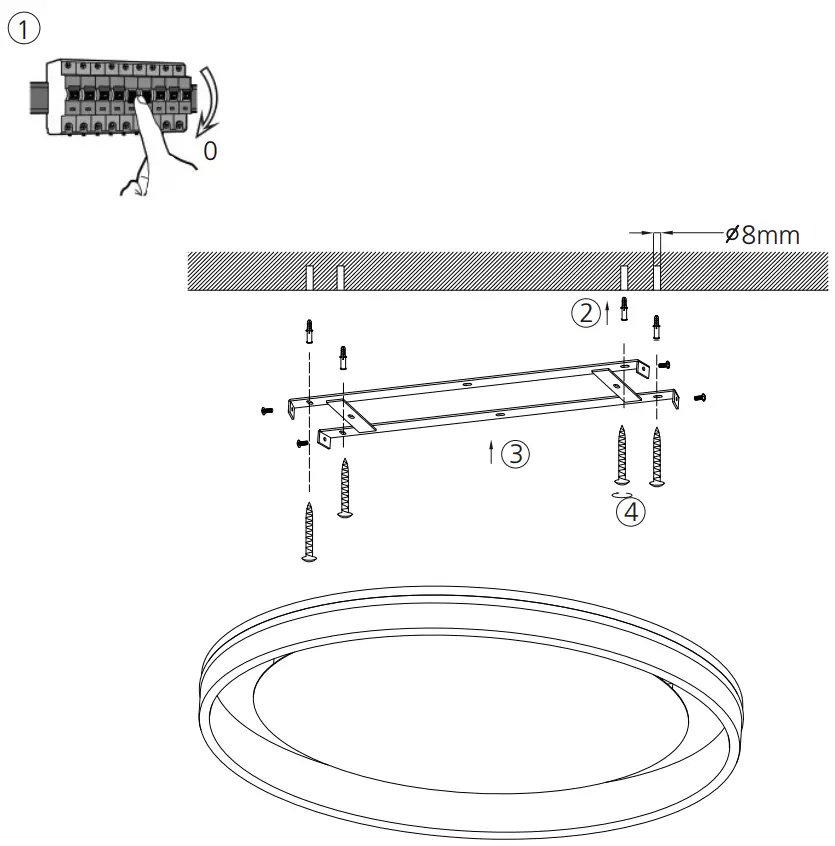

fitting
as ceiling light

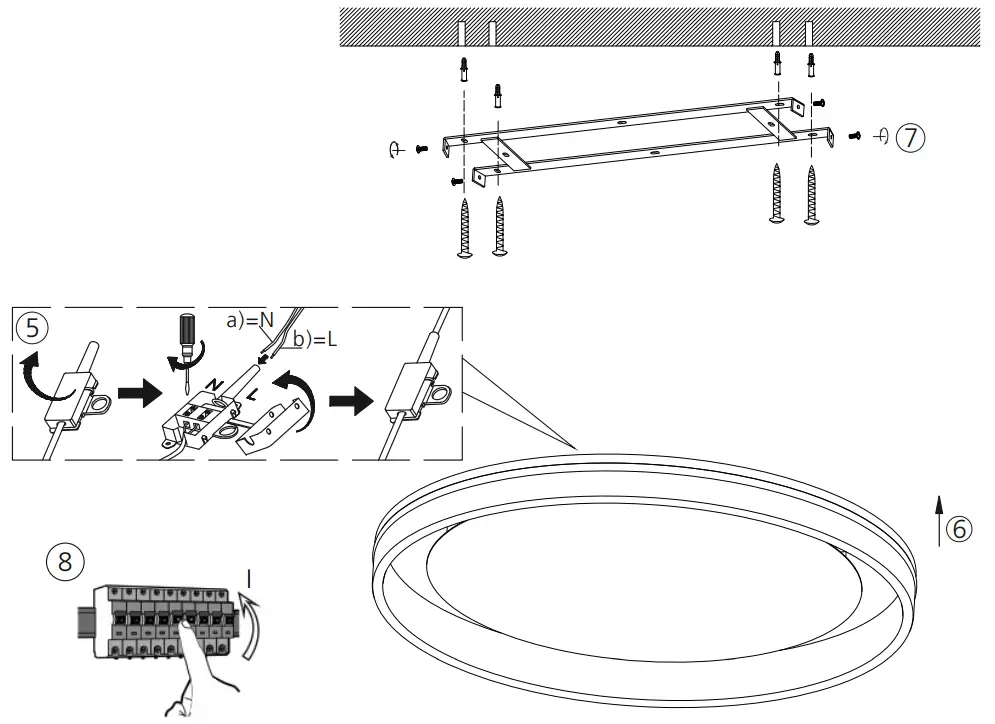

electrical connection
230 voltage / 50Hz-connection

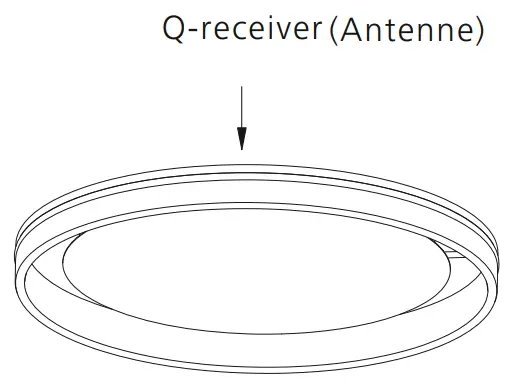

teach remote control
See Q-remote control manual
- (9) Switch on the lamp
- (10) Read instruction manual
- (11) Teach Q-remote control

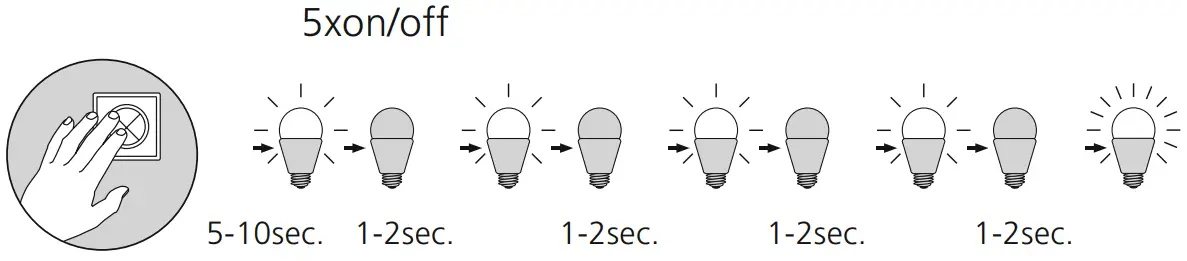

Reset
Reset the lamp, factory new
This device fulfils the fundamental requirements of Directive 2014/53/EU (Radio Equipment Directive) of the European Parliament and of the Council of the European Union dated 16.04.2014 on items of radio equipment.
The full declaration of conformity can be accessed at the lnternet-address given below.
Paul Neuhaus GmbH
Olakenweg 36 D-59457 Werl
Telefon: +49(0)2922-9721-0
Telefax: +49(0)2922-9721-9120
E-Mail: [email protected]
https://scm.paul-neuhaus.de/public/conformity/
