Paul Neuhaus 8414-55 Q-vito Ceiling Light Led Instruction Manual

8414-55 Q-VITO Ceiling Light LED
Instruction Manual

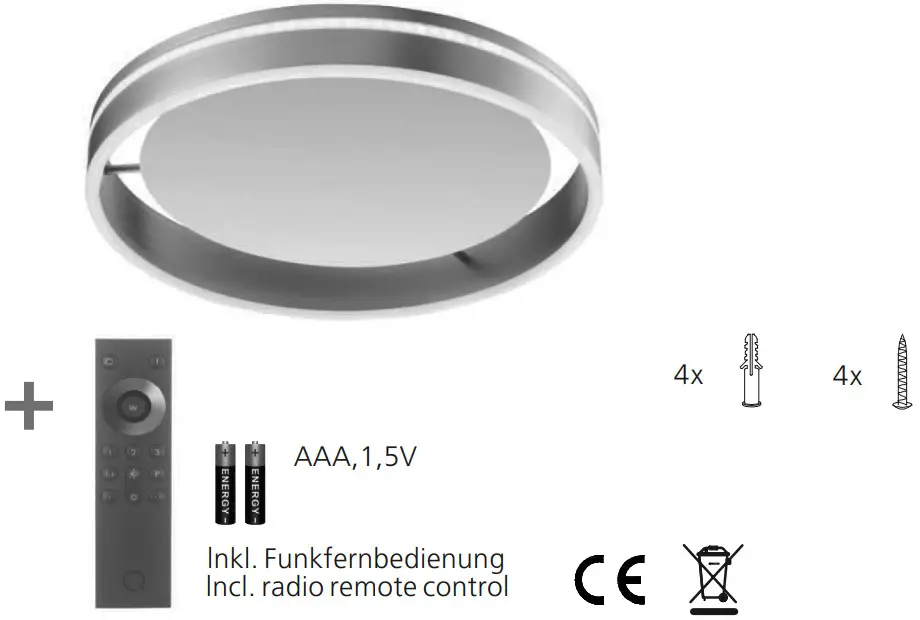

8414-55 Q-VITO Ceiling Light LED

833385
230V/50Hz∼
1x LED-Board 24V DC/28W
nicht wechselbar / not changeable

	2,4 GHz 10 dBm
	28W 3.000 I’m
	33 W 1.1501m
t	20.000 h
Tk	2.700-5.000 K
	15.000 x
	<0,5 s
	dimmable with rrc

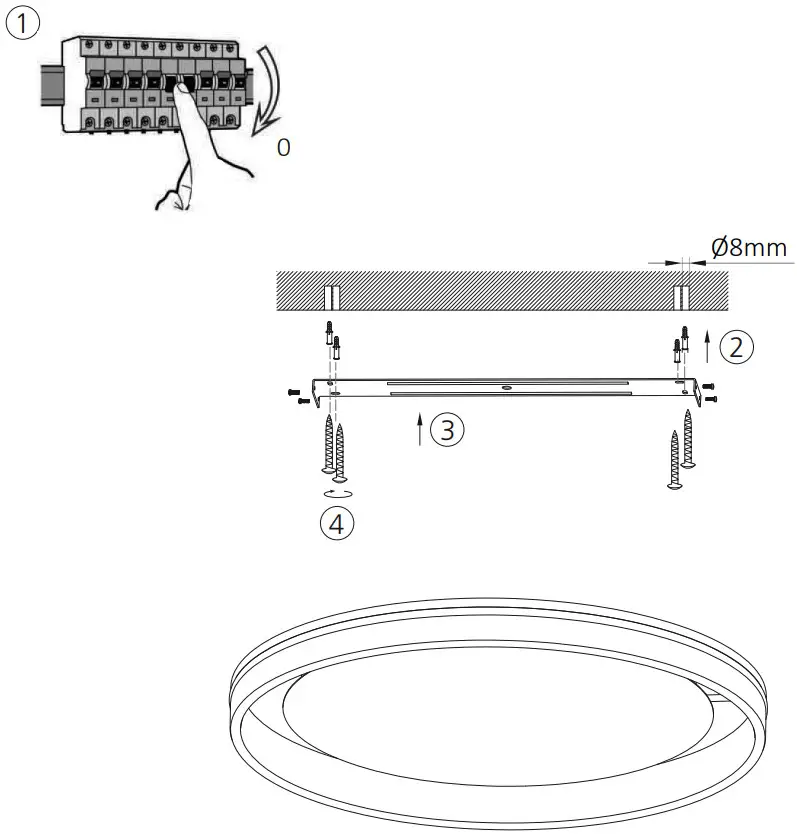

Fitting

As ceiling light

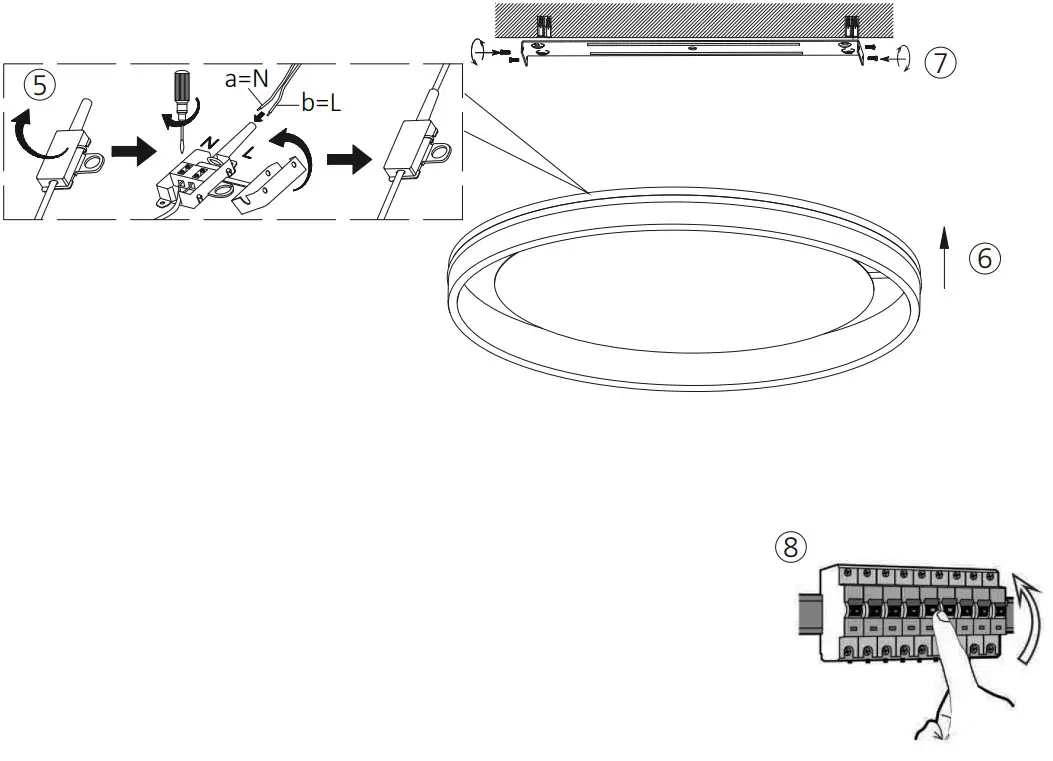

Electrical connection

230 voltage/50Hz-connection

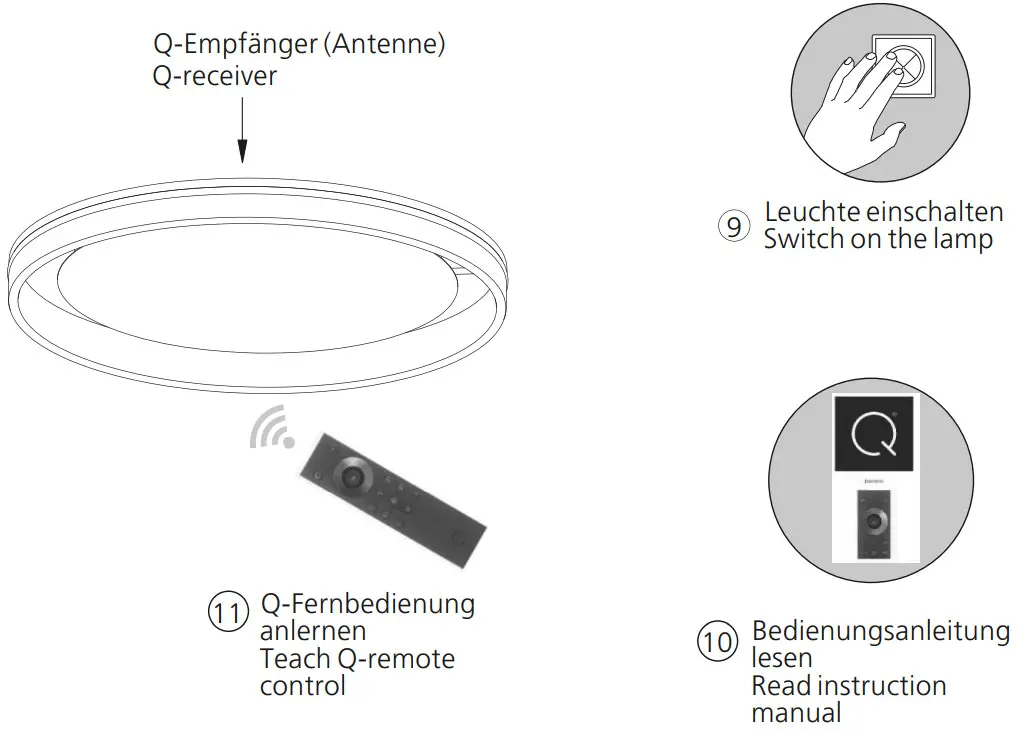

Teach remote control

see Q-remote control manual
https://www.paul-neuhaus.de/cms-wAssets/img/Videos/Q/Q-Funktionsfilm_DE.mp4
http://q.paul-neuhaus.de/

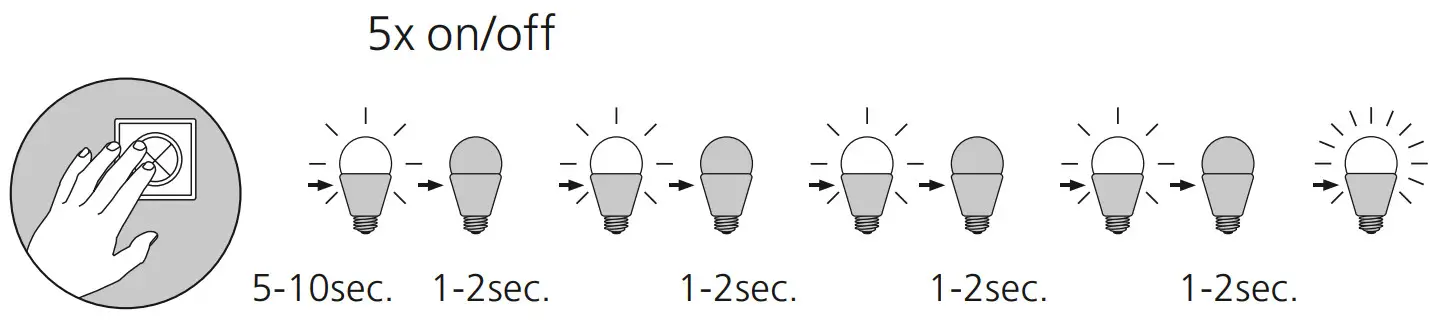

Reset
Reset the lamp, factory new
This device fulfills the fundamental requirements of Directive 2014/53/EU (Radio Equipment Directive) of the European Parliament and of the Council of the European Union dated 16.04.2014 on items of radio equipment. The full declaration of conformity can be accessed at the Internet address given below.

Paul Neuhaus GmbH
Olakenweg 36.D-59457 Werl
Telefon: +49(0)2922-9721-0
Telefax: +49(0)2922-9721-9120
E-Mail:[email protected]
https://scm.paul-neuhaus.de/public/conformity/
