Paul Neuhaus 8416-55 Q-vito Led Ceiling Light Instruction Manual

Paul Neuhaus 8416-55 Q-vito Led Ceiling Light Instruction Manual

Paul-Neuhaus-8416-55-Q-Vito-LED-Ceiling-Light-LOGO

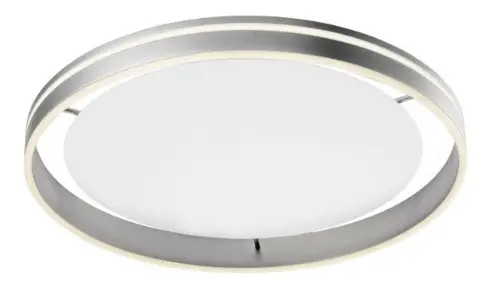

Paul Neuhaus 8416-55 Q-Vito LED Ceiling Light

Paul-Neuhaus-8416-55-Q-Vito-LED-Ceiling-Light-PRODUCT

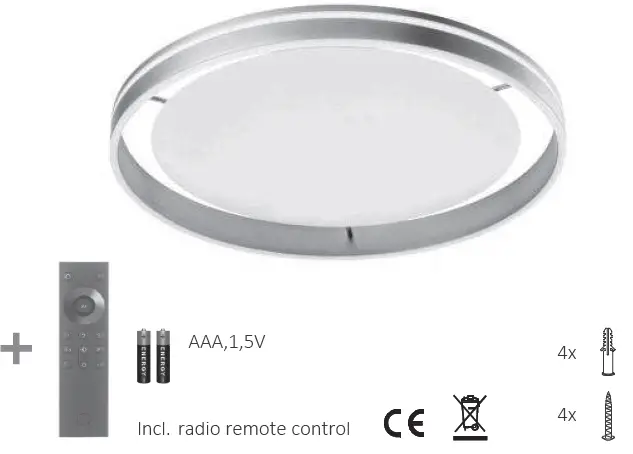

OVERVIEW

Paul-Neuhaus-8416-55-Q-Vito-LED-Ceiling-Light-1

  • 39 W 4.000 Im
  • 45 W 1.550 Im
  • 20.000 h
  • 2.700-5.000 K
  • 15.000 x <0,5 s
  • dimmable with rrc

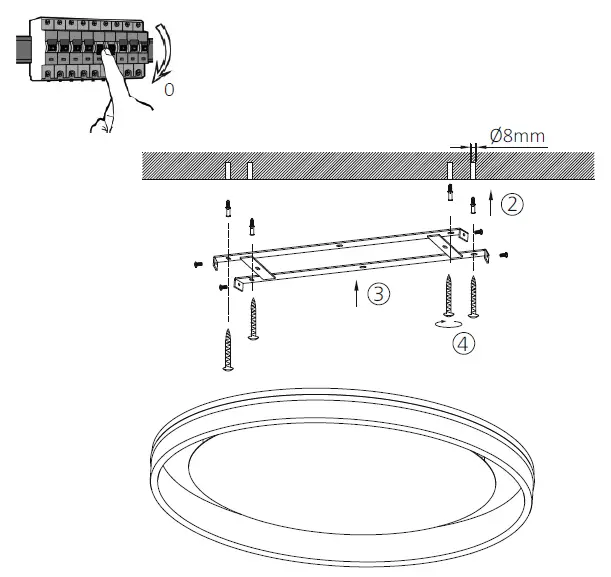

fitting

ceiling light

Paul-Neuhaus-8416-55-Q-Vito-LED-Ceiling-Light-2

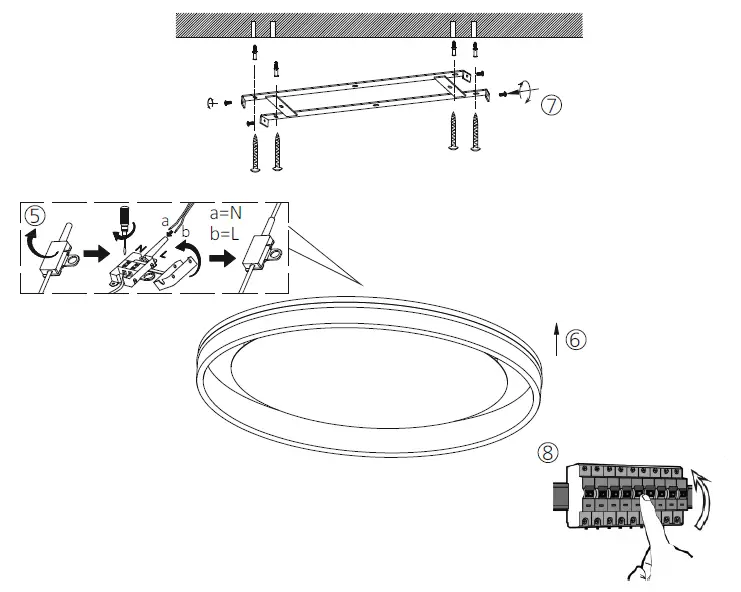

electrical connection

230 voltage/ 50Hz-connection

Paul-Neuhaus-8416-55-Q-Vito-LED-Ceiling-Light-3

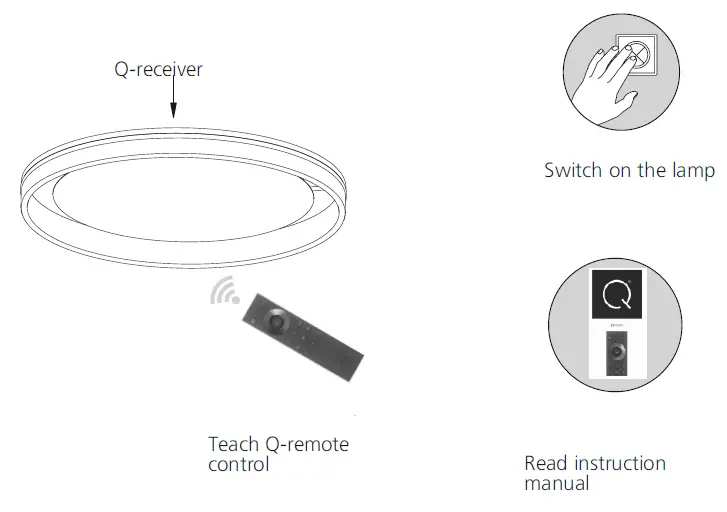

teach remote control

see Q-remote control manual

Paul-Neuhaus-8416-55-Q-Vito-LED-Ceiling-Light-4

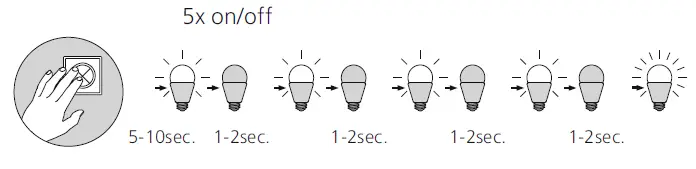

Reset

Reset the lamp, factory new

Paul-Neuhaus-8416-55-Q-Vito-LED-Ceiling-Light-5

This device fulfills the fundamental requirements of Directive 2014/53/EU (Radio Equipment Directive of the European Parliament and of the council of the European Union dated 16.04.2014 on items of radio equipment. The full declaration of conformity can be accessed at the Internet address given below.

Paul Neuhaus GmbH Olakenweg 36 D-59457 Werl

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
