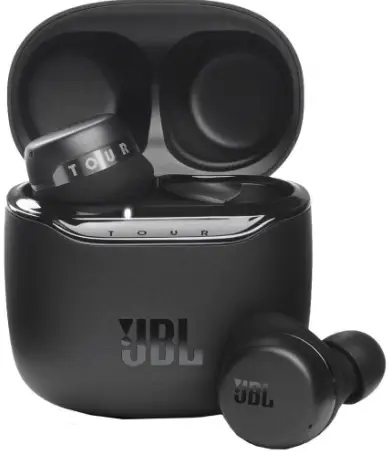

JBL Tour Pro+ True Wireless In-Ear Noise Cancelling Headphones

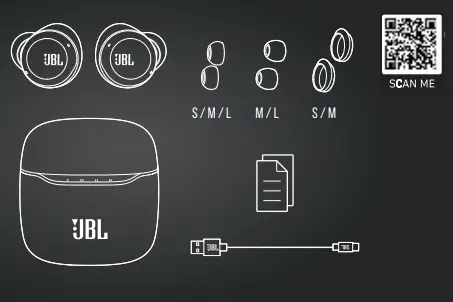

WHAT’S IN THE BOX
APP

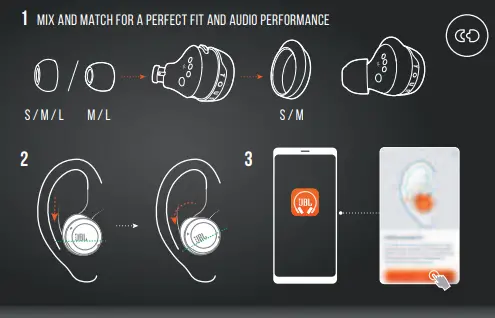

how to wear

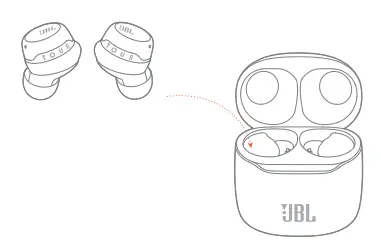

First-time use

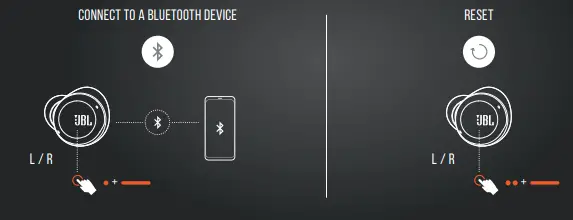

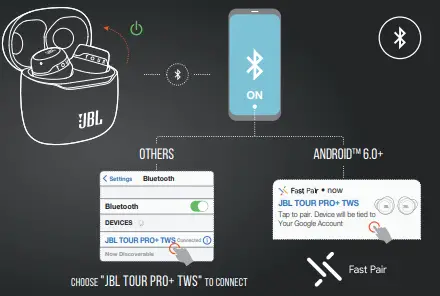

power on & CONNECT

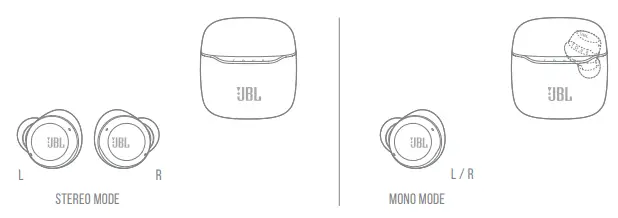

DUAL CONNECT + SYNC

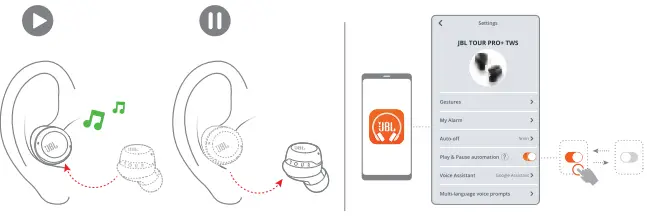

Auto Play/Pause
SILENT NOW

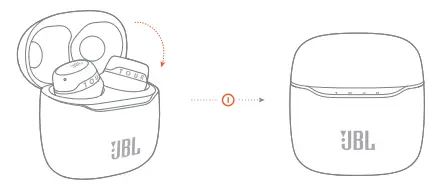

power off

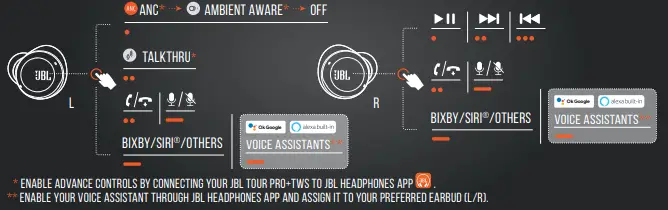

MANUAL CONTROLS

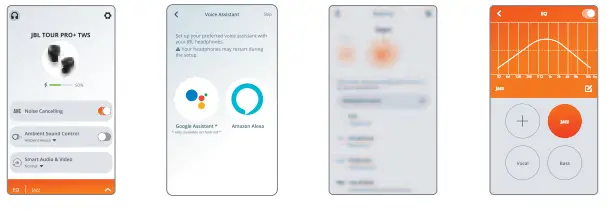

DO MORE WITH THE APP
HANDS-FREE VOICE CONTROL
Get more done on the go. Say “Ok Google” to get started.
- “Play my Workout playlist”
- “Turn up the volume”
- “Send a message”
- “What’s my schedule today?”
- “Set an alarm for 7 AM
HANDS-FREE VOICE CONTROL
- “What’s the weather?”
- “Play today’s hits”
- “Turn on the lights”

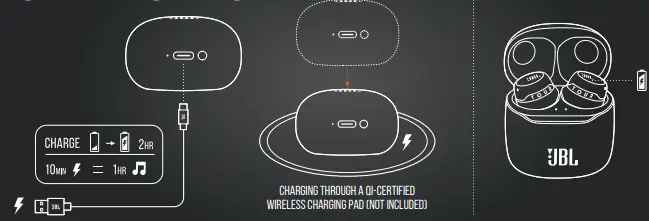

Charging

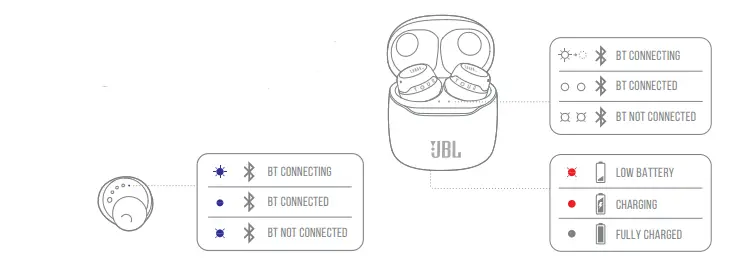

led behaviors
TECH SPEC
- Model: TOUR PRO+TWS
- Driver Size: 6.8 mm / 0.27” Dynamic Driver
- Power supply: 5 V 1 A
- Earpiece: 7.5 g per pc (15 g combined) / 0.017 lbs per pc (0.033 lbs combined)
- Charging case: 56.8 g / 0.13 lbs
- Headset battery type: Coin Cell battery (55 mAh / 3.7 V)
- Charging case battery type: Li-ion Battery (510 mAh / 3.7 V)
- Charging time (USB-C): 2 hrs from empty
- Wireless charging time: 4 hrs from empty
- Music playtime with BT on and ANC off 8 hrs
- Music playtime with BT on and ANC on 6 hrs
- Frequency Response: 10 Hz – 20 kHz
- Impedance: 16 ohm
- Sensitivity: 100 dB SPL@1kHz
- Maximum SPL: 96 dB
- Microphone sensitivity: -30 dBV / Pa@1kHz
- Bluetooth version: 5.0
- Bluetooth profile version: A2DP V1.3 AVRCP V1.6 HFP V1.7
- Bluetooth transmitter frequency range: 2.4 GHz – 2.4835 GHz
- Bluetooth transmitter power: <12 dBm
- Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
- Maximum operation temperature: 45 °C
IC RF Exposure Information and Statement
The SAR limit of Canada (C) is 1.6 W/kg averaged over one gram of tissue. Device types: (IC: 6132A-TOURPRO) has also been tested against this SAR limit According to this standard, the highest SAR value reported during product certification for head use is 0.5376 W / kg. The device was tested for typical bodily operations where the product was kept 5 mm from the head. To maintain compliance with IC RF exposure requirements, use accessories that maintain a separation distance of 0mm between the user’s head and the back of the headset. The use of belt clips, holsters and similar accessories shall not contain metal parts in its assembly. Use of accessories that do not
meet these requirements may not comply with IC RF exposure requirements and should be avoided.
Head operation
The device was subjected to a typical head manipulation test. In order to comply with RF exposure requirements, a minimum separation distance of 0 cm must be maintained between the user’s ear and
the product (including the antenna). Head exposure that do not meet these requirements may not meet RF exposure requirements and should be avoided. Use only the supplied or approved antenna.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
- FCC ID: APITOURPRO
- IC: 6132A-TOURPRO
- WPC: 110-205KHz
- WPT: 49.11 dBuA/m at 3m distance
Google, Android and Google Play are trademarks of Google LLC.
Amazon, Alexa, Amazon Music, and all related logos are trademarks of Amazon, Inc. or its affiliates.
WARNING
DO NOT ATTEMPT TO OPEN, SERVICE, OR DISASSEMBLE THE BATTERY | DO NOT SHORT CIRCUIT | MAY EXPLODE IF DISPOSED OF IN FIRE | RISK OF EXPLOSION IF THE BATTERY IS REPLACED BY AN INCORRECT TYPE | DISPOSE OR RECYCLE USED BATTERIES ACCORDING TO THE INSTRUCTIONS HP_JBL_TOUR PRO+TWS_QSG_Global_CR_V17
