QUICK START GUIDE
CLUB PRO+TWS

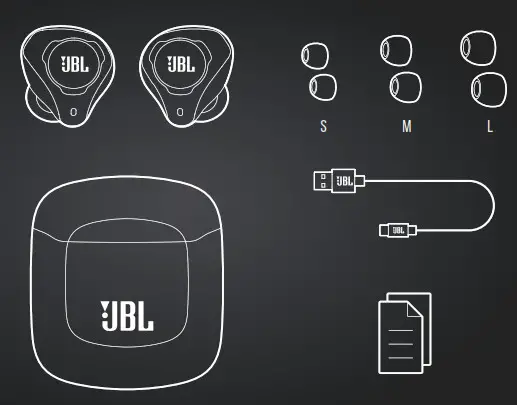

WHAT’S IN THE BOX
SCAN ME
APP

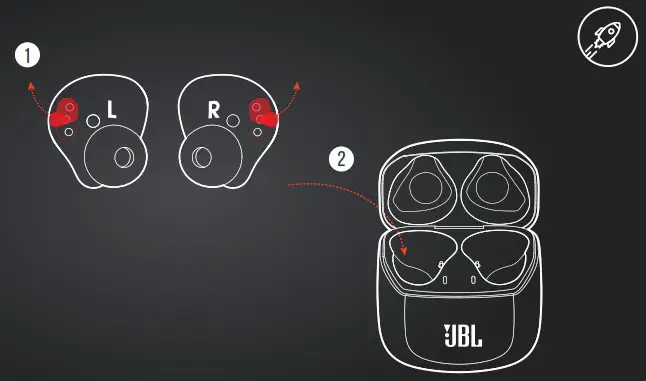

FIRST TIME USE

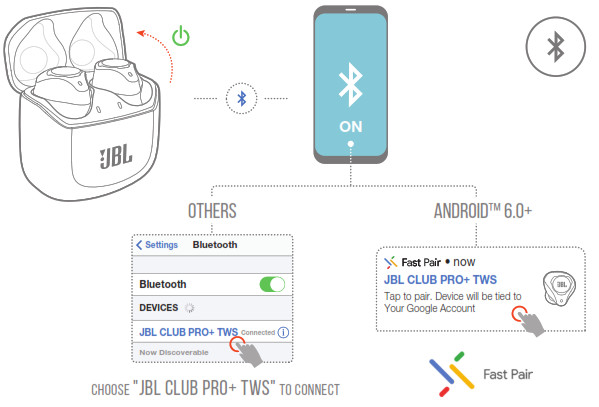

POWER ON & CONNECT

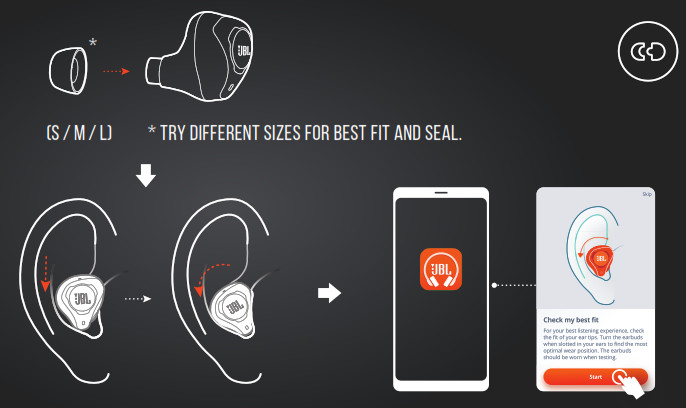

HOW TO WEAR

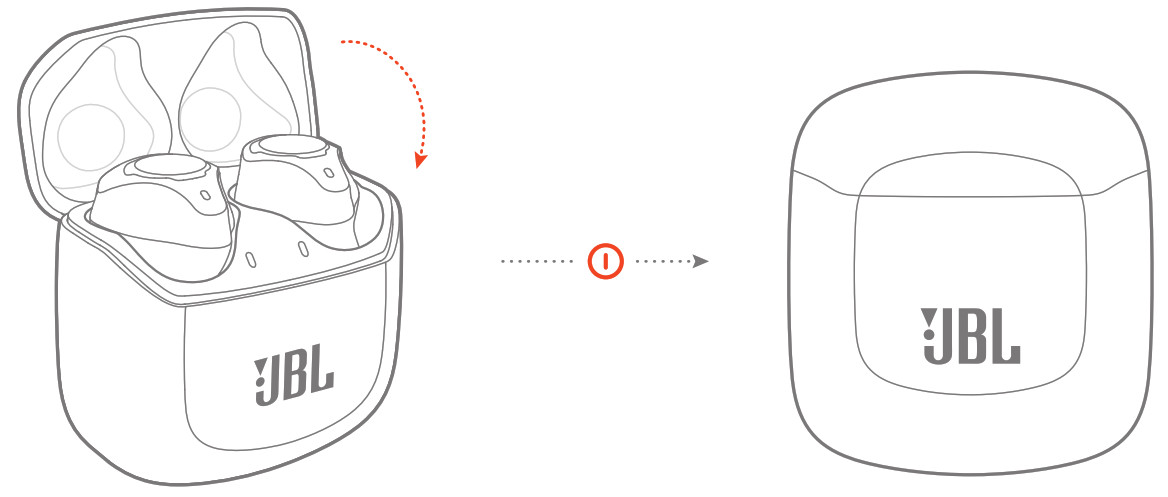

POWER OFF

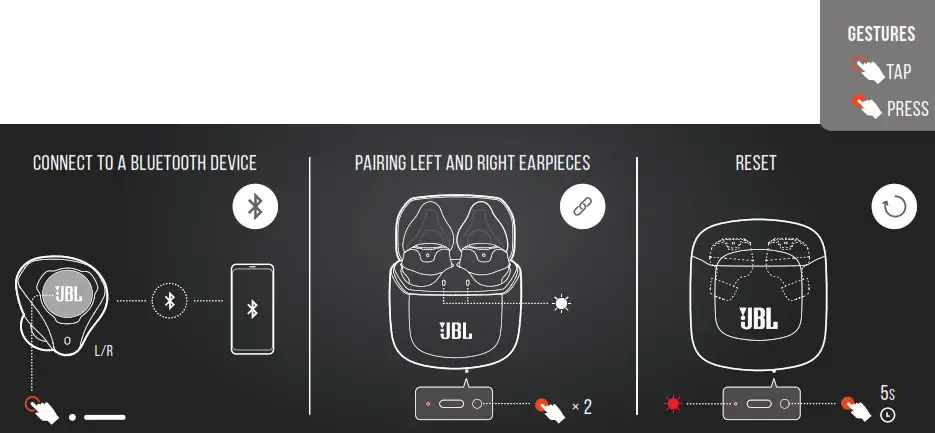

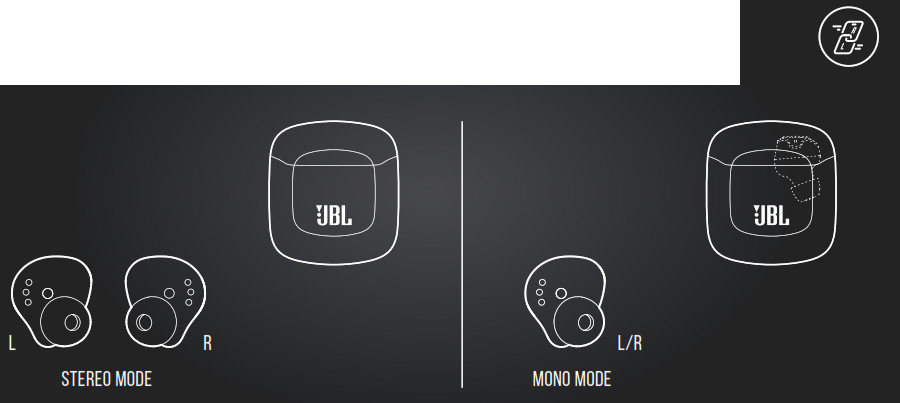

DUAL CONNECT + SYNC
* Enable advance controls by connecting your JBL CLUB PRO+TWS to JBL Headphones App.
** ENABLE YOUR VOICE ASSISTANT THROUGH JBL HEADPHONES APP AND ASSIGN IT TO YOUR PREFERRED EARBUD (L/R).

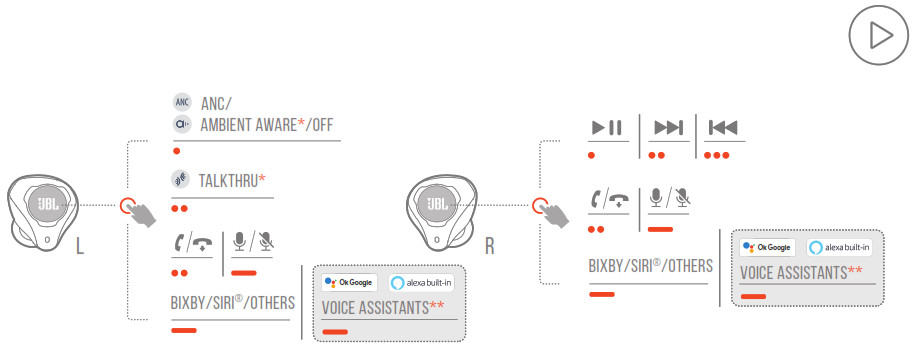

MANUAL CONTROLS

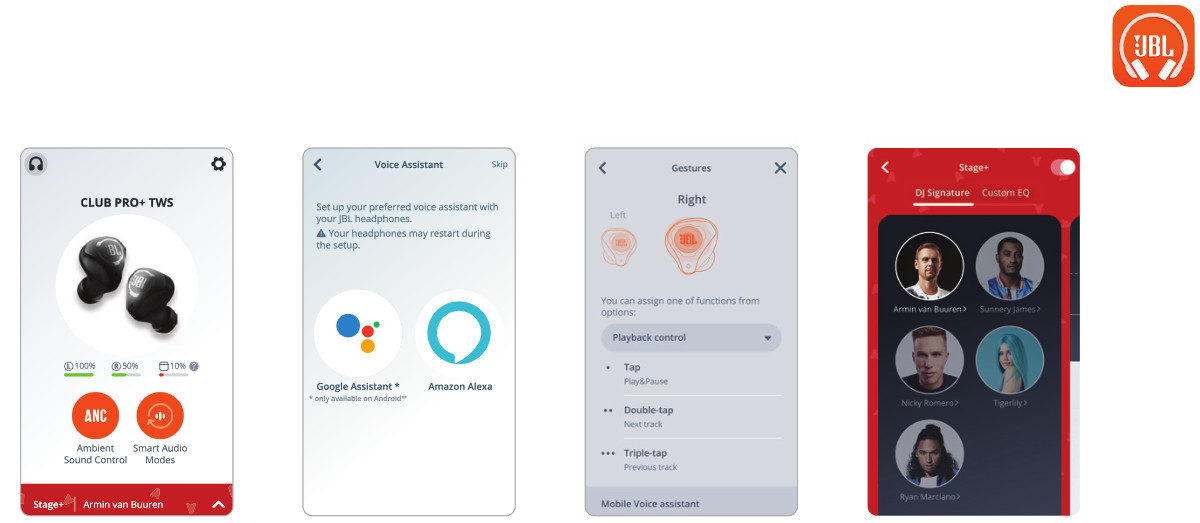

DO MORE WITH THE APP

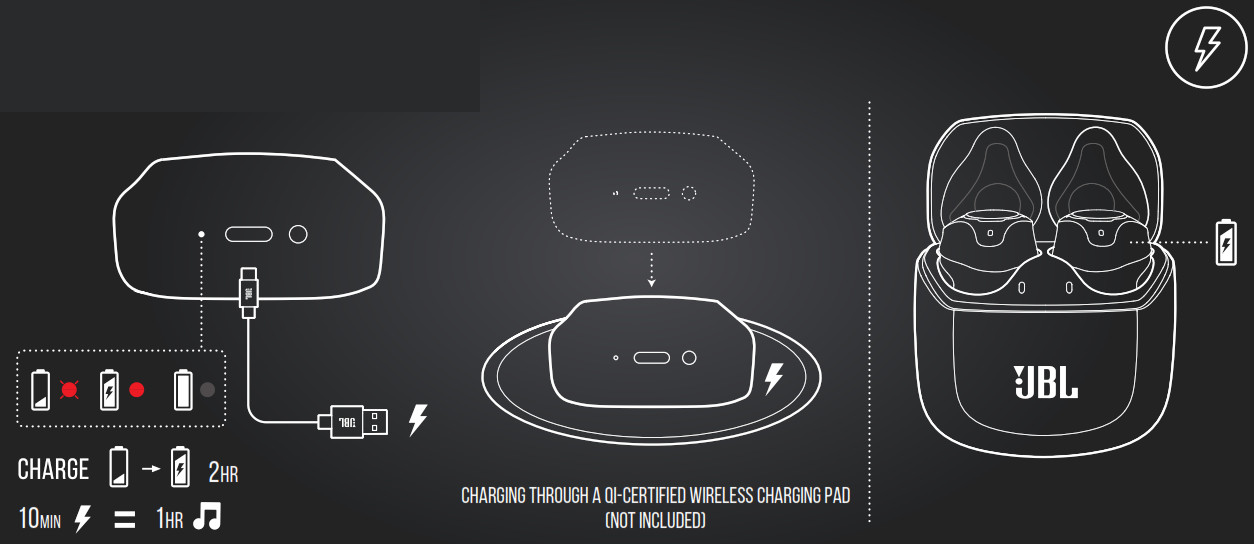

CHARGING

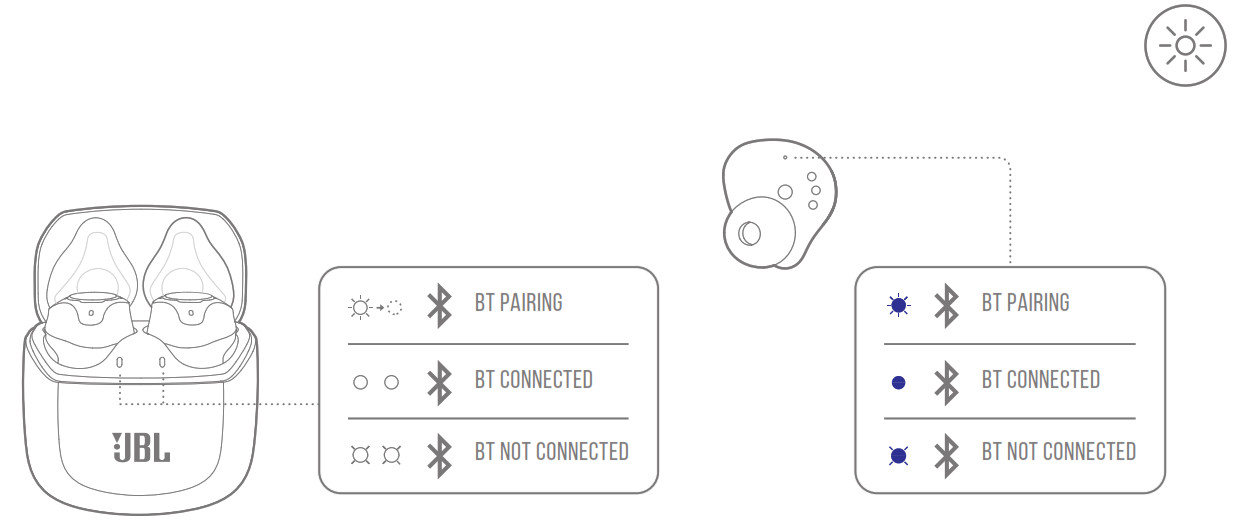

LED BEHAVIORS
TECH SPEC
| Model: | CLUB PRO+ TWS |
| Driver Size: | 6.8 mm/0.27″ Dynamic Driver |
| Power supply: | 5 V  1 A |
| Earpiece: | 6.85 g per pc (13.7 g combined)/0.015 lbs per pc (0.03 lbs combined) |
| Charging case: | 55.4 g/0.12 lbs |
| Headset battery type: | Lithium-ion polymer (3.7 V, 55 mAh) |
| Charging case battery type: | Lithium-ion polymer (3.7 V, 660 mAh) |
| Charging time (USB-C): | 2 hrs from empty |
| Music play time with BT on and ANC off | up to 8 hrs |
| Music play time with BT on and ANC on: | up to 6 hrs |
| Frequency Response: | 10 Hz – 20 kHz |
| Impedance: | 16 ohm |
| Sensitivity: | 102 dB SPL@1kHz/1mW |
| Maximum SPL: | 99 dB SPL |
| Microphone sensitivity: | -6 dBV@1kHz/Pa |
| Bluetooth version: | 5.1 |
| Bluetooth profile version: | A2DP V1.3, AVRCP V1.6, HFP V1.7 |
| Bluetooth transmitter frequency range: | 2400 – 2483.5 MHz |
| Bluetooth transmitter power: | < 9.5 dBm (EIRP) |
| Bluetooth transmitter modulation: | GFSK, π/4 DQPSK, 8DPSK |
| Maximum operation temperature: | 45°C |
TO PROLONG BATTERY LIFESPAN, FULLY CHARGE AT LEAST ONCE EVERY 3 MONTHS. BATTERY LIFE VARIES BY USE AND SETTINGS.
IC RF Exposure Information and Statement
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The portable device is designed to meet the requirements for exposure to radio waves established by the ISED. These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported under this standard during product certification for use when properly worn on the head.
WARNING
DO NOT ATTEMPT TO OPEN, SERVICE, OR DISASSEMBLE THE BATTERY | DO NOT SHORT CIRCUIT | MAY EXPLODE IF DISPOSED OF IN FIRE | RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE | DISPOSE OR RECYCLE USED BATTERIES ACCORDING TO THE INSTRUCTIONS
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
FCC ID: APICLUBPROTWS
IC: 6132A-CLUBPROTWS
WPC: 110-148KHz
Google, Android and Google Play are trademarks of Google LLC.
Amazon, Alexa, Amazon Music, and all related logos are
trademarks of Amazon, Inc. or its affiliates.
HP_JBL_CLUBPRO+TWS_QSG_CR_V22
