CLUB ONE
quick start guide

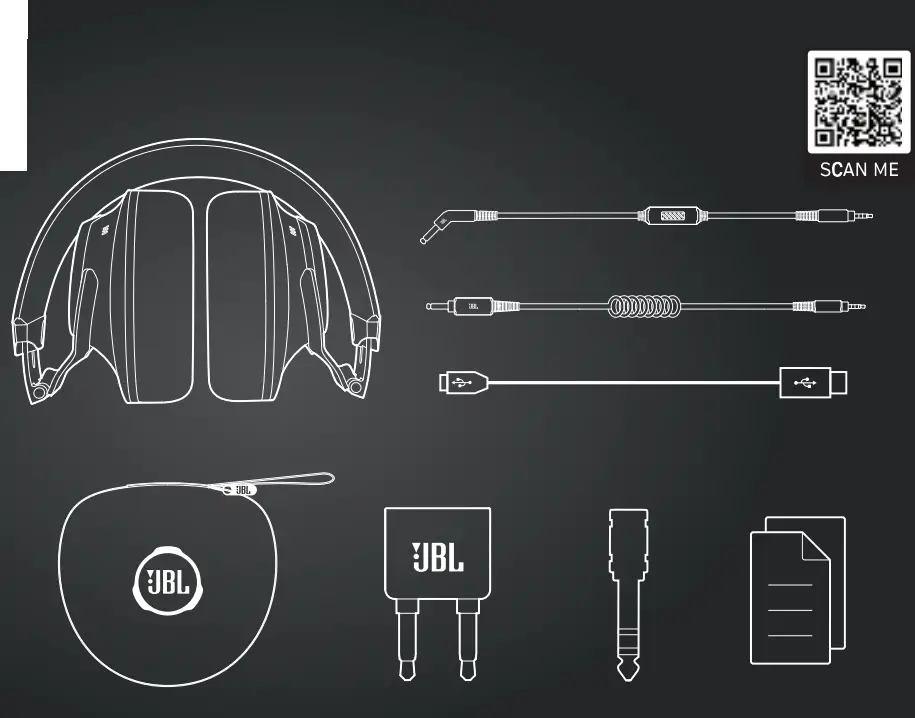

WHAT’S IN THE BOX

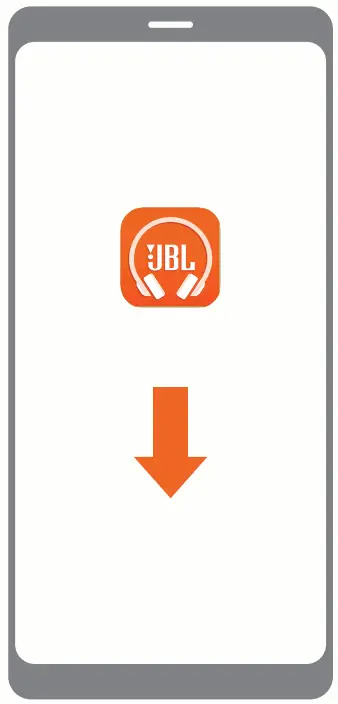

APP
JBL Headphones
GET EVEN MORE CONTROL AND PERSONALIZATION OF YOUR LISTENING EXPERIENCE WITH THIS FREE APP.

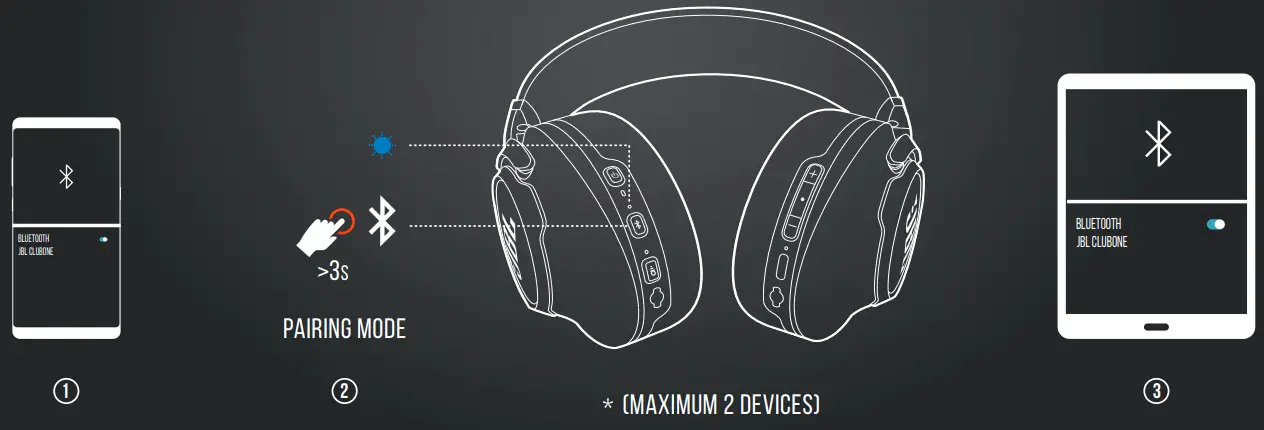

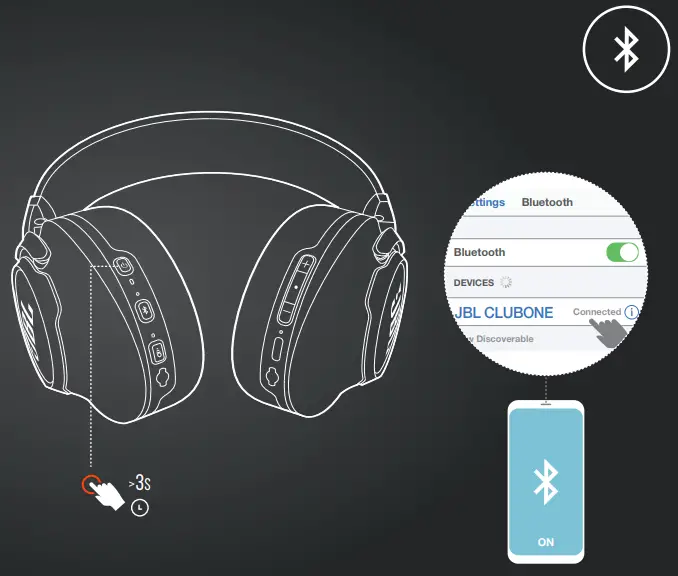

Power on & connect

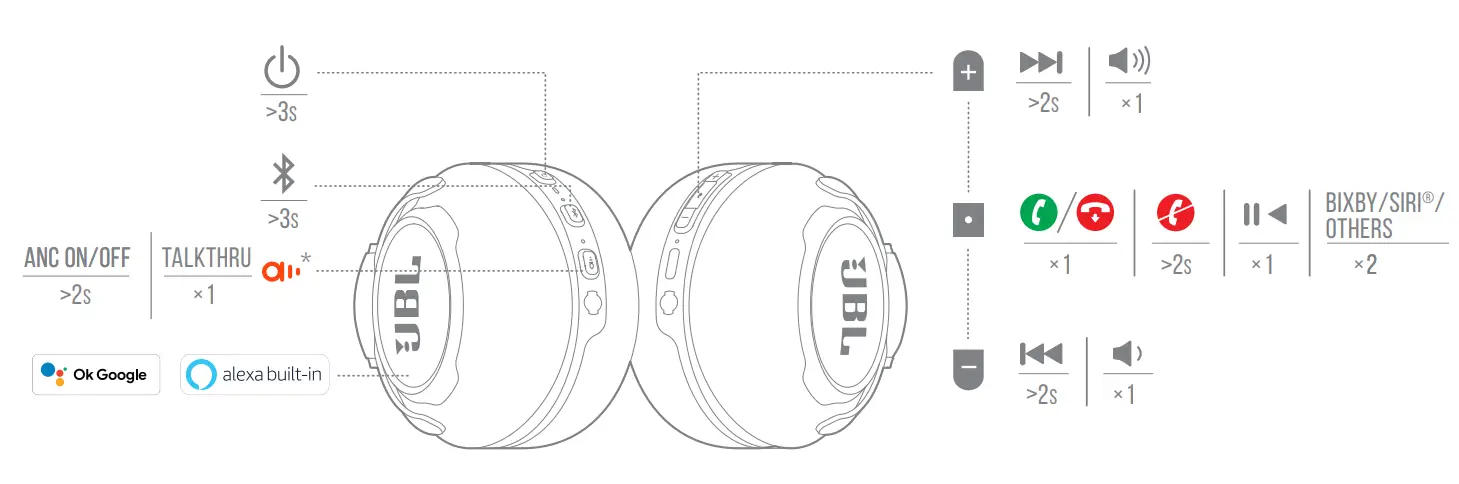

BUTTON COMMAND
AMBIENT AWARE/TALKTHRU
Wired listening

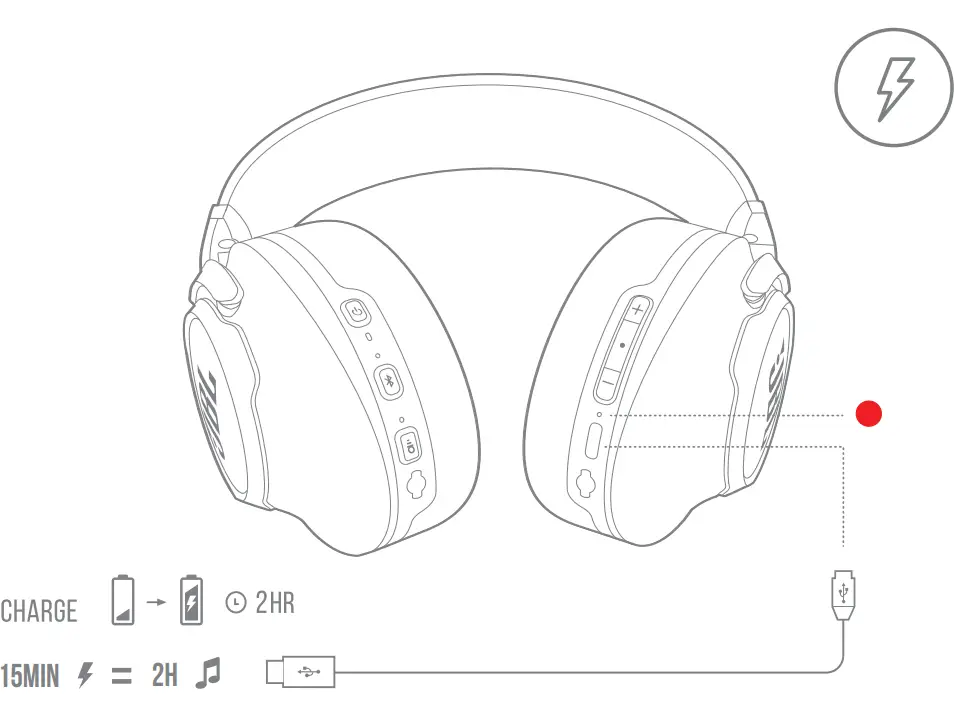

Charging
led behaviors

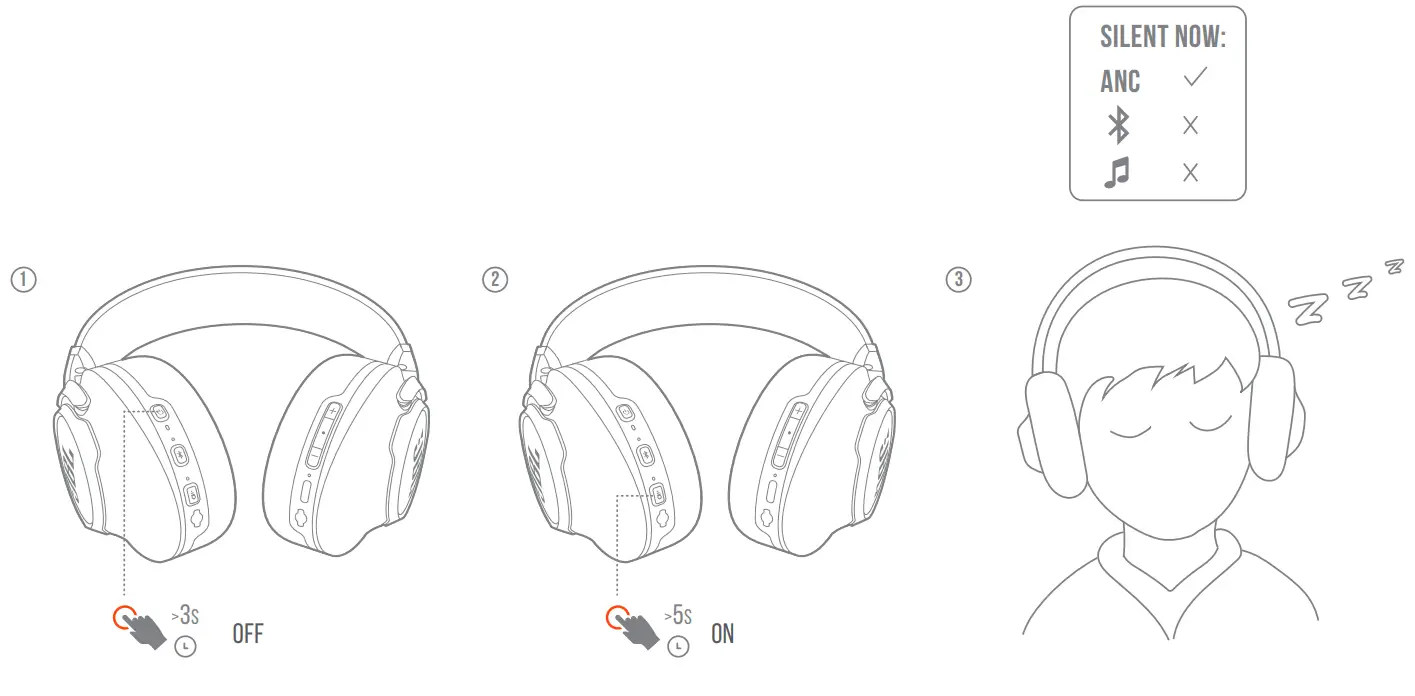

SILENT NOW
TECH SPEC
| Driver Size: Frequency response (Passive): Frequency response (Active): Sensitivity: Maximum SPL: Maximum input power (Passive): Microphone sensitivity: Impedance: Bluetooth transmitter power: Bluetooth transmitted modulation: Bluetooth frequency: Bluetooth profile version: Bluetooth version: Battery type: Power supply: Charging time: Music play time with BT on: Music play time with BT & ANC on: Music playtime with Aux-in & ANC on Weight: | 40 mm dynamic driver 10 Hz – 40 kHz 10 Hz – 22 kHz 95 dB SPL@1kHz/1mW 94 dB 3500 mW -38 dBV@1kHz/Pa 32 ohm <4 dBm GFSK, π/4 DQPSK, 8DPSK 2.402 GHz – 2.480 GHz A2DP 1.3, AVRCP 1.5, HFP 1.6 V5.0 LITHIUM-ION BATTERY (730 mAh/3.7 V) 5 V 1.0 A < 2 hrs 45 hrs 23 hrs 25 hrs 378.5 g |
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries,
Incorporated is under license. Other trademarks and trade names are those of their respective owners.
Google and Google Play are trademarks of Google LLC.

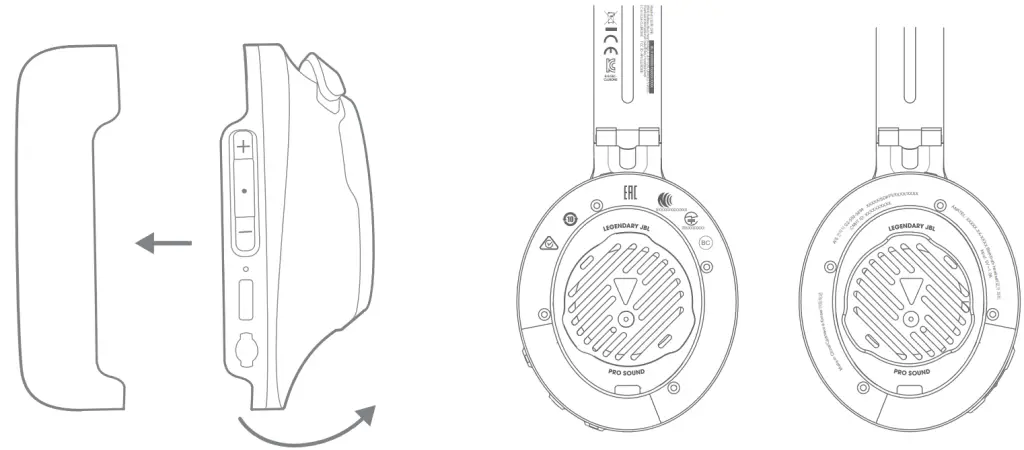

Compliance Information on Ear Cup
