TOUR ONE Wireless Over Ear Noise Cancelling Headphones
User Guide

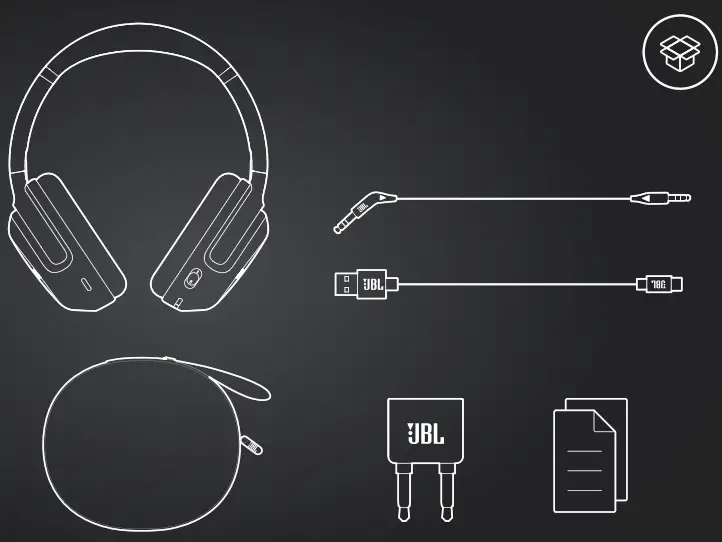

WHAT’S IN THE BOX

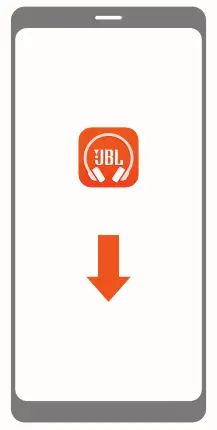

APP
My JBL Headphones
GET EVEN MORE CONTROL AND PERSONALIZATION OF YOUR LISTENING EXPERIENCE WITH THIS FREE APP.

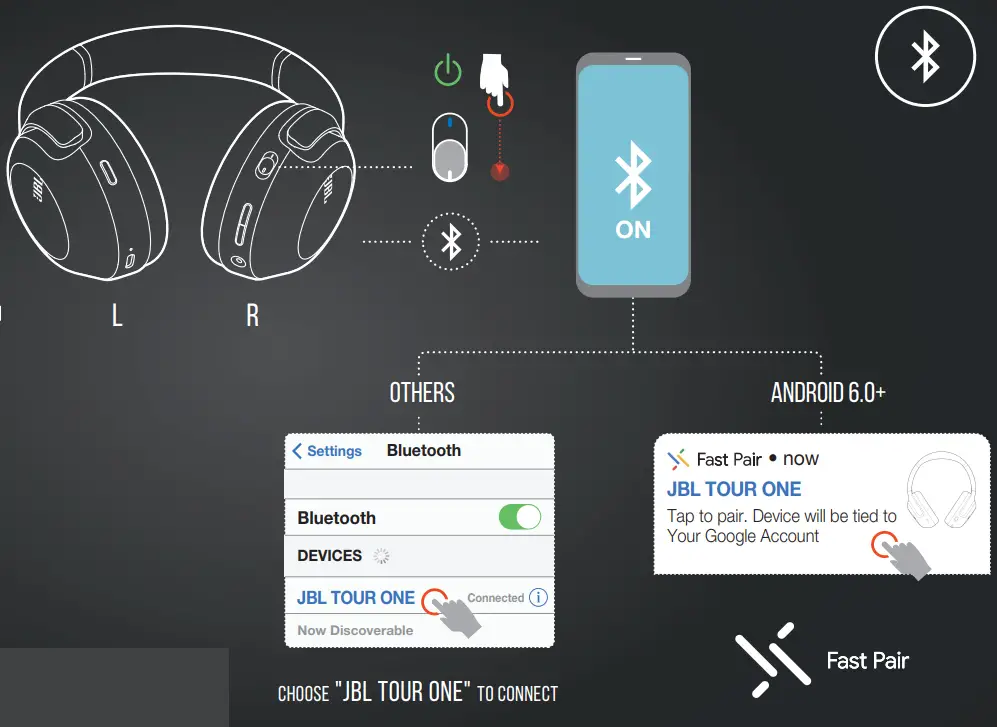

power on & connect
- To enter pairing mode again, slide to the bottom and hold for 2 seconds.

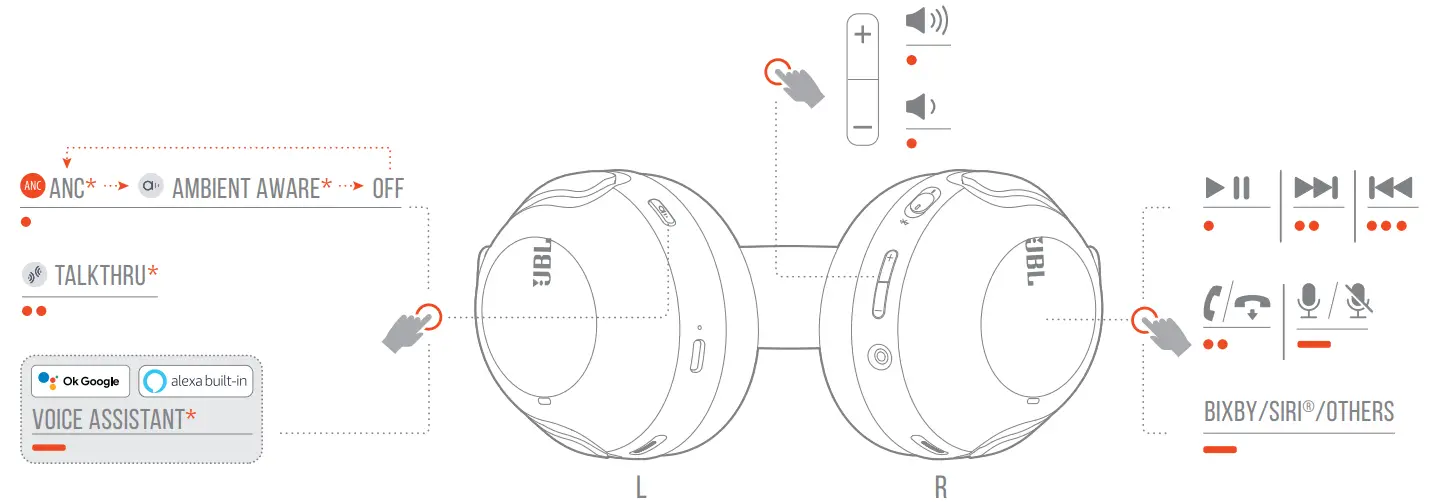

- Tap/press × 1
- Tap/press × 2
- Tap × 3
- HOLD (2S)
- Enable advance controls by connecting your JBL TOUR ONE to My JBL Headphones App
.

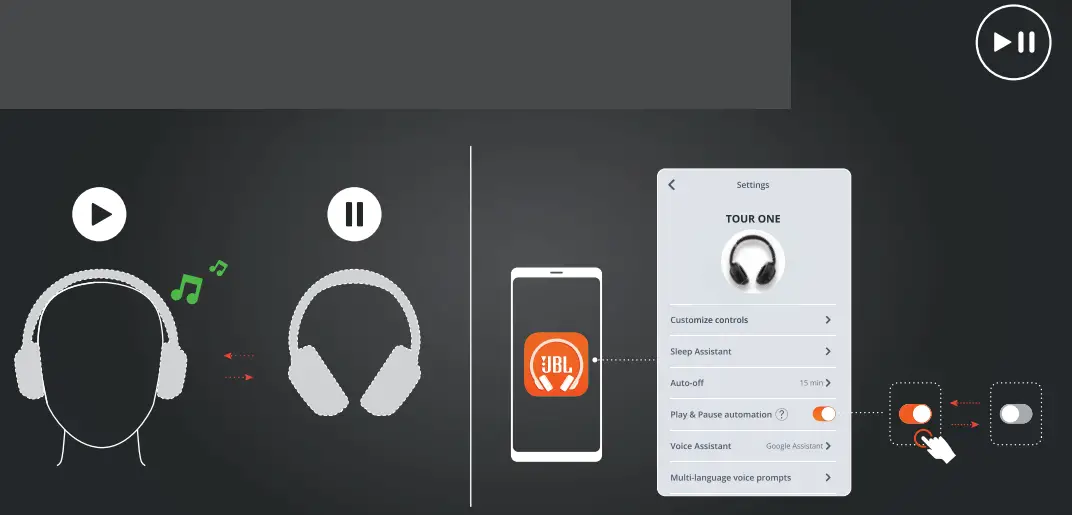

auto-play/pause

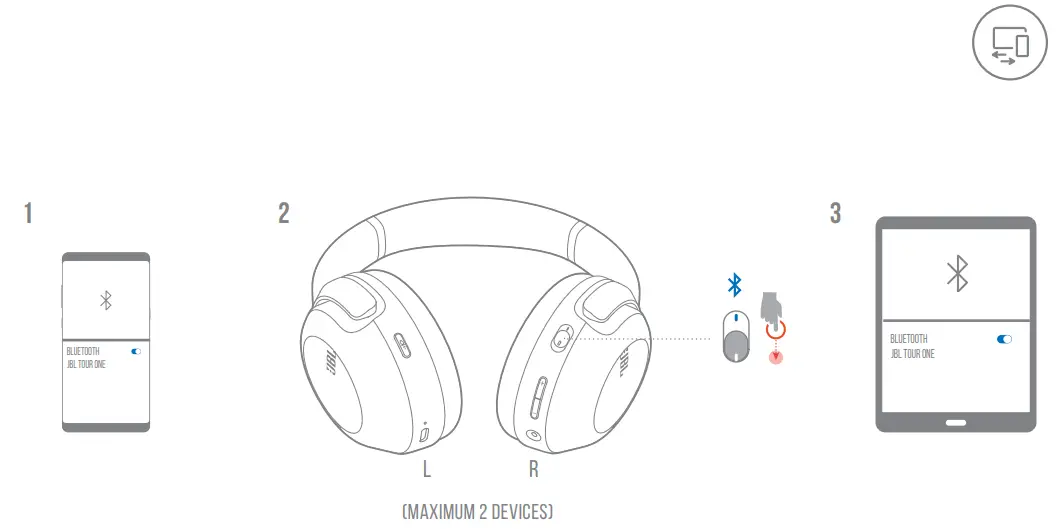

Multi-point connection

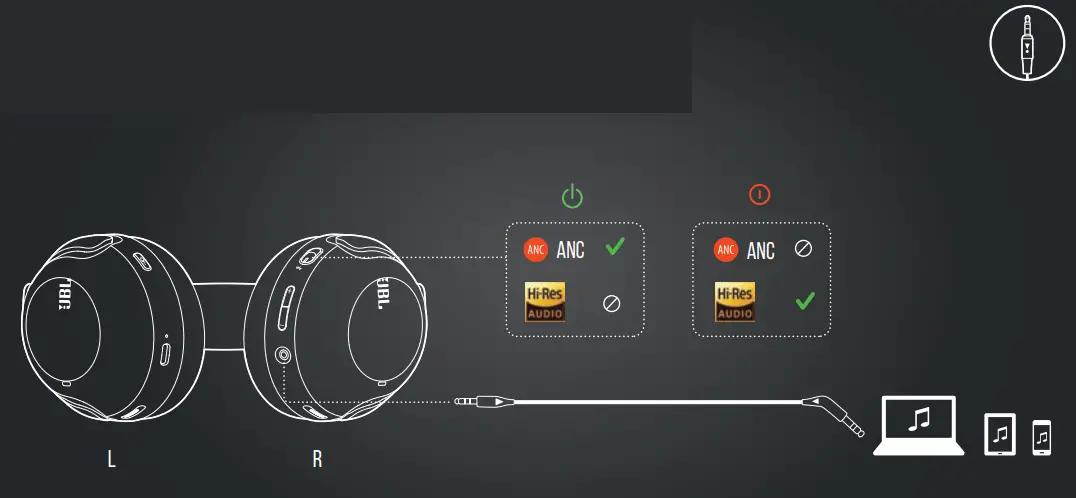

Wired listening

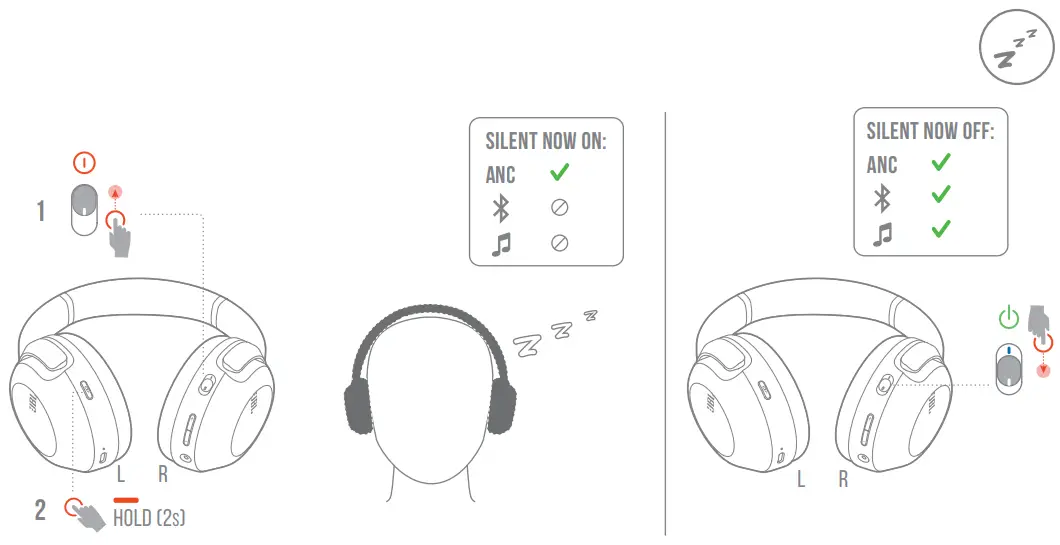

SILENT NOW

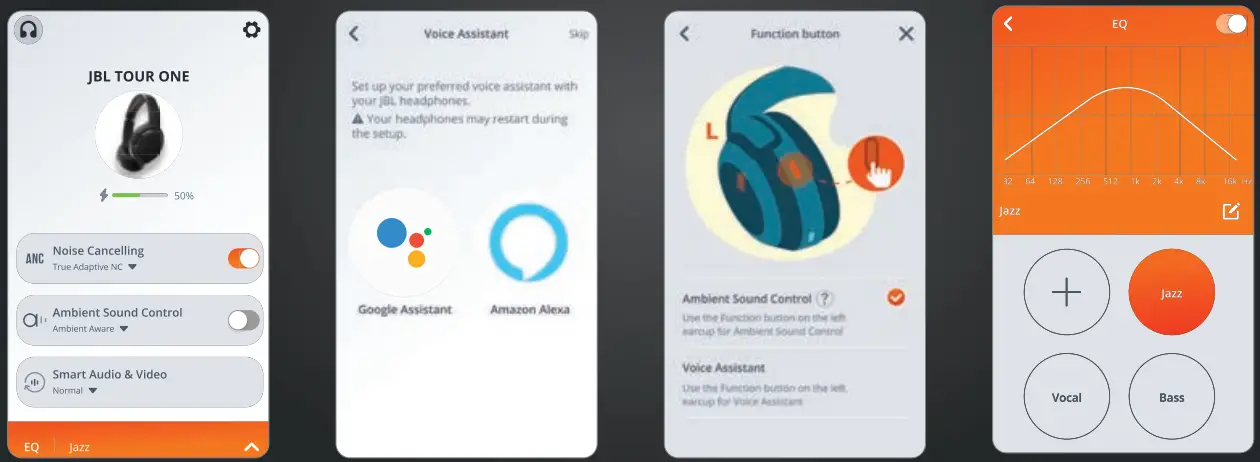

DO MORE WITH THE APP

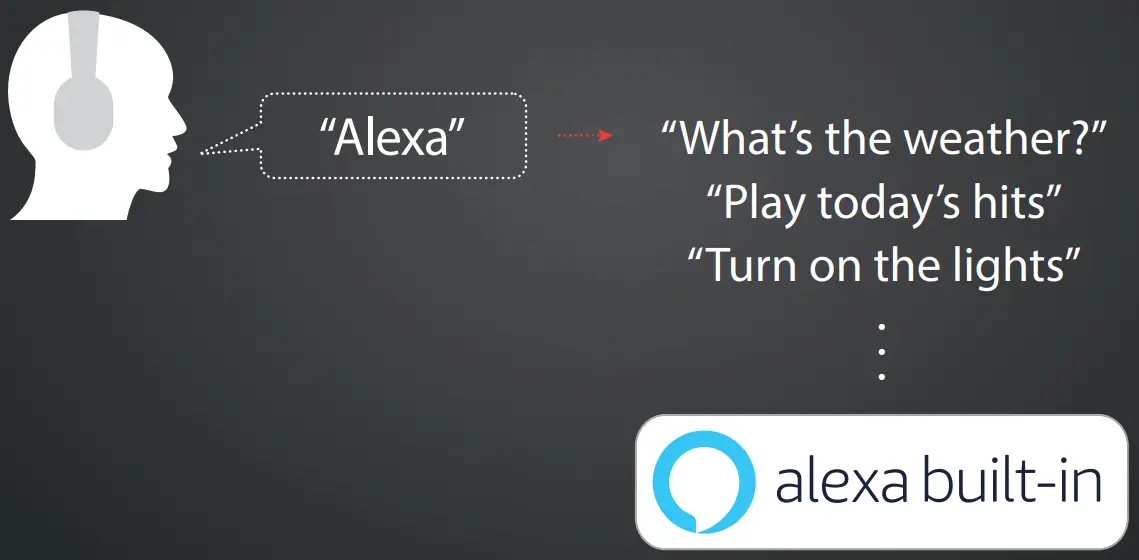

HANDS-FREE VOICE CONTROL
Get more done on the go. Say “Ok Google” to get started.
“Play my Workout playlist”
“Turn up the volume”
“Send a message”
“What’s my schedule today?”
“Set an alarm for 7 AM”
Ok Google
Ok Google

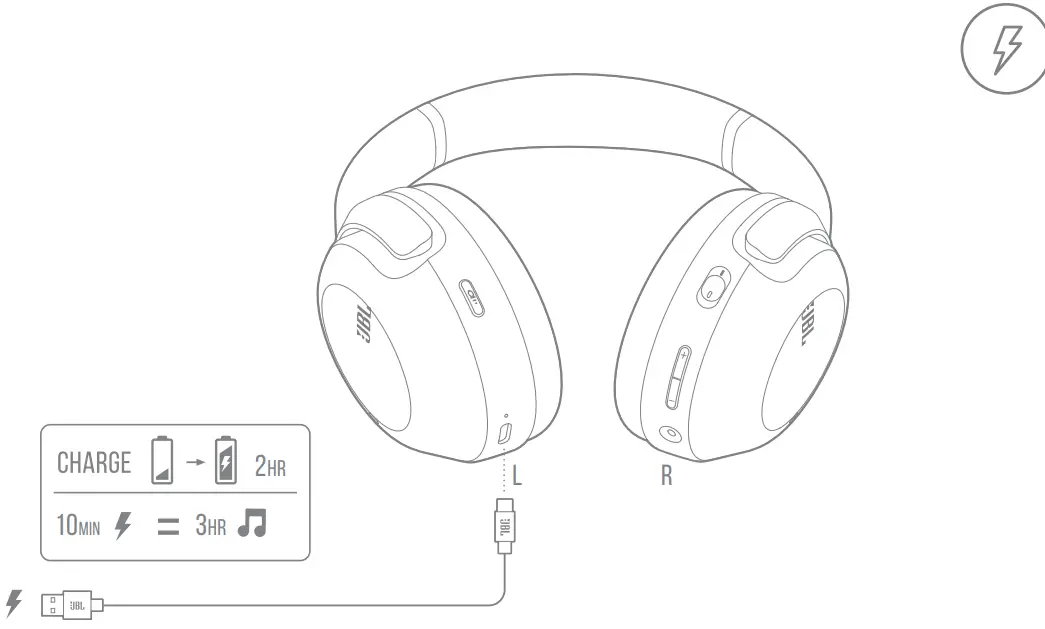

Charging

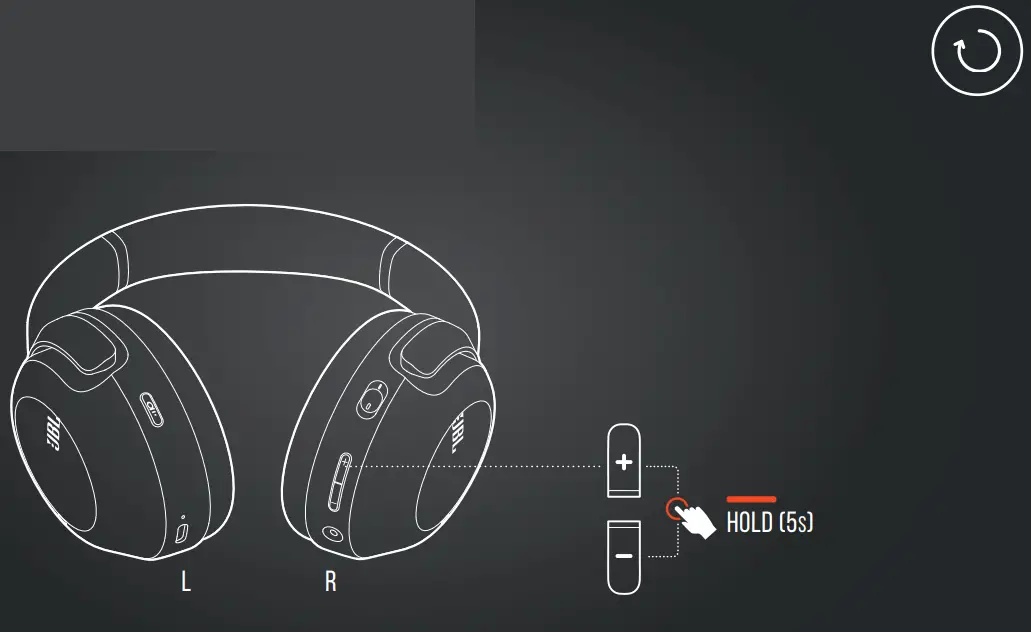

FACTORY RESET

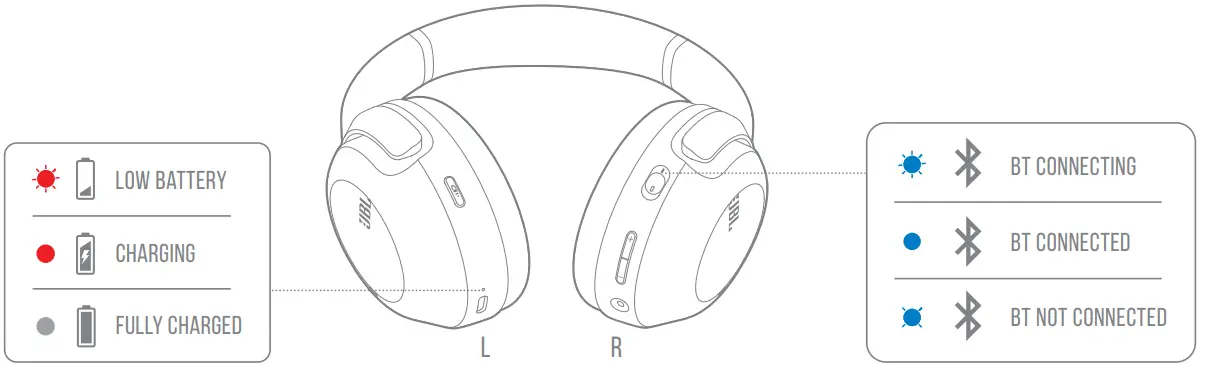

led behaviors
TECH SPEC
| Model: | TOUR ONE |
| Driver Size: | 40 mm / 1.57” Dynamic Driver |
| Power supply: | 5 V 1 A |
| Weight: | 268 g / 0.59 lbs |
| Battery type: | Li-ion battery (920 mAh / 3.7 V) |
| Charging time (USB-C): | 2 hrs |
| Music playtime with BT on and ANC off: | 50 hrs |
| Music playtime with BT on and ANC on: | 25 hrs |
| Frequency Response (Passive): | 10 Hz – 40 kHz |
| Frequency Response (Active): | 10 Hz ~ 22 kHz |
| Impedance: | 32 ohm |
| Sensitivity: | 95 dBSPL @1kHz |
| Maximum SPL: | 95 dB |
| Microphone sensitivity: | -35 dBV/Pa @1kHz |
| Bluetooth version: | 5 |
| Bluetooth profile version: | HFP V1.7, A2DP V1.3, AVRCP V1.6 |
| Bluetooth transmitter frequency range: | 2.4 – 2.4835 GHz |
| Bluetooth transmitter power: | <8 dBm EIRP |
| Bluetooth transmitter modulation: | GFSK, π/4DQPSK, 8DPSK |
| Maximum operation temperature: | 45 °C |
TO PROLONG BATTERY LIFESPAN, FULLY CHARGE AT LEAST ONCE EVERY 3 MONTHS. BATTERY LIFE VARIES BY USE AND SETTINGS.
