nectre Header Tank Water Heater User Guide

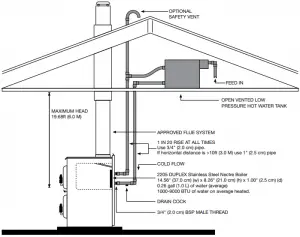

Dimension
- OPTIONAL SAFETY VENT
- MAXIMUM HEAD 19.68ft (6.0 M)
- FEED IN
- OPEN VENTED LOW PRESSURE HOT WATER TANK
- APPROVED FLUE SYSTEM
- 1 IN 20 RISE AT ALL TIMES Use 3/4″ (2.0 cm) pipe. If horizontal distance is >10ft (3.0 M) use 1″ (2.5 cm) pipe.
- COLD FLOW
- 2205 DUPLEX Stainless Steel Nectre Boiler 14.56″ (37.0 cm) (w) x 8.26″ (21.0 cm) (h) x 1.00″ (2.5 cm) (d) 0.26 gall (1.0 L) of water (average) 1000-9000 BTU of water on average heated.
- DRAIN COCK
- 3/4″ (2.0 cm) BSP MALE THREAD
INSTALLATION INFORMATION
Solid fuel water heater must only be fitted to open vented hot water systems. Please note that fittings to a main pressure system is extremely dangerous and could lead to an explosion. Installation of water booster pipe work must only be carried out by a registered plumber and the appropriate requirements of all relevant building codes and best practices. Please check with your local building authority before installing this water booster.
Distributed by Glen Dimplex Americas 1-888-346-7539 | www.dimplex.com © 2018 Glen Dimplex Americas
