1/ drone introduction

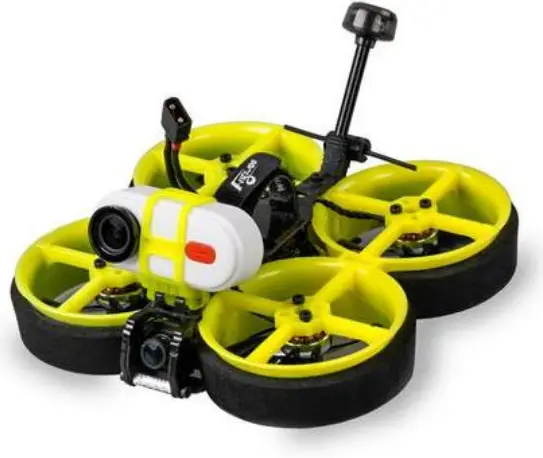

CineRace20 a new concept and more than a cinewhoop. Inspired by RaceWhoop designed by Free Zillion. This is a combination of CineWhoop and RaceWhoop!
CineRace is double duct design , not a simple guard anymore. . It can fly as flexible as a racing drone, and as stable as Cinewhoop. Pilots can quietly enjoy the fun of shooting a video without jelly and up to 12 minutes Super long flight time with Flywoo’s latest 4S HV 900mah Battery!
All in all, this is an all-round drone that can not only Racing , but also shooting a video stably , and at the same time achieve a super long flight time!

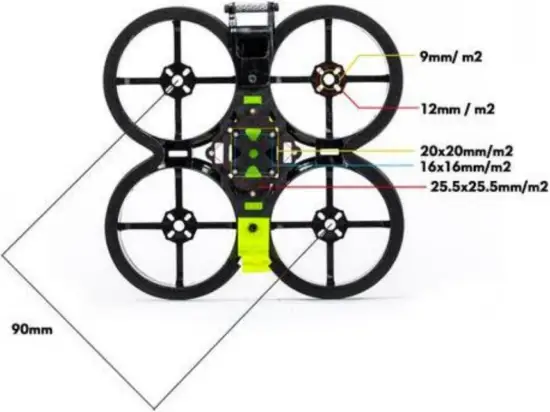

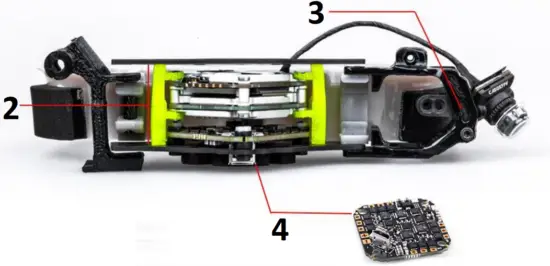

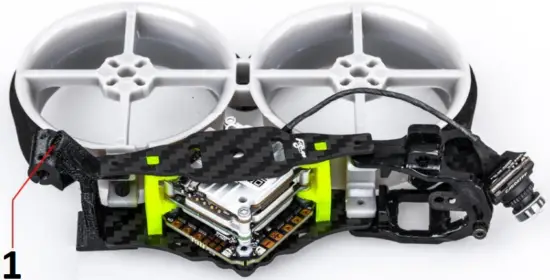

1. Antenna diameter 4.2mm
   eg: Flywoo Circular Polarized Antenna
2. 23mm
3. Only suitable for 14×14 camera
4. Only suitable for 90° USB AIO
   eg: GOKU GN405S 20A/40A AIO

Features

1. Almost all parts are injection molded. ABS\PC material. More sturdy and durable.
2. Very easy to disassemble and install, only fixed by two aluminum columns.
3. Pilots can freely combine their favorite colors to be more individual
4. Efficient power configuration and reasonable structural design ensure CineRace20 flight stability, low noise, and super long flight time up to 12mins
5. No Propellers in view, NO Jello flight Footage, stable flight picture
6. With its own power cable output to the SMO camera (If you are using a gopro 6/7/8 camera, you need to buy an adapter cable )
7. Add Flywoo Bt-nano Bluetooth Module
   You can use mobile devices to set the parameters of the flight controller.

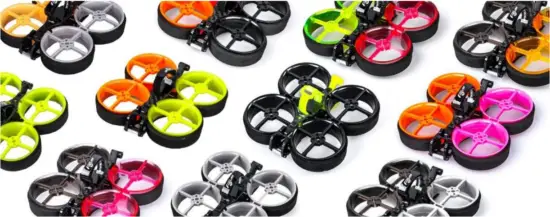

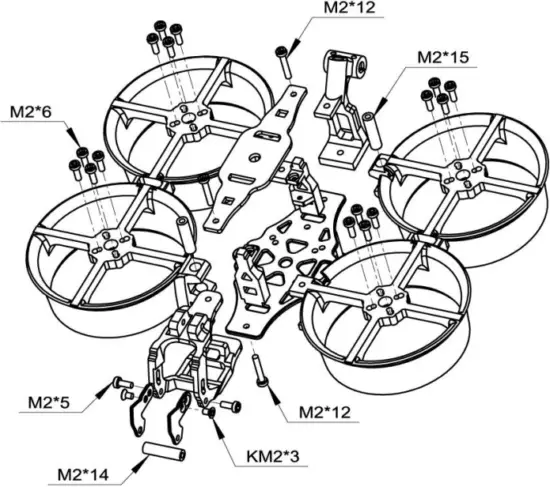

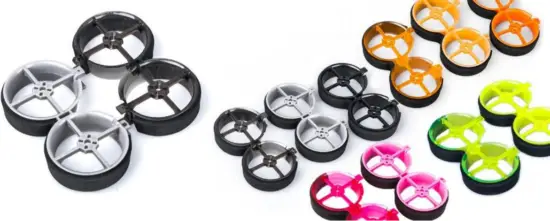

Personalization Frame Kit

You can freely combine the color frame you like! (Please note: you need to replace the Ducts yourself, all Pre-build Drone colors are determined.)
Link: CineRace Frame kit Parts

Specification

Item: CineRace20 Pro Analog w/ Caddx Baby Retal2
Weight: 94.7g (without battery)
FC & ESC : GOKU GN 405S 20A AIO
Frame: CineRace20 Frame Kit
Motors: NIN V2 1203PRO 3400Kv
Props: Gemfan D51 -5
VTX: HM850vtx
Antenna: Flywoo Circular RHCP 5.8Ghz Ant ( UFL-Length: 115mm \ Tube 45mm )

Highly recommended battery

Explorer 4S HV 300mah Battery (You will get good flight time and fly quite flexible)
Explorer 4S HV 900mah Battery (You will get a super long flight time, and the flight will be more stable)

Includes

1x Prebuilt and tested CineRace20 Quadcopter

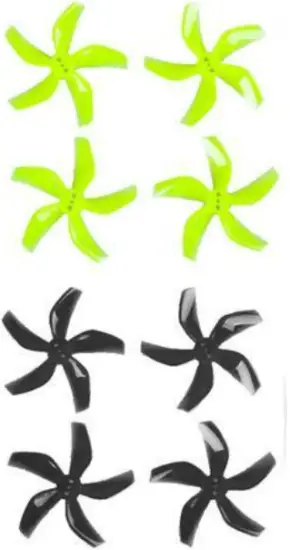

4x D51-5 Props (Pairs)
2x Battery Strap
1x Hardware Set

Package List

2/ Configuration and wiring diagram description

Flight control wiring diagram

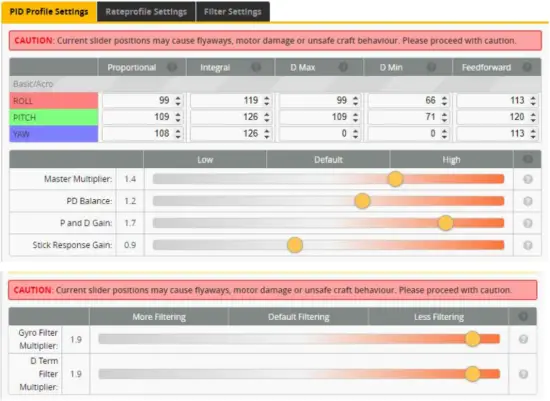

PID and filter settings

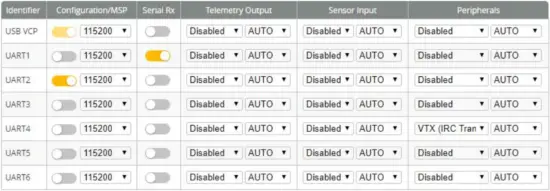

Default serial port settings

UART1: ELRS/TBS/R9M/XM+/DSMX/SBUS receiver
UART2: Bluetooth module, the default baud rate is 115200
UART3: NULL
UART4: VTX IRX TX
UART5: NUL
UART6: NUL

Frequency table:

• The selections in requires HAM license to operate .legally. Selections are only available on special request.

• Button function
• FR (blue light), short press the button, the blue light flashing times represent CH1-CH8
• CH (yellow light), long press the button 2S until the yellow light flashes,
and then press the button shortly, the number of flashes of the yellow light represents A-r
• PW (power), long press the button 6S until the red light flashes, and then press the button shortly, the number of flashes of the red light represents 5 levels of power
• Long press 10S to unlock 40 channels. (three color led flashes)

3/ Receiver binding

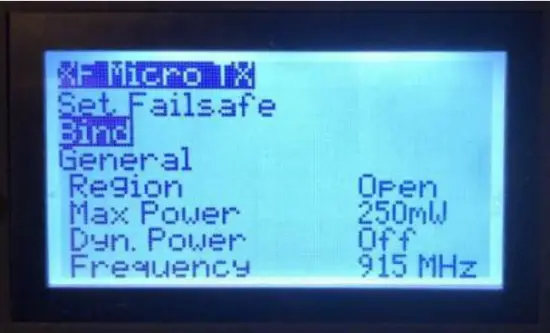

TBS NANO 915:

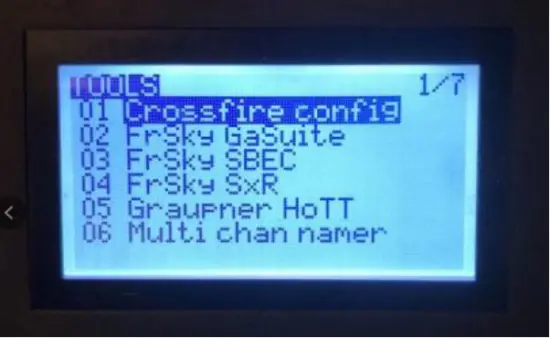

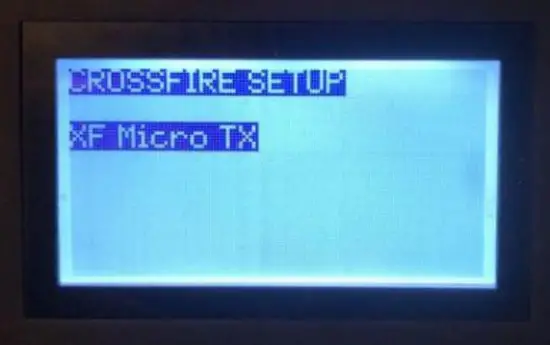

When the USB is connected, the green light of the receiver flashes, and then bind according to the picture operation.
https://www.youtube.com/watch?v=-iNkVcOLITM&ab_channel=Danimal3D

ELRS 2.4G RX:

Bind procedure:
– Supply power to the EL24E/EL24P rx, wait until the LED on the RX is off, immediately turn off the power, and then repeat again the above steps. When the RX is powered on for the third time, the LED light will start to double-flash, which means that the RX enters the binding mode

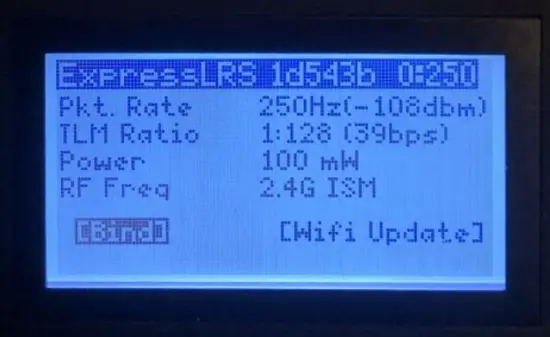

– Insert the 2.4G ELRS TX to Radio transmitter, and choose External RF mode to CRSF protocol, then you can find ELRS menu from the Radio systems(Need to copy the ELRS.LUA file to the SD-Card tools first), Enter into ELRS and press [Bind], the LED on the RX module will getting to be solid if bind successfully.
– Receiver LED status meanings:

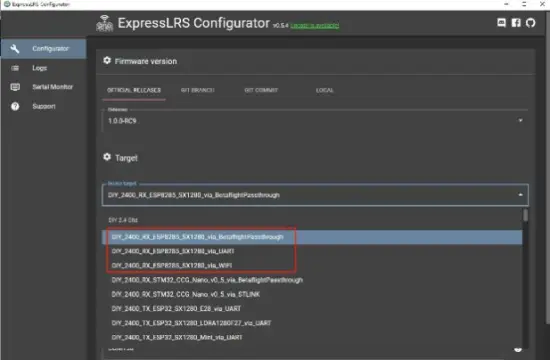

EL24E/EL24P RX: LED solid means bind successful or Connection established; LED double-flash means in bind mode; LED flash slowly means no signal connection from the TX module; LED flash fast means in WIFI hotspot mode, you can connect the WIFI of the RX and upgrade firmware of the RX via visit 10.0.0.1 from the web browser(password: expresslrs)

R9MM FCC ACCESS OTA:

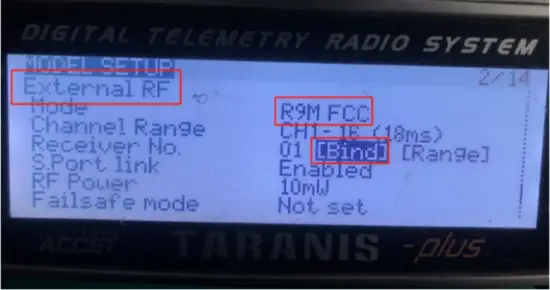

Make sure your remote control supports ACCESS protocol, then follow the link to register and bind
https://www.youtube.com/watch?v=az5hDdNBcjg&t=9s&ab_channel=FrSkyRC
If the remote control is ACCST protocol, please bind as follows:

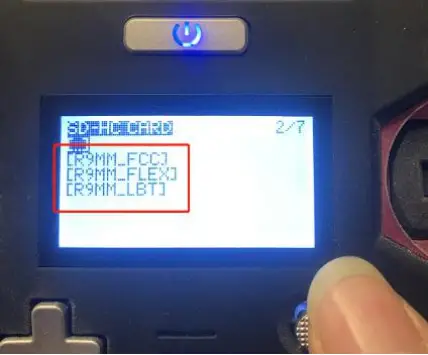

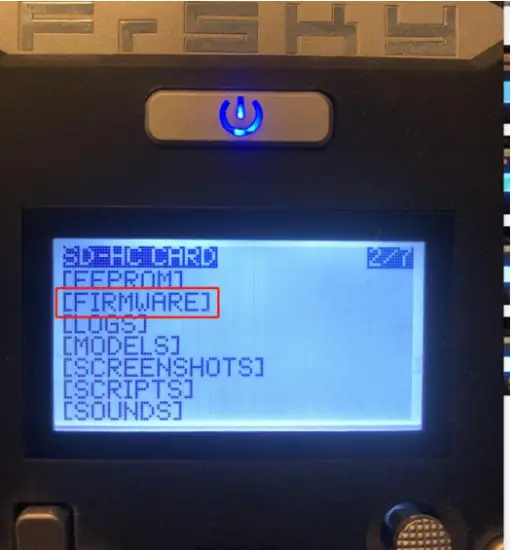

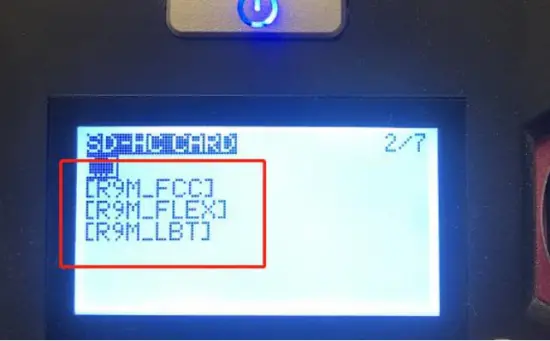

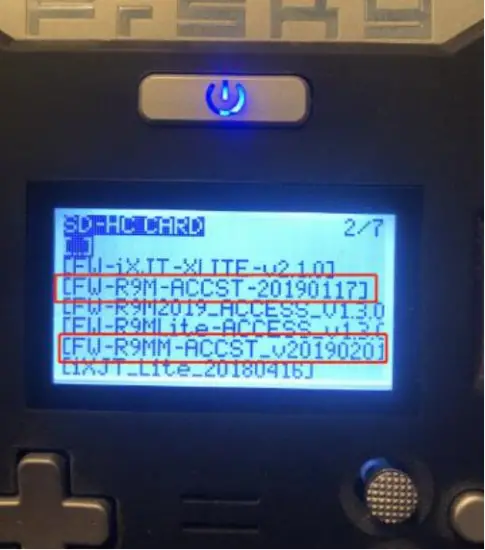

1/ Put these two files into the firmware directory of the SD card of the remote control.
R9MM firmware: FW-R9MM-ACCST_v20190201
R9M TX module: FW-R9M-ACCST-20190117

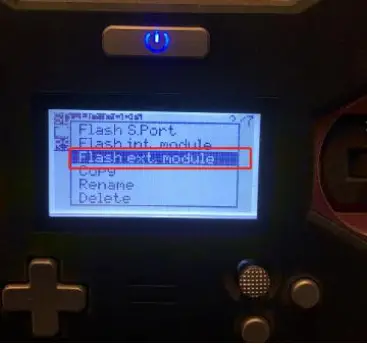

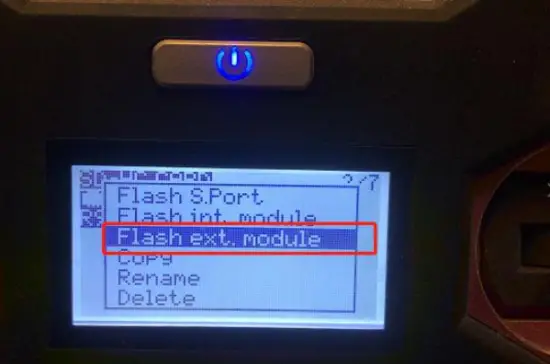

2/ Insert the R9M TX module and write the firmware you need

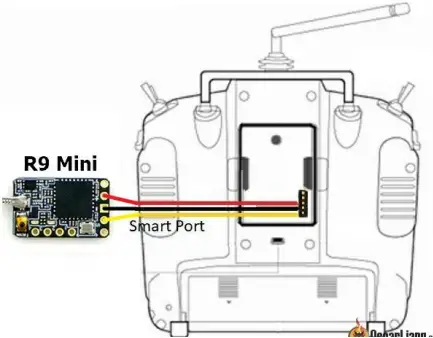

3/ To write the firmware of the R9MM receiver, you need to remove the R9MM receiver, and then write the firmware by connecting to the S.PORT port.

4/ After both R9M TX and R9MM RX are written into the ACCST firmware.
Binding method:
1/ Press and hold the button of RX, power on, the red and green lights are always on.
2/ Then after R9MM selects binding, RX red light flashes, and then exit
3/ RX is powered on again, and only a green light is displayed, indicating that the binding is successful.

XM+ receiver:

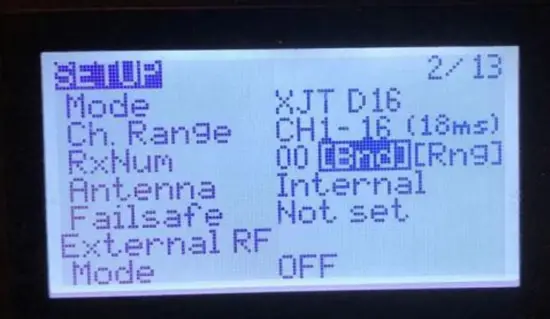

1/ Press the XM+ receiver button, USB power supply, the red and green lights are always on
2/ The remote control turns on the binding mode, the green light flashes to indicate successful binding, turn off and restart

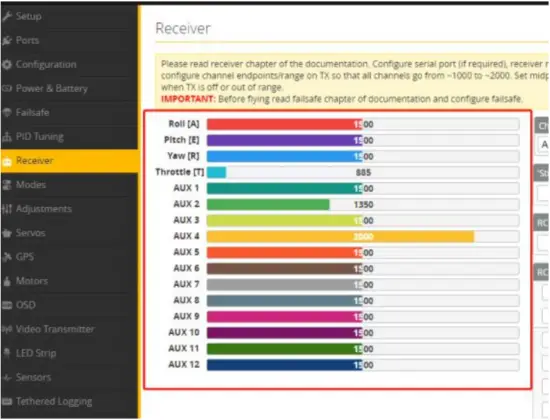

3-1/ Then set the corresponding serial port and receiver protocol to ensure the normal output of each channel of the receiver.

4/ Mode setting:

Set the ARM switch and flight mode switch, AUX* corresponds to the remote control switch, and the yellow area mark is turned on.

5/ Motor test:

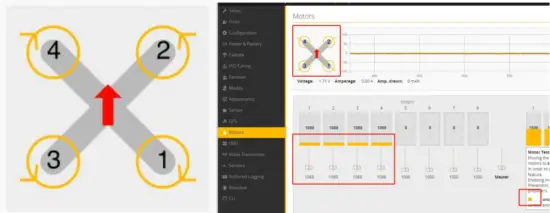

Unload the propeller, test the rotation direction of the motor, turn on the safety switch, and test the rotation of the motors one by one.

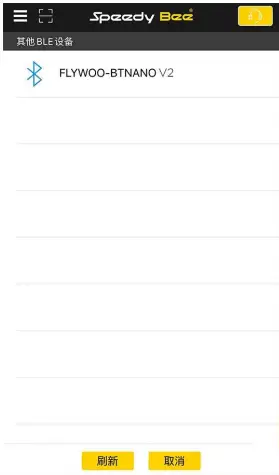

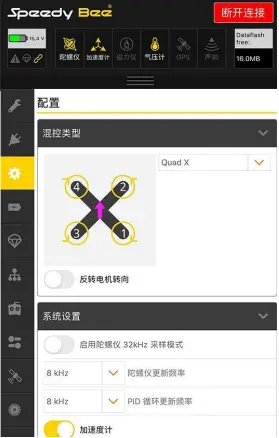

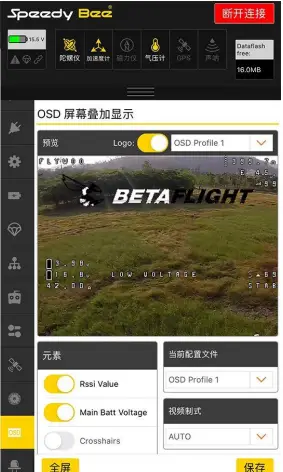

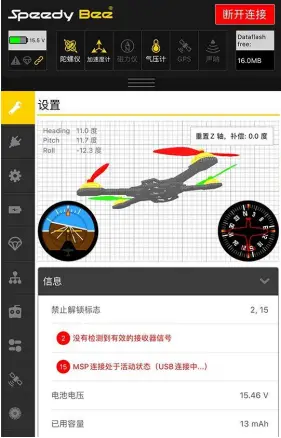

6/ Bluetooth function

Betaflight APP

7/ Flight firmware upgrade and write default CLI

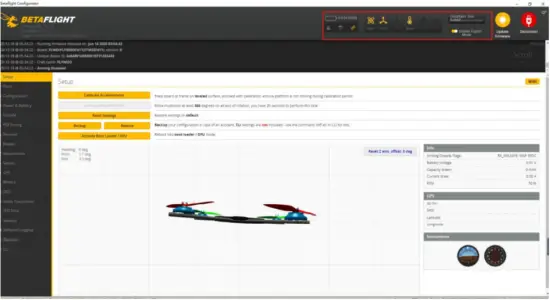

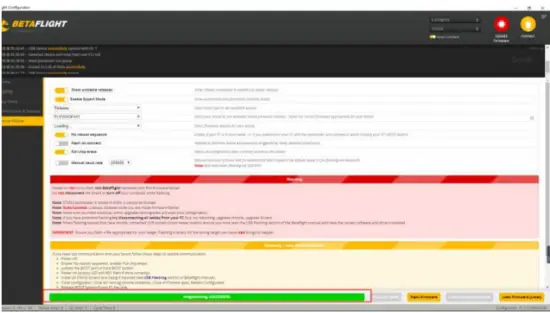

1/ Activate DFU mode

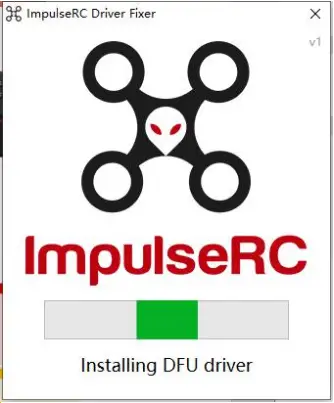

2/ BF Configurator will display to enter DFU mode. If it does not enter DFU mode, it may be that the driver is not installed. The driver can be installed using IMPULSE RC software

Driver software:
https://impulserc.blob.core.windows.net/utilities/ImpulseRC_Driver_Fixer.exe

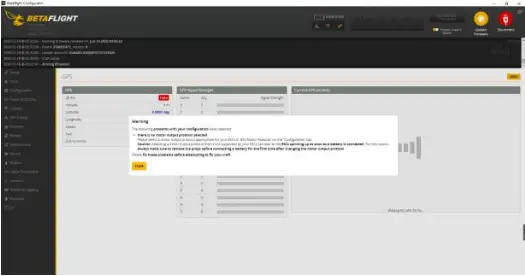

3/ Then load the local HEX firmware and wait for the flashing to complete. A green progress bar is displayed to indicate completion, and DFU will become a COM port

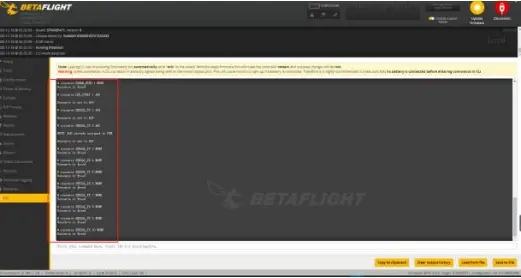

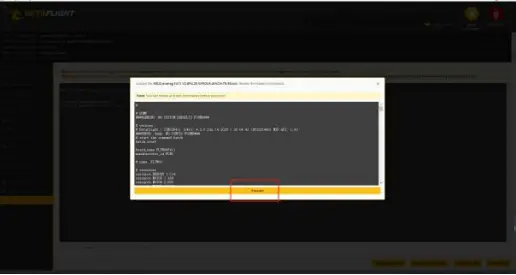

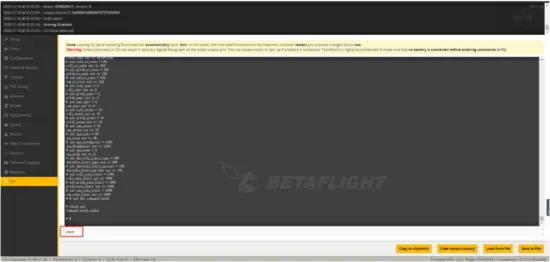

4/ After the connection is entered, it is a blank interface, you need to write CLI commands, Factory CLI LINK: https://flywoo.net/pages/manual

5/ If the command is not restarted after writing the command, please write SAVE and press Enter to save, and the FC will restart

6/ Then all functions of FC return to normal.
