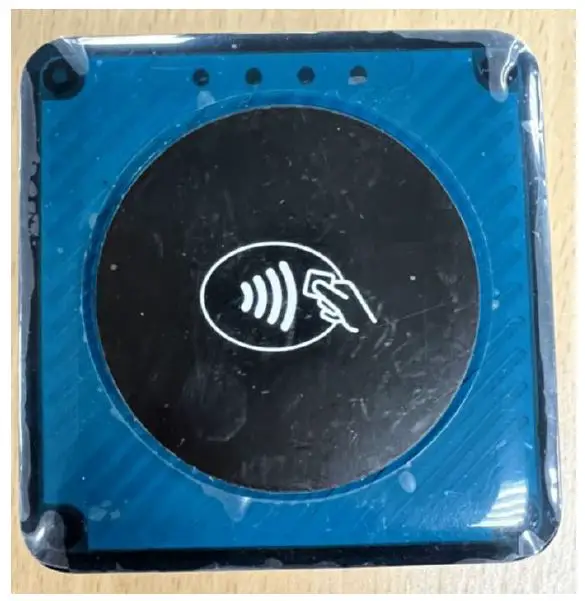

Uniform Industrial UIC680VG Reader
Model: UIC680VG
Product Specifications
| Item | SPEC |
| Processor | Microchip ATSAMA5D28C-CU |
| Memory | DDR3L SDRAM RAM 256Mbytes -40~95 800 MHz |
| Storage | Micron NAND Flash 256M |
| OS Version | Linux 4.19.56 (Microchip Linux4sam v6.1) |
| SAM | 4 SAMs (5V/3.3V/1.8V) can be inserted directly (no need to disassembly the SAM board module) |
|
Indicators | EMV LEDs x4 Green (reserve LED signal to extend LED connector on IO board) Logo LED x4 RGB Provide control cmd for customers( RGB breathing light for tapping card indicator) |
| Audio | Buzzer Sound Pressure Level: 70 dB at 10cm(default) |
| I/O Connector | |
| Connector x1 (8P wires, pitch 1.25) | USB/RS232 cable selection |
| Connector x1 (2P wires, pitch 1.25) | battery replacement purpose |
| Connector x1 | SAM board |
| Debug port | 3pin connector on IOBD |
| Power input | 5V DC/500mA |
| Communication | USB/RS232 |
|
Payment Reader | RFID Reader ISO 14443 Type A/B/Mifare ISO18092 NFC-IP1 JIS X6319-4 (FeliCa) ISO15693 |
| Reliability | |
| Coin Battery Life | 5 years (Additional connector while battery replacement) |
| Environmental | Operating -25 to 70℃ Storage -25 to 80℃ Humidity : 5% – 95% (none-condensing) |
| MTBF | 100,000 Hours |
| ESD | ±8KV contact/±15KV Air |
| IP/IK Rating | IP65/IK9 |
| UV exposure resistance | Half daylight. |
| Drop resistance | 92cm |
| Power management | Power on <500mA(4.5V) Idle<100mA(RFID off) : 80mA |
Installation guide
| Installation guide(USB Interface) | |
| 1 | Plug the USB cable to the USB port of PC. |
| 2 | Install the driver |
