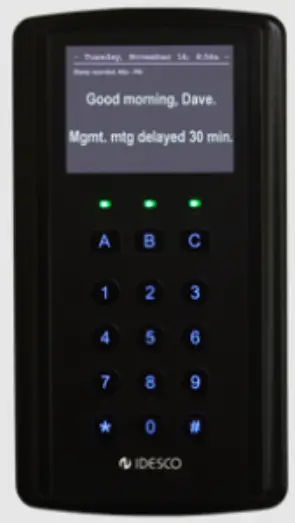

IDESCO C00866 RFID Reader DisplaY

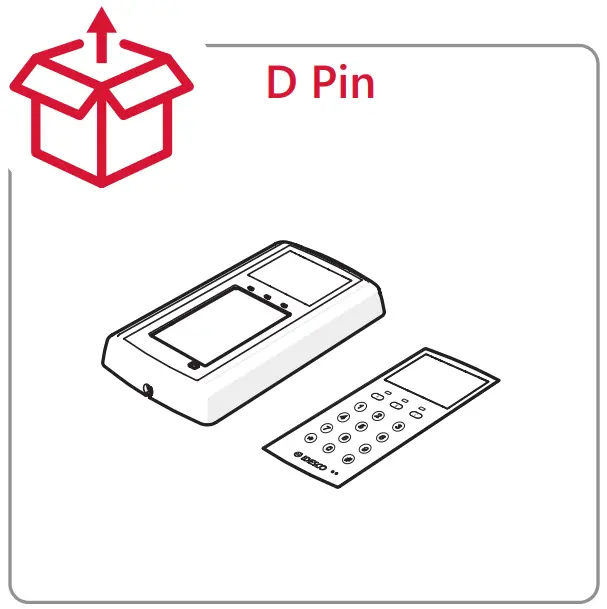

PACKAGE CONTENT

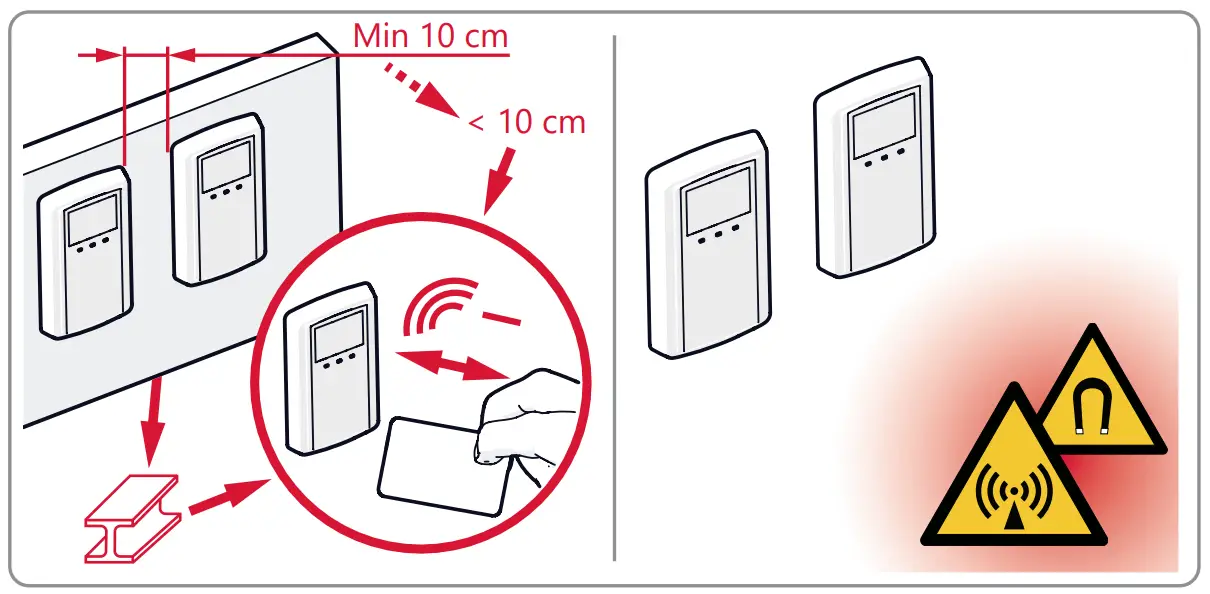

INSTALLATION INSTRUCTION
8CD 2.0 MI D Pin reader herewith complies with the requirements of the EMC Directive 2014/30/EU, the Low Voltage Directive 2014/35/EU, the RoHS Directive 2011/65/EU, the RED Directive 2014/53/EU and carries the CE marking accordingly.

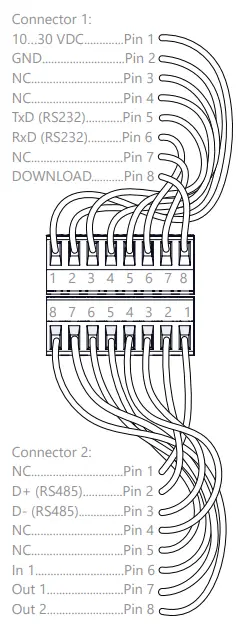

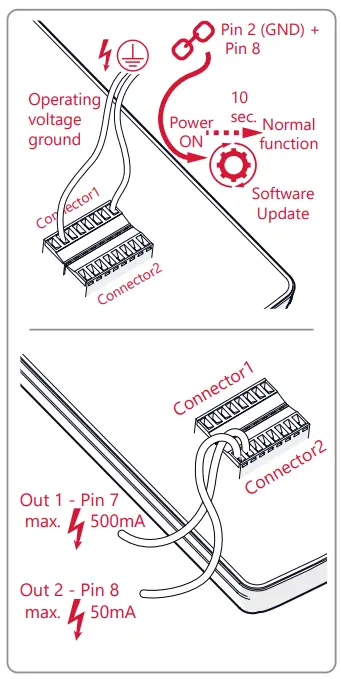

CONNECTION
Power supply:
10…30 VDC 70mA@24VDC

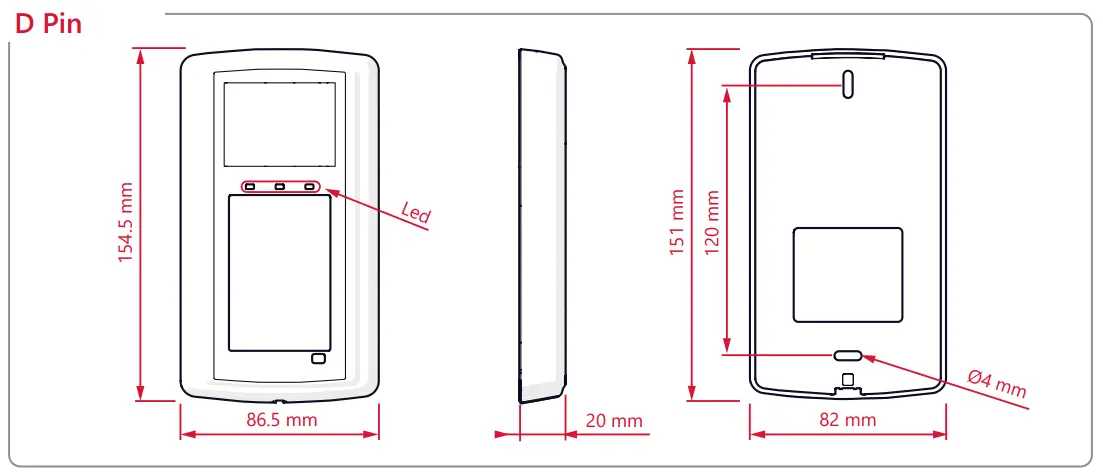

DIMENSION
Paste the sticker in place to finalize the installation.

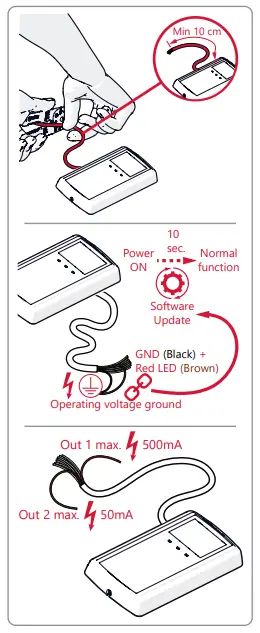

Connection
Power supply:
10…30 VDC 70mA@24VDC
| Connection | |
| 10…30 VDC |  |
| GND |  |
| D- |  |
| D+ |  |
| TxD |  |
| RxD |  |
| DOWNLOAD |  |
| In 1 |  |
| Out 1 |  |
| Out 2 |  |
Paste the sticker in place to finalize the installation.
Idesco Oy reserves the right to revise this publication and to make changes to its content as well as the right to change or discontinue these products, at any time, without obligation to notify any person or entity of such revisions or changes. All trademarks and registered trademarks are property of their respective owners. C00866
CUSTOMER SUPPORT
Teknologiatie 9 | FIN-90590 Oulu | Tel. +358 (0)20 743 4175 | www.idesco.fi | e-mail [email protected]
