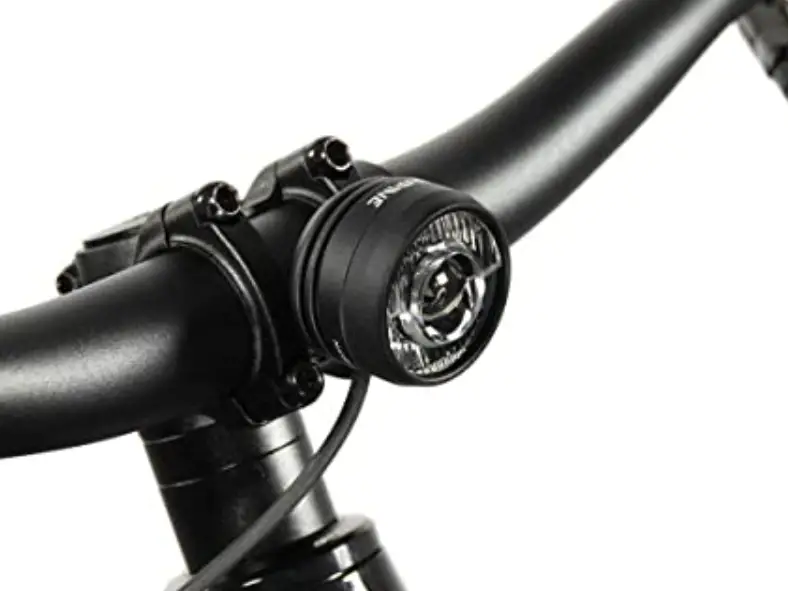

LUPINE SL Nano Small Lightweight StVZO-Approved Bicycle Lamp
Assembly

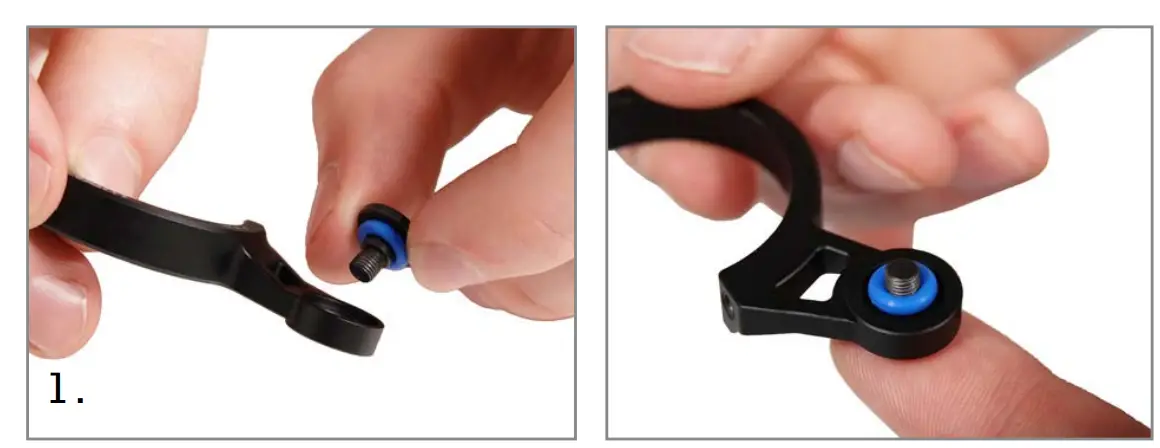

- Put the M4 bolt screw through the hole of the upper part of the holding clamp. Follow the order: Screw / O-Ring / Holder / O-Ring
- . Mount the upper clamp on to the lamp head. Use the enclosed hex key size 3 for that. (2Nm)

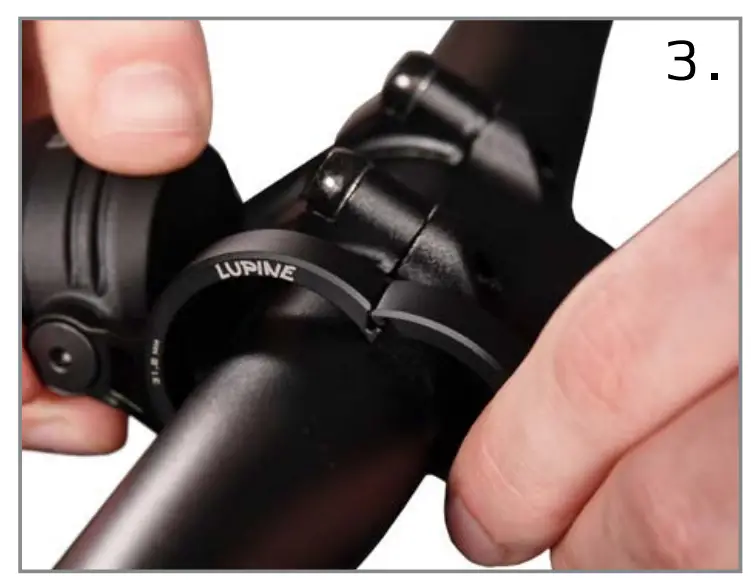

Note: The screw should be attached pretty easily. If not, please try to position it and screw it on again. Otherwise the thread can be damaged. - Position the lamp together with the clamp at the left side of the stem. Then bring both halfs of the mount together.

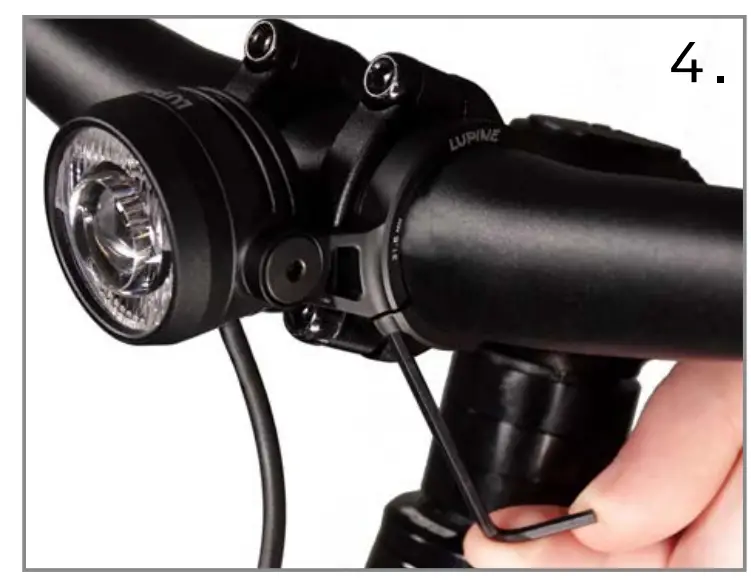

- Allign the lamp correctly and screw it tightly with the hex key 2.5, max. 1Nm
The mount should be positioned near to the stem. The notches of the junction have to interlock perfectly. The lamphead should be positioned centered and also near to the stem.
For a centric installation at 50mm stems, there‘s a stem kit (Art.No. 5355) available.

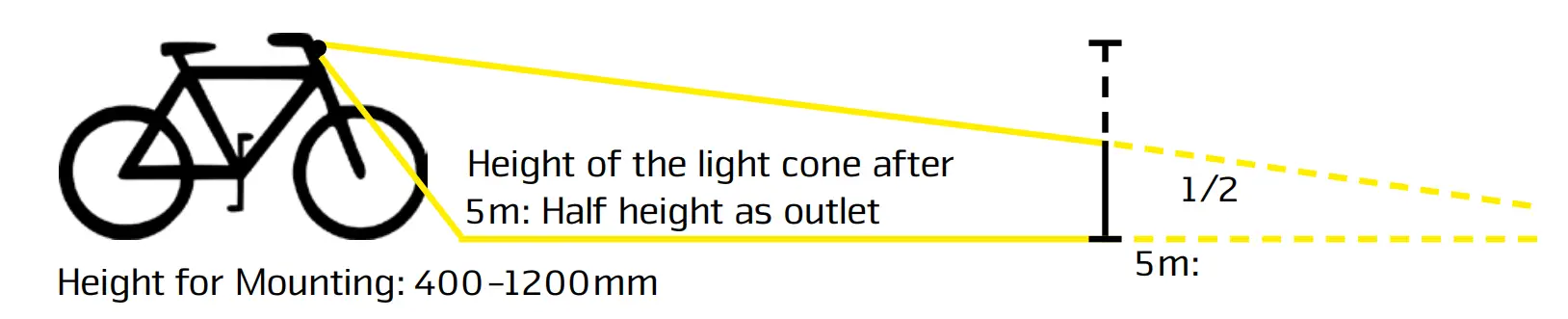

Adjustment of the lamp
Operation & technical data
Turn on:
By activating the E-Bikes battery, the lamp will turn on automatically. You can also use the display for turning it on.
Turn off:
When you turn off the E-Bikes battery, the lamp will turn off automatically. You can also use the display to turn off the lamp.
| 5-15V operation | 600 Lumens Max. |
| Low beam | 7.5 Watts |
| Lamp | 2x Osram Automotive LEDs |
| Lens system | Biconical TIR Lens |
| Dimenstions LxWxH | 30 x 41 x 41mm |
| Material | Aluminium 6061-T6, CNC machined |
| Protection class | IP68 |
| Approval | StVZO  K1797 |
Troubleshooting & Miscellaneous
| Error | Cause | Fix |
| The light does not turn on and does not light up | The light cable is not connected to the drive. | Connect the light cable |
| The light input is not activated in the software | Have the light input activated at the dealer. | |
| The drive units tension is too low. | Switch the drive unit to 12V. Check compatibility, www.lupine.de | |
| The drive unit is not compatible with the lamp. |
Notice of restricted use
The headlight only can be mounted on bicycles with pedal assistance with DC power supply if they come with their own control unit (battery charge indicator) and an automatic Motor cut-off to avoid a deep discharge of the battery.
Defects
Light source must be replaced in general if the light source (or one of the LEDs) is defective. Replacement or repair only at Lupine.
