Lupine C14 Sp Tail Light For Electric Bikes Instruction Manual

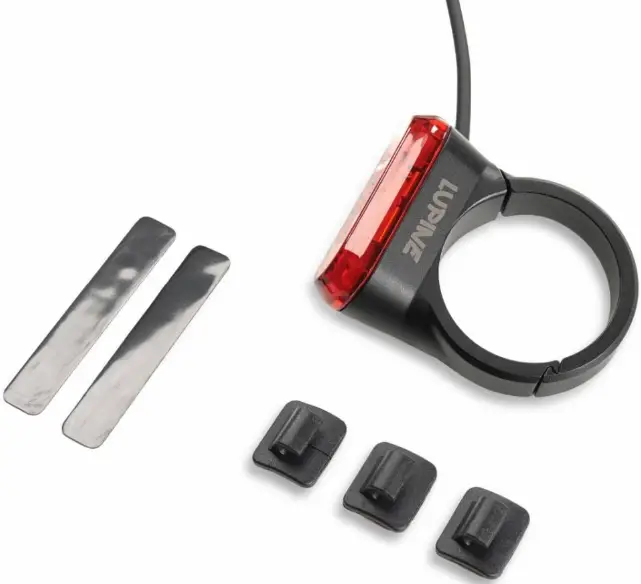

LUPINE C14 SP Tail Light for Electric Bikes Instruction Manual

Assembly

• Position the C14 SP on the seat post and mount it with 1-2 Nm (hex key size 2.5). For 30.9mm seat posts, use the enclosed rubber inserts.
• Install the cable along the frame to the drive unit, using the enclosed cable guides.

Note: Pay attention to the polarity (red +, black -)

Operation

You can turn the light on and off manually by pushing the button on the light.

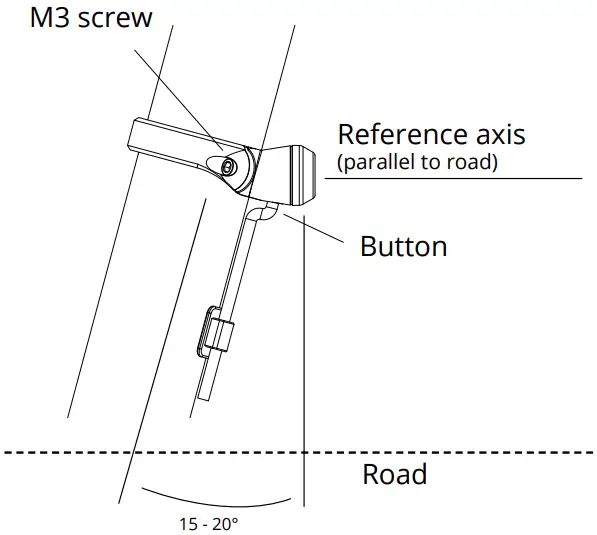

Dimension

Support

Lupine Lighting Systems GmbH
Im Zwiesel 9 D – 92318 Neumarkt Germany
Mehr Informationen unter www.lupine.de
EG Konformitätserklärung: www.lupine.de/ce/
