Motorcycle Tail Light HyperBright LED Lightbar
Instruction Manual

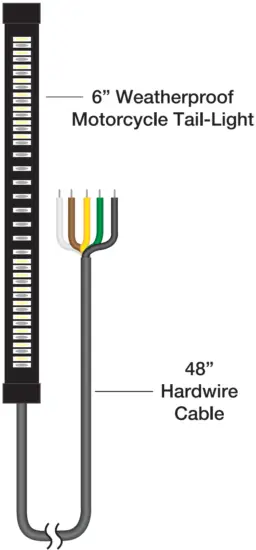

PACKAGE CONTENTS
TECHNICAL SPECIFICATIONS
Working voltage: DC 12V Only
Maximum amperage draw: 1A at 12V
INSTALLATION

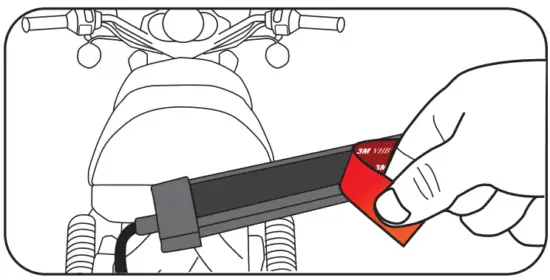

- Peel off the 3M VHBTM tape backer from the Tail-Light LED.

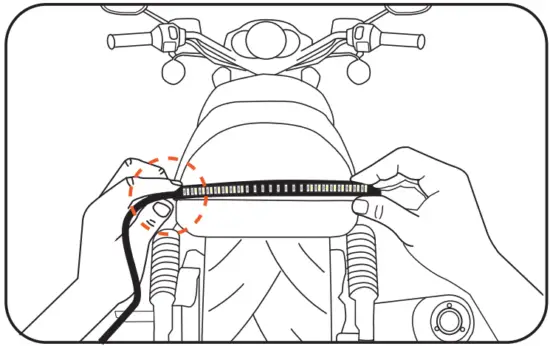

- Mount the Tail-Light LED on your desired location at the tail section of your motorcycle. Make sure the hardwire cable is on the left side.
POWER

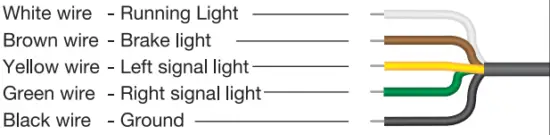

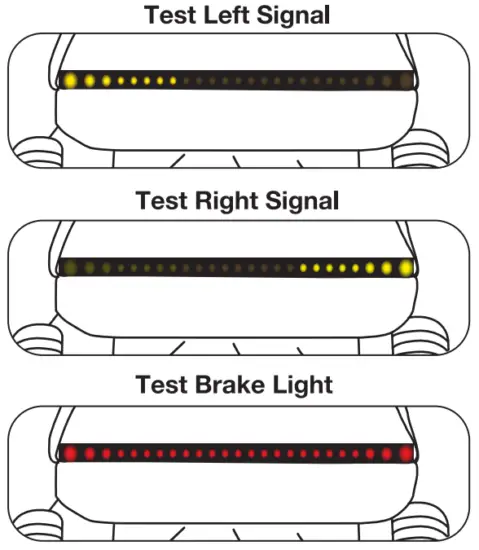

Hardwire the Tail-Light LED to your motorcycle’s power source according to the color code below for wire identification. Trigger the Left Signal Light / Right Signal Light / Brake Light to ensure the wires are connected correctly.
Note: Refer to your vehicle’s service manual for a wiring schematic for correct wire placement or you can test the power sources using a multi-meter.
WARNING
WARNING: do not install or use the product if it, in any way, impairs the safe operation of your vehicle. Follow the manufacturer’s instructions to ensure the product is properly & safely installed. Neither the manufacturer nor the reseller can be held responsible or liable for consequential, incidental, or indirect damages to either person or property resulting from the installation or improper use of this product. Check your state or provincial laws before installing. This product is not DOT-approved.
WARNING: This product can expose you to chemicals including DEHP and DINP, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Wamings.ca.gov
Have a comment or question?
Email us at: [email protected]
or visit us online at: www.typesauto.com
Winplus North America, Inc.
2975 Red Hill Ave., Ste. 100,
Costa Mesa, CA 92626
Tel: 1.866.294.9244
© 2019 Winplus North America, Inc.
All rights reserved. 3M VHB™ is a trademark of 3M Company.
OPTIONAL PRODUCTS
Optional Smart LED products are also available to enhance your experience (sold separately).
