Slot Battery Charger
User Guide
PROFESSIONAL CARE ON BATTERIES & CHARGER SINCE 1998
WELCOME GUIDE
IMPORTANT SAFEGUARDS
Read these instructions carefully and retain them for future use. If this product is passed to a third party, then these instructions must be included.
When using electrical devices, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following:
- SAVE THESE INSTRUCTIONS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS.
TEST DATA
SPECIFICATIONS
SPECIFICATIONS| Model | C880 |
| Input | AC 100-240V |
| Output Voltage | DC 2.4V |
| Output Current | 200mA X 40 MAX |
| No-load Power Consumption | 0.36W(Max) |
| Full-load Power Consumption | 70W(Max) |
| Battery Charging Rate | Up to 90% |
| Charging Way | Constant voltage and current |
| Size | 255mm×195mm×66.5mm |
| Weight | 968g |
CHARGING TIMES
Charging times are a guide only. Real charging time will vary depending upon the brand, capacity, and condition of the battery being charged.
| Battery Size (Ni-MH/ Ni- D) | Related Capacity (mAh) | BatteryNumber (pcs) | Charging Current (mA) | Approximate Charging Time (Hrs) |
| AA | 2300-2800 | 1 | 1000 | 2.3-2.8 |
| 2-3 | 500 | 4.6-5.6 | ||
| 4-40 | 250 | 9.2-11.2 | ||
| AAA | 800-1100 | 1 | 500 | 1.6-2.2 |
| 2-3 | 250 | 3.2-4.4 | ||
| 4-40 | 125 | 6.4-8.8 |
WORKING & STORAGE CONDITION
| Storage Temperature | -10°C-35°C | Storage Humidity | 45%-70% |
| Working Temperature | 0°C-40°C | Working Humidity | 35%-75% |
| Surface Temperature of Charger | 35°C-65°C | Surface Temperature of Battery | 25°C-45°C |
HOW TO USE
USE STEPS
- Please use EBL’s original AC wire to charge ONLY.
- Plug in the AC cord and power on All LEDS show green light firstlyCharging status: Red led light means charging & installing correctly.
- Fully charged: The green led lights up.
- Please charge the batteries in pairs, 2/4/6…16/18/20…/36/38/40 AA/AAA NiMH NiCD rechargeable batteries.
TO PROTECT YOUR CHARGER & BATTERIES
Please charge the batteries according to the following instructions:
Charging Way:
 | |

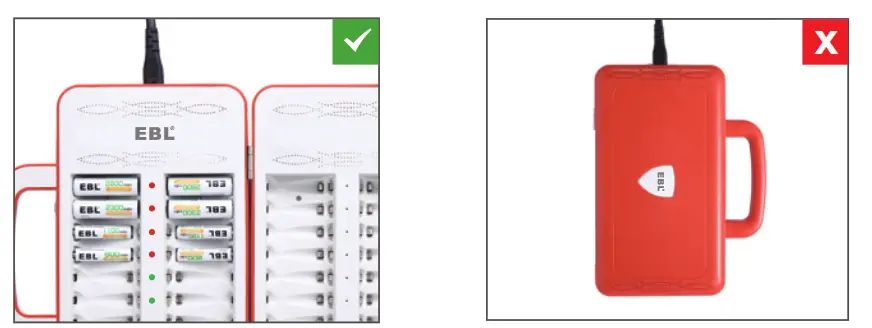

| Open up the charger while charging. | Close the charger while charging. |
 | |

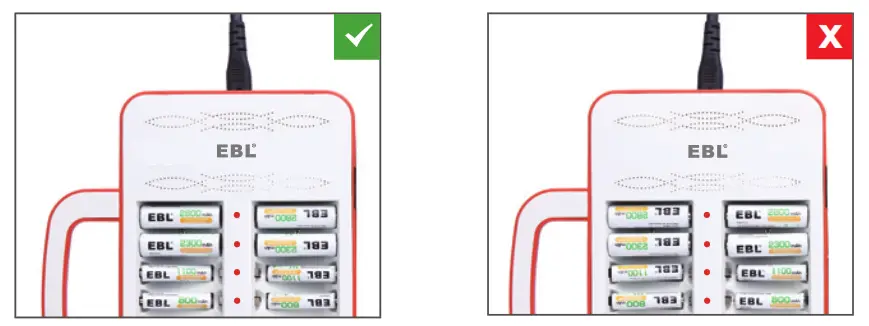

| Install batteries correctly. | Install batteries in reverse. |

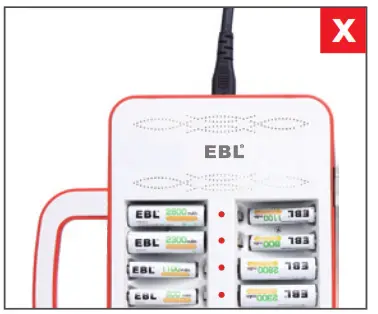

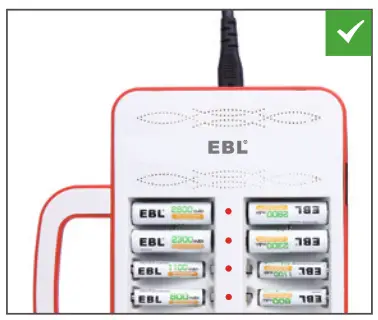

Batteries of Different Size:
 |  |
| Same size. | Different size. |

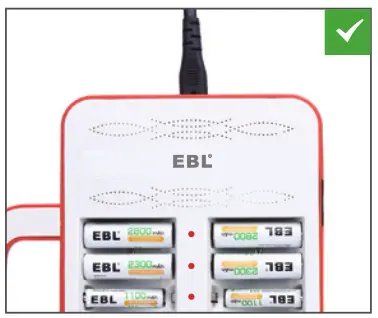

Same Size but Different Capacity:
 |  |
| Same size and same capacity. | Same size but different capacity. |
Batteries of Various Brands:
 |  |
| Batteries of same brand. | Batteries of various brands. |
WARNINGS
TO AVOID PERSONAL INJURY AND PROPERTY DAMAGE FROM, BUT NOT LIMITED TO, THE RISK OF ELECTRIC SHOCK OR FIRE:
- DO NOT disassemble and reassemble the charger, or it may cause short-circuit.
- DO NOT charge batteries whose covers is damaged, or it may cause a short circuit and fire hazard.
- DO NOT charge non-rechargeable batteries. It might cause battery leakage, battery explosion, personal injuries, etc.
- DO NOT put anything on the charger while charging batteries, it will accumulate heat to cause a fire hazard.
- Indoor use only, keep it away from direct sunlight and moist/high-temperature environment.
- Children should not use this charger without any adult supervision.
- Please use the power cable provided by EBL.
- Place the batteries into the charger correctly by making sure the +/- pole of the battery matches the +/- pole of the charger. When charging the C/D battery, please notice that two AA/AAA negative”-” equals one of C/D negative “-“
- The absolute 0-volt battery can not be charged in this charger.
- C880 is ONLY designed for Ni-MH/Ni-CD rechargeable batteries. Please DO NOT put any other types of batteries in this charger, especially alkaline batteries.
- The new battery will reach the best performance after using it 2-3 times.
- Battery power will lose because of long time storage. Please charge the battery fully if it is not used for a long time.
- It’s normal that the battery becomes hot while charging. The temperature will cool down to normal later, please feel free to use it.
- Please always keep the C880 charger opening while charging for 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. safety concerns. 07
WE PROVIDE 30 DAYS OF WORRY-FREE MONEY BACK AND A ONE-YEAR LIMITED WARRANTY.
Our professional and friendly support team members will be here offering hassle-free service for you 24hour*7days.
We will go on to provide sincere customer service and technical support for you and hope you have a good experience with EBL.
