EBL-992 Battery Charger
EBL-992 Battery Charger
IMPORTANT SAFEGUARDS
Read these instruction carefully and retain them for future use. If this product is passed to a third party, then these instructions must be included.
When using electrical devices, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following:
- SAVE THESE INSTRUCTIONS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS.

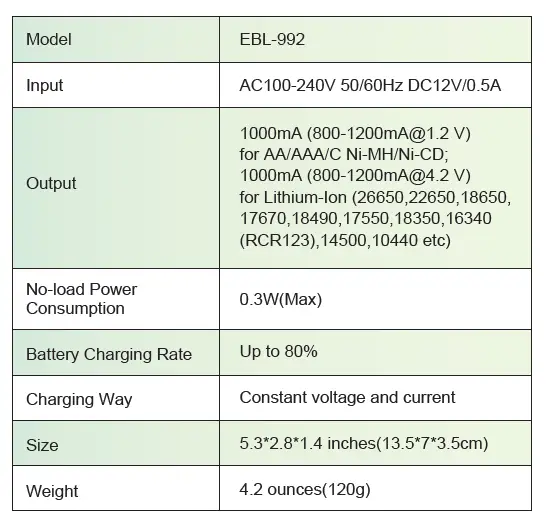

SPECIFICATIONS
CHARGING TIMES
Charging times are a guide only. Real charging time will vary depending upon the brand, capacity and condition of battery being charged.
| Battery Size (Ni-MH) | Related Capacity (mAh) | Battery Number (pcs) | Charging Current (mA) | Approximate Charging Time (Hrs) |
| AA | 2300-2800 | 1 | 1000 | 2.3-2.8 |
| 2 | 500 | 4.6-5.6 | ||
| AAA | 800-1100 | 1 | 1000 | 0.8-1.1 |
| 2 | 500 | 1.6-2.2 | ||
| C | 5000 | 1 | 1000 | 5 |
| 2 | 500 | 10 | ||
| Battery Size (Lithium-Ion) | Related Capacity (mAh) | Battery Number (pcs) | Charging Current (mA) | Approximate Charging Time (Hrs) |
| 18650 | 2300 | 1 | 1000 | 2.3 |
| 2 | 500 | 4.6 |
WORKING & STORAGE CONDITION
| Storage Temperature | -10°C-50°C | Storage Humidity | 45%-85% |
| Working Temperature | 0°C-40°C | Working Humidity | 35%-95% |
| Surface Temperature of Charger | 35°C-60°C | Surface Temperature of Battery | 25°C-45°C |
USE STEPS
- EBL-992 charger is designed for 1-2 pieces AA/AAA/C Ni-MH Ni-CD rechargeable batteries and 1-2 pieces Lithium-ion 26650/22650/17670/17500/18490/18650/16340(R- CR123)/14500/10440 Li-ion Cylindrical rechargeable batteries.
- Connect the power cable firstly before charging
- AC Plug in and power on: All LED indicators will flash on in blue, and then the lights go out.
- The charger’s light is blue when charging. If charged fully, three LEDs are lighting together.
- Different capacity at the number of LEDs：
1LED–0~35% capacity
2LEDs–35%~75% capacity
3LEDs–75%~100% capacity.
TO PROTECT YOUR CHARGER & BATTERIES

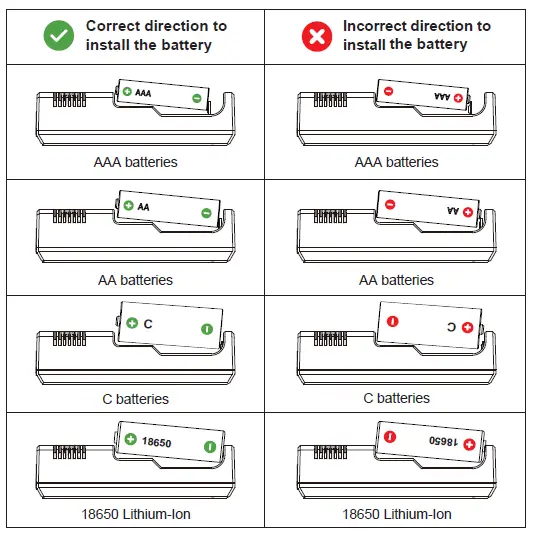

When installing battery for charging, make sure to insert the negative (-)terminal of battery first, then press the top of battery to connect the positive(+) contact the plate. Incorrect direction to install the battery will cause damage to the negative terminal of the charger and the battery sleeve.
WARNINGS
TO AVOID PERSONAL INJURY AND PROPERTY DAMAGE FROM, BUT NOT LIMITED TO, THE RISK OF ELECTRIC SHOCK OR FIRE:
- DO NOT disassemble and reassemble the charger, or it may cause short-circuit.
- DO NOT charge batteries whose cover are damaged, or it may cause short circuit and fire hazard.
- DO NOT charge non-rechargeable batteries. It might cause battery leakage, battery explosion, personal injuries, etc.
- DO NOT put anything on the charger while charging batteries, it will accumulate heat to cause fire hazard.
- Indoor use only, keep it away from direct sunlight and moist/high-temperature environment.
- Children should not use this charger without any adult’s supervision. Please use the AC power cable provided by EBL.
- Place the batteries into the charger correctly by making sure the +/- pole of battery matches the +/- pole of the charger.
- The absolute 0 volt battery can not be charged in this charger. EBL-992 is ONLY charge compatible battery, please do not charge other type battery.
- New battery will reach the best performance after using 3-5 times. Battery power will lose because of long time storage. Please charge the battery fully if it is not used for long time.
- It’s normal that the battery becomes hot while charging. The temperature will cool down to normal later, please feel free to use it.
WARRANTY
WE PROVIDE 30 DAYS WORRY-FREE MONEY BACK AND ONE YEAR LIMITED WARRANTY.
Our professional and friendly support team members will be here offering hassle-free service for you 24hour*7days.
We will go on to provide sincere customer service and technical support for you and hope you have a good experience with EBL.
Our EBL service team members willbe here for you online 24hours Email us at: [email protected]
