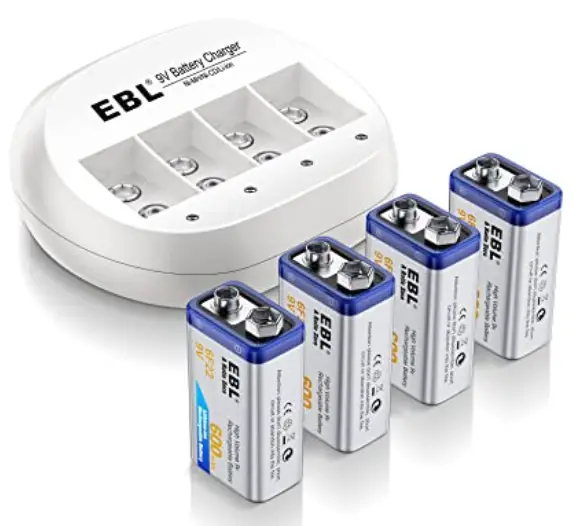

EBL 840 4 Bay 9V Lithium ion Battery Charger
IMPORTANT SAFEGUARDS
Read these instructions carefully and retain them for future use. If this product is passed to a third party, then these instructions must be included.
When using electrical devices, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following:
SAVE THESE INSTRUCTIONS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS.
SPECIFICATIONS
| Model | 840 |
| Input | DC 5V/1A(Max) |
| Output Voltage | DC 8.4/9V |
| Output Current | 260mA (D/C Li-ion260mA Ni-MH/Ni-CD 80mA) |
| No-load Power Consumption | 0.3W(Max) |
| Full-load Power Consumption | 5W(Max) |
| Battery Charging Rate | Up to 85% |
| Charging Way | Constant voltage and current |
| Size | 98mm×92mm×39mm |
| Weight | 78g |
CHARGING TIMES
Charging times are a guide only. Real charging time will vary depending upon the brand, capacity and condition of battery being charged.
| Battery Size (9V) | Related Capacity (mAh) | Battery Number (pcs) | Charging Current (mA) | Approximate Charging Time (Hrs) |
|
Li-ion |
600 | 1 | 260 | 2.3 |
| 2 | 130 | 4.6 | ||
|
Ni-MH/CD |
280 | 1 | 80 | 3.5 |
| 2 | 40 | 7 |
WORKING & STORAGE CONDITION
| Storage Temperature | -10°C-50°C | Storage Humidity | 45%-85% |
| Working Temperature | 0°C-35°C | Working Humidity | 35%-95% |
| Surface Temperature of Charger | 25°C-60°C | Surface Temperature of Battery | 25°C-60°C |
HOW TO USE
USE STEPS
- LED indicator turns red first, then turn green, and finally goes out.
- Make sure the battery is placed correctly so that the ”+/-” pole of the battery corresponds to the ”+/-” pole of the charger.
- Charge status:
| Condition | Indication |
| Power connected | Power light in red(1 second) — green (1 second) — light off |
| Charging | Red |
| Fully charged | Green |
| Short circuit | Flashing red |
WARNINGS
TO AVOID PERSONAL INJURY AND PROPERTY DAMAGE FROM, BUT NOT LIMITED TO, THE RISK OF ELECTRIC SHOCK OR FIRE.
- DO NOT disassemble and reassemble the charger, or it may cause short-circuit.
- DO NOT charge batteries whose cover are damaged, or it may cause short circuit and fire hazard.
- DO NOT charge non-rechargeable batteries. It might cause battery leakage, battery explosion, personal injuries, etc.
- DO NOT put anything on the charger while charging batteries, it will accumulate heat to cause fire hazard.
- Indoor use only, keep it away from direct sunlight and moist/high- temperature environment.
- Children should not use this charger without any adult’s supervision.
- Please use the power cable provided by EBL.
- Place the batteries into the charger correctly by making sure the +/- pole of battery matches the +/- pole of the charger.
- The absolute 0 volt battery can not be charged in this charger. 840 is designed for 9v Li-ion/Ni-MH/Ni-CD rechargeable batteries.
- Please DO NOT put any other types of batteries in this charger, especially alkaline batteries.
- New battery will reach the best performance after using 2-3 times.
- Battery power will lose because of long time storage. Please charge the battery fully if it is not used for long time.
- It’s normal that the battery becomes hot while charging. The temperature will cool down to normal later, please feel free to use it.
WARRANTY
WE PROVIDE 30 DAYS WORRY-FREE MONEY BACK AND ONE YEAR LIMITED WARRANTY.
Our professional and friendly support team members will be here offering hassle-free service for you 24hour*7days.
We will go on to provide sincere customer service and technical support for you and hope you have a good experience with EBL.
