EPROPULSION CH4200 E Battery Charger

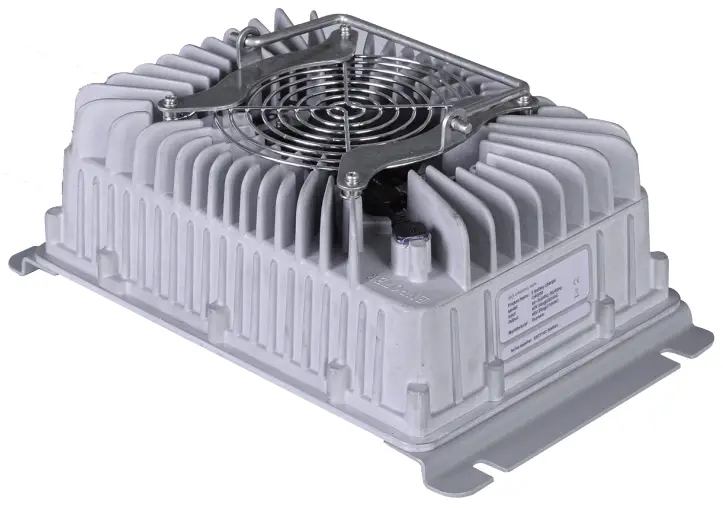

Introduction
The E battery charger is a product designed for the E-Series Battery. It has: wide input voltage range, universal voltage; small interference to other electrical equipment; designed in accordance with IP66 protection level, high waterproof performance; can be used in parallel; quiet work, high reliability, simple installation, operation, and maintenance.
Specifications
| Model | CH4200 |
| Input voltage | 85~265 VAC |
| Input current | <9 A @220 VAC <12 A @110 VAC |
| Power factor | ≥0.99 |
| Rated output voltage | 48 VDC |
| Output current | 30 A @220 VAC ~20 A @110 VAC |
| Parallel connection | 8 (Max |
| Conversion efficiency | ≥93% |
| Protection level | IP66 |
| Operation temperature | -25 °C ~ 55 °C |
| Storage temperature | -40 °C ~ 85 °C |
| Certification | CE |
LED Indicator
| Flashing green light | Charging |
| Steady green light | Charging stopped / fully charged |
| Flashing red light | Failed to communicate with the battery |
| Green and red lights flash alternately | No battery connected |
| Other | Charger error, please restart the charger, if the problem persists, please contact ePropulsion authorized dealer |
In the Box
| Charger | 1 set |
| User manual | 1 piece |
| Communication cable | 1 piece |
| Y type communication cable | 1 piece |
| AC input cable | 1 piece |
| DC output cable | 1 piece |
Operation
- Ensure the power has been switched off, and complete the wiring according to the figure.
- Turn on the battery power button first, then turn on the AC switch.
- The green light of the charger flashes, indicating that the charger is charging normally
*For the DC output cable, red is positive, black is negative

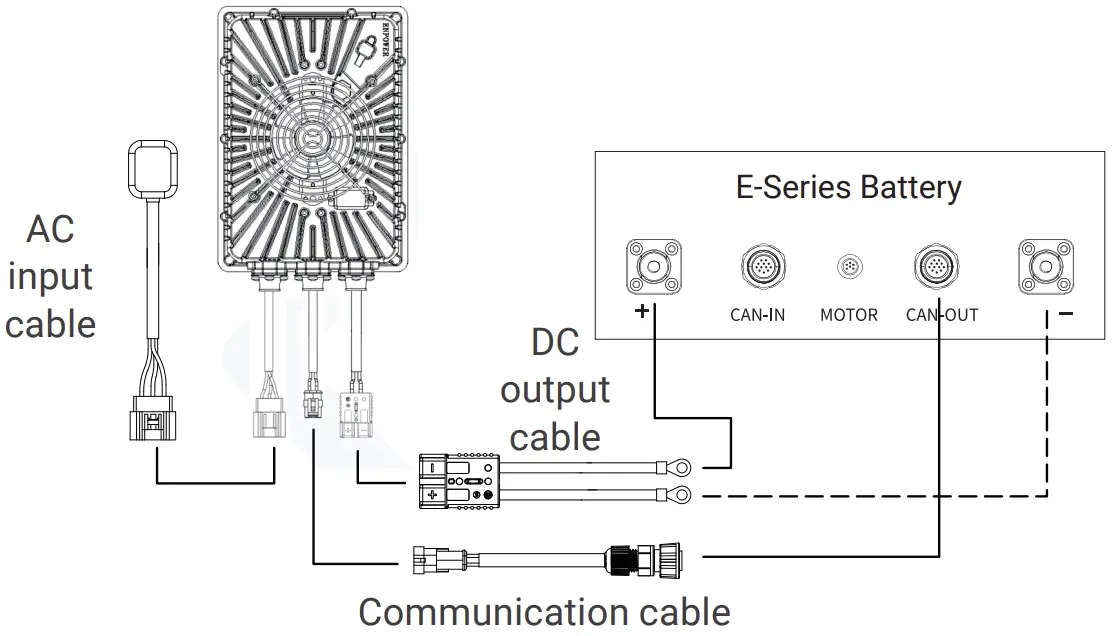

Charge the battery by one charger:

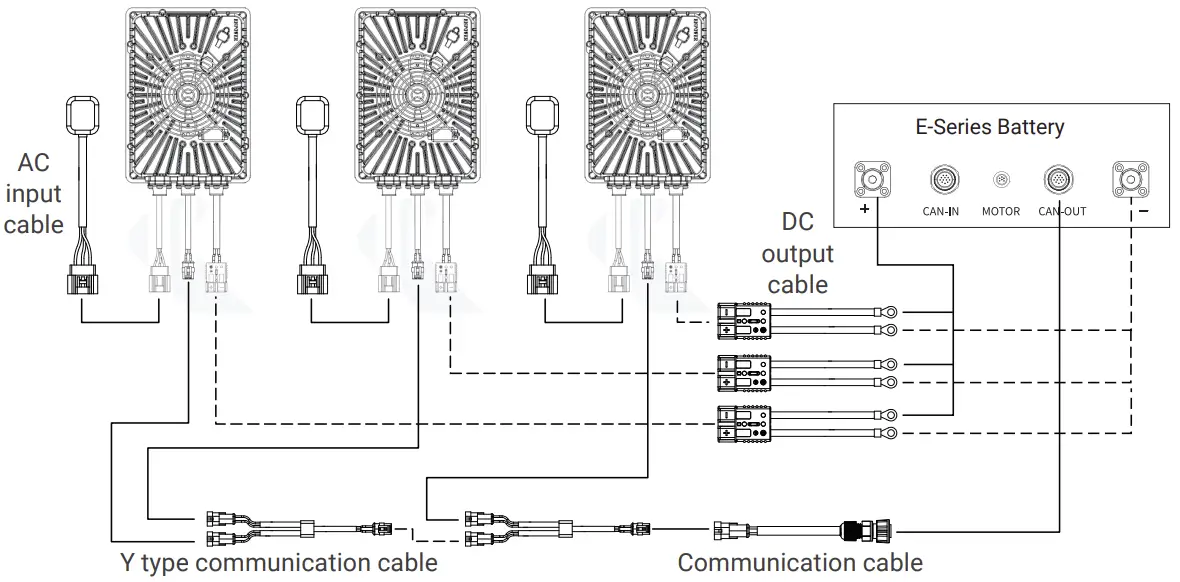

Charge the battery by multiple chargers:
Notes
- Do not puncture, throw, drop, bend or modify the charger.
- The charger should be used in well ventilated, dry, particle free environment.
- The charger should avoid direct sun exposure.
- Opening the housing of the charger without prior written consent of the manufacturer voids the manufacturer’s warranty immediately.
Warranty
e Propulsion E Battery Charger is guaranteed against any manufacturing defects for TWO years (uncommercial) from the date of purchase. Free warranty is only validated upon the presentation of Warranty Card, and evidence of purchase from an authorized e Propulsion dealer
Conditions:
e Propulsion E Battery Charger is guaranteed against any manufacturing defects for TWO years (uncommercial) from the date of purchase.
Free warranty is only validated upon the presentation of Warranty Card, and evidence of purchase from an authorized e Propulsion dealer
Conditions:
- Valid date of purchase should be established by the first-hand purchaser with original sales slip.
- Free warranty is not transferable and will not be reissued.
- The warranty is valid only when the information is correct and complete
Warranty does not cover:
- Minor faults producing no influence on the intended function of the product.
- Faults resulting from any improper operation that contradicts the user manual.
- Accessories supplied with the product.
- Damage caused by accident, misuse, liquid damage or unauthorized repair.
- Damage caused by dropping, improper care or storage.
If warranty expires, users can still enjoy maintenance services from ePropulsion authorized dealers with minimum maintenance charge.
