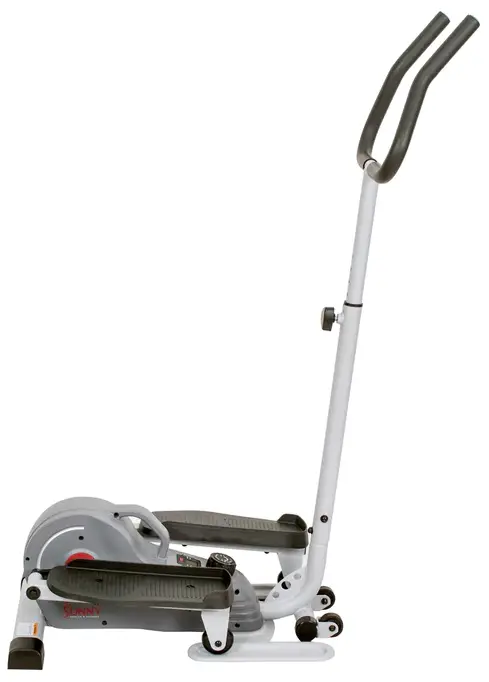

SUNNY Health Fitness SF-E3988 Magnetic Standing Elliptical Machine with Handlebars User Manual

IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: [email protected] or 1-877-90SUNNY (877-907-8669).

IMPORTANT SAFETY INFORMATION

We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions.

1. Before starting any exercise program, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Your physician’s advice is essential if you are taking medication that affects your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea. If you do experience any of these conditions, you should consult your physician before continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To ensure safety, the equipment should have at least 2 feet (60 CM) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while assembling or checking the equipment, or if you hear any unusual noises coming from the equipment during exercise, discontinue use of the equipment immediately and do not use until the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 220 pounds (100KG).
10. The equipment is not suitable for therapeutic use
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are required.
12. Your product is intended for use in cool and dry conditions. You should avoid storage in extreme cold, hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only; it is not intended for commercial use

IMPORTANT NOTE: Please remove the plastic tab from the meter before use!

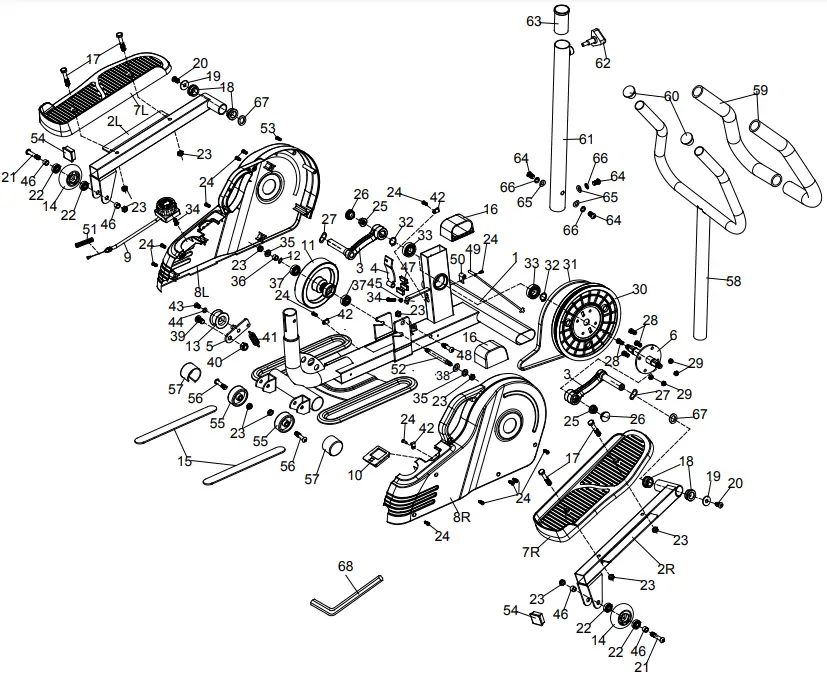

EXPLODED DIAGRAM

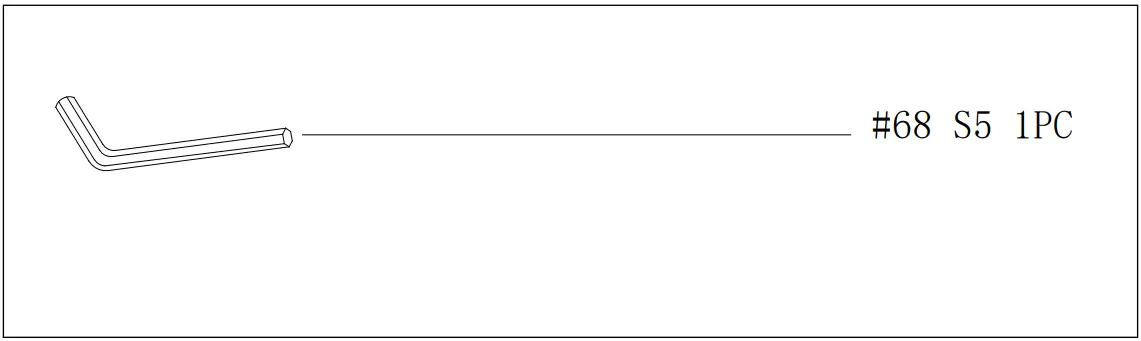

HARDWARE PACKAGE

PARTS LIST

Ordering Replacement Parts (U.S. and Canadian Customers only)

Please provide the following information in order for us to accurately identify the part(s) needed:

• The model number (found on cover of manual)
• The product name (found on cover of manual)
• The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front of the manual)

Please contact us at [email protected] or 1-877-90SUNNY (877-907-8669).

ASSEMBLY INSTRUCTIONS

We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at [email protected] or 1 877-90SUNNY (877-907-8669).

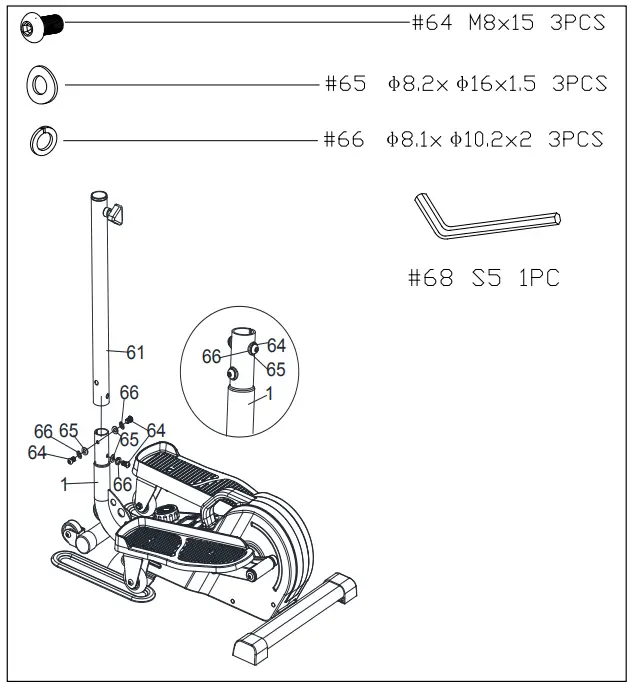

STEP 1:
Remove 3 Screws (No. 64), 3 Washers (No. 66) and 3 Arc Washers (No. 65) from Main Frame (No. 1) with Allen Wrench (No. 68).

Insert Upright Post (No. 61) into Main Frame (No. 1) using 3 Screws (No. 64), 3 Washers (No. 66) and 3 Arc Washers (No. 65) that were removed. Tighten and secure with Allen Wrench (No. 68).

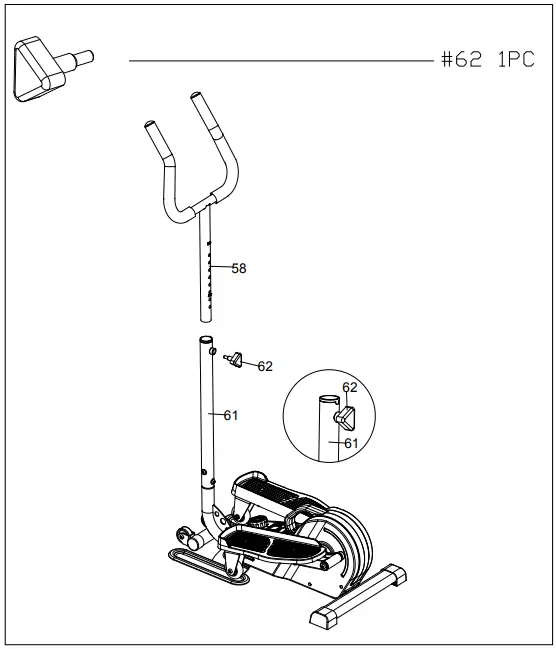

STEP 2:
Remove Triangle Knob (No. 62) from Upright Post (No. 61).

Insert Handlebar (No. 58) into Upright Post (No. 61), adjust the Handlebar (No. 58) to desired height, and tighten with Triangle Knob (No. 62).

The assembly is complete!

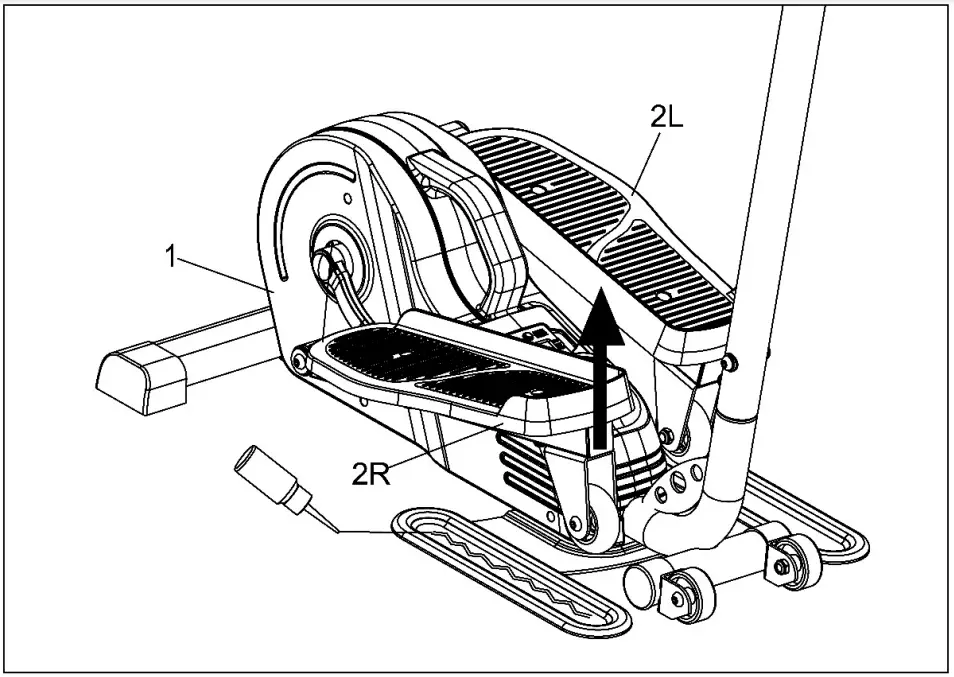

LUBRICATING THE ELLIPTIAL MACHINE

IMPORTANT NOTE:

The machine will need to be lubricated before the first use!
Please lubricate the machine regularly and based on the frequency of use.
Lubricant can be purchased at your local store.

Raise the Pedal Frame (No. 2R) up on one side, then apply lubricant to the slide board. Thoroughly wipe the lubricant over the slide board with a rag, and repeat the same process for the other side.

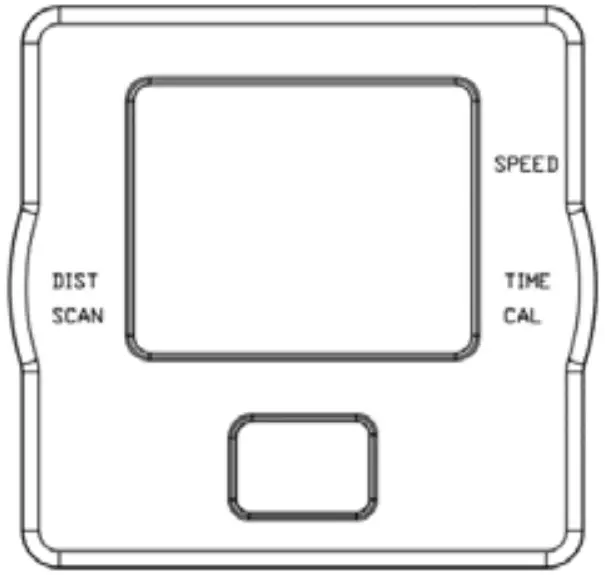

EXERCISE COMPUTER

SPECIFICATIONS

SPEED 0.0~999.9 MPH (Mile/Hour)
TIME 0:00~99:59 MIN
DIST (DISTANCE) 0.0~9999 M (Mile)
CAL (CALORIES) 0.0~9999 KCAL

ADJUSTMENTS & USAGE GUIDE

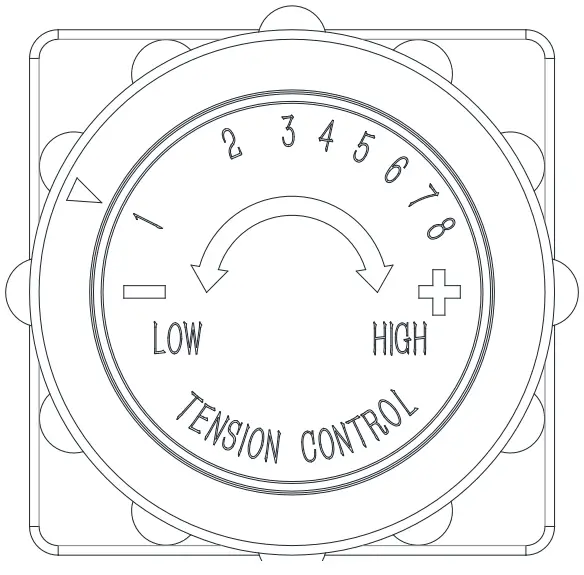

	ADJUSTING THE TENSION Adjust the tension by turning the Tension Control Knob (No. 9) clockwise to increase the level of resistance or turning counter-clockwise to decrease the level of resistance. Tension levels are set at Level 1 being the lowest and Level 8 being the highest.

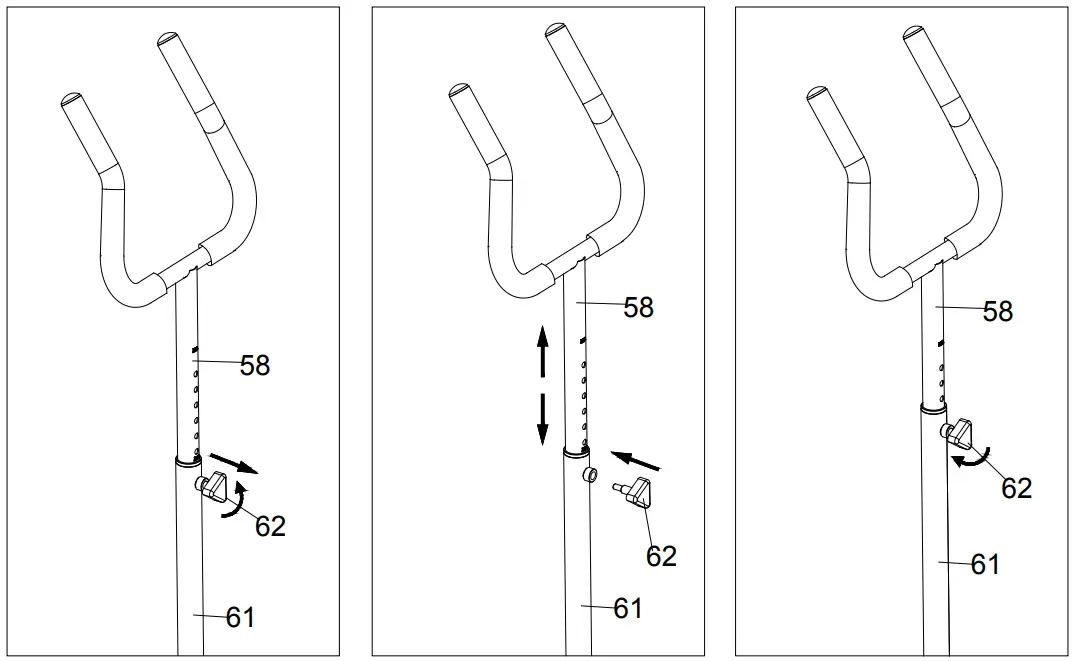

	ADJUSTING THE HEIGHT OF HANDLEBAR Turn    the    Triangle    Knob    (No.    62) counter- clockwise and remove it from Upright Post (No. 61). Adjust the Handlebar (No. 58) to desired position, then re-tighten the Triangle Knob (No. 62) by turning it clockwise.

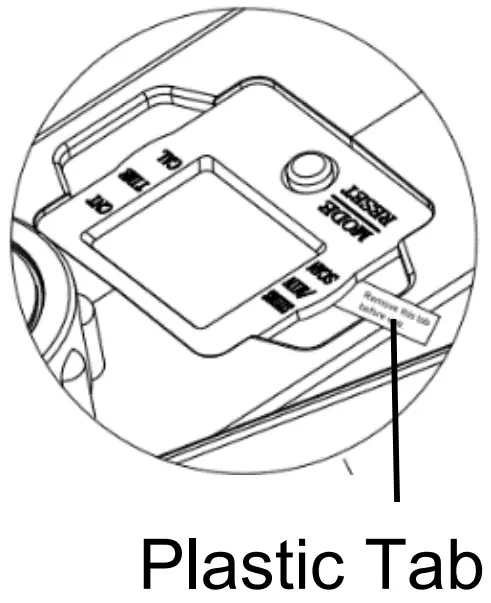

	IMPORTANT NOTE: Please remove the plastic tab from the meter before use!

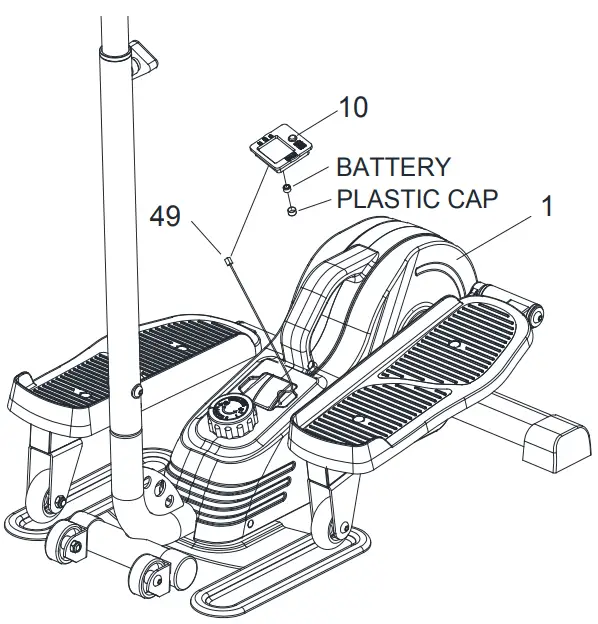

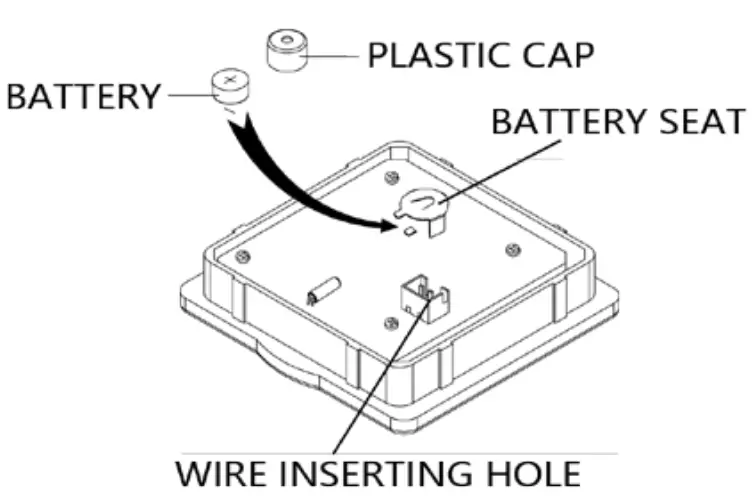

BATTERY REPLACEMENT

1. Remove the Meter (No. 10) from Main Frame (No. 1). Then disconnect the link wire of Inductor (No. 49) from the Meter (No. 10).
2. Remove the plastic cap from the back of Meter (No. 10).
3. Remove the old battery and insert the new battery using your fingers. Ensure that the positive side of the battery which is labeled with a + sign is facing upward once the battery is in place.
4. Put the plastic cap onto the battery seat.
5. Reconnect the link wire of Inductor (No. 49) to the back of Meter (No. 10).
6. Reattach Meter (No. 10) onto Main Frame (No. 1).

The replacement is complete!
