veratron VL 2-IN-1 VOLTMETER HOUR COUNTER User Manual
KEY FEATURES
- 2 instruments in 1 with digital engine hour counter and voltmeter
- Segment display with white LED backlight
- Suits different applications thanks to the 48V operating voltage
- Automatic data switch every 10 seconds
- Plastic front double lens
- Black and white variants available
- 9 different styling rings to customize your dashboard
- Front and flush panel mount

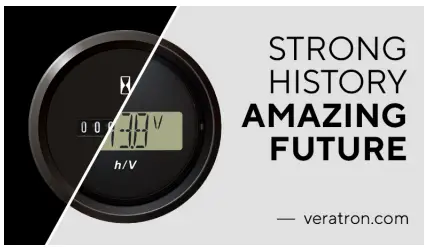

The VL two-in-one instrument features a bright and well readable LCD designed to display both your engine hours and a digital voltmeter to have your battery information alsys under control.
Its extended operating voltage up to 60 V makes it a perfect solution for the most diverse applications, from marine engines to static generators, material handling machines, and many more.

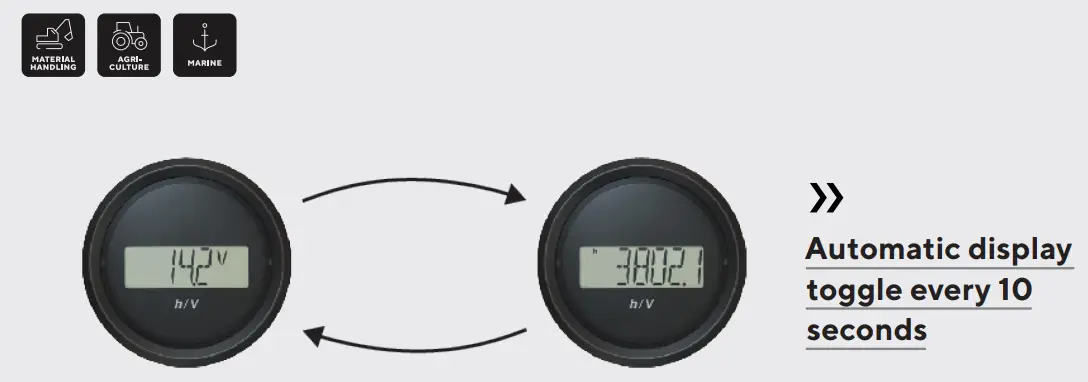

The display automatically toggles between the two values every 10 seconds for a completely hands free operation.

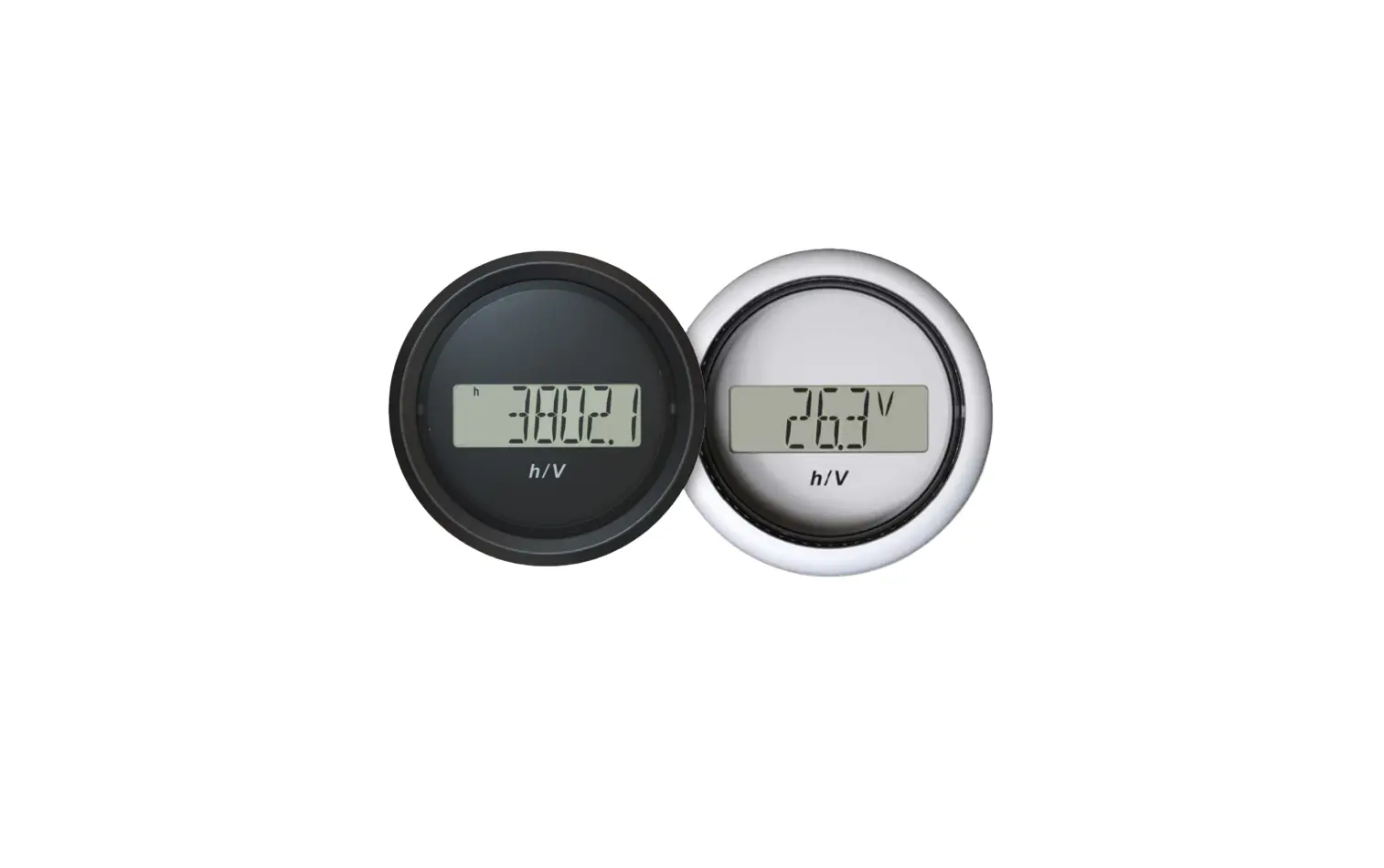

Black and white variants are available and customizable with nine syling rings in different shapes and colors.
ACCESSORIES AND SPARE PARTS
| Cable 8 wires* | A2C59512947 |
| Spinlock Nut 52 mm* | A2C5205947101 |
| Flush mount kit | A2C59510864 |
| Bezel Flat black | A2C5318604001 |
| Bezel Flat white | A2C5318602201 |
| Bezel Flat chrome | A2C5318602301 |
| Bezel Triangular black** | A2C5318602401 |
| Bezel Triangular white** | A2C5318602501 |
| Bezel Triangular chrome | A2C5318602601 |
| Bezel Round black** | A2C5318602701 |
| Bezel Round white** | A2C5318602801 |
| Bezel Round chrome | A2C5318602901 |
* included in the box
** included in the box, see variant descriptions
Nine styling front rings are available to match your favorite style
DIMENSIONS
TECHNICAL DATA
| Nominal voltage | 12 / 24 / 48 V |
| Operating voltage | 9–60 V with reverse polarity and over voltage protections |
| Current consumption | ≤ 50 mA @ 12 V |
| Display | Segment TN+ with white LED backlight |
| Dimensions | Installation diameter: 52 mm Outer diameter: 60 mm (with bezel) Instalaltion depth: 46 mm |
| Mounting | Spinlock Nut (Front panel mount) Flush mount (via flush mounting kit) |
| Protection class | IP67 front IP52 rear acc. to IEC 60529 |
| Operating temperature | -40 to +80°C |
| Storage temperature | -40 to +85°C |
| Material | Housing: PC (black) Lens: PMMA double lens Bezel: ABS (Chrome), PC (Black, White) |
| Connector | Tyco/Hirschmann MQS plug, 8 pin |
| Flammability | V0 acc. to UL-94 |
| Compliance | CE, UKCA, Reach, RoHS |

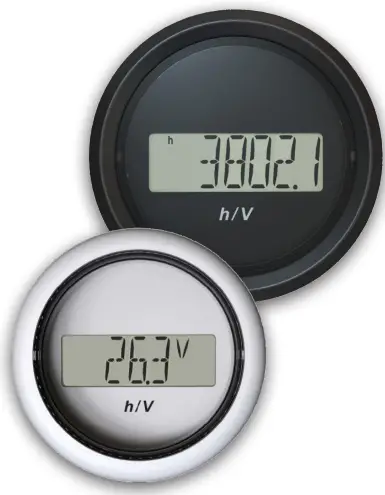

BLACK AND WHITE VARIANTS
VARIANTS
| Black with round black bezel | B00005302 | White with round white bezel | B00006302 |
| Black with triangular black bezel | B00005303 | White with triangular white bezel | B00006303 |
The new VL 2-in-1 replaces the old mechanical hour counter and adds more value with the digital voltmeter
OUTDOOR INSTRUMENTATION ENGINEERED IN SWITZERLAND
Veratron AG / Industriestrasse 18 / 9464 Rüthi / Switzerland
T +41 71 7679 111 / [email protected] / veratron.com
