veratron GO
GPS / Data / Plus+
Installation instruction
B000448 | 03-2021

Before assembly

NOTICE: Short circuit. Cable burning, battery explosion. Remove the ignition key and detach the battery negative pole terminal.
Purchase an NMEA 2000 drop cable with five-pin M12 connector (max. drop cable length 6m, male-female connectors).

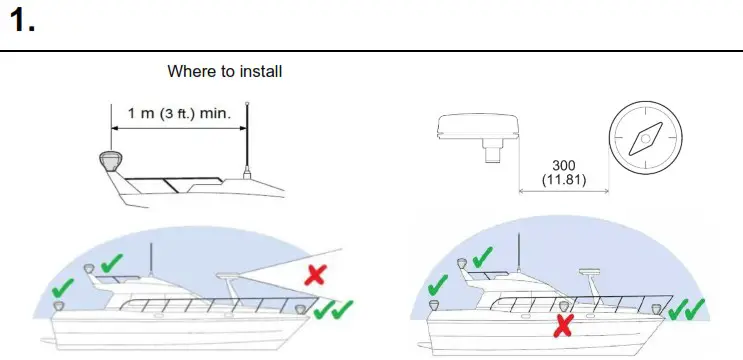

Installation position [1]

NOTICE: place the device at least 30 cm away from any magnetic compass, at least 1m away from VHF antennas and clear of radar arrays.
To ensure the best GPS reception, mount the veratron GO GPS/Plus+ in a location that offers a clear, unobstructed view of the sky in all the directions.
Install the device in areas with materials permeable to digital satellite data transmission (i.e. fiberglass, wood, glass).
NOTICE: if installed on steel hull vessels, install the veratron GO as high as possible away from the magnetic steel.

Box contents

• Veratron GO
• Safety Instructions
• Veratron Card

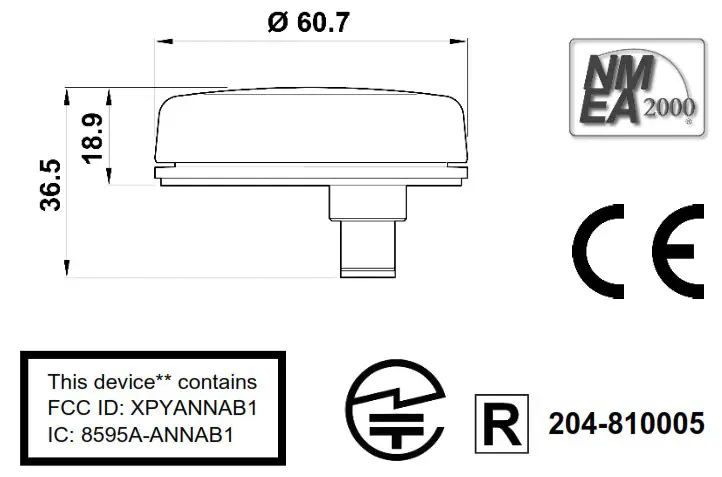

Technical specifications

NMEA 2000 Data

* only veratron GO GPS and Plus+
** only veratron GO Data and Plus+

Mobile App (veratron GO Data / veratron GO Plus+)

Download the NavDash App for smartphone and tablets to get started with your veratron GO Data or veratron GO Plus+

With optional bracket B00062402

www.veratron.com/downloads

veratron AG
Industriestrasse 18, 9464 Rüthi,
Switzerland
www.veratron.com
[email protected]

Content subject to change
© 2021 veratron AG
