CLIXX MICRO Magnetic Track System 1 Meter
Instructions

Lighting is an essential part of any architectural design and can emphasize the designer’s vision.
Thoughtful decisions in interior and exterior design can be highlighted and enhance the experience of the space. Light can illuminate art and be the work of art itself.
Lightinova offers a comprehensive range of lighting solutions for even the most creative architects, interior designers and lighting designers. Customized solutions in which color temperature, light output, beam angles and control options can be tailored to the specific application.
Aesthetic lighting fixtures without compromising on functionality. Intelligent systems yet easy to use and install. Our specialists offer advice and guidance to achieve the best possible result.
Bring your next project to life with Lightinova.

A MINIMALISTIC INTERPLAY OF LINES

CLIXX MICRO 24V magnetic track lighting system; the true definition of minimalism. The ultra thin tracks of just 19mm in width and 13.5mm in height appear visually trimless even when surface mounted. The profile height being equal to the thickness of plasterboard allows for easy integration without lowering the ceiling.
The CLIXX MICRO system offers endless configuration possibilities due to the wide range of profiles, corners, installation types, light modules and control options.

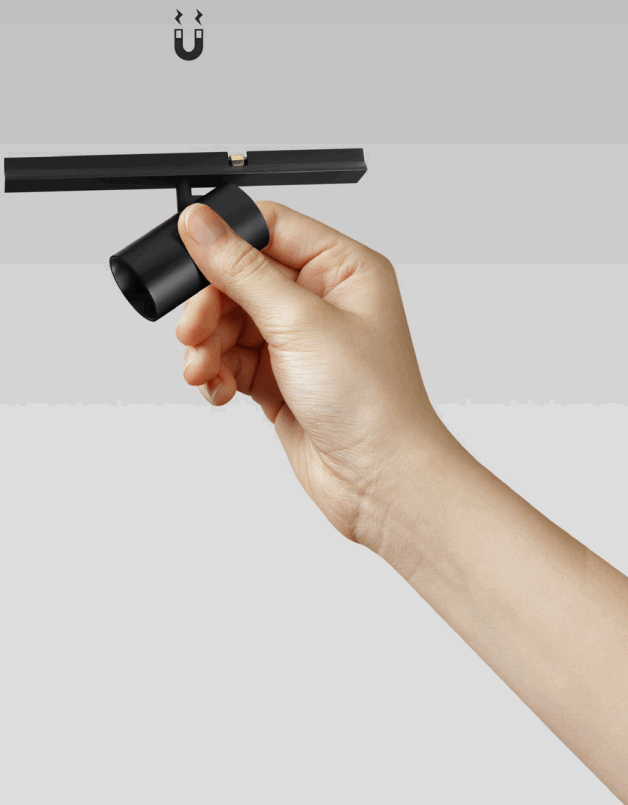

MAGNETIC CONNECTION

The CLIXX MICRO LED light modules are magnetically fastened to the tracks, making them easy to install by hand without the need for tools. The low voltage of the system allows the light modules to be positioned and moved while the power is on. When the light modules are magnetically connected to the track, they are automatically supplied with power and function immediately.
The installation of the LED light modules is therefore no more than a simple ‘click’ allowing easy repositioning.TRACKS

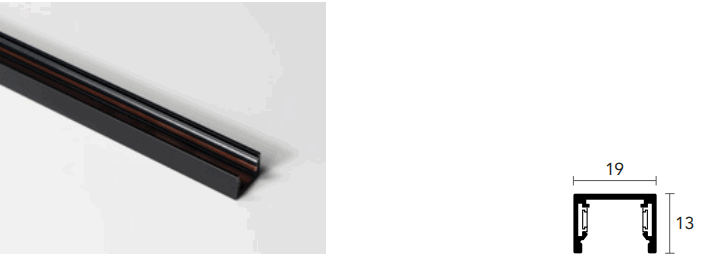

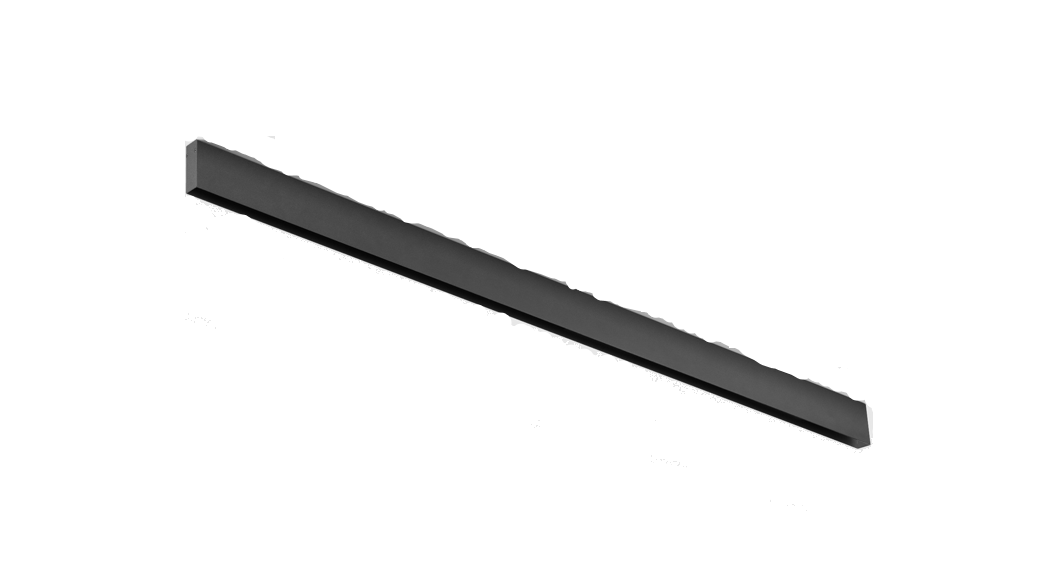

SURFACE PROFILE 1M	CM-S-100-BK/WT
SURFACE PROFILE 2M	CM-S-200-BK/WT

TRIMLESS PROFILE 1M	CM-T-100-BK/WT
TRIMLESS PROFILE 2M	CM-T-200-BK/WT

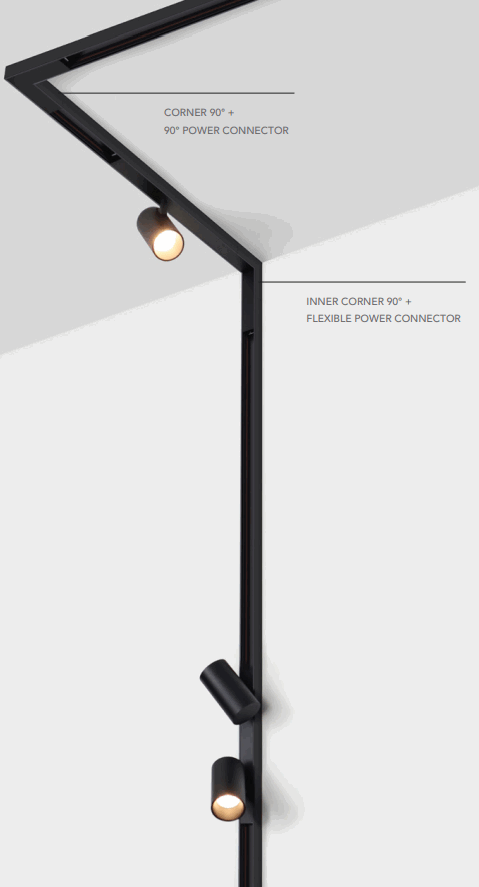

CORNERS

	SURFACE CORNER 90° CM-S-C90-BK/WT
	SURFACE INNER CORNER 90° CM-S-IC90-BK/WT
	TRIMLESS CORNER 90° CM-T-C90-BK/WT
	TRIMLESS INNER CORNER 90° CM-T-IC90-BK/WT

CONNECTORS

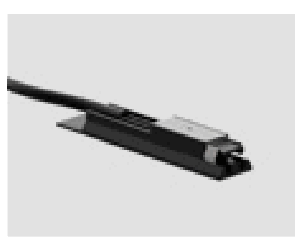

	POWER CONNECTOR CM-PC-BK/WT
	90° POWER CONNECTOR CM-PC90-BK/WT
	180° POWER CONNECTOR CM-PC180-BK/WT
	FLEXIBLE POWER CONNECTOR CM-FPC-BK/WT

POWER SUPPLY

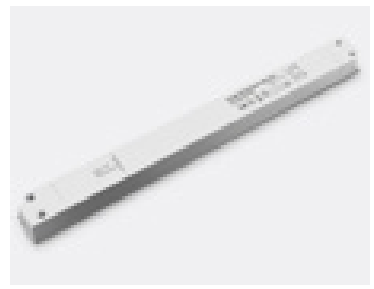

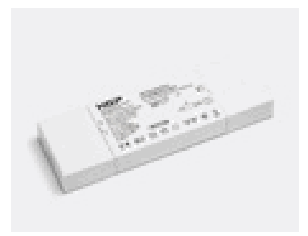

	60W REMOTE DIM POWER SUPPLY 24V I 60W I TRIAC/1-10V KVF-24060-TDH 178 X 60 X 22 MM
	100W REMOTE DALI DIM POWER SUPPLY 24V I 100W I DALI FV100W24CG-DALI 190 X 65 X 22 MM
	150W REMOTE DIM POWER SUPPLY 24V I 150W I TRIAC/1-10V KVG-24150-DHS 367 X 30 X 22 MM

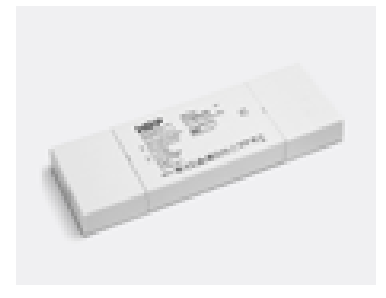

	190 X 65 X 22 MM 120W REMOTE NON-DIM POWER SUPPLY 24V I 120W I SWITCHABLE FV120W24CG

COLOUR

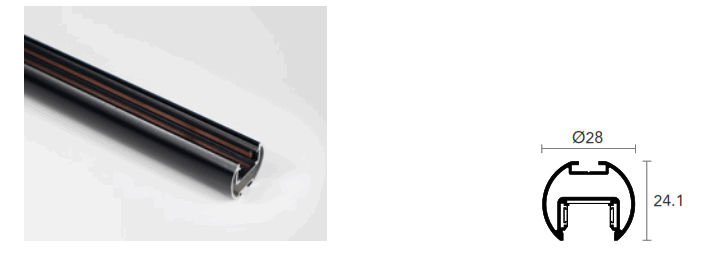

TRACKS

ALL TRACKS INCLUDE END-CAPS

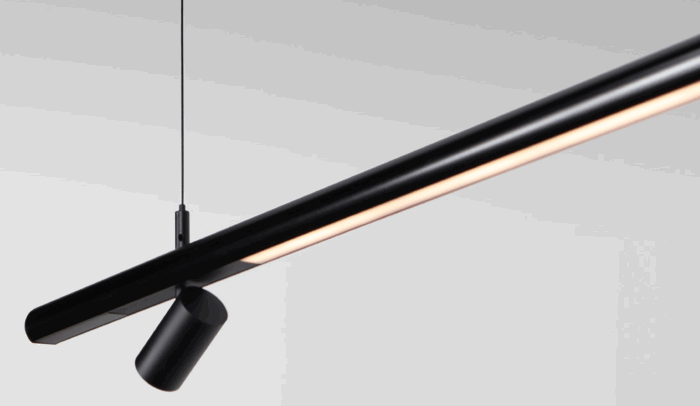

	SUSPENSION KIT 2M (2 PCS) CM-P-SK-BK/WT
	CEILING DRIVERBOX CM-P-CDB-BK/WT
	CEILING ROSE (REMOTE DRIVER) CM-P-CR-BK/WT

CORNERS

	PENDANT CORNER 90° CM-P-C90-BK/WT
	PENDANT CORNER 90° CM-P-C90-BK/WT
	PENDANT OUTER CORNER 90° CM-P-OC90-BK/WT

CONNECTORS

	POWER CONNECTOR CM-PC-BK/WT
	90° POWER CONNECTOR  CM-PC90-BK/WT
	180° POWER CONNECTOR CM-PC180-BK/WT
	FLEXIBLE POWER CONNECTOR CM-FPC-BK/WT

POWER SUPPLY

	60W BOX/REMOTE DIM POWER SUPPLY 24V I 60W I TRIAC/1-10V KVF-24060-TDH 178 X 60 X 22 MM
	100W BOX/REMOTE DALI DIM POWER SUPPLY 24V I 100W I DALI FV100W24CG-DALI 190 X 65 X 22 MM
	150W REMOTE DIM POWER SUPPLY 24V I 150W I TRIAC/1-10V KVG-24150-DHS 367 X 30 X 22 MM
	190 X 65 X 22 MM 120W BOX/REMOTE NON-DIM POWER SUPPLY 24V I 120W I SWITCHABLE FV120W24CG

COLOUR

ALL-IN-ONE LIGHTING SOLUTION
Each CLIXX MICRO magnetic light module is equipped with a high-quality integrated LED light source with unique light distribution. The choice of different beam angles, color temperatures and dimming types offer a personalized solution. Light modules can be added, moved and removed, allowing the system to easily adapt to any changes in  the space.
Different light modules offer the perfect light for every application. Linear light modules with high light output and diffuse light for general lighting and spot modules with focused bright light for accent lighting make the CLIXX MICRO system an all-in-one solution.

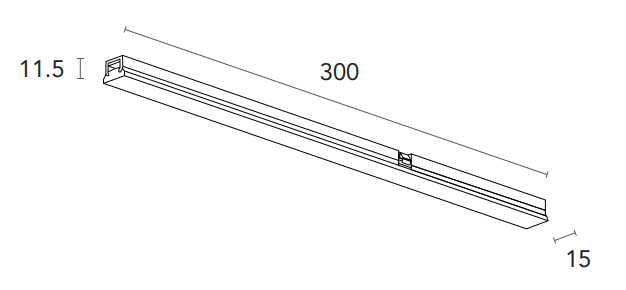

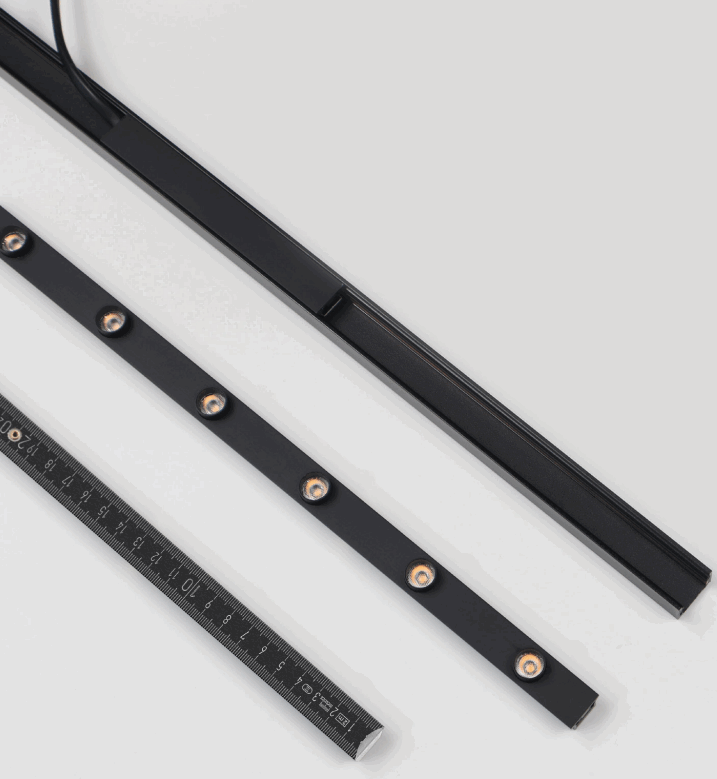

LINE 30

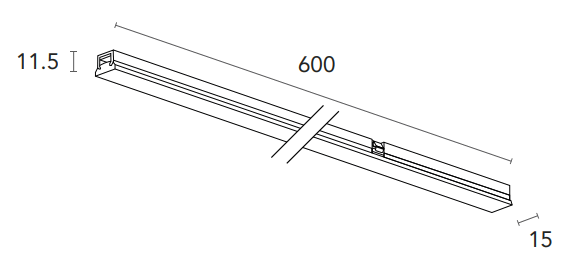

LINE 60

COLOUR

BLACK  I  WHITE

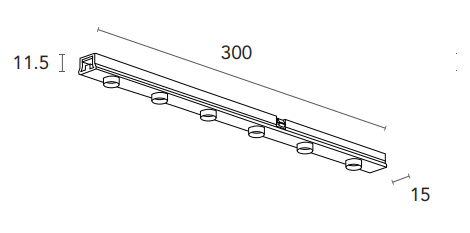

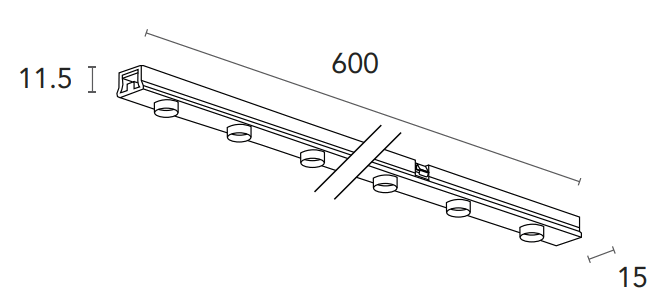

DOT 06

DOT 12

COLOUR

BLACK  I  WHITE

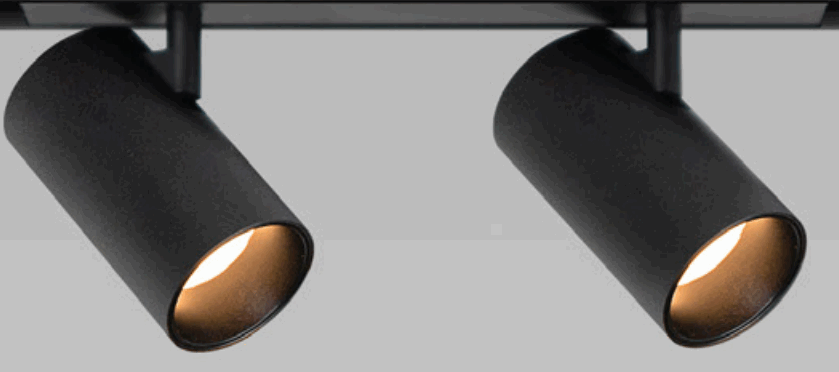

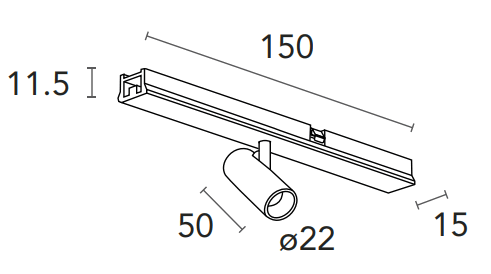

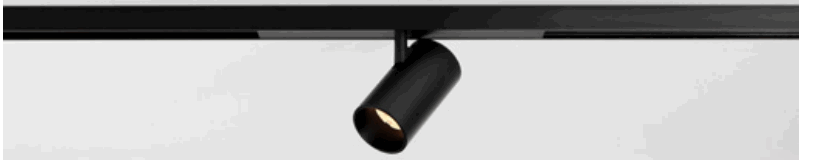

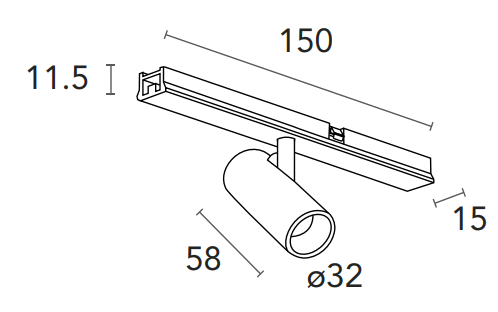

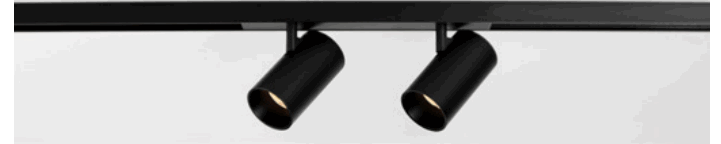

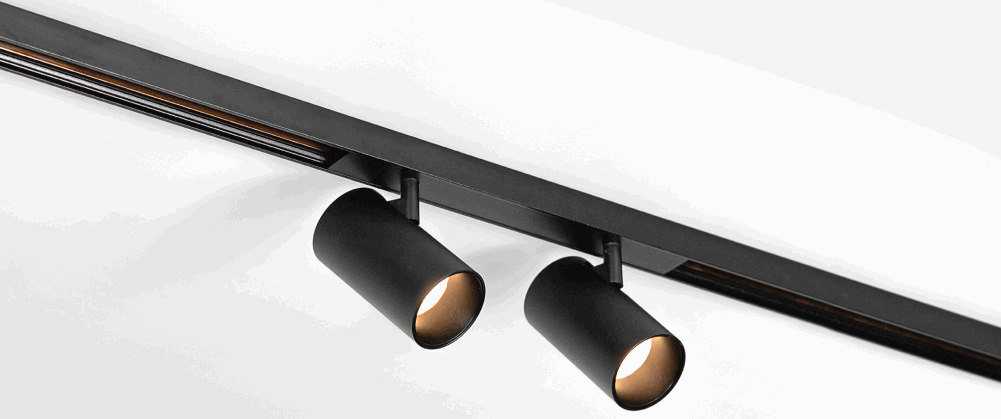

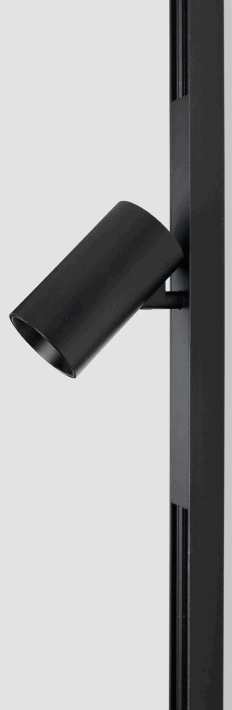

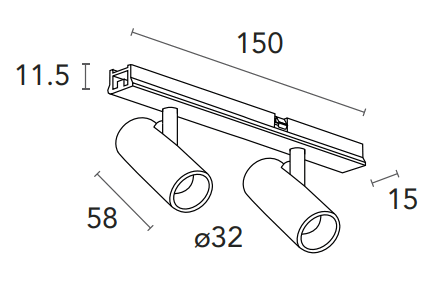

SPOT 22

SPOT 32

COLOUR

BLACK  I  WHITE

SPOT 22D

SPOT 32D

COLOUR

BLACK  I  WHITE

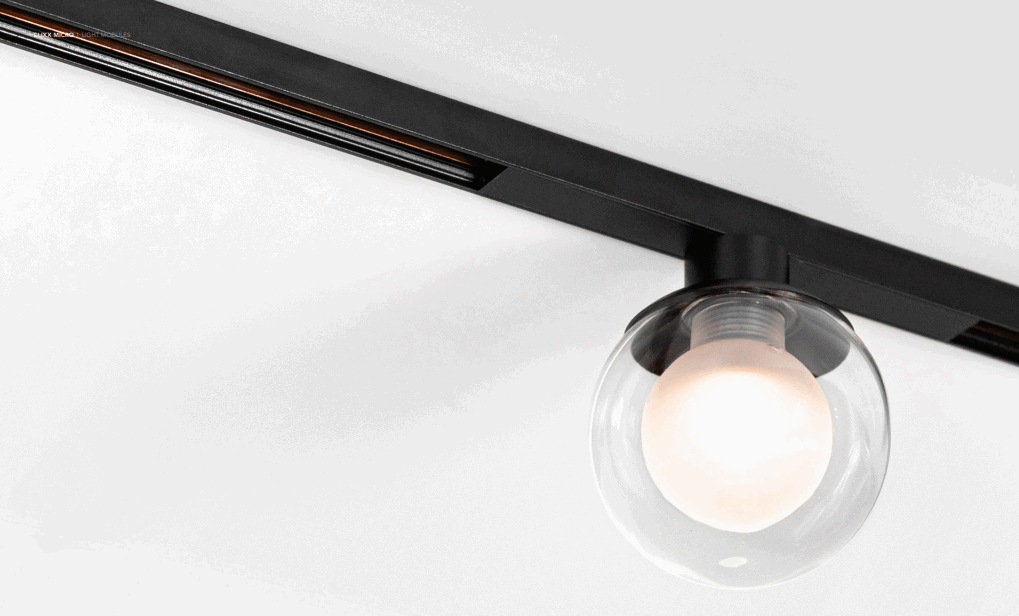

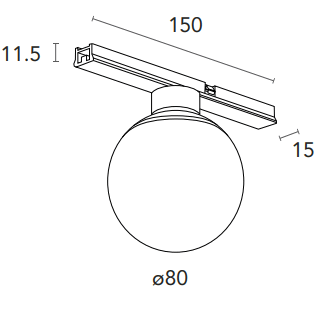

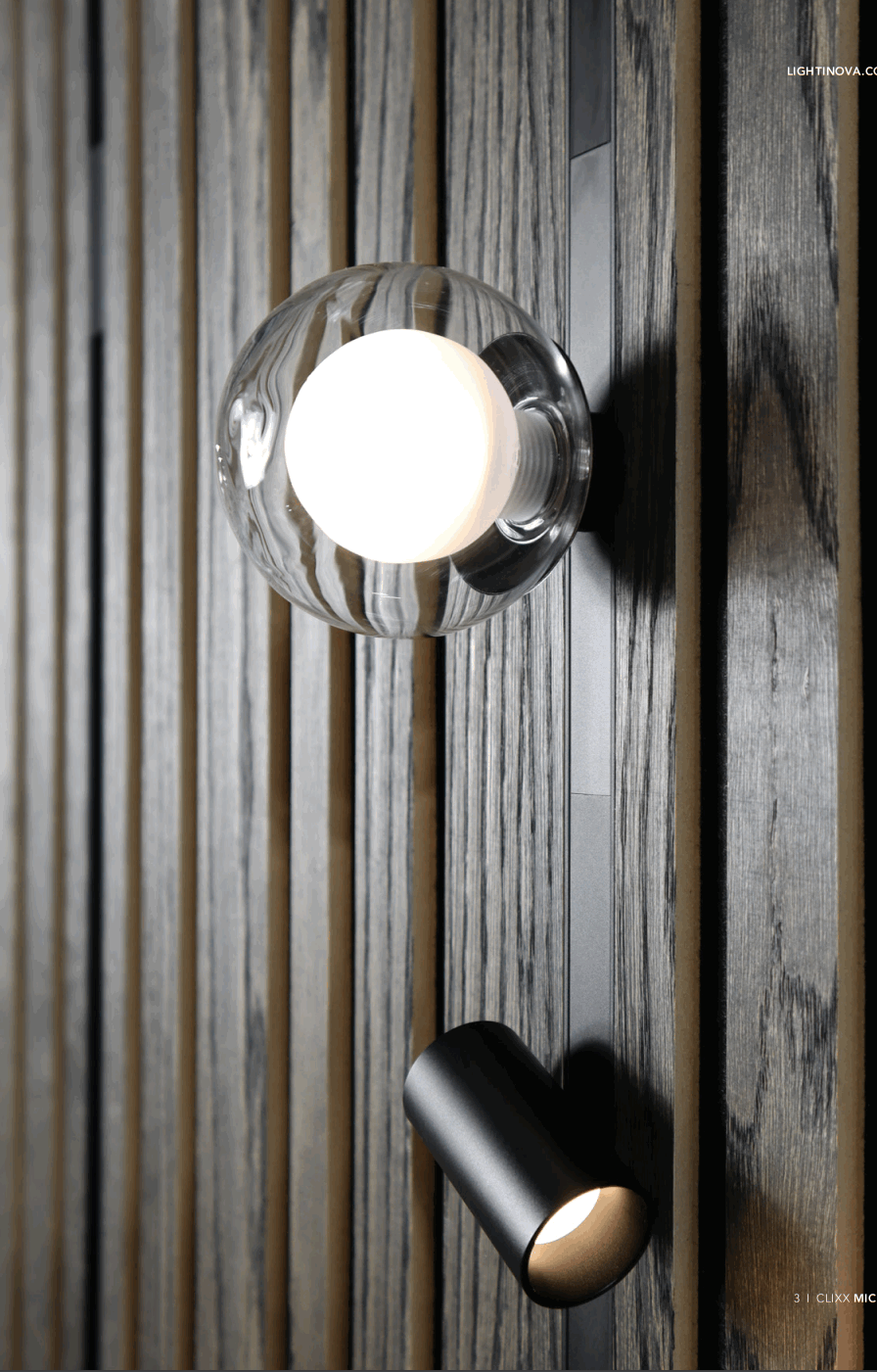

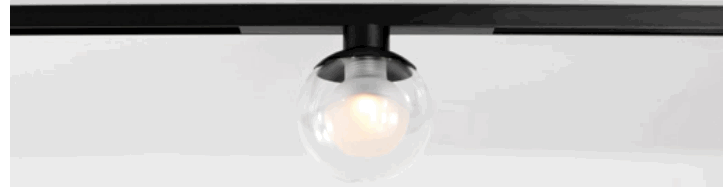

GLOBE

COLOUR

BLACK  I  WHITE

LIGHTINOVA
Korhoenweg 17, 4791 RM Klundert Netherlands
tel. +31 (0) 76 369 00 24
e-mail [email protected]
www.lightinova.com
Lightinova reserves the right to make any necessary aesthetic, technical, constructive or dimensional changes without notice to improve its products.
Such cases cannot be claimed by the customer. Changes and printing errors reserved.
