230V I COB LED I 20W
25W/ 30W/35W I 50/6
0Hz IP20 I Aluminium I Adjustable power

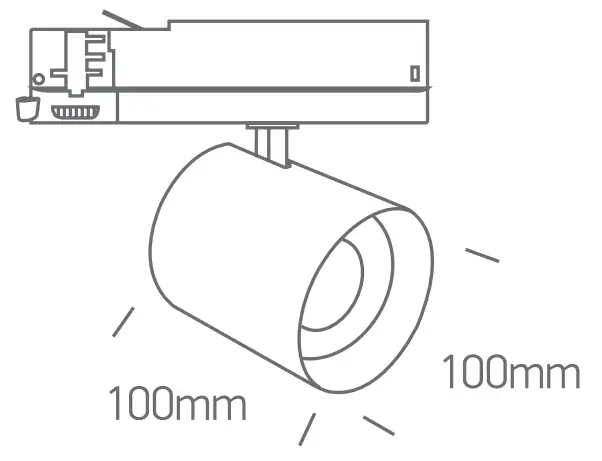

65660BT Adjustable Power Track Spot
Instruction Manual
65660BT Adjustable Power Track Spot
Complete with the driver.
 |  |  |
 |  |  |

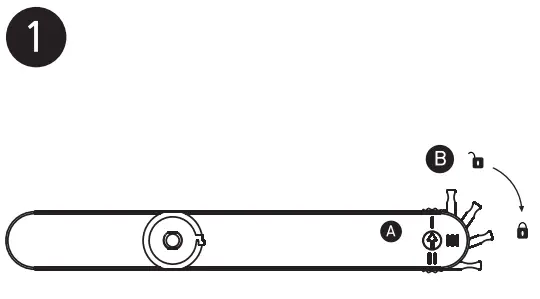

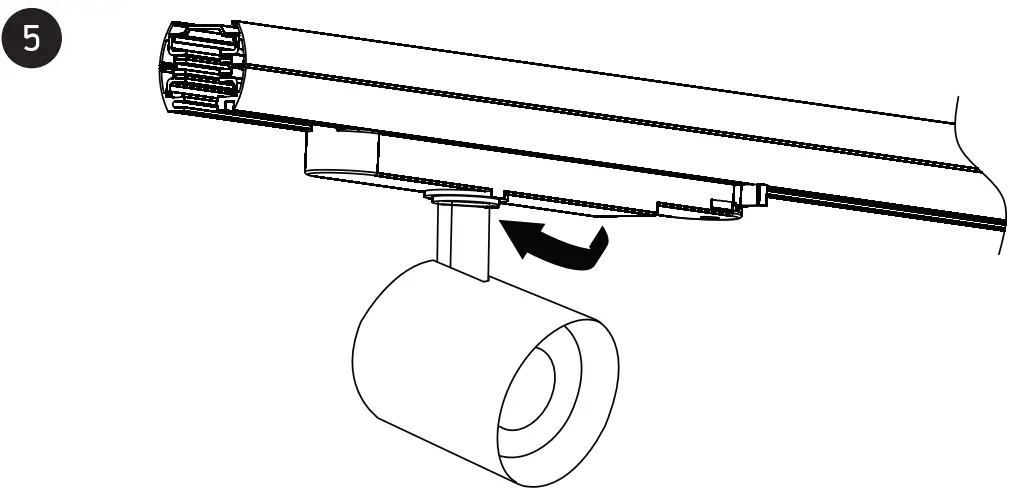

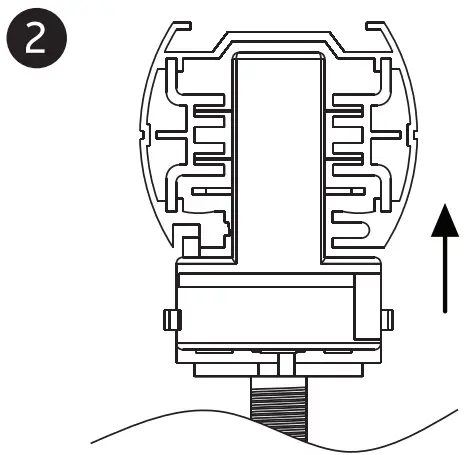

| To mount the track adaptor into the track system, first, check that the selector knob 0 is at the OFF position and the adaptor lock 0 is disengaged. | When installing the adaptor into the track. ensure that it is orientated correctly. | Rotate the adaptor lock 0 clockwise 90°to connect the adaptor to the neutral circuit |
 |  |  |

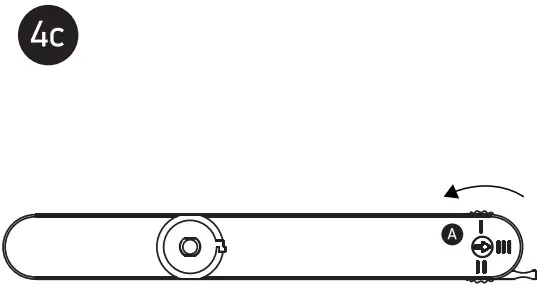

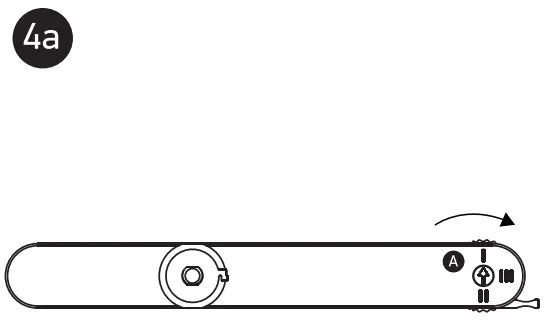

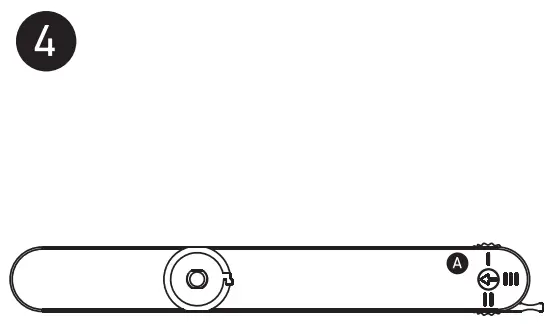

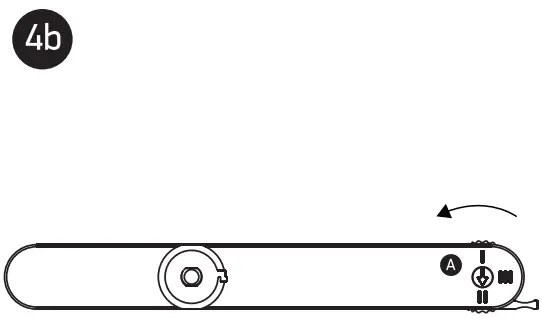

| Rotate selector knob 0 to the position of the desired circuit. | Circuit 1: Rotate the knob 0 90° clockwise from the starting position OFF, to connect circuit 1. | Circuit 2: Rotate the knob 0 90° anti-clockwise from the starting position OFF, to connect circuit 2. |
 |  |
| Circuit 3: Rotate the knob 0 180° clockwise from the starting position OFF, to connect circuit 3. |
Warnings:
- Make sure that the product is installed properly before connecting to electricity.
- Do not cover the fitting.
- Maintenance and installation should only be carried out by a professional electrician.
