one LIGHT 65660AT Adjustable Power Spot Track light

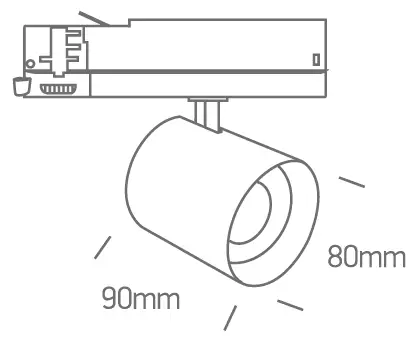

Dimension
Instruction

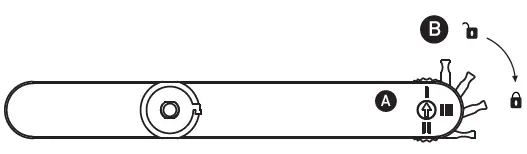

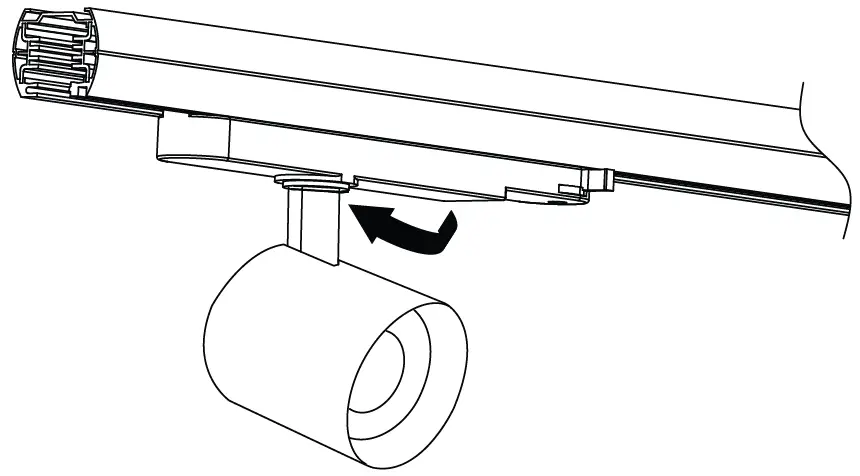

- To mount the track adaptor into the track system, first check that the selector knob A is at OFF position and the adaptor lock B is disengaged.

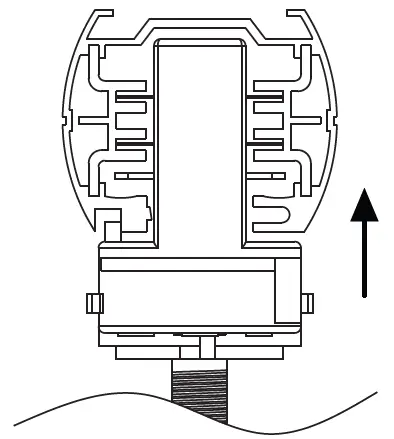

- When installing the adaptor into the track, ensure that it is orientated correctly.

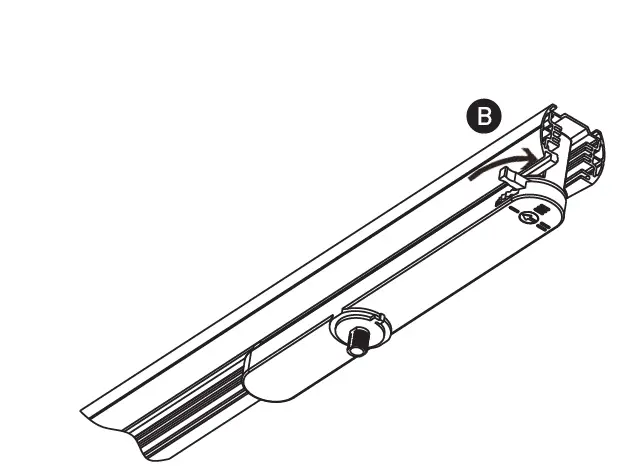

- Rotate adaptor lock B clockwise 90° to connect the adaptor to the neutral circuit.
- Rotate selector knob A to the position of desired circuit.

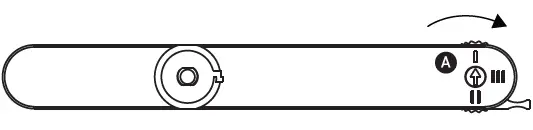

a. Circuit 1: Rotate the knob (A 90° clockwise from the starting position OFF, to connect circuit 1.

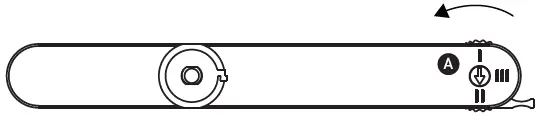

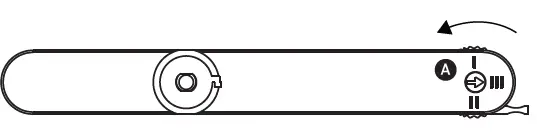

b. Circuit 2: Rotate the knob 90° anti-clockwise from the starting position OFF, to connect circuit 2.
c. Circuit 3: Rotate the knob (A 180° clockwise from the starting position OFF, to connect circuit 3.
Warnings:
- Make sure that the product is installed properly before connecting to electricity.
- Do not cover the fitting.
- Maintenance and installation should only be carried out by a professional electrician.
