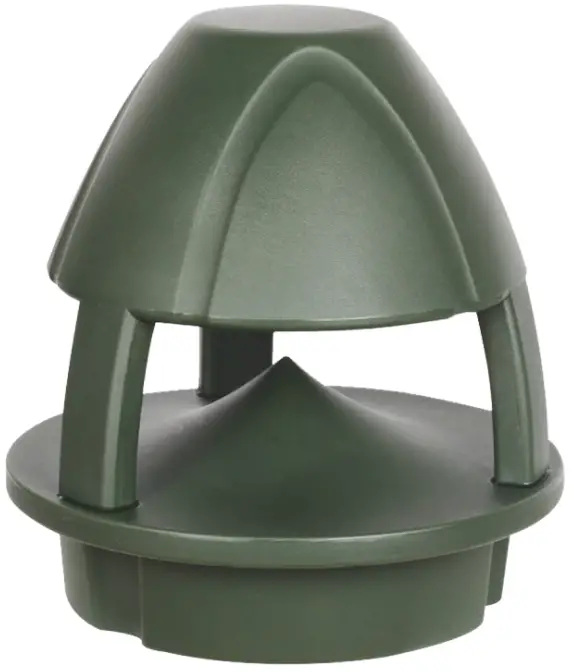

Pyle Pgrdsp61 Outdoor Garden Speaker User Guide (+ PDF)

Place the speaker on a level surface.
Do not touch or bump the woofer and tweeter. Any damage will lead to sound distortion.
Do not listen to sound at a very high level when you are changing the input source (for example, to tune FM/CD) installation or removal of cables should make sure that the power amp/amplifier device radio is turned off.
Don’t attempt to clean the speakers with chemical solvents as this may damage the paint surface. Clean only with a dry cloth.

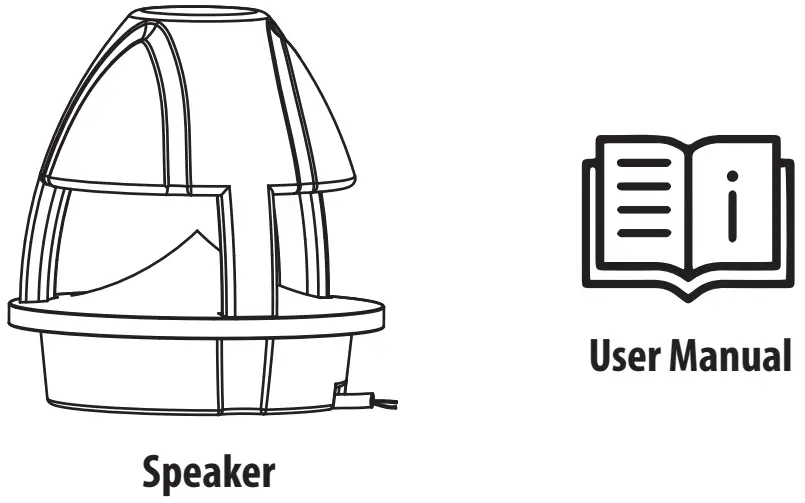

PACKING LIST

Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, contact your place of purchase for a replacement.

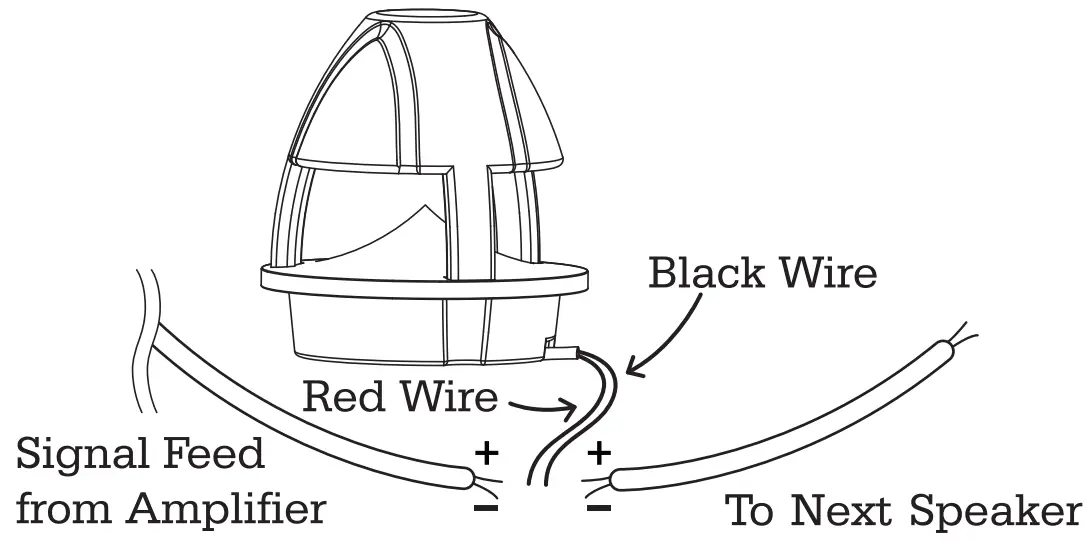

Direct Burial Wire or Conduit

Depending on the type of installation, direct burial of the speaker wires from the amplifier to the loudspeakers may be adequate, or the use of 1″-1-1/2″ ID conduit may be required for protecting the wires from possible physical damage if future excavation or other alterations are anticipated in the area of the installation.

Connections Can be Protected Using One of the Following Methods

Solder wires together using waterproof heat shrink tubing to seal.
Use waterproof wire connectors.
Make connections with immersion-resistant crimp splices (Raychem).
Use grease wire caps available from several suppliers (Orbit, Toro irrigation, etc.).

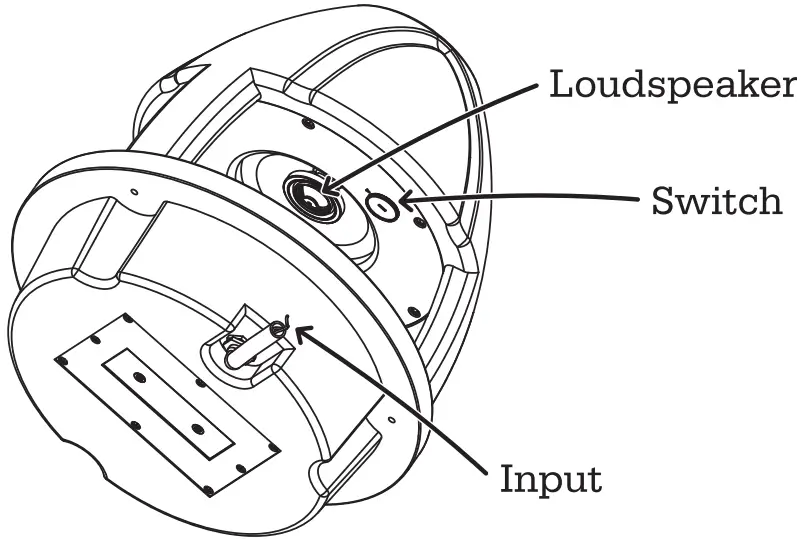

Connection

Use wire on the back of the speaker in the output tab of the amplifier (or amplifiers of radio). The speaker wire is on one side red and on the other one black. Connect to the red side of the amplifier and speakers ( +) tab.
Connect one end of the black side(-) in the other tab. Connect each speaker to make sure that is not ( +,-) inverted polarity. If the polarity of the speakers is reversed, the sound will be unnatural and will play without bass.

Underpowering Vs. Overpowering

Most speaker damage is caused by amplifiers with too little power (wattage).
An overdriven amplifier clips the waveforms and sends distortion to the speakers.
Clipping is usually audible; it may vary from a harsh sound to a fuzzy or unclear sound.
If you hear the clipping at high volume levels, turn down the volume until the distortion is gone.
Damage caused by operating the speakers at distorted volume levels is not covered by the warranty.

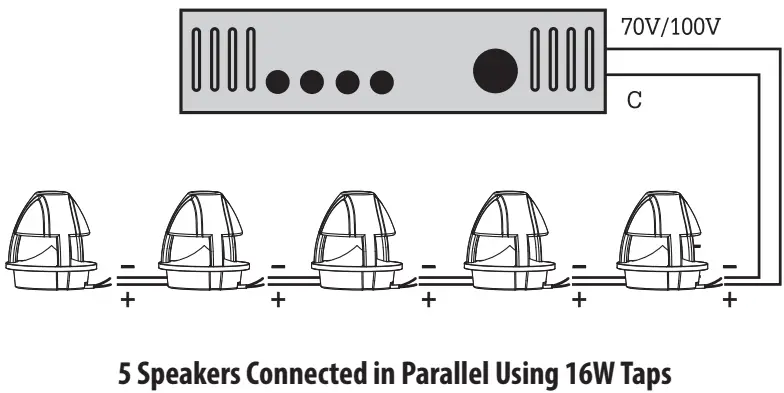

Example of 70V/100V System Conguration

NOTE:
The total number of speakers multiplied by the tap value cannot exceed the output power (in watts) of the 70V/100V amplifier.
The above example shows 5 total speakers. Using the 16W taps, you will need an amplifier with alias (5) x (16) 80W. A good rule of thumb is to select an amplifier with 20% greater power; in this case, an amplifier that delivers about 100W.

Underpowering Vs. Overpowering

observe correct polarity for maximum bass performance.

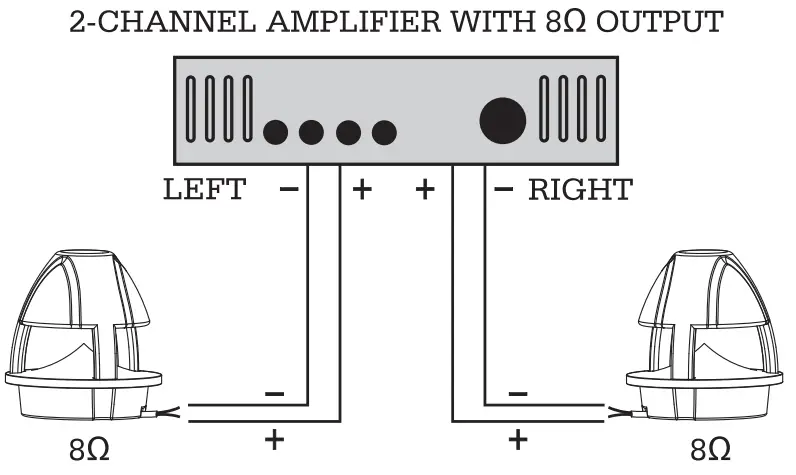

2 Speakers Per Channel Connected in Parallel

Features:

Includes a 6-1/2” Coaxial Loudspeaker
Body Made of Linear Low-Density Polyethylene
Can be Placed on Several Surfaces, Such as Wood, Concrete or Into the Ground
Suitable for Installation on Different Surfaces
Protection Grade IP56

What’s in the Box:

Speaker Box

Technical Specs:

MAX Power: 150W
RMS Power: 60W
Impedance: 8 ohm
Sensitivity: 89 dB
Construction Material: Polyethylene with UV Prohibits
Frequency Response: 60 Hz-20 kHz
Speaker Diameter (Driver): 6.5 in
AC Voltage (Minimum): 70 Volts
AC Voltage (Maximum): 100 Volts
Transformer Knob Style:
C70V: 1W-2W-4W-8W-16W-32W & 8Ω,
C100V: 2W-4W-8W-16W-32W & 8Ω
Woofer Type: 6.5″ Polypropylene Cone with Rubber Edge
Tweeter Type: 1″(25mm) Titanium Dome Tweeter
Crossover Slope: 12dB/Octave
Product Dimension: 16.1” x 14.4” x 14.4” -inches

California Prop 65 Warning

WARNING:
This product contains Bisphenol A (BP A) which is known to the state of California to cause cancer birth defects and other reproductive harm. Do not ingest.
For more info go to: www.P65warnings.ca.gov
