PPI OmniX Plus Self-Tune PID Temperature Controller

This brief manual is primarily meant for quick reference to wiring connections and parameter searching. For more details on operation and application; please log on to www.ppiindia.net

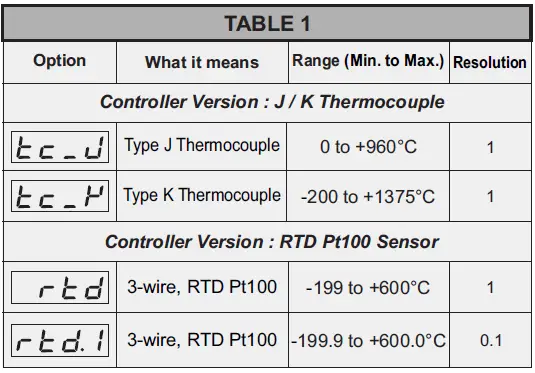

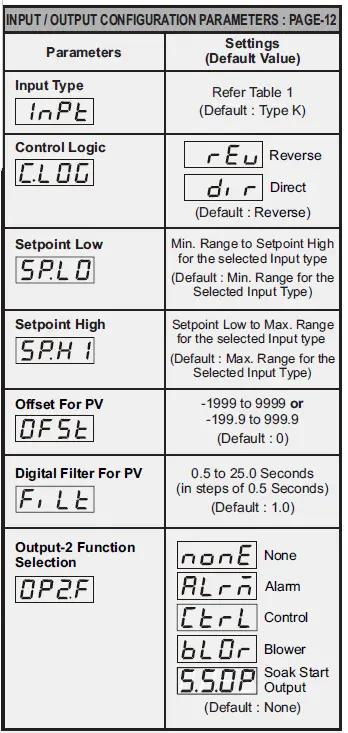

INPUT / OUTPUT CONFIGURATION PARAMETERS:

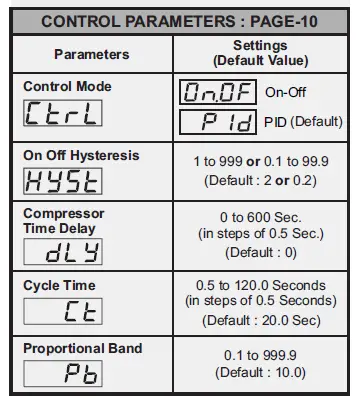

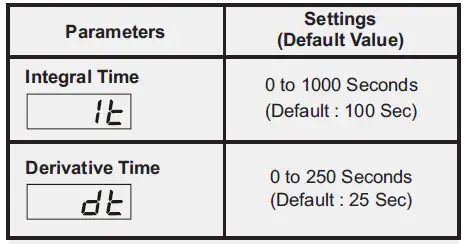

CONTROL PARAMETERS

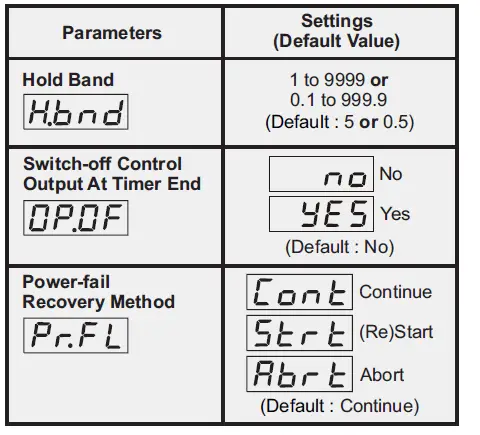

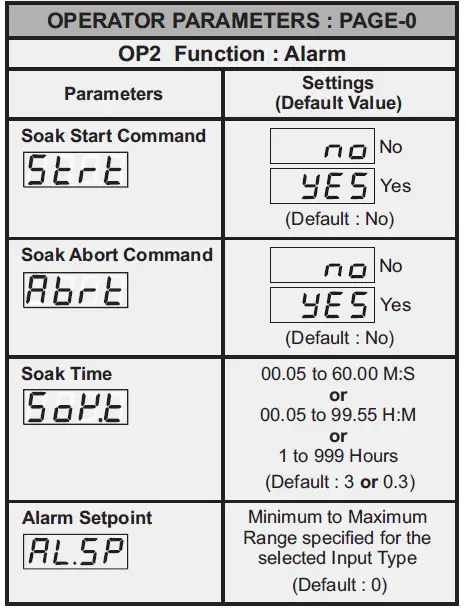

Operator parameters

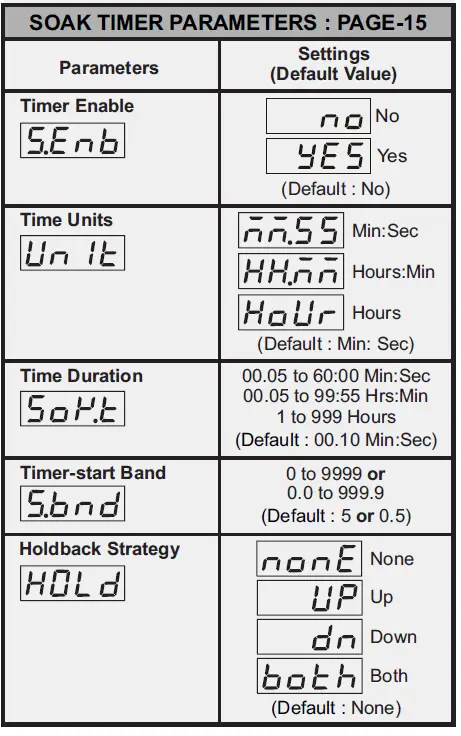

Soak Timer Parameters

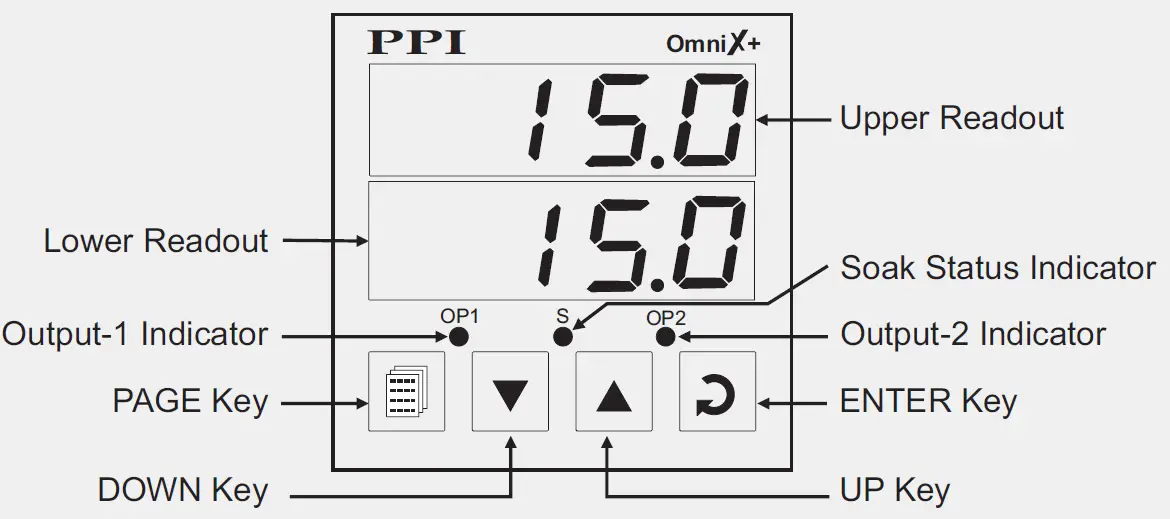

FRONT PANEL LAYOUT

Front Panel

Keys Operation

Symbol	Key	Function
	PAGE	Press to enter or exit set-up mode.
	DOWN	Press to decrease the parameter value. Pressing once decreases the value by one count; holding pressed speeds up the change.
	UP	Press to increase the parameter value. Pressing once increases the value by one count; holding pressed speeds up the change.
	ENTER	Press to store the set parameter value and to scroll to the next parameter on the PAGE.

PV Error Indications

Message	PV Error Type
	Over-range (PV above Max. Range)
	Under-range (PV below Min. Range)
	Open (Thermocouple / RTD broken)

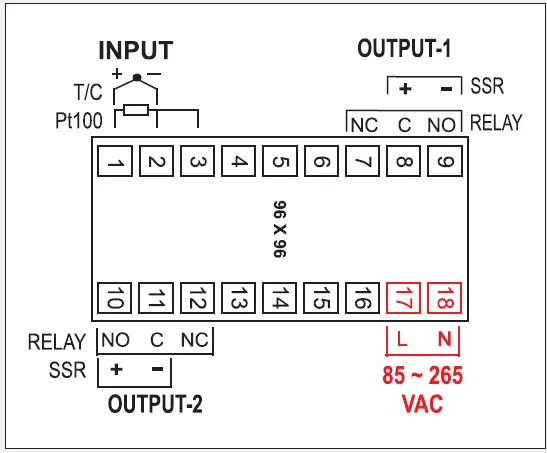

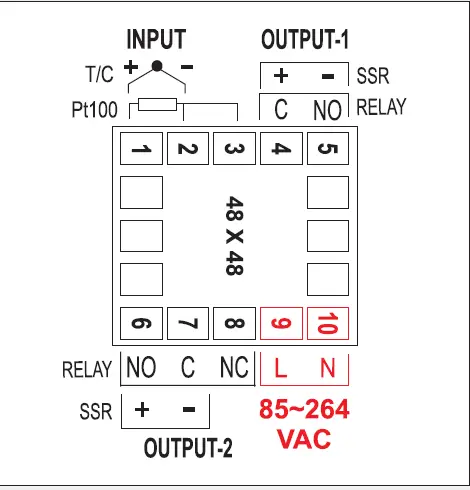

ELECTRICAL CONNECTIONS
