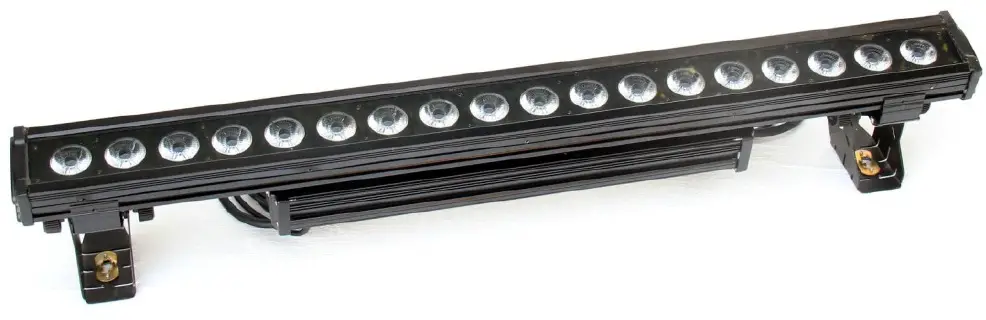

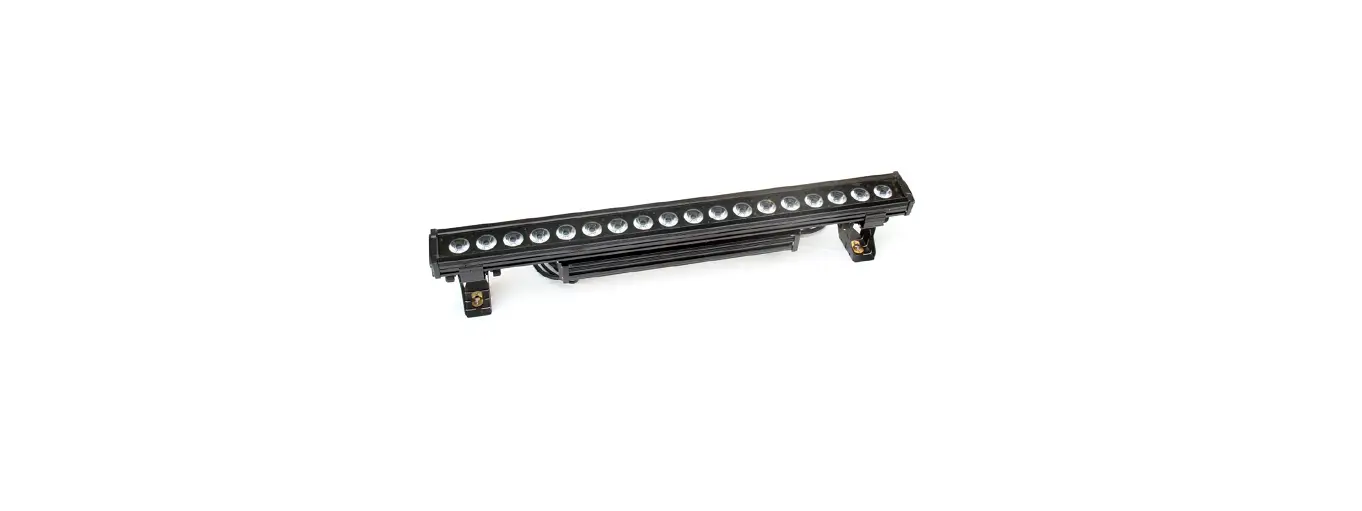

ULTRALIGHT ULShim RGBWA 18 x 15 Watt Pixel Map

Product Information

• 18PCS RGBWAUV 6 IN 1 LEDS
• Product Name: ULS Manufacturing ‘ULSHIM’
• LED Type: 18 x 15 watt RGBWA+UV Pixel Map
• Colour Range: 16.7 million colours
• Beam Angle: 25 degree
• Life: 50,000 hours
• Dimmer: 0 -100% with regulated constant colour control
• Strobe: 10 flashes per second
• Control Panel: 4 digit LED segment display
• Supply Volts: 90-240v AC 50/60hz
• Waterproof Rating: IP65
• Housing Material: Aluminium
• Packing Box Size: 110x15x18cm
• Weight: 8kg

Product Usage Instructions

• Before the first use, please read the user manual carefully.
• Please handle the device with care to avoid the risk of electric shock.
• The device can be controlled via DMX or used in standalone mode.
• To control the device via DMX, set the DMX address and channel mode using the menu keys.
• The device has multiple chase effects and colour options which can be controlled via DMX or standalone mode.
• To control the device in standalone mode, use the onboard controls to select patterns, chases, and fixed colours.
• Press enter after each change to save settings into the internal memory.
• The device can be linked together with the integral power and data cables.
• The device is waterproof with a rating of IP65 and can be used in outdoor settings.

Safety intructions

Please read this manual carefully before your intial startup

CAUTION! TAKE CARE USING THIS DEVICE RISK OF ELECTRIC SHOCK

• Each person involved with the fitting, maintenance and operation of this device should be competent and follow these instructions.
• Before Initial start-up check the mains cable and device for any damage.
• Should the fuse in the plug need replacing ensure a 3amp fuse with a British kite mark is used.
• ULS manufacturing will not accept liability for any damages caused by the non-observance of this manual, or any modification to this device.
• Never remove warning or information labels.
• Do not open this device or modify the equipment
• Do not connect this device to a dimmer pack.
• Do not switch this device on and off at short intervals.
• Make sure the voltage is between 90 and 240v ac
• Make sure the power cable is never crushed or forced, check the cable periodically.
• If the equipment has been exposed to drastic temperature change (normally after transportation), allow device to reach room temperature before powering on.
• Do not touch this device during a thunderstorm.
• If any of the following conditions occur, remove the ac plug
• Smoke or unusual smell.
• Water or foreign objects inside the unit.
• Damage to the housing caused by physical damage.
• Never pull the power cord, always grasp the main body of the plug top.
• Rugged Design and build for out on the road use with a feature set to rival existing products on the market.

Key features

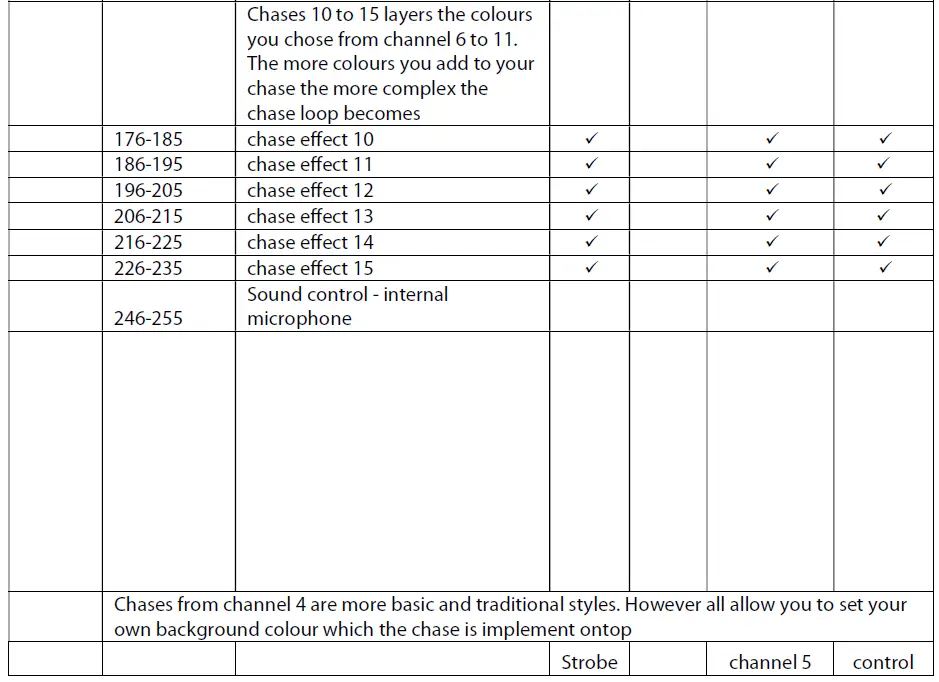

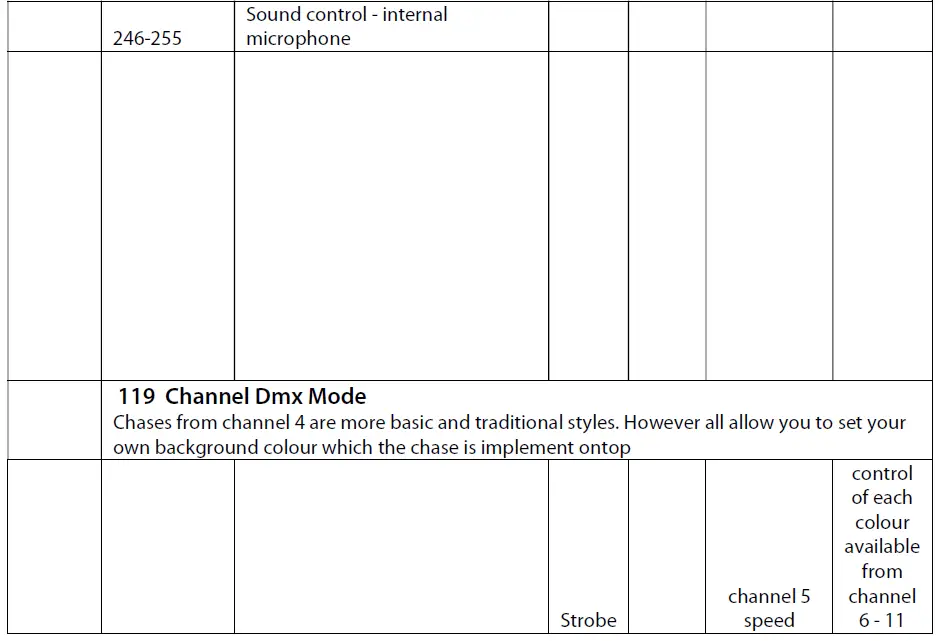

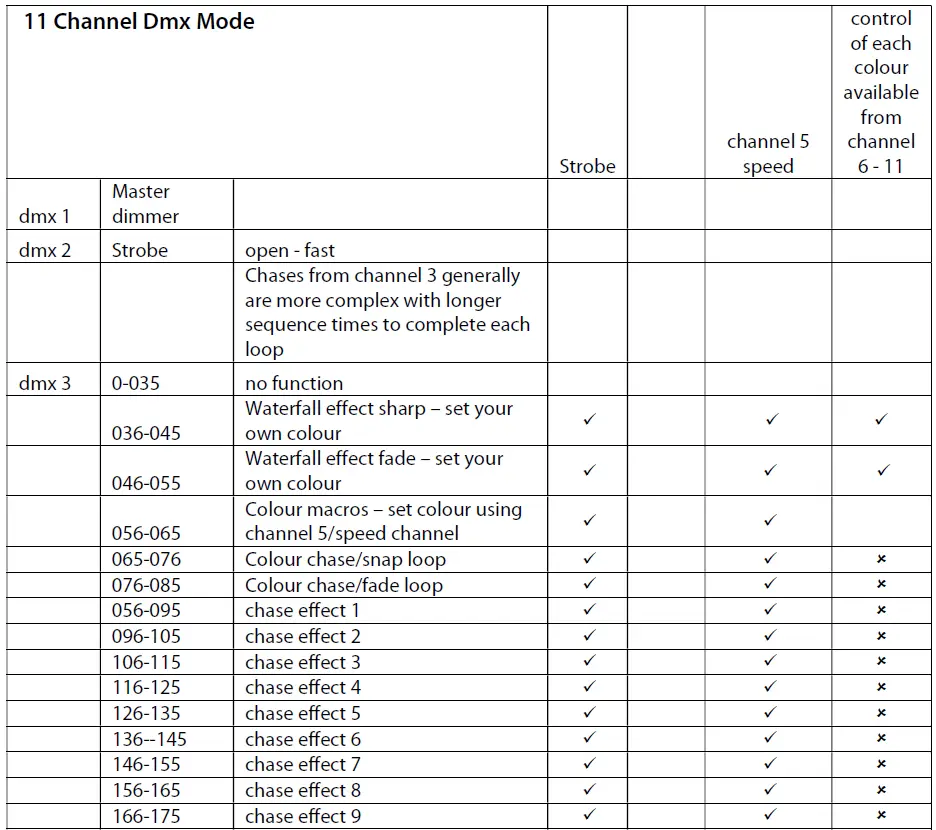

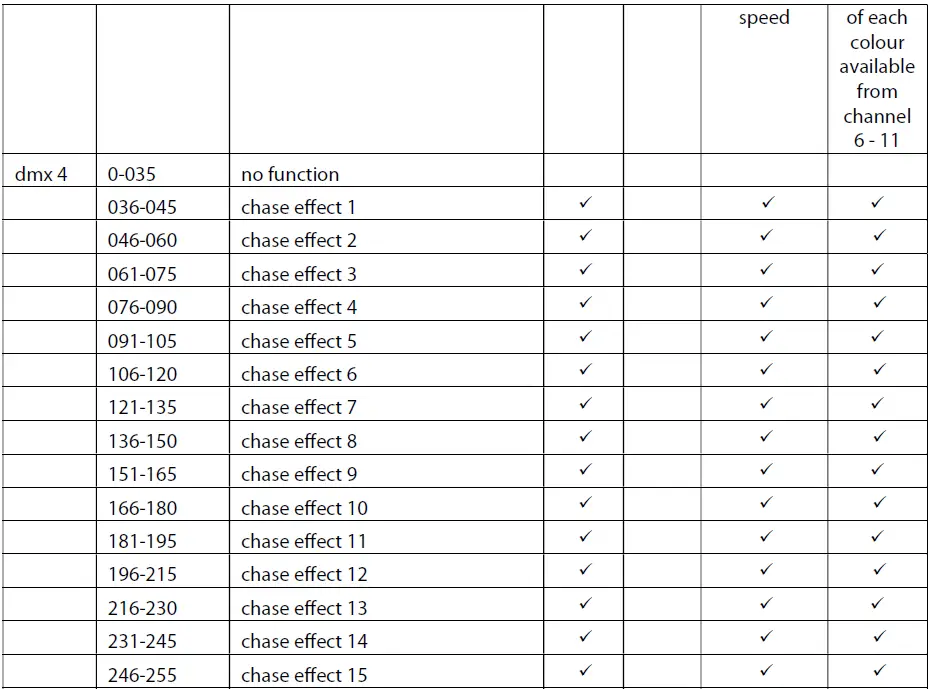

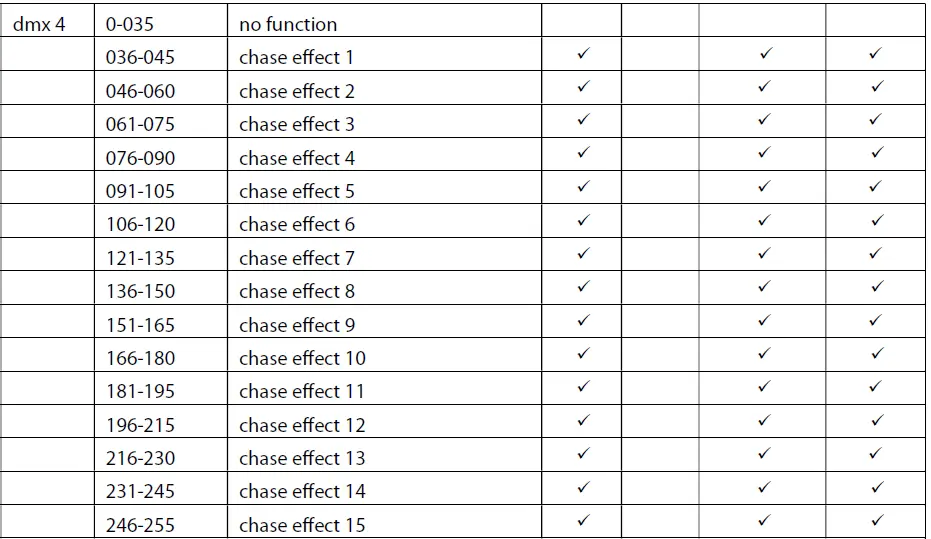

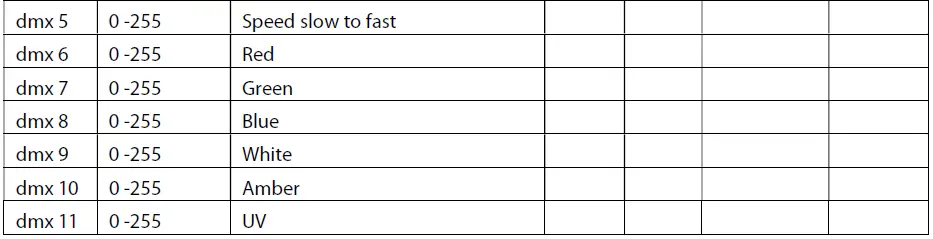

• Dmx control modes 11, 29, 119, 108 and Dmx channel modes
• Pixel mapping ability with individual Dmx control of 6 colours per led.
• On board standalone control of patterns, chases and fixed colours. With advance control of speed and fade times.
• Units can be linked together with the integral power and data cables.

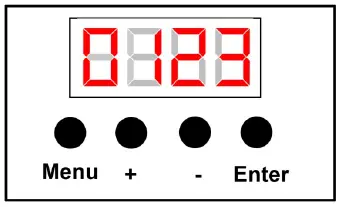

Menu Keys

NOTE: Press enter after each change to save settings into the internal memory.

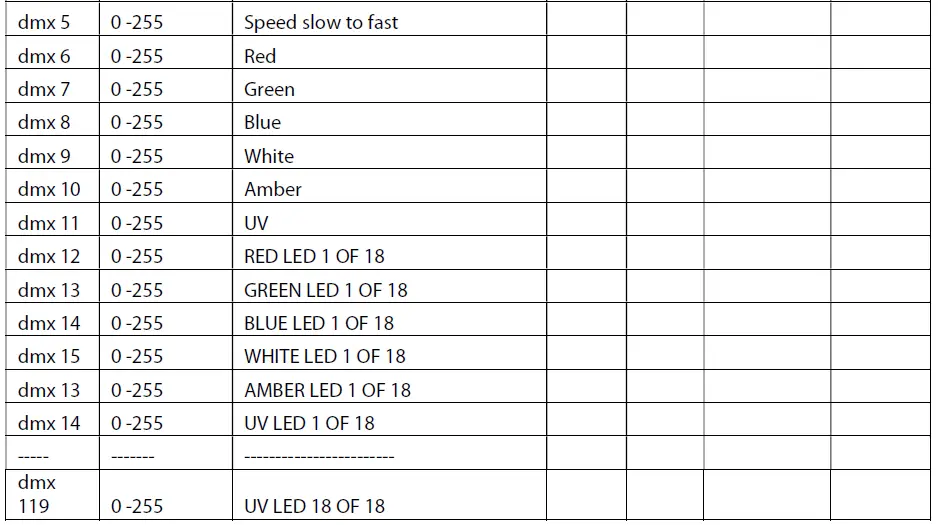

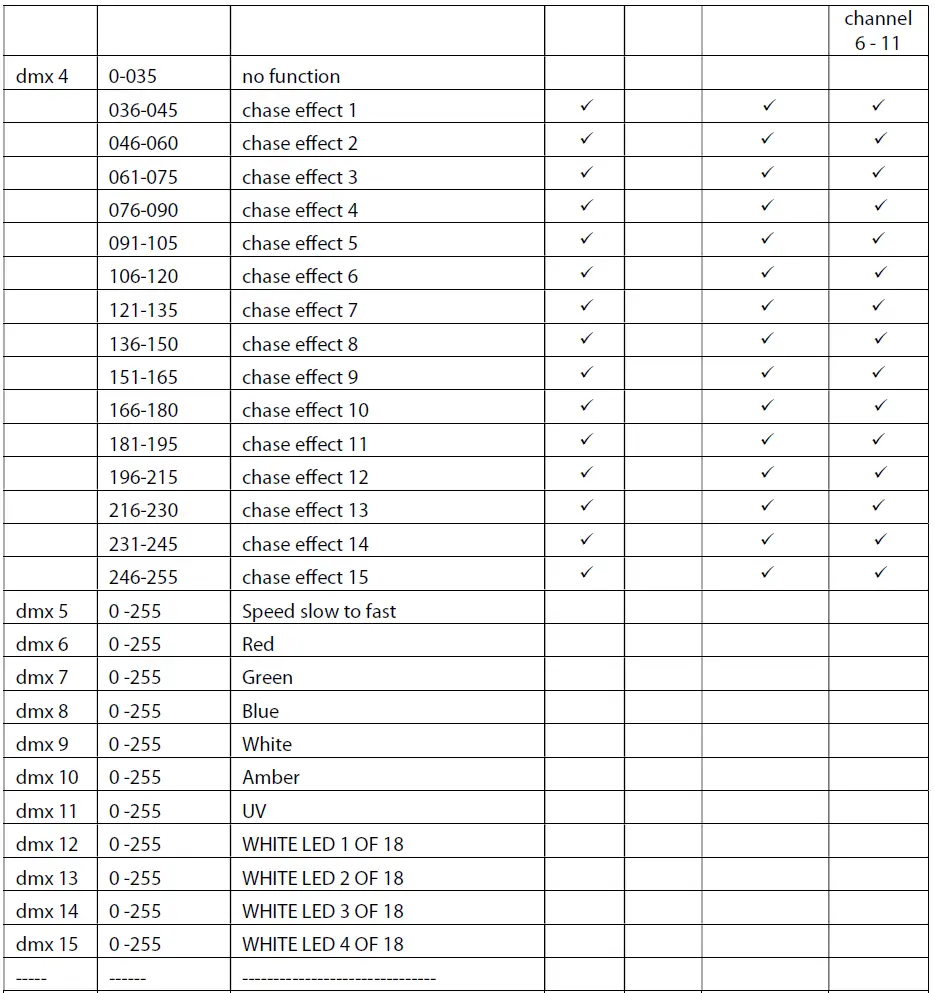

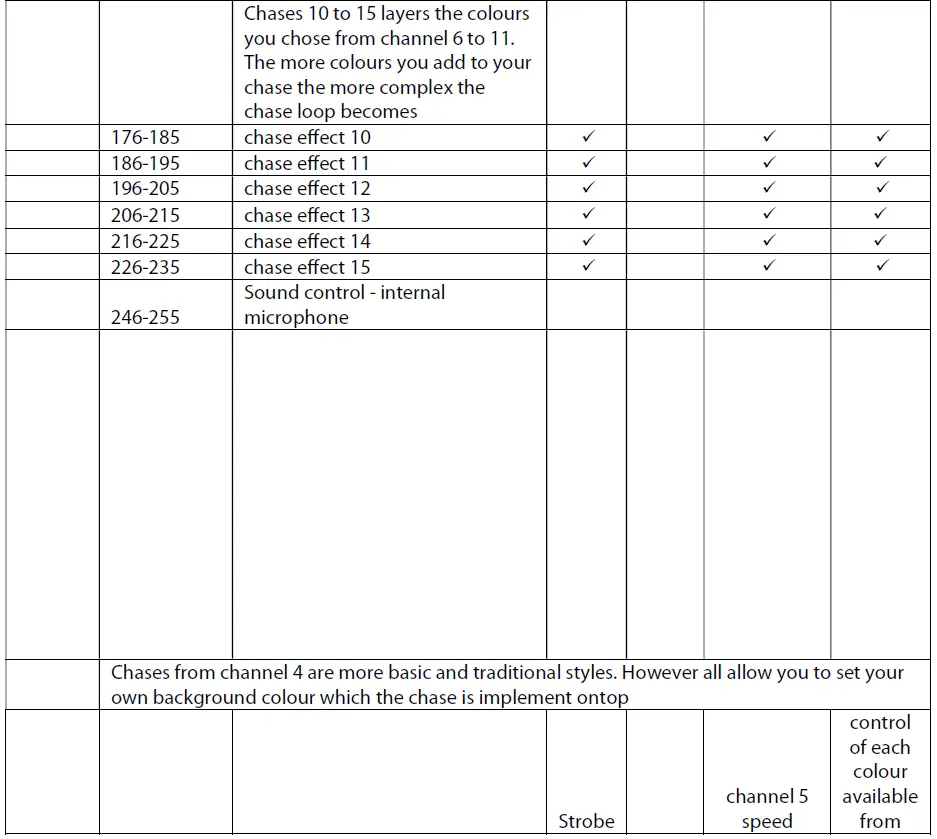

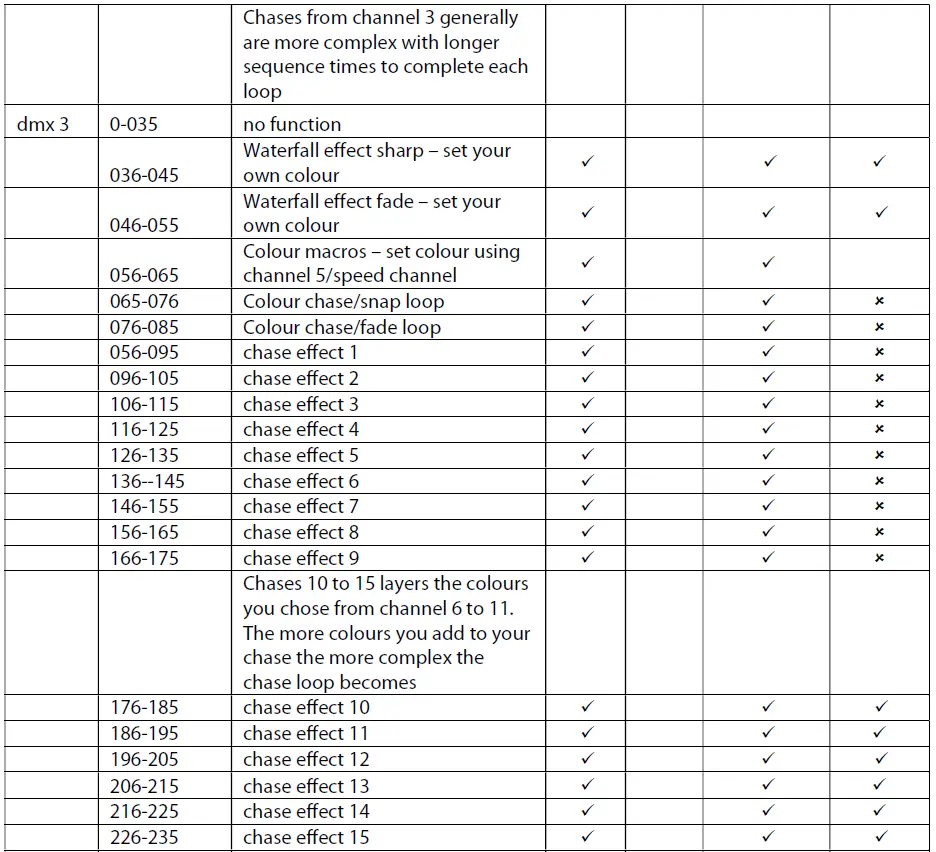

108 channel dmx mode 108 CH

ULS Manufacturing is a trading name of Ultra Light & Sound Limited. UK based with readily available spares and new units in the UK. This product was designed and manufactured in the UK by ULS Manufacturing. Our engineers have a detailed knowledge and are able to provide technical support both over the telephone, email and at our UK Headquarters. Our ethos is to be able to maintain service and extend product life and minimise the “beyond economic repair” approach, helping reduce waste and saving time, money and the environment.

Ultra Light& Sound limited

• Tel 01173502064
• www.UltraLightSound.co.uk
• [email protected]

WEE Declaration

This symbol indicates that this piece of electrical equipment must be disposed of separately from normal waste at the end of its operational life. Please dispose of this produced by contacting ULS manufacturing or taking it to your local recycling or collection centre.
