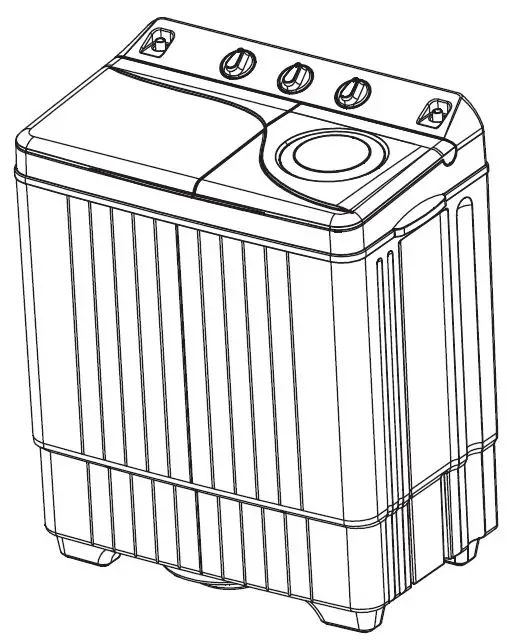

COSTWAY FP10093US-BLA Washing Machine
Before You Start
- Please read all instructions carefully.
- Retain instructions for future reference.
- Separate and count all parts and hardware.
- Read through each step carefully and follow the proper order. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled.
- Always place the product on a flat, steady and stable surface. Keep all small parts and packaging materials for this product away from babies and children as they potentially pose a serious choking hazard.

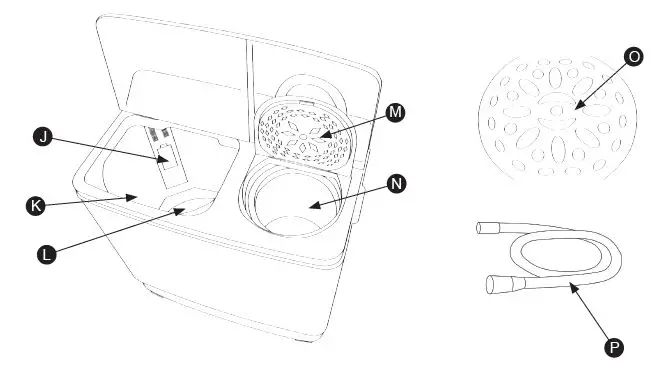

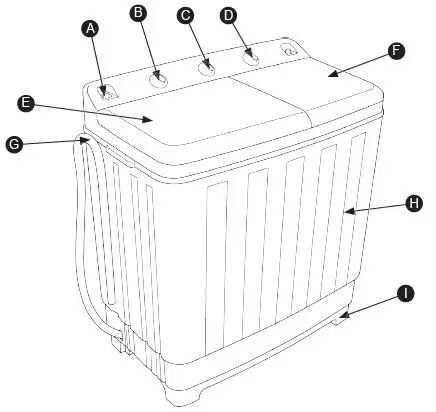

Parts & Features
- Water Inlet Port
- Wash Timer Knob
- Wash Selector Knob
- Spin Timer Knob
- Washer cover
- Spin Dryer Cover
- Drain Hose
- Machine Cabinet
- Base
- Filter
- Washer tub
- Pulsator
- Spin Dryer lid
- Spin Dryer Tub
- Spin Dryer Safety Cover
- Water Inlet Hose
INSTALL

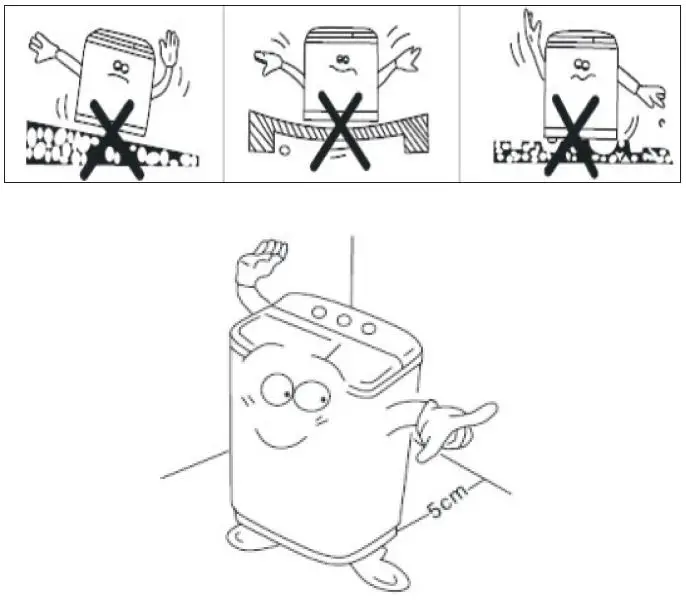

INSTALL IT IN THE FIRM AND SMOOTH PLACE
- Washing machine should be installed in the firm and smooth ground
- Put the washing machine more than 5 cm/2 inch away from the wall

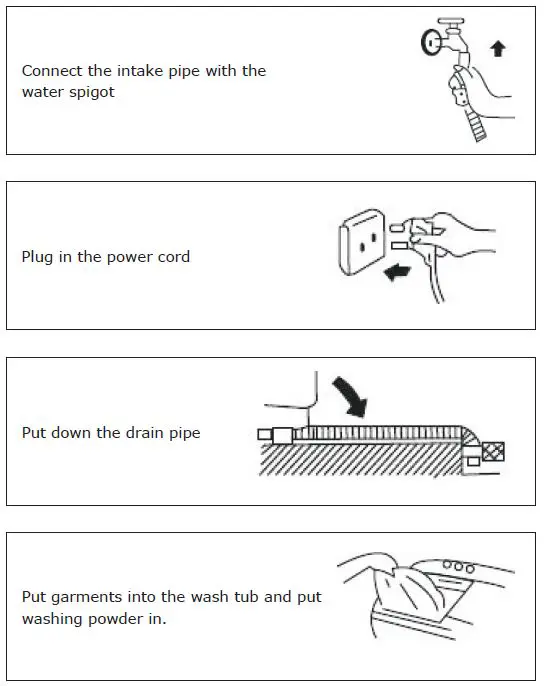

METHOD OF CONNECTING THE INTAKE PIPE
- Put the intake pipe correctly.
- Put the affusion spigot into the affusion hole.
INSTALL IT IN THE FIRM AND SMOOTH PLACE
WASHING OPERATION METHOD
- Choose the water level (high, middle, low) according to the quantity of the garments.
- It’s better to choose the middle or high position.

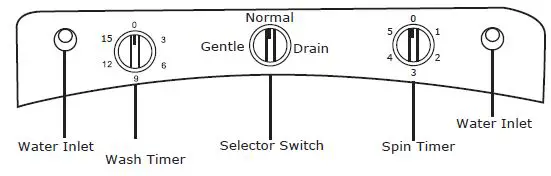

Choose the washing mode
According to the quantity and material of the garments, turn the selector switch to normal or gentle mode
Choose the washing time
Set the wash timer after the water reaching the level, then the washing machine begin to work.
| Choose the washing mode | Gentle | Normal | |
| Material of the garments | Silk or floss clothing | Linen or very dirty garments | |
| Washing time | 3-5min | 5-9min 9-15min | |
| Water level | Capacity of washing powder | ||
| High | 40-57g | ||
| Middle | 30-48g | ||
| Low | 25-40g | ||
| Drain ★ After washing, turn the selector switch to the drain position to drain Choose the spin time ★ Put garments into the spin tub after draining ★ Cover the inner and outer spin lid of the spin tub ★ Choose spin time to let the washing machine begin to work | |||
| Sort of the garments | Spin time | ||
| Shirt (synthetic fibre) | 1-2min | ||
| Underwear | 3-5min | ||
| Work clothes | 5min | ||
DRAIN NOTICE
- Put on the outer and inner spin cap on the washing machine.
- Never choose the spin mode while draining. After draining, put the garments into the spin tub to avoid damage.
- Use the safety cover to avoid clothes coming out of the spin tub.
- Never put hands into the spin tub while it is working, especially for children.
AFTER WASHING
Remove the plug, turn off the spigot and hang up the drain pipe Clean the spin tub and open the plastic cover to dry the tub

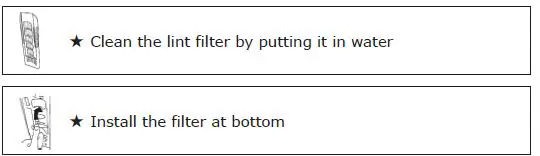

CLEAN THE LINT FILTER
Please clean the lint filter after washing every time.

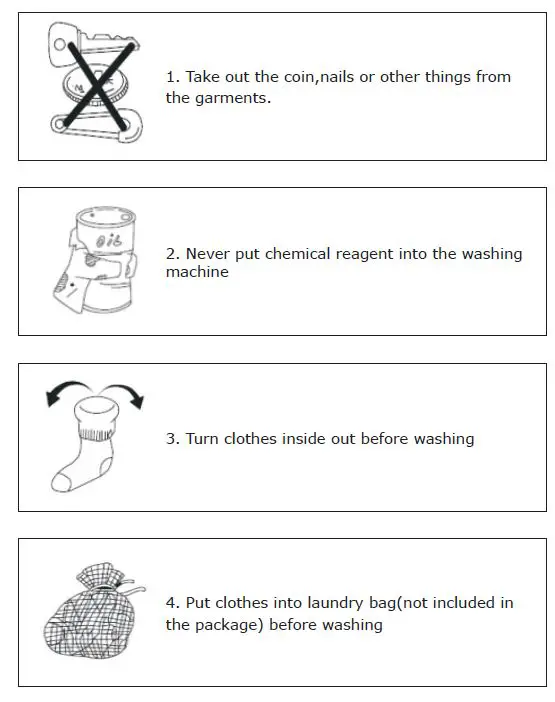

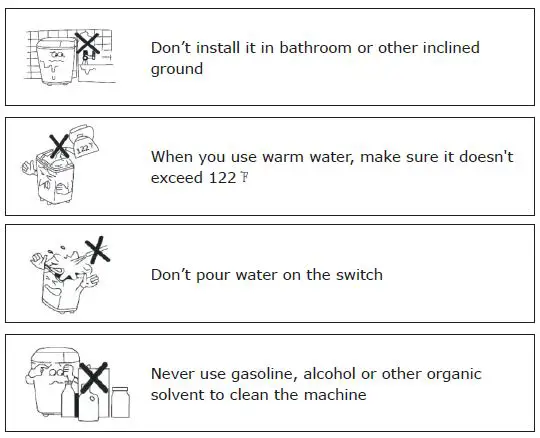

NOTICE
NOTICE
