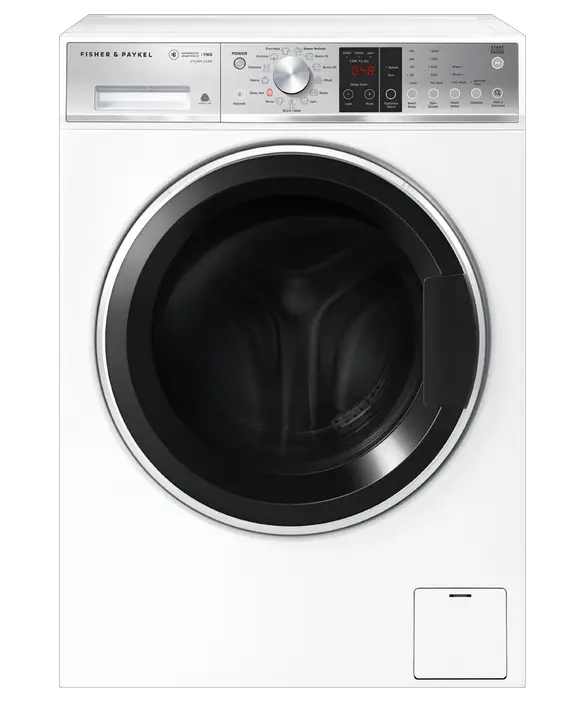

FISHER PAYKEL WH1160S1 FP AA Front Load Washing Machine
INTRODUCTION
| BRAND | VOLTAGE | MODEL | PRODUCT CODE |
| Fisher & Paykel | 240/208 VAC 60Hz | WH1160S1 FP AA | 92285-A |
MODELS
The models covered by this manual are listed on the front cover.
The information detailed in this manual is subject to change without notice. The latest version is indicated by the reprint date and replaces any earlier editions.
KIT PARTS
Where a part number is shown against the descriptions for kit components, they are also available as separate items. In addition, some parts may be supplied with these kits that are not available as separate items, and are therefore either not listed, or a part number is not shown against the part description in this manual.
PARTS LIST KEY
- NI
As a part reference, indicates the part is not illustrated on the diagram. - NOT USED
As a part number, indicates the diagram part reference is not used in this manual. - NS
As a part number, indicates the part is not servicable.
NZ
tel: 09 273 0600
fax: 09 273 0656
e-mail: [email protected]
www.fisherpaykel.com/nz
AU
tel: 07 3826 9100
fax: 07 3826 9164
e-mail: [email protected]
www.fisherpaykel.com/au

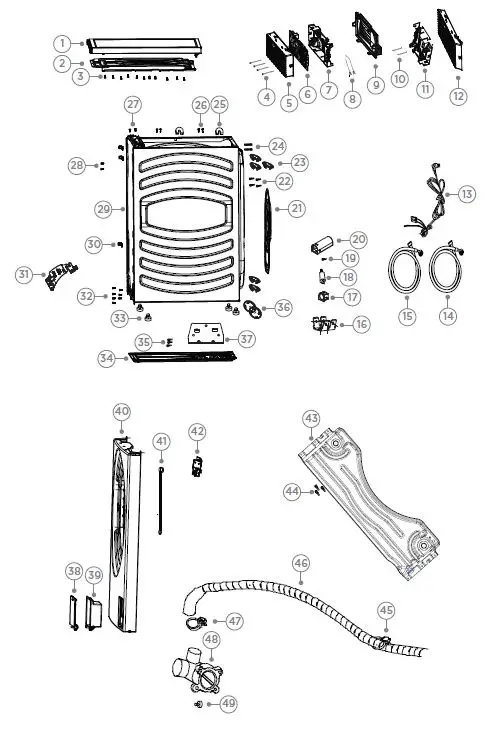

CABINET COMPONENTS
DWG 005760
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 1 | H0020205549 | TOP PANEL |
| 2 | H0020101375 | INSULATION TOP PANEL |
| 3 | H00215200090000A | SCREW |
| 4 | H00221150320000 | ZIP TIE SMALL |
| 5 | H0020205034 | POWER BOARD PLATE |
| 6 | H0021800139 | POWER SUPPLY BOARD |
| 7 | H0020204946 | POWER BOARD HOUSING |
| 8 | H0020400675 | LOOP WIRE |
| 9 | H0020204929 | POWER BOARD COVER |
| 10 | H00212500375104 | GASKET INNER COVER TO GLASS |
| 11 | H0021800035WA | DRIVEN BOARD |
| 12 | H0020205541 | COVER MOTOR CONTROLLER |
| 13 | H0020400196FE | POWER CORD |
| 14 | H0020300158A | HOSE INLET AW COLD |
| 15 | H0020300159A | INLET HOSE (HOT) |
| 16 | H0020400432 | SUPPORT CONNECTOR |
| 17 | H0020206316 | SUPPRESSOR COVER |
| 18 | H0024000247K | SUPPRESSOR |
| 19 | H00216910320111A | SCREW |
| 20 | H0020204934 | SUPPRESSOR COVER |
| 21 | H0020101203 | BACK COVER |
| 22 | H0020600179 | BOLT |
| 23 | H0020204932 | PACKING BOLT HOLE COVER |
| 24 | H0020600460 | SCREW |
| 25 | H00214800503000 | SUPPORT SPRING |
| 26 | H0020600484 | SCREW |
| 27 | H00216810220111A | SCREW |
| 28 | H0020600357 | SCREW |
| 29 | H0020811058 | CABINET |
| 30 | H0020204862 | FRONT PANEL SUPPORT |
| 31 | H0020204868 | MOUNTING PLATE |
| 32 | H0020600179 | BOLT |
| 33 | H0020300170N | FOOT WH1060P1 |
| 34 | H0020101118 | BASE PANEL |
DWG 005760
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 35 | H0020600179 | BOLT |
| 36 | H0020204933 | CAP INSPECTION |
| 37 | H0020101161 | FIRE PROOF PLATE |
| 38 | H0020810852 | PUMP ACCESS DOOR |
| 39 | H0020205459 | PUMP ACCESS HOUSING |
| 40 | H0020101353 | FRONT PANEL |
| 41 | H0020204890 | LEVER DOOR LOCK |
| 42 | H0024000128E | DOOR LOCK |
| 43 | H0020101003 | CABINET SUPPORT |
| 44 | H0020600179 | BOLT |
| 45 | H0020600271 | HOSE CLAMP |
| 46 | H0020300148F | DRAIN HOSE |
| 47 | H0020600050A | CLAMP HOSE VALVE |
| 48 | H0024000406A | DRAIN PUMP |
| 49 | H0020207603 | PLUG WASTE WATER |

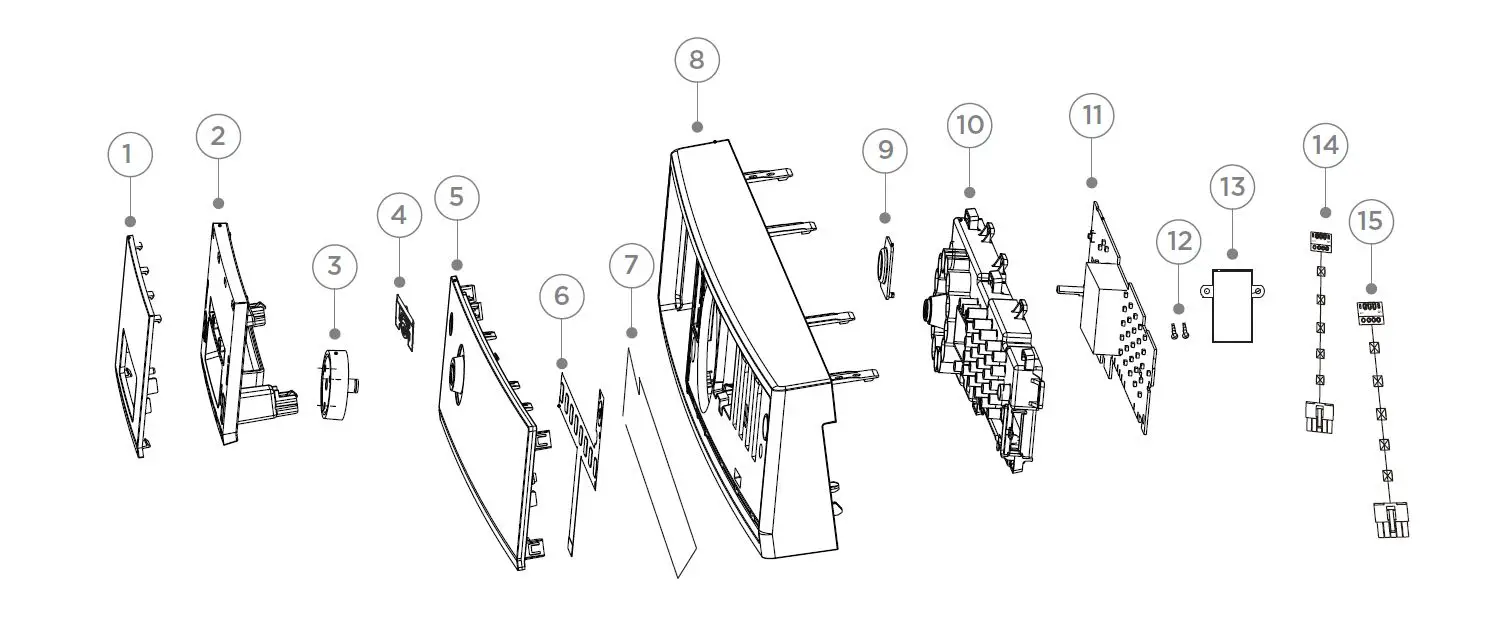

CONTROL PANEL COMPONENTS
DWG 005758
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 1 | H0020508120N | DISPENSER FASCIA |
| 2 | H0020205479 | DISPENSER HANDLE |
| 3 | H0020811030 | KNOB |
| 4 | H0020205476 | POWER BUTTON |
| 5 | H0020508119J | FASCIA AA |
| 6 | H0021800138 | TOUCH PCB |
| 7 | H0020301113 | SEALING STRIP |
| 8 | H0020205475 | CONTROL PANEL |
| 9 | H0020205490 | POWER BUTTON SILICON |
| 10 | H0020205541 | COVER MOTOR CONTROLLER |
| 11 | H0021800152C | DISPLAY BOARD |
| 12 | H00215000022202A | BOLT |
| 13 | H0021800217A | MODULE CONTROL WIRELESS |
| 14 | H0020400402F | WIRE HARNESS |
| 15 | H0020400809 | WIRE HARNESS |

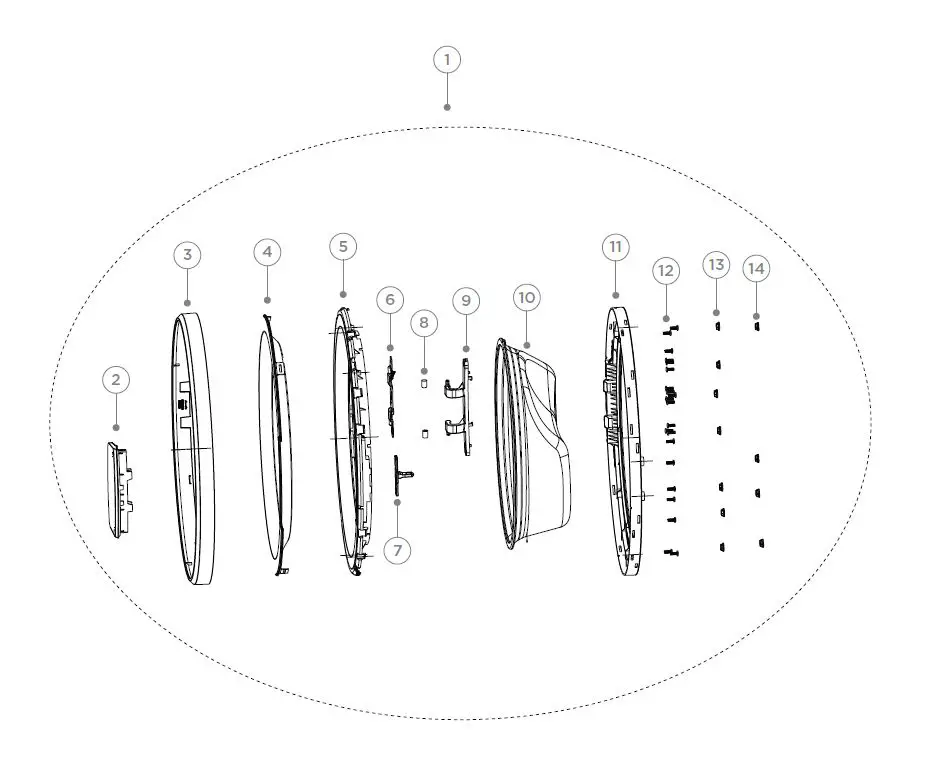

DOOR COMPONENTS
DWG 005761
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 1 | H0020810836 | DOOR ASSEBMBLY SEALED |
| 2 | H0020205464 | DOOR HANDLE |
| 3 | H0020205460 | DOOR OUTER |
| 4 | H0020205463 | DOOR OUTER WINDOW |
| 5 | H0020205461 | DOOR MIDDLE FRAME |
| 6 | H0020101357 | DOOR HINGE SUPPORT |
| 7 | H0020101175 | STRIKER |
| 8 | H0020201212 | CAP HINGE |
| 9 | H0020100677A | DOOR HINGE |
| 10 | H0021400025 | INNER WINDOW |
| 11 | H0020205462 | DOOR INNER FRAME |
| 12 | H00330810033 | SCREW CS 17 ST4 X 14 |
| 13 | H0020205645 | PLASTIC HOLE PLUG |
| 14 | H0020300740D | RUBBER HOLE PLUG |

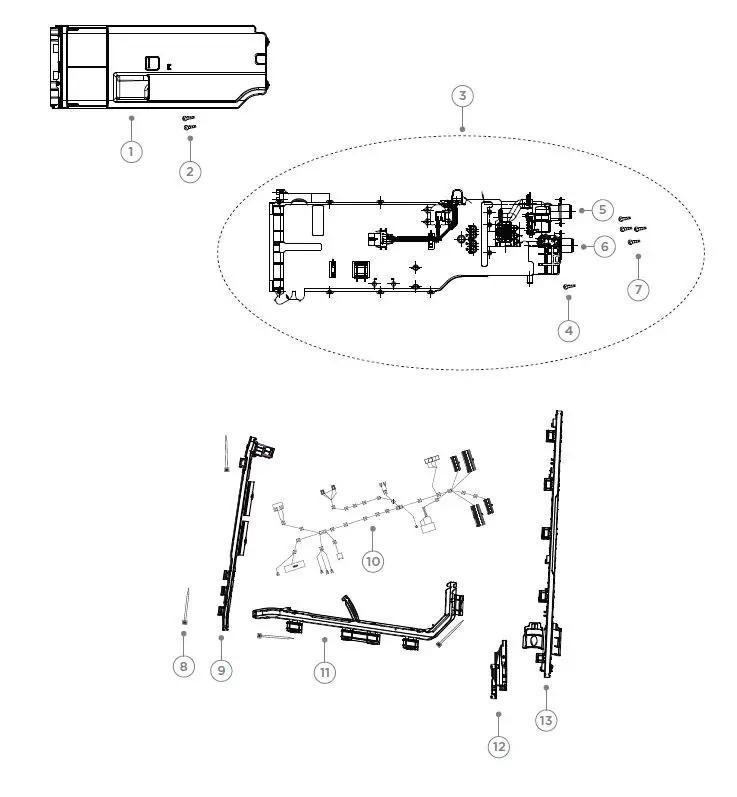

DISPENSER & WIRING COMPONENTS
DWG 005759
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 1 | H0020811365A | DISPENSER BOX |
| 2 | H00330810033 | SCREW CS 17 ST4 X 14 |
| 3 | H0020811365D | STORAGE TANK ASSY |
| 4 | H00216910320111A | SCREW |
| 5 | H0024000404A | VALVE COLD |
| 6 | H0024000140B | VALVE HOT |
| 7 | H00216920110008A | SCREW |
| 8 | H00221150320000 | ZIP TIE SMALL |
| 9 | H0020204861 | GUIDE HARNESS |
| 10 | H0020400456E | WIRE HARNESS LOWER |
| 11 | H0020204866A | GUIDE HARNESS LONG |
| 12 | H0020204869 | GUIDE HARNESS SHORT |
| 13 | H0020204867 | GUIDE MAIN HARNESS |

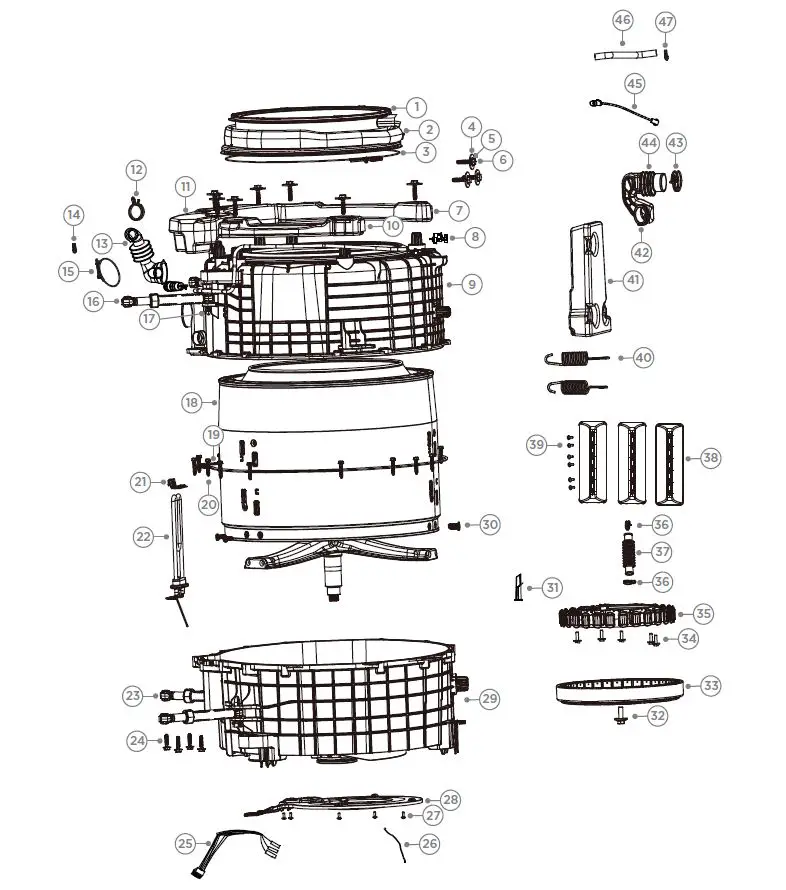

DRUM COMPONENTS
DWG 005762
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 1 | H0020600438 | CLAMP DOOR |
| 2 | H0020300940T | BELLOWS |
| NI | H0020301033T | BELLOWS ASSY |
| includes H0020300940T | BELLOWS | |
| includes | HOSE CLAMP | |
| includes | SPRAY NOZZLE | |
| includes H0020301003 | HOSE | |
| includes H00218230700611A | CLIP VALVE | |
| 3 | H0020600439 | BELLOWS RETAINER |
| 4 | H0020600147A | WASHER COUNTER WEIGHT |
| 5 | H0020600285 | BOLT COUNTERWEIGHT |
| 6 | H00217440540612 | WASHER RFI FILTER |
| 7 | H0020301008 | FRONT LH COUNTERWEIGHT |
| 8 | H0024000399AB | PRESSURE SWITCH |
| 9 | H0020204824ZA | FRONT TUB |
| 10 | H0020301008A | COUNTERWEIGHT BLOCK |
| 11 | H0020301009 | COUNTERWEIGHT BLOCK UNDER |
| 12 | H00215200294400A | CLAMP PUMP INNER HOSE |
| 13 | H0020810217A | PRESSURE TUBE & HOSE |
| 14 | H0020600050A | CLAMP HOSE VALVE |
| 15 | H00297023000100A | CLAMP TUB DRAIN HOSE |
| 16 | H0020809886 | SHOCK ABSORBER |
| 17 | H0020205577 | PIN SHOCK ABSORBER |
| 18 | H0020810372D | INNER CYLINDER ASSY |
| Incldues | TRIPOD | |
| Incldues H00215000036000 | SCREW | |
| 19 | H0020301007 | SEAL |
| 20 | H00215100001000 | SCREW |
| 21 | H0020100432 | BRACKET HEATER |
| 22 | H0024000387B | ELEMENT |
| 23 | H0020809886A | SHOCK ABSORBER ASSEMBLY |
| 24 | H0020600444 | BOLT SHOCK ABSORBER |
| 25 | H0020400087K | HARNESS MOTOR |
| 26 | H0020400560F | EARTH WIRE |
| 27 | H00330802500A | SCREW TAPPING |
DWG 005762
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 28 | H0020204835 | SHEILD FLAME |
| 29 | H0020204880R | OUTER TUB |
| Includes | BEARING 6306 | |
| Includes | BEARING 6308 | |
| Includes | SEAL OIL | |
| 30 | H00215000036000 | SCREW |
| 31 | H0020207605 | WATER SPRAY NOZZLE |
| 32 | H0020600404 | BOLT ROTOR |
| 33 | H0024000410 | MOTOR ROTOR |
| 34 | H0020600405 | SCREW STATOR |
| 35 | H0024000410A | MOTOR STATOR |
| 36 | H00218870330611A | CLAMP INLET HOSE |
| 37 | H0020300870 | HOSE |
| 38 | H0020205556 | DRUM VANE |
| 39 | H0020600029 | SCREW |
| 40 | H0020600214B | SUSPENSION SPRING |
| 41 | H0020300958 | BALANCE COUNTERWEIGHT |
| 42 | H00211320018800A | CLAMP 43 TUB DISPENSER |
| 43 | H00218230550611 | CLIP DISPENSOR HOSE |
| 44 | H0020300999 | OUTER HOSE |
| 45 | H0024000327B | LIGHT BULB |
| 46 | H0020301003 | HOSE |
| 47 | H00218230700611A | CLIP VALVE |
Fisher & Paykel Appliances 2021. All rights reserved.
The models shown in this guide may not be available in all markets and are subject to change at any time.
The product specifications in this guide apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time.
For current details about model and specification availability in your country, please go to our website or contact your local Fisher & Paykel dealer.
PRODUCT CODE: 92285-A 04.21
