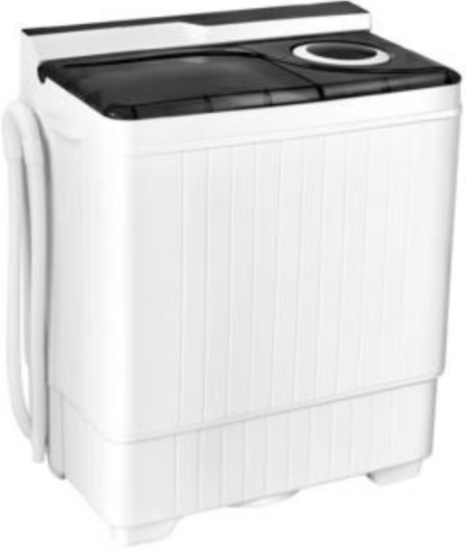

Costway Fp10021us-gr Portable Washing Machine User Manual

COSTWAY FP10021US-GR Portable Washing Machine User Manual

Please give us a chance to make it right and do better!
Contact our friendly customer service departement for help first.
Replacements for missing or damaged parts will be shipped ASAP!

PARTS

FUNCTION AND FEATURE

PERFECT DESIG 1 I AND FULL MODELS WITI I THE PLASTIC AND ALUMINUM ALLOY BODY AND NEVER RUSIN WITHIN WASHINU,DOUI3LE WAFER STREAM AND THE HAND WHEEL DESIGN OFT THE CLOTHING MORE CLEAR.WASHING WITH THREE WAFER STREAM, DISHING FIRE WAVE FORM NEW STREAM,GET THE CLOTHING OUT OF TWINING,HIGHLY CLEAN WITH  LOWER FRAY. DISSOLVE WASH POWDER QUIUKLY AND THE HIGH CLEAN MORE THAN THE COMMON DOUBLE TUBE WASHING MACHINE. 1-UNC11UN AND Wit 1 SUUND,HAND Mitt”- AND Nt-NEK 1-KAY.

INSTALL

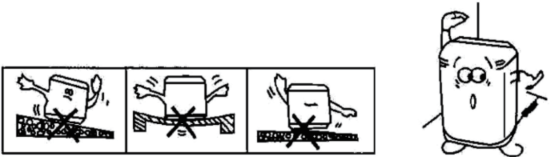

INSTALL IT IN THE FIRMLY AND SMOOTH PLACE

• Washing machine should be installed in the firmls and smooth ground,2*bevel is allowed.
• Put the washing machine deviate from the wall for more over Scm,so that have no noise.

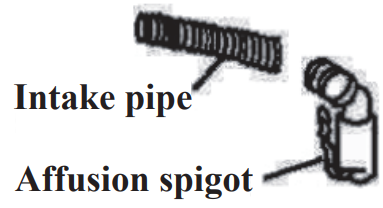

CONNCCT THE INTAKE PIPE METHOD

• Put the intakd pipe correctly.
• Purt the affusion spigot into the affusion hole.



BEFORE WASHING

1. Take out the coin,nails or other things from the garments

2. Never put the garments which with the chemical reagent together with the cloths

3. Turn out the inside cloth during washing the garments with the floss.

4. Put the good garments into the pocket during washing


WASHING OPERATION METHOD

• Connect the intake pipe with the water spigot

• Nut the wire into the plug

• Put down the drain pipe

• Put the garments into the washing tube then put into the wash powder

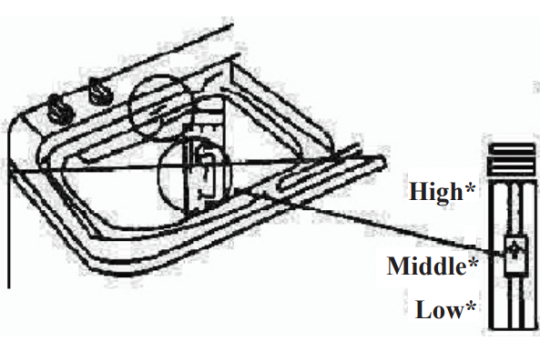

• Choose the water level according to the quantity of the garments, high,middle and low.
• For the water level of the double water stream,irs the best position of the middle and high.

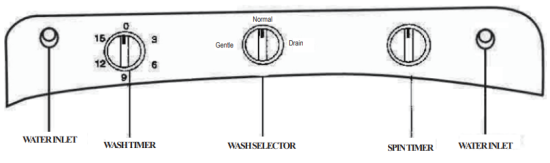

Choose the washing method  (Turn”current transform”switch”)
Turn the current transform switch according to the quantity and the material of the garments,then choose the washing current in “normal,gently”
Choose the washing time
Turn the washing timer in sequence when the water reach the Ievel,then the washing machine begin to work.

Choose the wash method	Gently		Normal
Materail of the garments	Silk or floss clothing		Linen or very dirty garments
Washing time	3-5min		5-9min 9-15min
Water level		Quantities of the wash powder
High		40-57g
Middle		30-48g
Low		25-40g
Drain When finish washing turn the current transform to the drain position and then begin to drain. Choose the drying time When finish drain,move the garments into the drying tube then cover the lid on the garments Cover the drying inside lid and the drying cover. Turn the drying timer in sequence and the washing machine begin to work
Sort of the garments		Drying time
Shirt (synthetic fibre)		I-2min
Underwear		3-5min
Work clothes		Smin

SECOND WASHING

• Perform the washing procedure for two times,wash,drying and then wash and drying
• After drain then begin to the second washing meanwhile save the electric and the water

SECOND WASHING WHILE AFFUSION

Perform the slashing procedure for two times,open the water spigot and then affusion the water into the washing tube.

DRAIN NOTICE

•  Press well the plastic cover on the garments strike the machine while drying.
• Never drying while drain.should finish drain and then move the garments into the drying tube to avoid to damage the machine

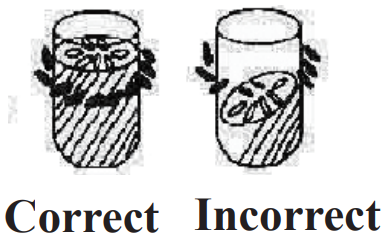

• Press well the plastic cover of the spin drier to avoid the garments fly out of the tube.
• Never put the hands into the drying tube while working especially for the children.


AFTER FINISH WASHING

Pull down the plug,close the water spigot and then hang up the drain pipe. Clean the drying tube and open the plastic enter to make tube dry.

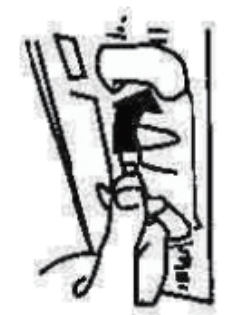

CLEAN THE LINT FILTER

Please clean the lint filterafter finish working every time

• Clean the lint filter into the water

• First put the bottom Into the hole and then press it


NOTICE

• Don’t install it in the bath-room and other inclined ground

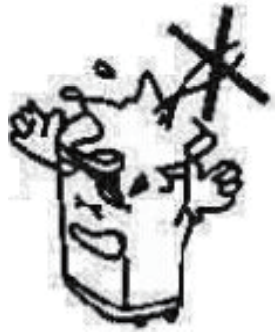

• Don’t pour the water on the switch.

• When you use warm water, the temperature should not exceed 122° F

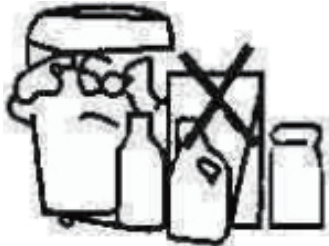

• Never brush the machine use gasoline,alcohol and other organic solvent.
