Installation Instructions

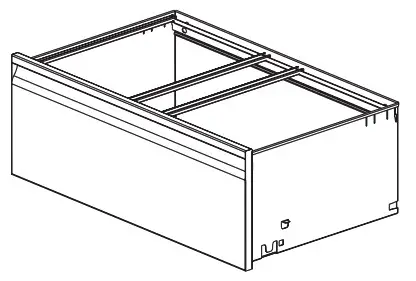

Calibre File Bar
10.5″ File Drawers

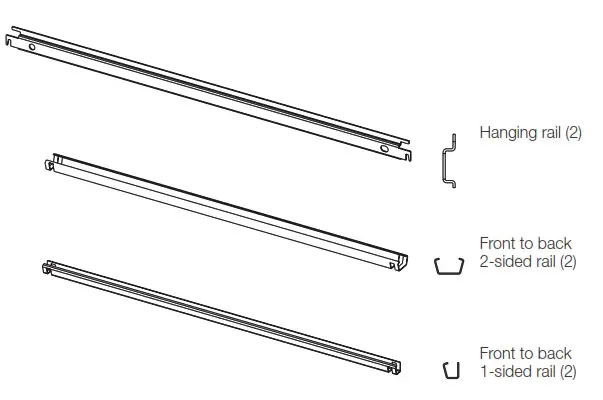

Part List:
Side-to-Side Filing

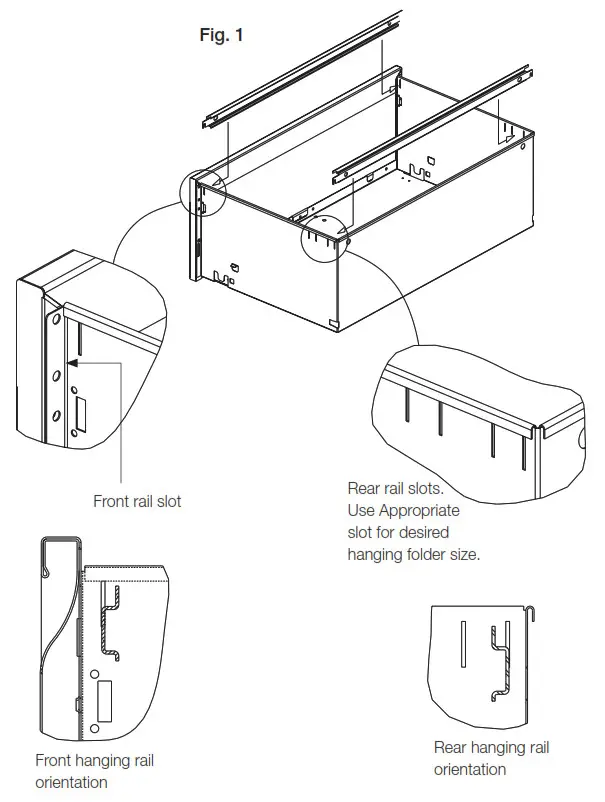

- Each drawer receives 2 side-to-side hanging rails. Install the first rail in slots closest to the drawer front in orientation as shown. (Fig. 1)
- Install 2nd rail in desired rear location as needed for desired file size for side-to-side filing in orientation shown.
Note: If installing front-to-back file bars, position 2nd rail in slots furthest to the rear of the drawer body. (cont…)
DISASSEMBLY FOR RECYCLING
Materials Identification and Segregation: Where possible plastic components are marked with ASTM recycling codes. Use these codes to identify material type for recycling. Non-marked components should be treated as mixed plastic. Ferrous metals can be identified using a small magnet for recycling. Non-ferrous metals should be separated and recycled separately. To disassemble product, reverse the above installation steps.
Calibre File Bar, continued
Front-to-Back Filing
Note: Side to side file hanging rails to be installed first.

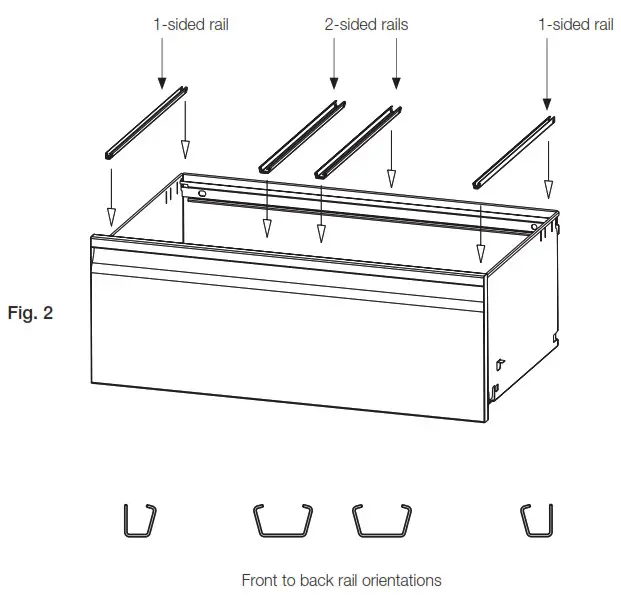

3. Install front-to-back bars between side-to-side bars (installed in steps 1 and 2). 1-sided rails are used on left and right sides of drawer with flat edge placed flush against side of drawer body. 2-sided rails are used in center positions. (Fig. 2)
© Knoll, Inc. 2022
Part Number: 2MA4561H01
