Kit 145175 HONDA Vezel, 5-dr SUV, 14-21
Installation Guide
Kit 145175
HONDA HR-V, 5-dr SUV, 15-21 / 16-21*
HONDA Vezel, 5-dr SUV, 14-21
*North America
Kit 145175 HONDA Vezel, 5-dr SUV, 14-21

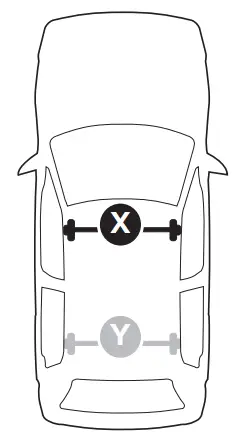

 | Evo X (scale) | Edge X (scale) |
| HONDA HR-V, 5-dr SUV. 15-21 / 16-21* | 41,5 | N |
| HONDA Vezel, 5-dr SUV, 14-21 | 41,5 | N |
 | X (mm/inch) |
| HONDA HR-V, 5-dr SUV, 15-21 / 16-21* | 1066 mm / 42 “ |
| HONDA Vezel, 5-dr SUV, 14-21 | 1066 mm / 42 “ |

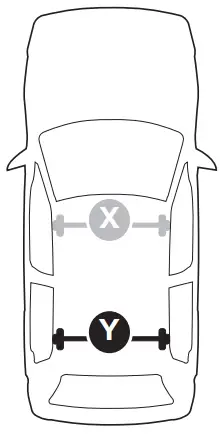

| Evo X (scale) | Edge X (scale) |
| HONDA HR-V, 5-dr SUV. 15-21 / 16-21* | 36,5 | F |
| HONDA Vezel, 5-dr SUV, 14-21 | 36,5 | F |
| X (mm/inch) |
| HONDA HR-V, 5-dr SUV, 15-21 / 16-21* | 1016 mm / 42 “ |
| HONDA Vezel, 5-dr SUV, 14-21 | 1016 mm / 42 “ |

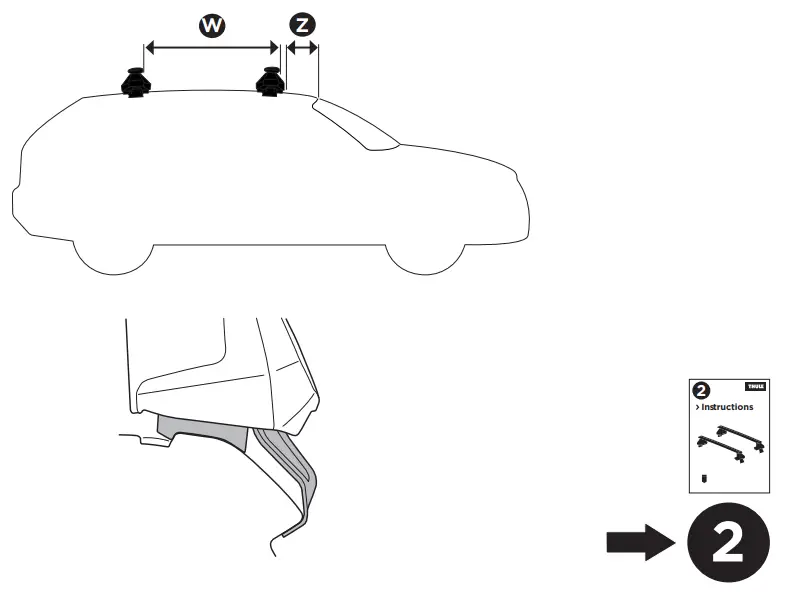

| W (mm/inch) | Z (mm/inch) | |
| HONDA HR-V, S-dr SUV. 15-21 / 16-21′ | 700 mm / 271/2′ | 250 mm / 9 7/8″ |
| HONDA Vezel, 5-dr SUV. 14-21 | 700 mm / 271/2″ | 250 mm / 9 Ye” |
