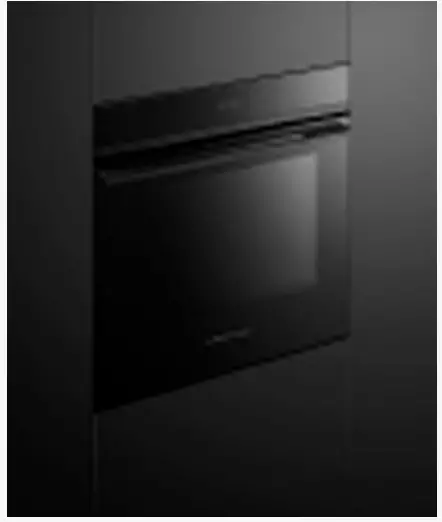

OS24SDTB1 Combination Steam Oven
User Guide
QUICK REFERENCE GUIDE > OS24SDTB1
Combination Steam Oven, 24″, 23 Function
Series 11 | Minimal Black
With a subtle black glass finish, this Minimal style oven has 23 functions including steam-only, to effortlessly create healthy and delicious dishes.
- Precise temperature control with steam-only cooking, convection-only, or a combination of both
- 23 oven functions including Steam, Sous Vide, Air Fry, and Vent Bake
- Designed to match with companion products such as vacuum seal drawers
- Guided touchscreen cooking makes it simple to cook my food, function, or recipe
DIMENSIONS
Height…………………..23 9/16″
Width,……………….23 7/16″
Depth…………………..22 1/4″
FEATURES & BENEFITS
Design freedom
Every detail has been carefully crafted from the finest materials to support a considered kitchen design. With a subtle black finish, this Minimal Style oven blends seamlessly, enhancing your kitchen design without dominating it. It’s understated and elegant, whether on its own or part of a matching appliance set. Pair with a Vacuum Seal Drawer for the ultimate kitchen solution. Pair with a Vacuum Seal Drawer for the ultimate kitchen solution.
From Steam to Sous Vide
Fine amounts of steam are released with accuracy and precision at a range of temperatures, to ensure food is cooked gently and evenly. Perfect for entertaining, you can sous vide proteins such as steak and salmon before guests arrive, and simply sear when ready to serve. The flexibility of timing and accuracy of temperature control ensures perfect, predictable results every time.
Gentle and healthy
Steam functions allow you to cook food in its own juices to retain nutrients, moisture, and flavor. With five steam-only cooking functions including Sous Vide, plus four combi-steam functions, this oven lets you enjoy the benefits of flavorful and healthy restaurant-quality meals at home.
Multi-function flexibility
<>
Cook with confidence
Using the intuitive touchscreen interface, you can cook with a favorite method, a hero ingredient, or a go-to cooking function or recipe. Your oven will guide you through steps, or change temperature and heat type automatically, depending on your selection.
Reheat and restore
Reduce household food waste by reheating foods with steam, which helps to regenerate moisture levels and ensure meals come out fresh and delicious. Use Steam Regenerate to reheat leftover meals such as roast and risotto, while Crisp Regenerate is perfect for refreshing pastries, bread and pizza.
Exceptional convection performance
AeroTechTM circulates heat evenly for a consistent temperature throughout the cavity, while ActiveVent technology ensures optimized moisture levels when using convection functions. Achieve perfect results even when you’re using multiple shelves.
SPECIFICATIONS
Accessories
| Broil pan | 1 |
| Broil rack | 1 |
| Descale solution | 2 sachets, Part 580925 |
| Food probe | 1 |
| Full extension sliding shelves | 2 sets |
| Grid | 1 |
| Large solid dish | 1 |
| Perforated large pan | 1 |
| Perforated sheet | 1 |
| Perforated small pan | 1 |
Capacity
| Shelf positions | 6 |
| Total capacity | 3cu ft |
| Usable capacity | 2.5cu ft |
Cleaning
| Acid-resistant graphite enamel | • |
| Descale cycle | • |
| Drying cycle | • |
| Removable oven door | • |
| Removable oven door inner | • |
| Removable shelf runners | • |
| Steam clean (oven) | • |
Controls
| Adjustable audio and display | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Connected Fisher and Paykel | • |
| Electronic clock | • |
| Electronic oven control | • |
| Food probe | • |
| Guided cooking by food type | • |
| Intuitive touchscreen display | • |
| Multi-language display | UK English, US English, |
| Precise electronic temperature | • |
| Sabbath mode | • |
| Wi-Fi connectivity | • |
Functions
| Aero Bake | • |
| Aero Broil | • |
| Air fry | • |
| Bake | • |
| Classic bake | • |
| Crisp regenerate | • |
| Number of functions | 23 |
| Pastry Bake | • |
| Pizza bake | • |
| Roast | • |
| Slow cook | • |
| Sous vide | • |
| Steam | • |
| Steam clean (oven) | • |
| Steam defrost | • |
| Steam proof | • |
| Steam regenerate | • |
| True Aero | • |
| True Aero + High steam | • |
| True Aero + Low steam | • |
| True Aero + Medium steam | • |
| Vent bake | • |
| Warm | • |
Performance
| ActiveVent™ system | • |
| AeroTech™ technology | • |
| Automatic rapid pre-heat | • |
| Broil power | 3000W |
| Broil width | 15″ |
| SteamTechnology | • |
| Temperature range | 95°F –450°F |
| Whisper quiet cooking | • |
Power requirements
| Supply voltage | 208 – 240V |
Product dimensions
| Depth | 22 1/4″ |
| Height | 23 9/16″ |
| Width | 23 7/16″ |
Safety
| Advanced cooling system | • |
| Balanced oven door | • |
| Catalytic venting system | • |
| Control panel key lock | • |
| CoolTouch door | • |
| Non-tip shelves | • |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
