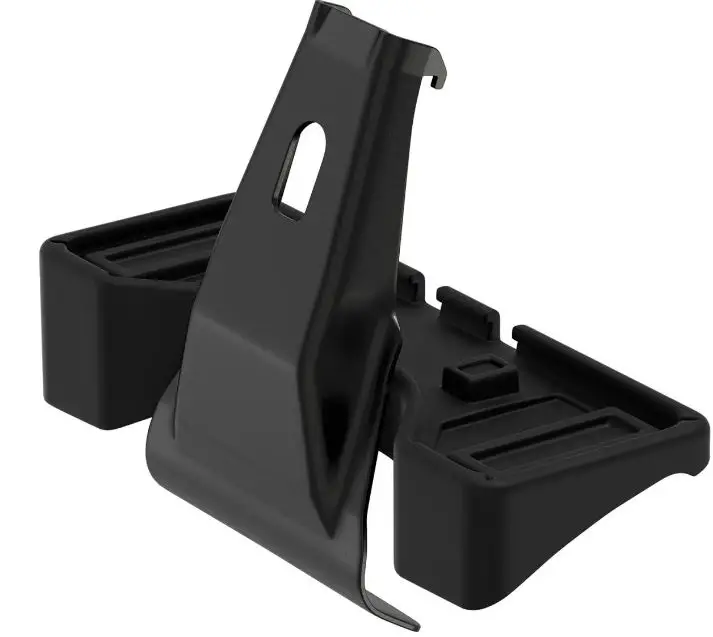

THULE 145271 Fit Kit
Product Information
- Product Name: THULE ProBar Evo
- Product Model: Kit 145271
- Compatible Vehicle Models:
- FORD F-150, 4-dr Pickup, 21-
- FORD F-150 Lightning, 4-dr Pickup, 22-
- FORD F-150, 4-dr Pickup, 15-20
- FORD Super Duty, 4-dr Pickup, 17-
- Product Weight: 7 kg / 15.4 lbs
- Maximum Load Capacity: 75 kg / 165 lbs
- Maximum Driving Speed:
- 130 km/h / 80 mph (recommended)
- 80 km/h / 50 mph (with caution)
- Manufacturer: Thule Sweden AB
- Manufacturer Address: Borggatan 5, 335 73 Hillerstorp, SWEDEN
- Manufacturer Website: www.thule.com
- Manufacturer Part Number: 5560637003
Product Usage Instructions
- Ensure that the THULE ProBar Evo kit is compatible with your vehicle model listed above.
- Locate the foot pack included in the kit. You will find two-foot packs.
- Refer to the provided instructions for the correct installation of the foot packs.
- Attach the foot packs securely to the designated mounting points on your vehicle.
- Take the THULE ProBar Evo bars and position them on top of the foot packs.
- Align the bars with the foot packs and press down until they click into place.
- Ensure that the bars are securely fastened to the foot packs.
- Check that the bars are evenly positioned and parallel to each other.
- Verify that the maximum load capacity of 75 kg / 165 lbs is not exceeded when placing items on the bars.
- Before driving, make sure that the bars and foot packs are properly installed and tightened.
- Observe the recommended maximum driving speed of 130 km/h / 80 mph. If driving at higher speeds, exercise caution.
ISO 11154-E

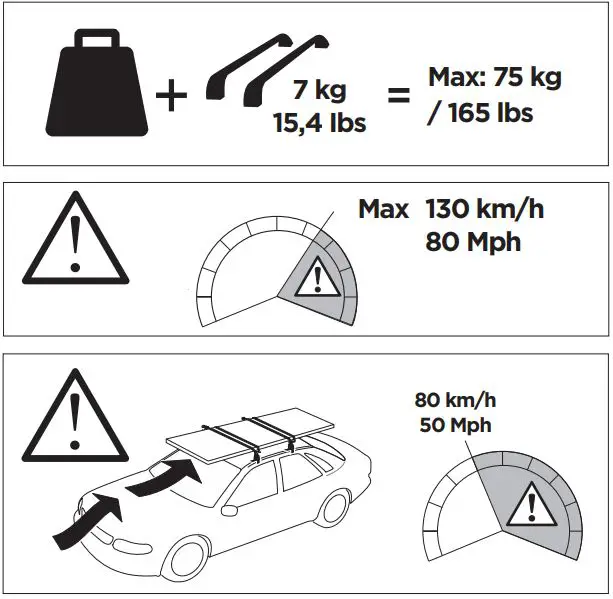

WEIGHT AND CAPACITY
Kit 145271
- FORD F-150, 4-dr Pickup, 21-
- FORD F-150 Lightning, 4-dr Pickup, 22-
- FORD F-150, 4-dr Pickup, 15-20
- FORD Super Duty, 4-dr Pickup, 17-

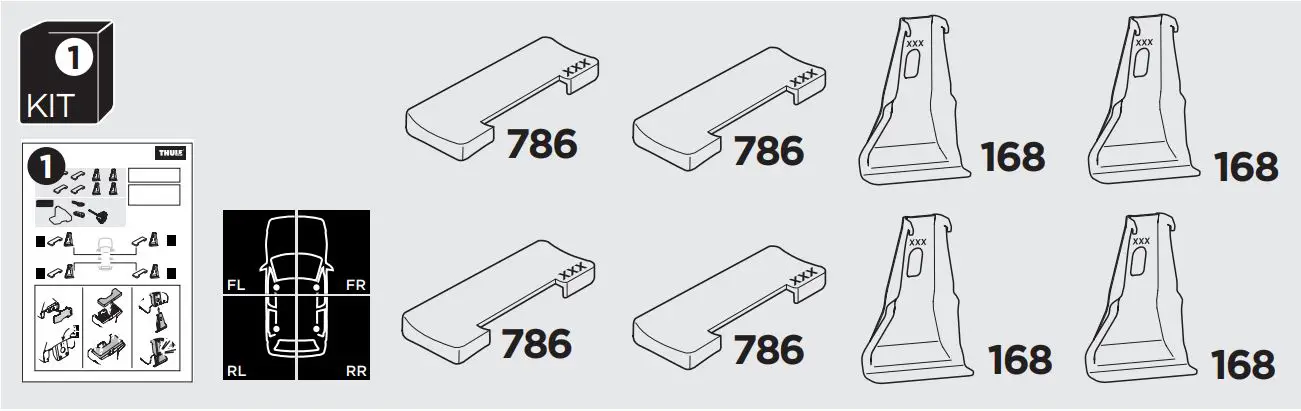

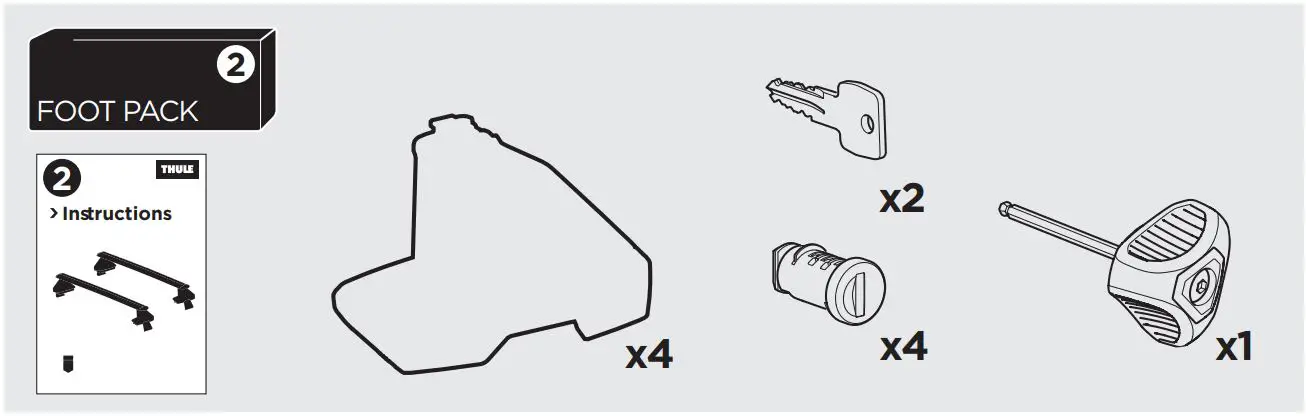

WHAT’S IN THE BOX
REQUIRED TOOLS

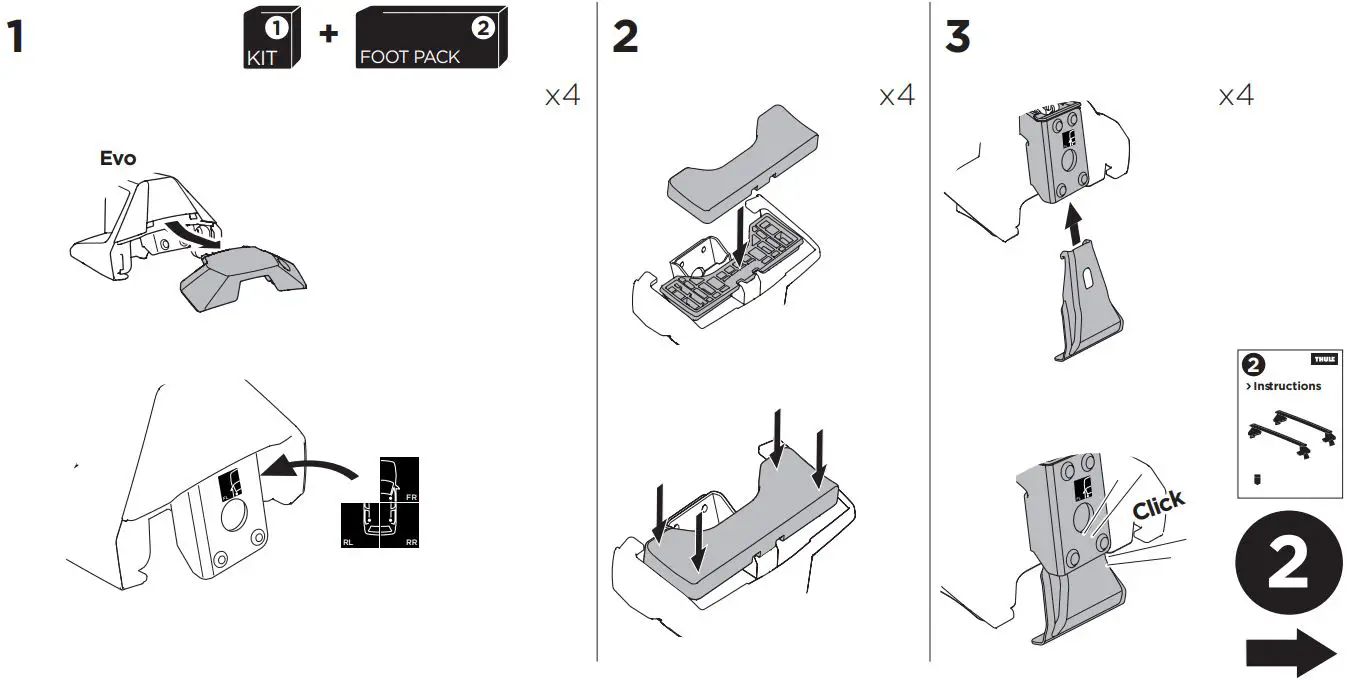

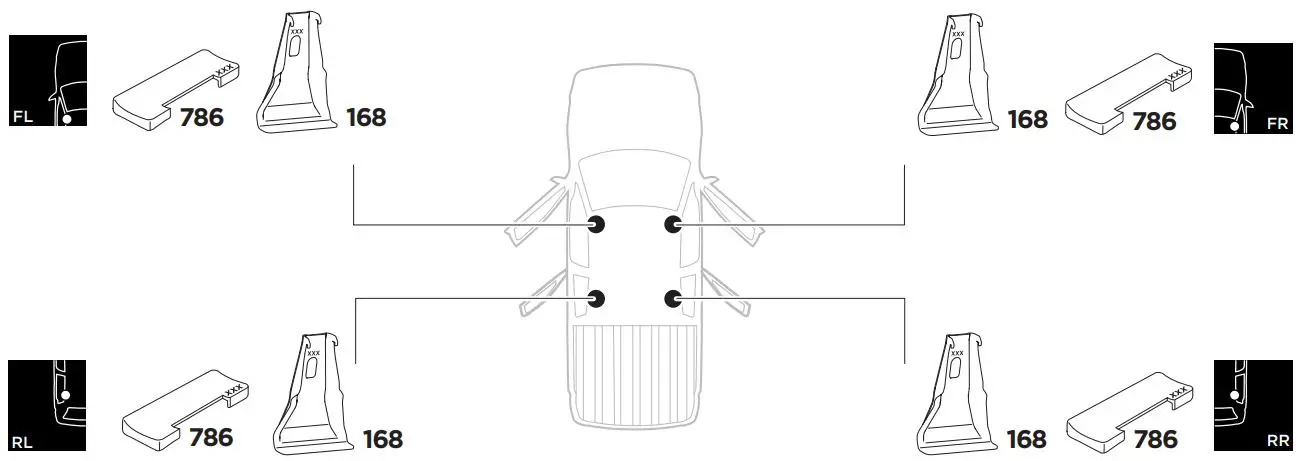

INSTALLATION

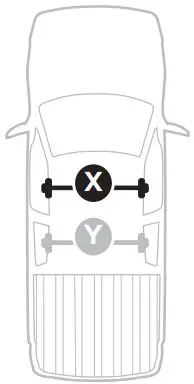

 | X (mm/inch) |
| FORD F-150, 4-dr Pickup, 21- | 1321 mm / 52“ |
| FORD F-150 Lightning, 4-dr Pickup, 22- | 1321 mm / 52“ |
| FORD F-150, 4-dr Pickup, 15-20 | 1321 mm / 52“ |
| FORD Super Duty, 4-dr Pickup, 17- | 1326 mm / 52 1/4“ |

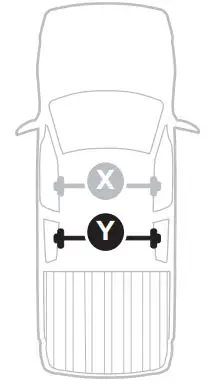

| Y (mm/inch) |
| FORD F-150, 4-dr Pickup, 21- | 1321 mm / 51 3/4“ |
| FORD F-150 Lightning, 4-dr Pickup, 22- | 1321 mm / 51 3/4“ |
| FORD F-150, 4-dr Pickup, 15-20 | 1316 mm / 51 3/4“ |
| FORD Super Duty, 4-dr Pickup, 17- | 1321 mm / 52“ |

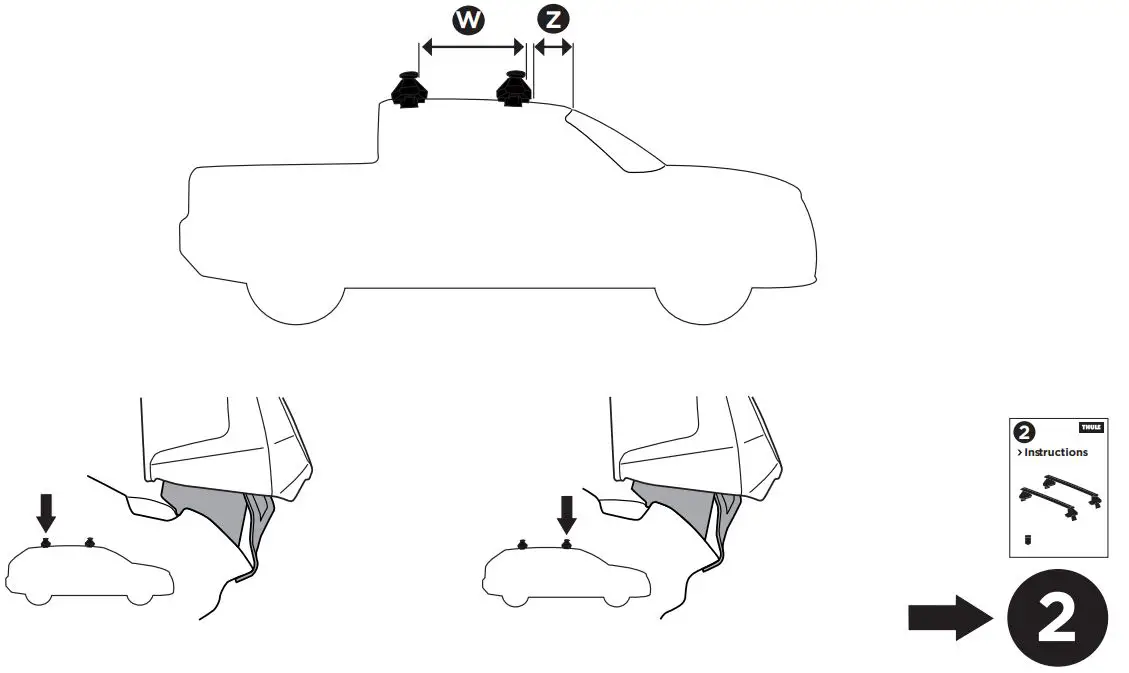

| W (mm/inch) | Z (mm/inch) |
| FORD F-150, 4-dr Pickup, 21- | 700 mm / 27 1/2“ | 340 mm / 13 3/8“ |
| FORD F-150 Lightning, 4-dr Pickup, 22- | 700 mm / 27 1/2“ | 340 mm / 13 3/8“ |
| FORD F-150, 4-dr Pickup, 15-20 | 700 mm / 27 1/2“ | 340 mm / 13 3/8“ |
| FORD Super Duty, 4-dr Pickup, 17- | 700 mm / 27 1/2“ | 340 mm / 13 3/8“ |
Thule Sweden AB, Borggatan 5 335 73 Hillerstorp, SWEDEN
[email protected] © Thule Group 2022. All rights reserved.
www.thule.com 5560637003
