Thule 145247 Fit Kits Instructions

Thule 145247 Fit Kits Instructions

THULE-logo

THULE 145247 Fit Kits

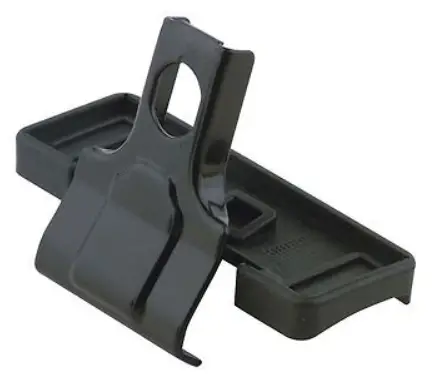

THULE-145247-Fit-Kits-product

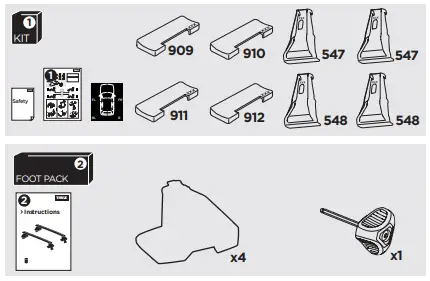

WHAT’S IN THE BOX

THULE-145247-Fit-Kits-fig-1

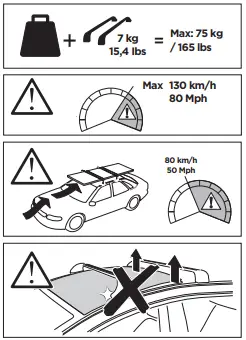

WARNINGS

THULE-145247-Fit-Kits-fig-2

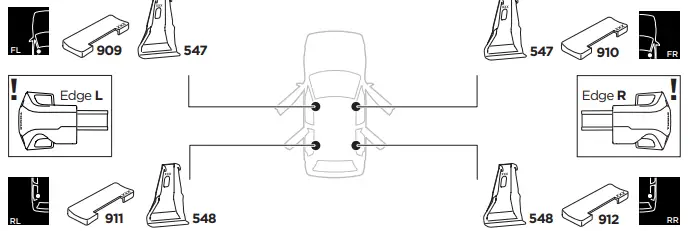

INSTRUCTIONS

THULE-145247-Fit-Kits-fig-3

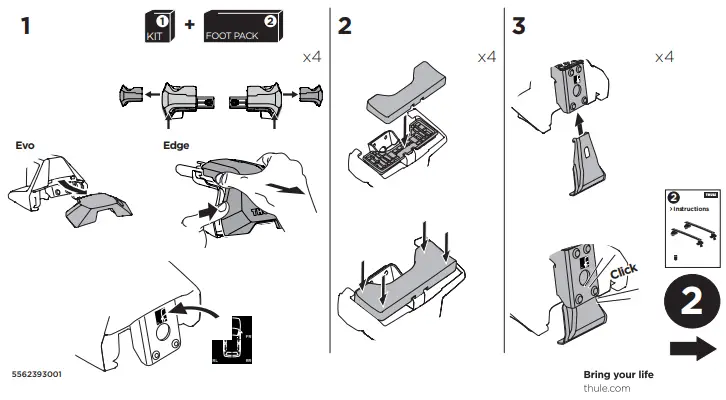

INSTALLATION

THULE-145247-Fit-Kits-fig-4

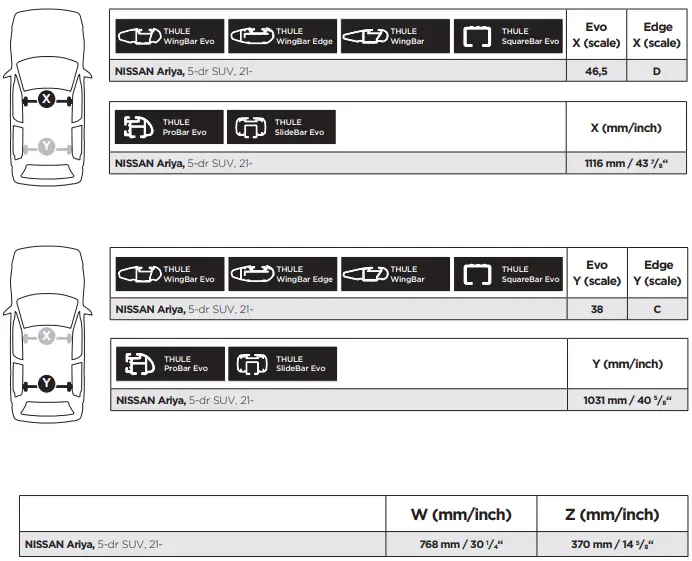

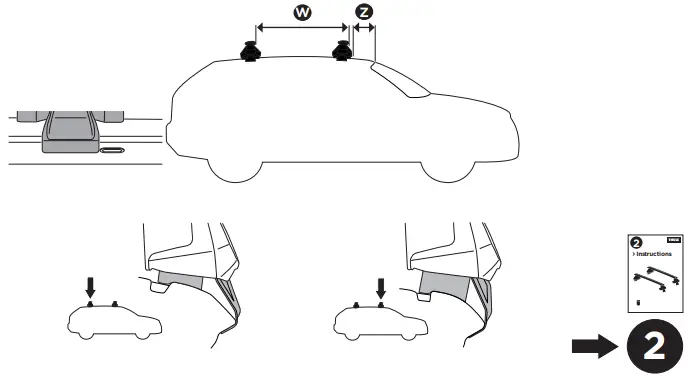

DIMENSIONS

THULE-145247-Fit-Kits-fig-5THULE-145247-Fit-Kits-fig-6

Thule Sweden AB, Borggatan 5
335 73 Hillerstorp, SWEDEN
[email protected] www.thule.com
© Thule Group 2022. All rights reseved.
