THULE Kit 145175 Custom Fit Kit for Roof Rack System
Product Usage Instructions
- Step 1: Install the foot pack onto the vehicle roof according to the included instructions. Use a total of four foot packs.
- Step 2: Attach the THULE WingBar Evo or THULE WingBar Edge to the foot packs. Use the following measurements for the specific vehicle models:
| Vehicle Model | THULE WingBar Evo Length | THULE WingBar Edge Length |
|---|---|---|
| HONDA HR-V, 5-dr SUV, 15-21 / 16-22* | 1066 mm / 42″ | 1016 mm / 40″ |
| HONDA Vezel, 5-dr SUV, 14-21 | 1066 mm / 42″ | 1016 mm / 40″ |
- Step 3: Secure the load onto the THULE WingBar Evo or THULE WingBar Edge using appropriate accessories.

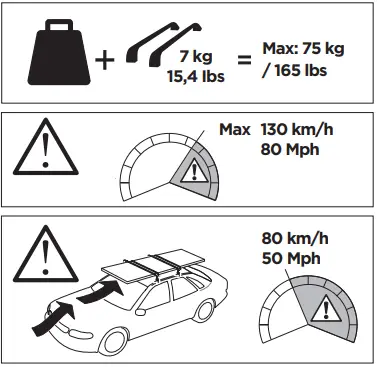

- Step 4: Ensure the load does not exceed the weight capacity of 75 kg / 165 lbs.
- Step 5: Observe the speed limits while driving with the roof rack installed. Do not exceed 130 km/h (80 Mph) or 80 km/h (50 Mph) depending on the country regulations.
- Note: For further instructions and support, refer to the included user manual or visit www.thule.com.
KIT

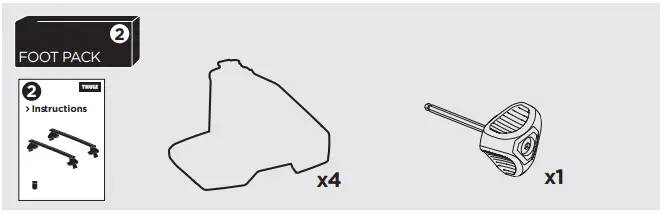

FOOT PACK
PRECAUTION

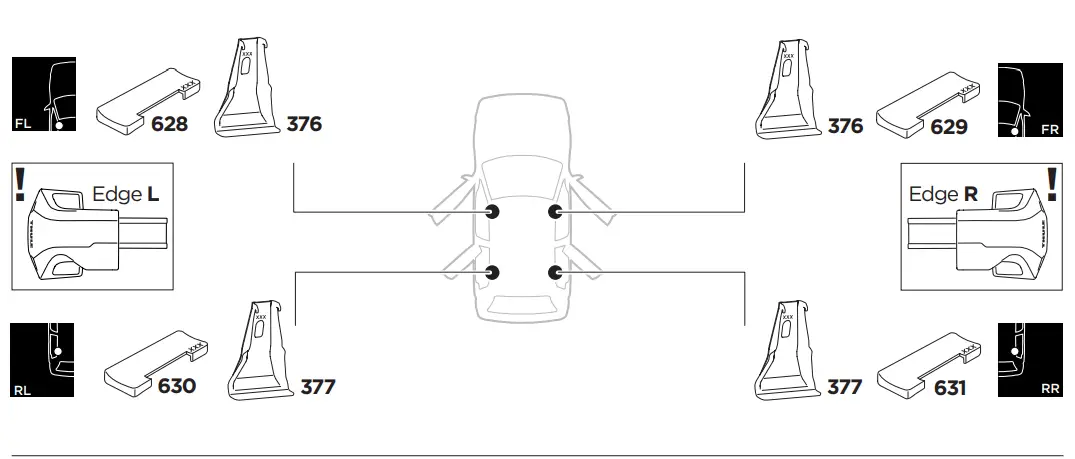

OVERVIEW

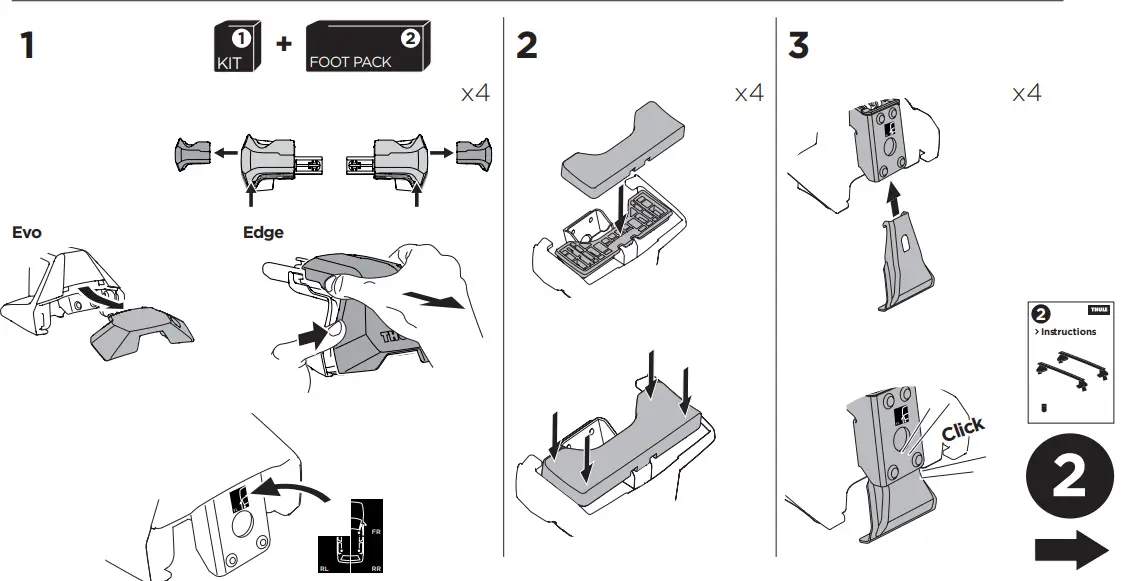

INSTALLATION
DIMENSION
|

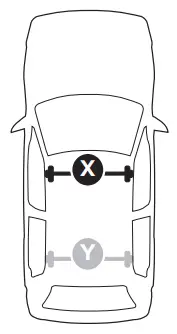

| Evo X (scale) | Edge X (scale) |
| HONDA HR-V, 5-dr SUV, 15-21 / 16-22* | 41,5 | N |
| HONDA Vezel, 5-dr SUV, 14-21 | 41,5 | N |
|
| X (mm/inch) |
| HONDA HR-V, 5-dr SUV, 15-21 / 16-22* | 1066 mm / 42 “ |
| HONDA Vezel, 5-dr SUV, 14-21 | 1066 mm / 42 “ |
|

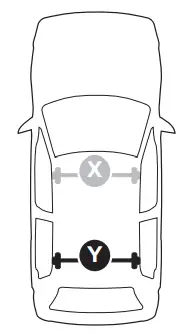

| Evo Y (scale) | Edge Y (scale) |
| HONDA HR-V, 5-dr SUV, 15-21 / 16-22* | 36,5 | F |
| HONDA Vezel, 5-dr SUV, 14-21 | 36,5 | F |
|
| Y (mm/inch) |
| HONDA HR-V, 5-dr SUV, 15-21 / 16-22* | 1016 mm / 40 “ |
| HONDA Vezel, 5-dr SUV, 14-21 | 1016 mm / 40 “ |

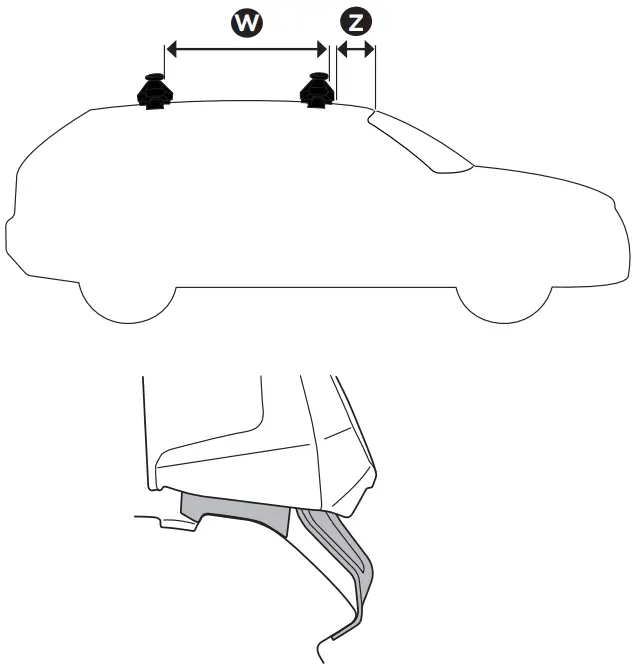

| W (mm/inch) | Z (mm/inch) | |
| HONDA HR-V, 5-dr SUV, 15-21 / 16-22* | 700 mm / 27 1/2“ | 250 mm / 9 7/8“ |
| HONDA Vezel, 5-dr SUV, 14-21 | 700 mm / 27 1/2“ | 250 mm / 9 7/8“ |
