Harbor Freight 57696 Low Voltage Pathway Light Owner's Manual

HARBOR FREIGHT 57696 Low Voltage Pathway Light

IMPORTANT SAFETY INFORMATION

WARNING To prevent serious injury and fire:

1. Install all luminaries 10 feet (3.05m) or more from a pool, spa, or fountain.
2. Install in accordance with local codes and ordinances.
3. Install light securely into the ground prior to use.
4. Assemble only according to these instructions. Improper assembly can create hazards.
5. Wear ANSI-approved safety goggles during installation.
6. Keep assembly area clean and well-lit.
7. Keep bystanders out of the area during assembly.
8. Do not assemble when tired or when under the influence of drugs or medication.
9. This product is not a toy. Do not allow children to play with or near this item.
10. Use as intended only.
11. Maintain product labels and nameplates. These carry important safety information. If unreadable or missing, contact Harbor Freight Tools for a replacement.

Specifications

Landscape Cable Selection Guide

This data is provided as a general guideline.

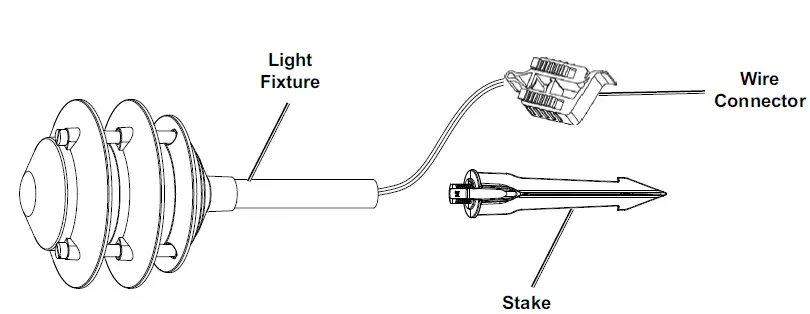

Components

Installation Instructions

WARNING! TO PREVENT SERIOUS INJURY: Verify that the installation surface has no hidden utility lines before installing light fixtures. Main secondary wiring (landscape wire) is intended for shallow burial – less than 6 inches (152mm). Low voltage cable shall:

• be protected by routing in close proximity to the luminaire or fitting, or next to a building structure such as a house or deck;
• not be buried except for a maximum of 6 inches (15.2 cm) in order to connect to the main low voltage cable; and
• have the length cut off so that it is connected to a connector within 6 inches (15.2 cm) from a building structure, a luminaire, or fitting.

1. Layout Light Fixtures in desired locations. The first Light Fixture must be installed at least 10 feet from the power unit.
2. Unplug power unit (sold separately) and layout landscape wire (sold separately) from power unit along the path of Light Fixtures.
3. Installing:
   WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS: Keep away from combustibles.

   • Loosen soil as necessary.
   • Drive Stake with a rubber mallet.
   • Attach Light Fixture to Stake.
4. Wiring:

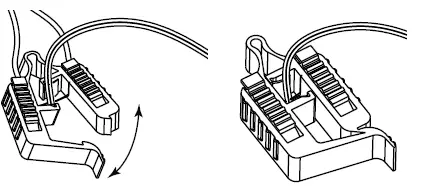

   • Open Wire Connector, place landscape wire in Connector’s jaw.
   • Close Wire Connector so that contact pins pierce both wires.
   • At end of run, cut off excess wire.
5. Follow power unit’s instructions.

Maintenance

Procedures not specifically explained in this manual must be performed only by a qualified technician.

WARNING TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Unplug the power uack from its electrical outlet before performing any procedure in this section.

Cleaning and Maintenance

1. CLEAN PERIODICALLY with a damp towel. Do not clean with chemicals, solvents or harsh abrasives. Do not put too much pressure on the Light Fixture while cleaning.
2. PERIODICALLY, inspect the general condition of the Light Fixture. Check for:
   • loose hardware,
   • misalignment or binding of parts,
   • cracked or broken parts, and
   • any other condition that may affect its safe operation.

Troubleshooting

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

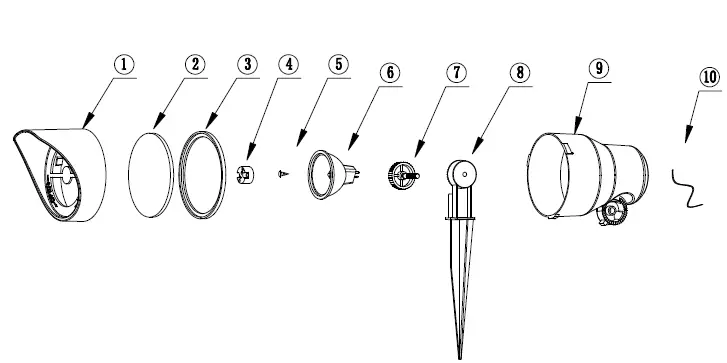

Parts List and Diagram

Parts List

Diagram

Note: If the product has no serial number, record the month and year of purchase instead. Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Specify UPC 193175421289 when ordering parts.

Limited 90 Day Warranty

Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear, and tear, or to lack of maintenance. We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or consequential damages arising from the use of our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS. To take advantage of this warranty, the product or part must be returned to us with transportation charges prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise. If our inspection verifies the defect, we will either repair or replace the product at our election or we may elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will return repaired products at our expense, but if we determine there is no defect, or that the defect resulted from causes not within the scope of our warranty, then you must bear the cost of returning the product. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
