Deviceon Embedded Mini-ITX Chassis with One Expansion Slot User Manual
Features
- Supports Intel ® 7th & 6th Gen Core™ i processor (LGA1151) with Intel Q170
- Two 260-pin SO-DIMM up to 32GB DDR4 2133 MHz SDRAM
- Supports triple display of VGA/DP/HDMI
- One expansion slot (low profile)
- Reserved 4 USB, 1 COM, punchouts on front panel
- Two Shock Resistant 2.5″ drive bays
- Two SKUs, to support both ATX power supply & AC-DC power adaptor
• Note: CE (No RED certification)

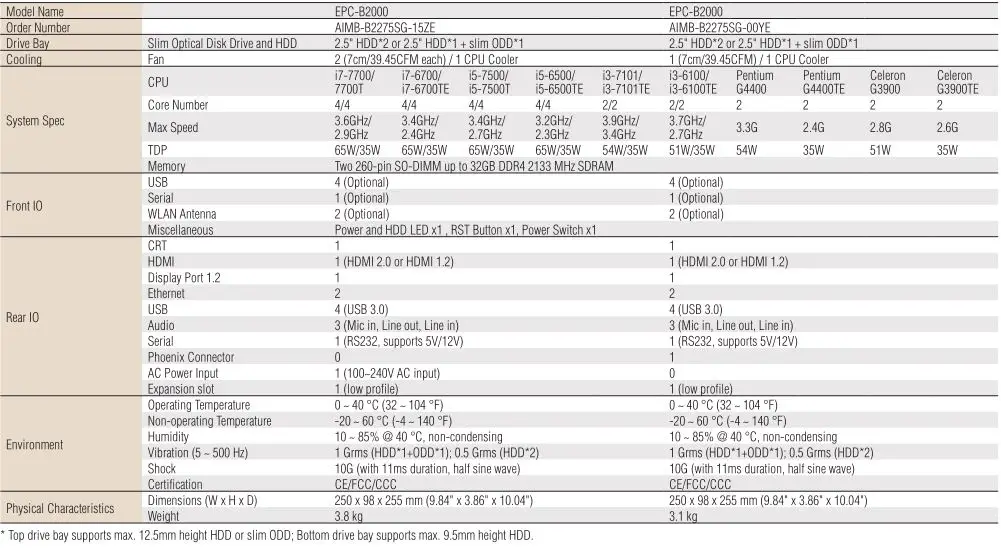

Specifications
Front View
Rear View

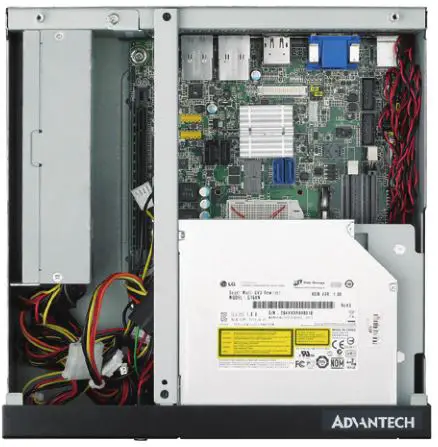

Internal View
Industrial Motherboards & Systems
All product specifications are subject to change without notice.

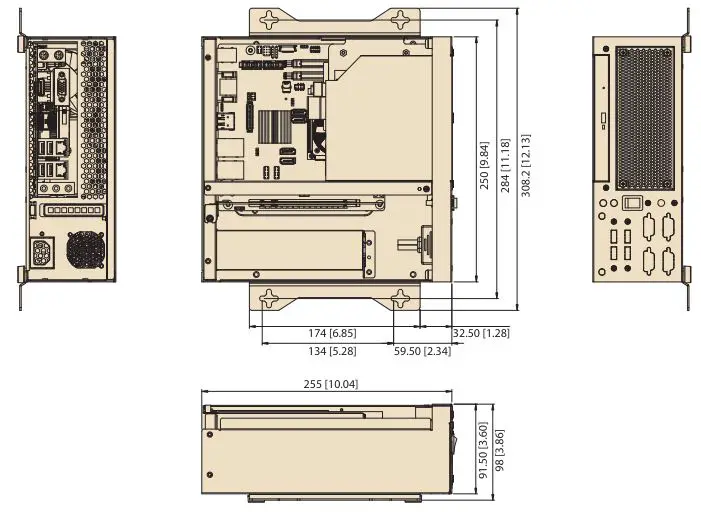

Dimensions
Ordering Information
Power Supply Options

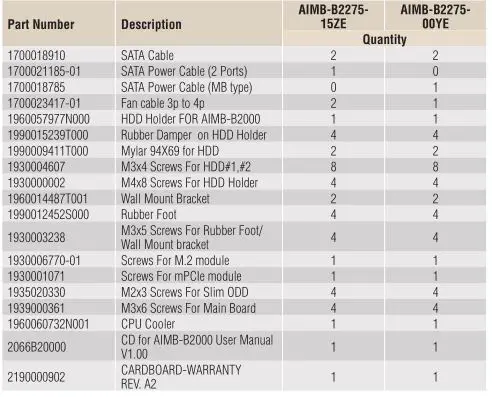

Packing List

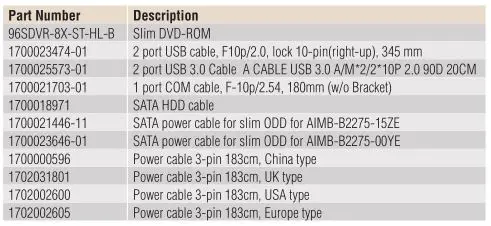

Optional Accessories
Online Download
www.advantech.com/products
