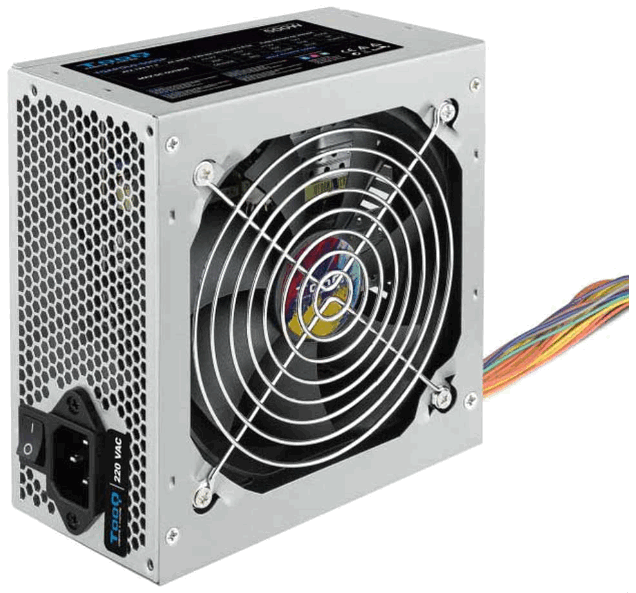

Tooq Tqapolo-500sp 500w Power Supply Atx User Manual

POWER SUPPLY ATX
User manualTQAPOLO-500SP/ TQAPOLO-600SP/ TQAPOLO-700SP
TQAPOLO-650SP/ TQAPOLO-750SP

ATX Power Supplies

• TQAPOLO-500SP
• TQAPOLO-650SP
• TQAPOLO-600SP
• TQAPOLO-750SP
• TQAPOLO-700SP

Specifications

• Type: Intel ATX 12V V2.31. *Model TQAPOLO-500SP: ATX 12V V1.3.
• Input voltage: 220 VAC.
• Input frequency range: 50Hz ~ 60Hz.
• 140 mm fan with double row of ball bearings and automatic speed control.
  *Models TQAPOLO-600SP and TQAPOLO-500SP: 120 mm fan.
• Efficiency: >78% up to 83%. *Model TQAPOLO-500SP: >75% up to 80%.
• Active PFC. *Model TQAPOLO-500SP: passive.
• MTBF: >10,000 hours.
• Dimensions: 160 x 150 x 85 mm.
  *Models TQAPOLO-600SP and TQAPOLO-500SP: 150 x 140 x 85 mm.
• Operating temperature: 0 – 40ºC.
• Meshed cables. *Only in models TQAPOLO-750SP.
• Rails +12V: 2x + 12V. *Model TQAPOLO-500SP: +12V: 1x +12V.
• Compatible with Crossfire (AMD) / SLI (NVIDIA).
  *Except for models TQAPOLO-500SP and TQAPOLO-600SP.
• Compatible with multicore processor.
• Switch ON/OFF.
• Regulations: CE and ROHS.
• Protection:
  – OVP (over-voltage protection).
  – UVP (low voltage protection).
  – OPP (overload protection).
  – OTP (high temperature protection).
  – SCP (short-circuit protection).
  – OCP (overfeed protection).

Package contents

• 1 x Power supply.
• 1 x User manual.
• 2 x Flanges.
• 5 x Screws.
• 1 x Power cord.

Powers:

Connectors:

Description of connectors:

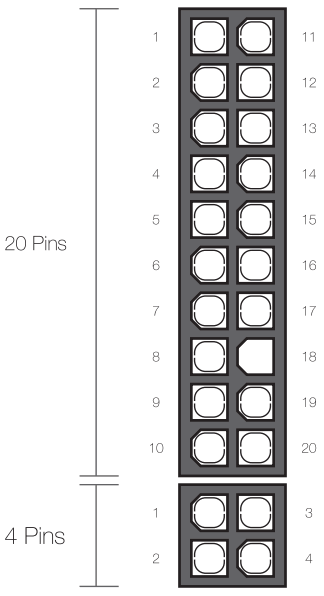

• Connector ATX

	Pin	Description	Color	Pin	Descripción	Color
	1	+3.3V	Orange	11	+3.3V	Orange
					+3.3V	Brown
	2	+3.3V	Orange	12	-12.0V	Blue
	3	COM	Black	13	COM	Black
	4	+5.0V	Red	14	PS-ON	Green
	5	COM	Black	15	COM	Black
	6	+5.0V	Red	16	COM	Black
	7	COM	Black	17	COM	Black
	8	P.G.	Grey	18	——	——
	9	+5.0VSb	Purple	19	+5.0V	Red
	10	+12.0V	Yellow	20	+5.0V	Red
	1	+12.0V	Yellow	3	+5.0V	Red
	2	+3.3V	Orange	4	COM	Black

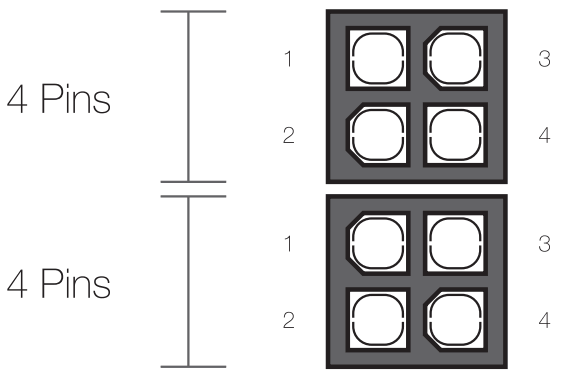

• Connector EPS/ATX 12V

	1	Description	Black	Pin	Description	Color
	2	COM	Black	3	+12.0V	Yellow
	3	COM	Black	4	+12.0V	Yellow
	1	COM	Black	3	+12.0V	Yellow
	2	COM	Black	4	+12.0V	Yellow

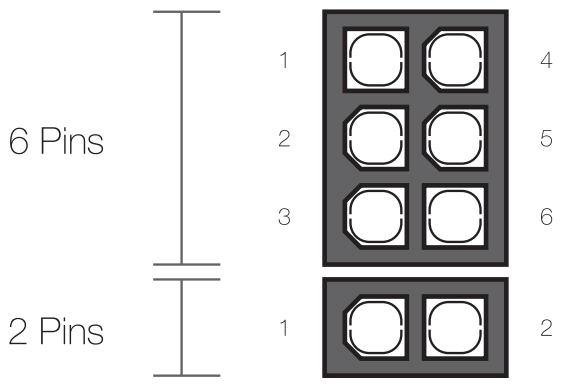

• Connector PCI-e (6+2-pins)

	Pin	Description	Color	Pin	Description	Color
	1	+12.0V	Yellow	4	COM	Black
	2	+12.0V	Yellow	5	COM	Black
	3	+12.0V	Yellow	6	COM	Black
	1	COM	Black	2	COM	Black

• Connector PCI-e (6-pins)

	Pin	Description	Color	Pin	Description	Color
	1	+12.0V	Yellow	4	COM	Black
	2	+12.0V	Yellow	5	COM	Black
	3	+12.0V	Yellow	6	COM	Black

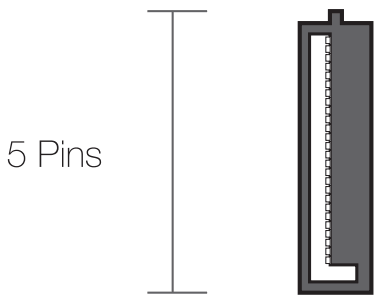

• Connector SATA

	Pin	Description	Color
	1	+3.3V	Orange
	2	COM	Black
	3	+5.0V	Red
	4	COM	Black
	5	+12.0V	Yellow

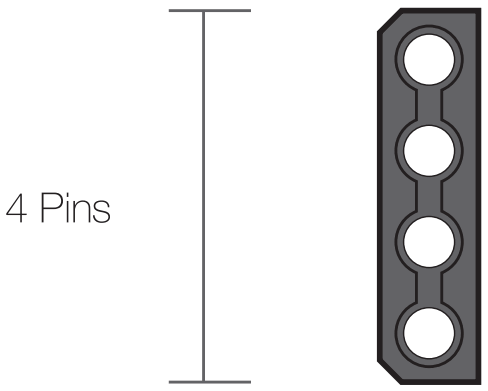

• Connector MOLEX

	Pin	Description	Color
	1	+12.0V	Yellow
	2	COM	Black
	3	COM	Black
	4	+5.0V	Red

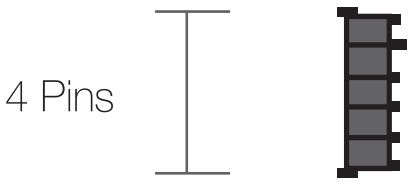

• Connector FDD

	Pin	Description	Color
	1	+12.0V	Yellow
	2	COM	Black
	3	COM	Black
	4	+5.0V	Red

Power supplies are intended to be installed by professional staff or technical service.
Basic guidelines for installation and started:

1. Following the instructions on the PC case, open it and remove the previous power supply by disconnecting all the connections and removing the screws that secure the power supply to the PC. Then place the new power supply in the same place.
2. Locate and connect the ATX, 20 or 20+4 pin main connector on the motherboard. If the motherboard has only 20 pins, separate the additional 4 pins.
3. Perform the same process with the secondary cable that supplies an additional 12V. This cable usually has 8 pins (4 + 4), but only four may be required depending on the type of motherboard.
4. Connect each of the hard drives and optical drives using the SATA, MOLEX or FDD connectors provided for them. Keep in mind that each device requires its power and data cable to be connected.
5. Finally, if you have a graphic card that requires additional power, locate and connect the PCI-e (6-pin) or (6+2-pin) connector on your graphic card. Allowing the separation of these additional 2 pins depending on the power you need.
6. Once the installation is complete, connect the power cord to the power and set the switch to “I” position, then turn on the computer.

Warranty:
TooQ offers a 24 months warranty from the time of purchase, so it is necessary to have the ticket or invoice where the date appears. The distributor or seller where you purchased this product will respond to your claim and offer your technical service while the warranty is in effect.
Out of warranty:
The warranty does not cover damage or defects caused to the power supply due to:

• Do not follow the user manual.
• Modifications or alterations of any kind.
• High and low temperatures, humidity or contact with liquids.
• Supplying an incorrect voltage.
• Using a device other than a computer.

The warranty does not cover damage or defects caused by your minuse. If you are not familiar with your installation, we recommend that you ask a professional for help.

• AII specifications are subject to change without notice.
• Products may not be available in all markets.
• Product color and bundled software versions are subject to change without notice.
• Brand and product names mentioned are trademarks of their respective companies.
• For morer information, consult our website www.tooq.com.

©2022 by TooQ Technology, S.L.
Released in 2022/02.
AII Rights Reserved.
