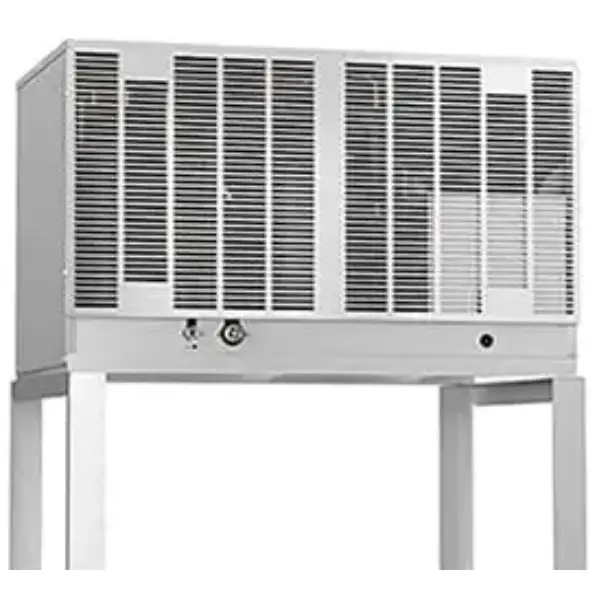

HOSHIZAKI SRC-14J Remote Condenser
Auxiliary Codes
SRC-14J
H-0 July 2018
J-0 January 2019
K-0 January 2020
L-0 January 2021
M-0 January 2022
Auxiliary Code Breakdown
The auxiliary code is the first two characters in the serial number. The first character indicates the year. Years progress or regress in alphabetical order. The series runs from “A” through “V” and the letters “I” and “O” are skipped. The second character indicates significant part changes within a year. Base is “0” and this number advances for each change. In cases where there is a letter in parentheses, this designates the month. This is the last character in the serial number. The series runs from “(A)” through “(M)” and the letter “(I)” is skipped. This designation is only included when identifying a parts change within an auxiliary code.
Note About Ordering Parts
Most assemblies cannot be ordered as complete units; parts in the assemblies generally must be ordered separately.

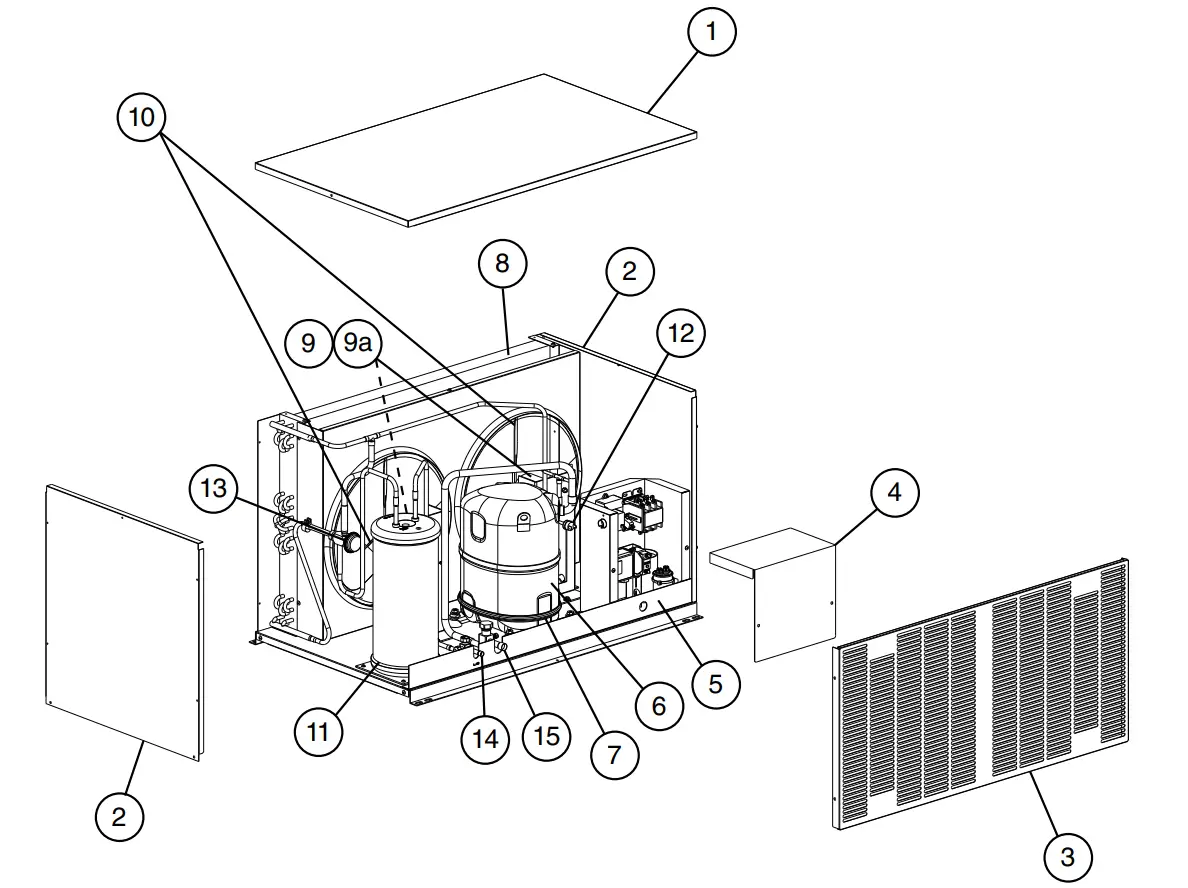

A. Main Assembly & Refrigeration Circuit
SRC-14J
H-0 to M-0
| Title: A. Main Assembly & Refrigeration Circuit Model: SRC-14J | ||||||||||||
| Index No. | Description | Material or Model Number | Part Number | Required Number | ||||||||
| H-0 to M-0 | ||||||||||||
| Condensing Unit | ||||||||||||
| 1 | Top Panel | 3A5858-01 | 1 | |||||||||
| 2 | Side Panel | 3A5855-01 | 2 | |||||||||
| 3 | Louver Panel | 213968-01 | 1 | |||||||||
| 4 | Control Box Cover | 3A3182-01 | 1 | |||||||||
| 5 | Front Frame | 4A6295-01 | 1 | |||||||||
| Refrigeration Circuit | ||||||||||||
| 6 | Compressor (Utilize external crankcase heater-item 7) | 4A4134-03 | 1 | |||||||||
| 7 | Crankcase Heater | 4A5397-02 | 1 | |||||||||
| 8 | Condenser | 104TT7-02 | 1 | |||||||||
| 9 | Fan Motor | 4A3201-01 | 2 | |||||||||
| 9a | Self Locking Nut | 7N2110832 | 8 | |||||||||
| 10 | Fan Blade | 4A1493-01 | 2 | |||||||||
| 11 | Receiver | 4A6214-01 | 1 | |||||||||
| 12 | High-Pressure Switch | 463180-04 | 1 | |||||||||
| 13 | Headmaster (C.P.R) | 4A0229-04 | 1 | |||||||||
| 14 | Liquid Line Shut Off Valve | 4A3491-01 | 1 | |||||||||
| 15 | Suction Line Shut Off Valve | 4A3490-01 | 1 | |||||||||

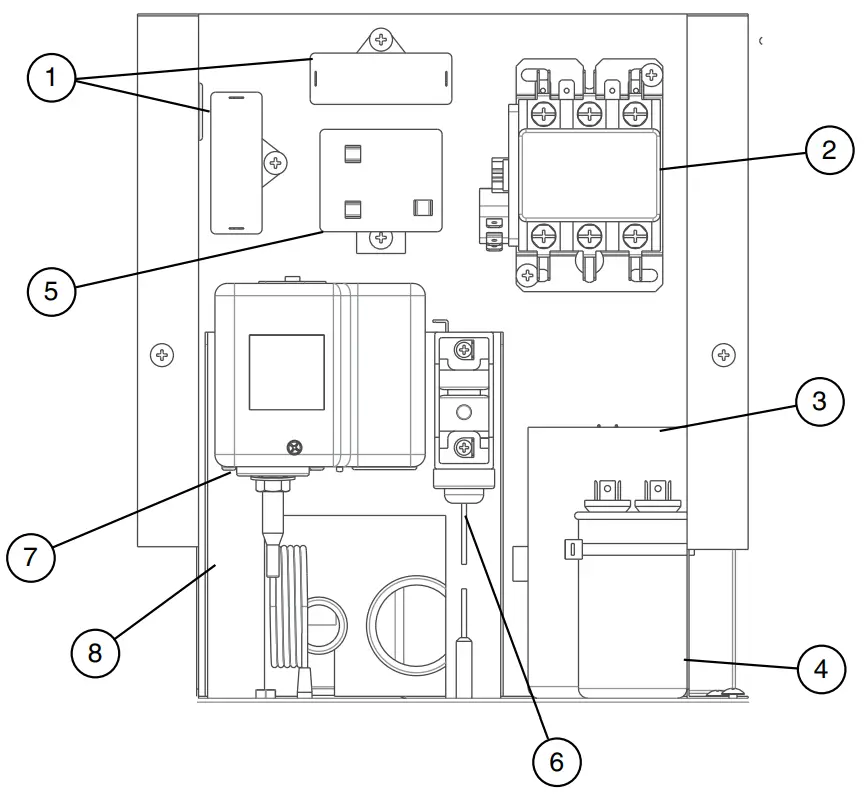

B. Control Box Assembly
SRC-14J
H-0 to M-0
| Title: B. Control Box Assembly Model: SRC-14J | ||||||||||||
| Index No. | Description | Material or Model Number | Part Number | Required Number | ||||||||
| H-0 to L-0 (C) | L-0 (D) to L-0 (H) | L-0 (J) to M-0 (B) | M-0 (C) | |||||||||
| 1 | Fan Motor Capacitor | 10MFO, 250VAC | 4A6435-01 | 2 | 2 | 2 | 2 | |||||
| 2 | Magnetic Contactor | 4A0794-01 | 1 | 1 | 1 | 1 | ||||||
| 3 | Slart Capacitor | 145-174MFD, 220VAC | 3A0076-11 | 1 | 1 | 1 | 1 | |||||
| 4 | Run Capacitor | 30MFD, 370VAC | 3A2005-03 | 1 | 1 | 1 | 1 | |||||
| 5 | Start Relay | 4A1107-13 | 1 | 1 | 1 | 1 | ||||||
| 6 | Safety Low-Pressure Switch | 4A3497-01 | 1 | 1 | 1 | 1 | ||||||
| 7 | Control Low-Pressure Switch | SP-5623 | 4A5353G01 | 1 | 1 | |||||||
| 4A6065-01 | 1 | 1 | ||||||||||
| 8 | Low-Pressure Switch’s Bracket | SP-5623 | 4A3518-01 | 1 | 1 | |||||||
| 4A7054-01 | 1 | 1 | ||||||||||

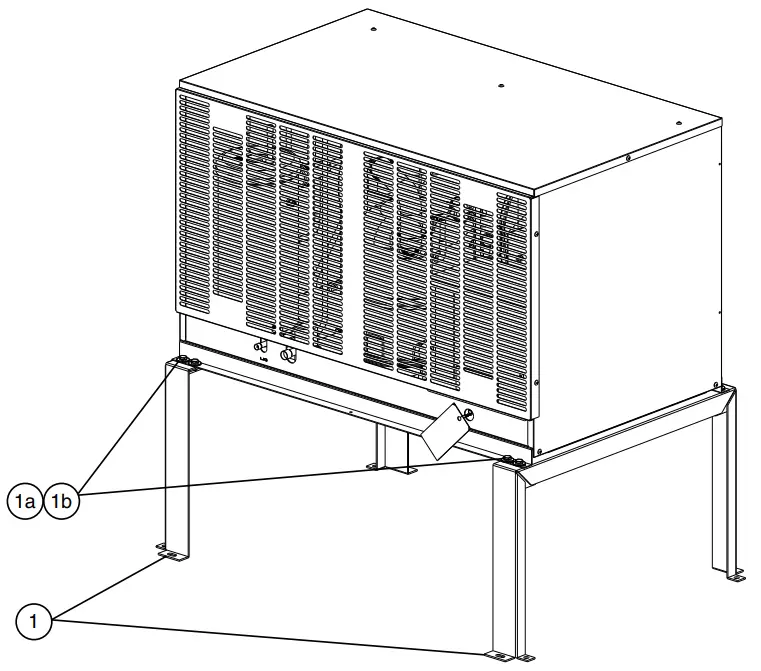

C. Accessories & Labels
SRC-14J
H-0 to M-0
| Title: C. Accessories & Labels Model: SRC-14J | ||||||||||||
| Index No. | Description | Material or Model Number | Part Number | Required Number | ||||||||
| H-0 to M-0 | ||||||||||||
| 1 | Leg | 2A8297G01 | 2 | |||||||||
| 1a | Hex Head Bolt w/ Washer | 8×16, SS | 780230816 | 8 | ||||||||
| 1b | Hex Nut | M8, SS | 7N12-0800 | 8 | ||||||||
Number: 71425
Issued: 1-23-2019
Revised: 3-25-2022
Hoshizaki America, Inc.
