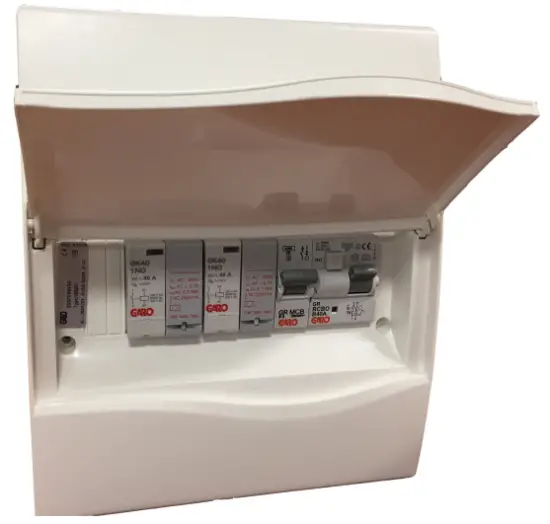

SHOWER BOARDS: CV8-NPS
Non-Priority Shower
Board CV8-NPS
Garo Shower Boards are designed to facilitate the use of two electric showers which are being supplied from a domestic 63A single-phase supply. Both showers may continually use <3kW of power each, however, when one exceeds this power use the Board will automatically cut the power to the second shower thus protecting the main supply fuse.
TECHNICAL DATA
| • Degree of protection. | IP40 |
| • Resistance to impact. | IK08 |
| • Auto-extinguishing degree. | HB (UL94) |
| • Test of resistance to glow wire. | 650° C |
| • Ball pressure test. | 70° C |
According to the 2006/95/CE directive and EN 61439-1 and UNE-EN 61439-3 norms on affected parts.
| NOTES: |
| BOTH SHOWERS MUST BE DRAWING OVER 3KW FOR THE LOAD RELAY TO OPERATE. |
| BOTH SHOWER NEUTRALS ARE TO BE CONNECTED TO THE MAIN NEUTRAL BAR |
| MAINS CABLE TO BE CONNECTED TO THE BOTTOM OF 40A RCBO |

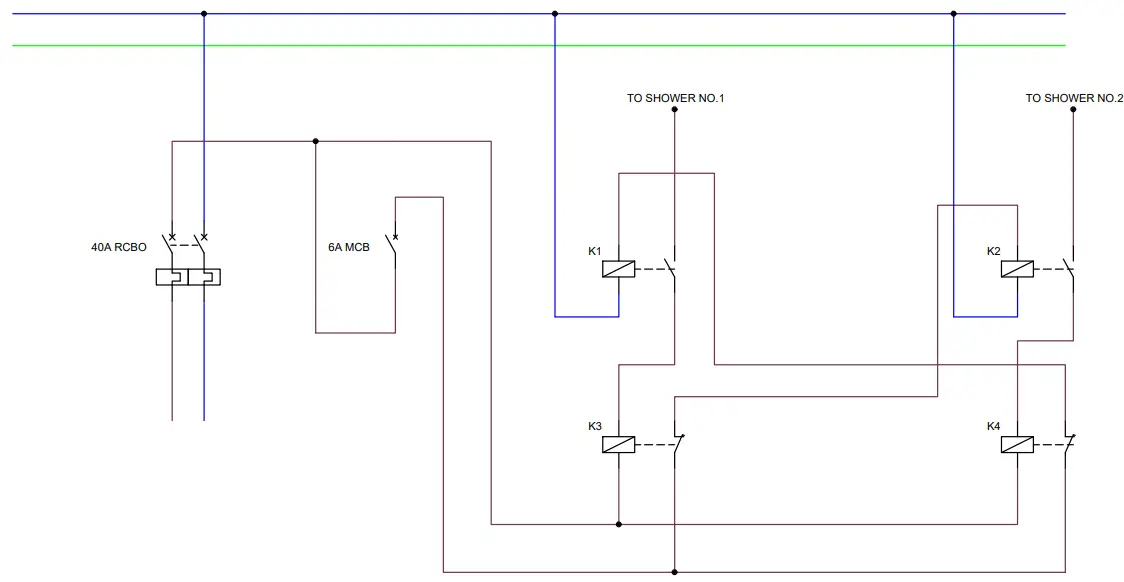

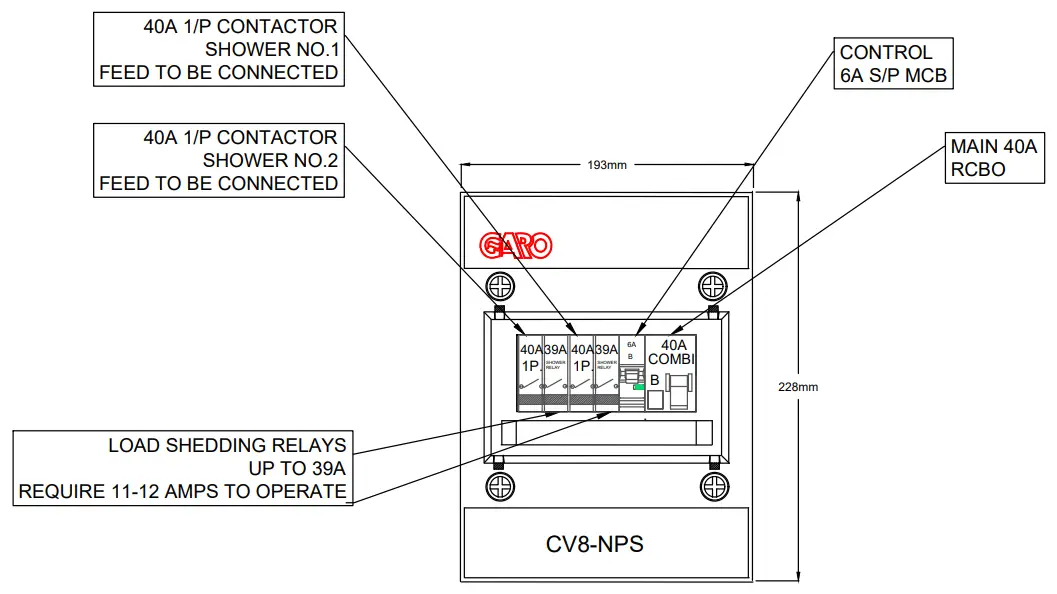

| K1 – 40A 1/P CONTACTOR (SHOWER NO.1) |
| K2 – 40A 1/P CONTACTOR (SHOWER NO.2 |
| K3 – CURRENT SENSING RELAY (SHOWER NO.1) |
| K4 – CURRENT SENSING RELAY (SHOWER NO.2) |
| ****NOTE: UNITS MUST BE DRAWING AT LEAST 11-12 AMPS TO OPERATE |
